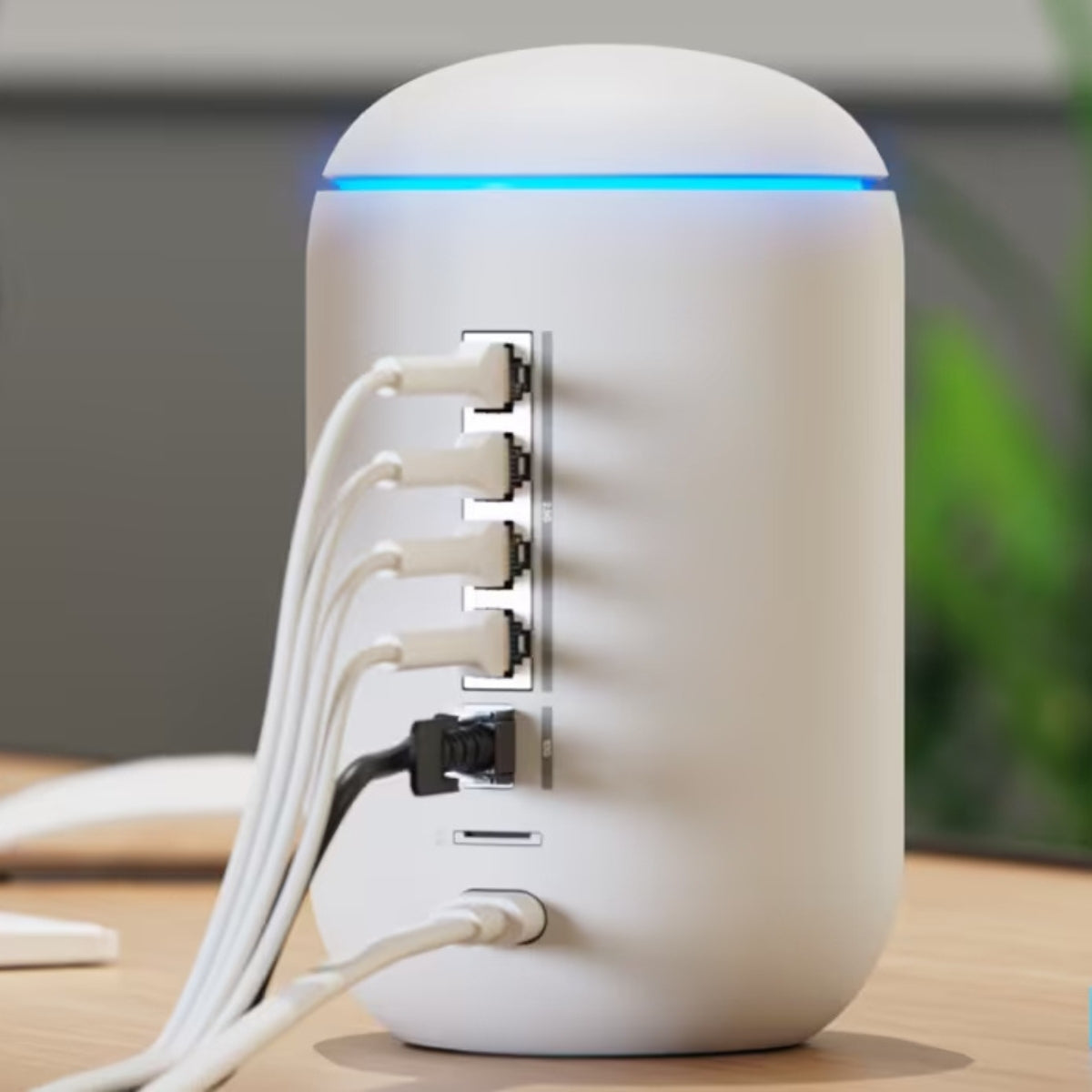

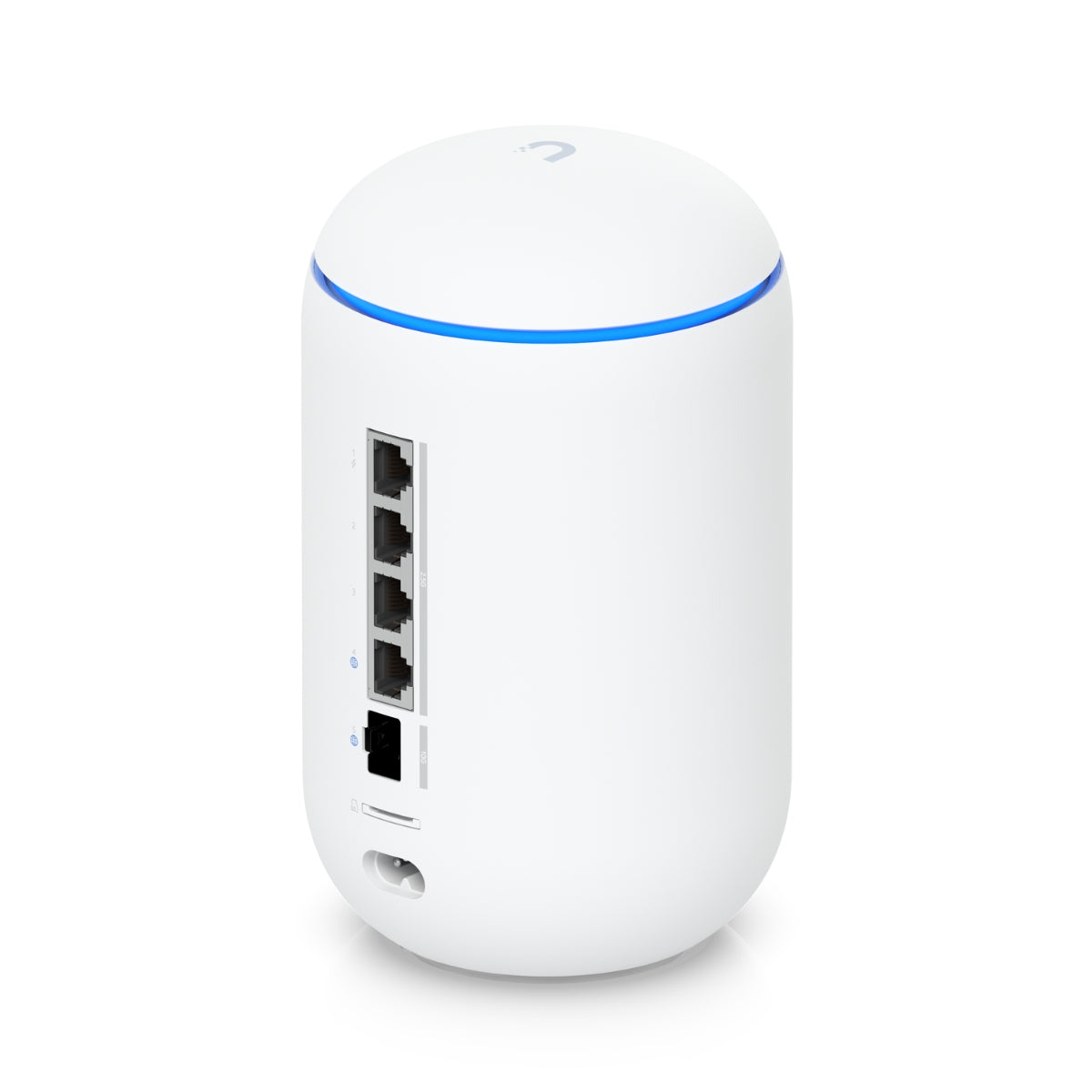

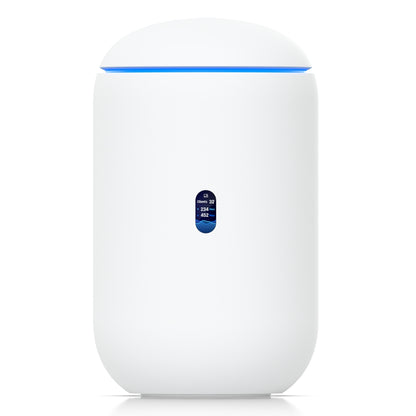

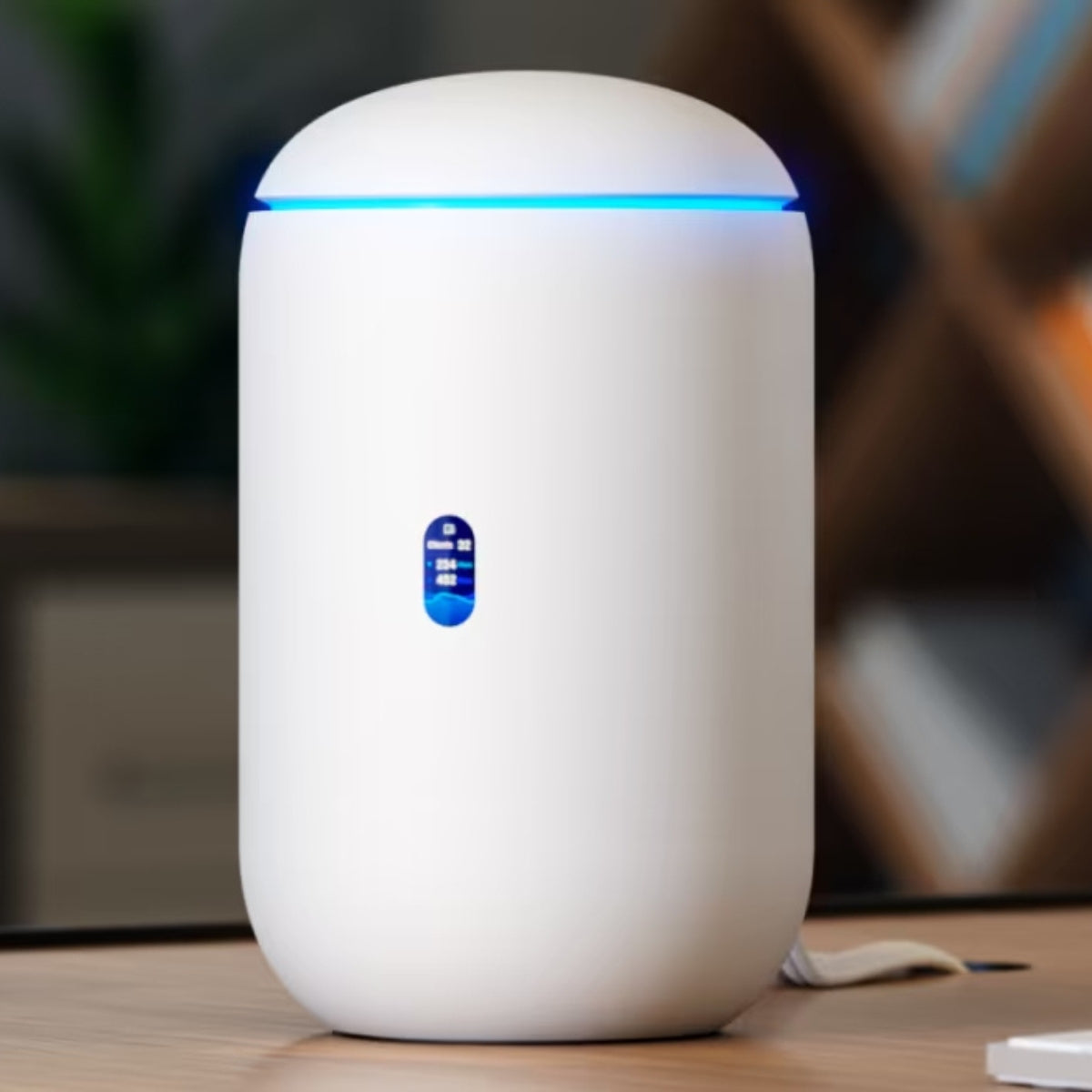

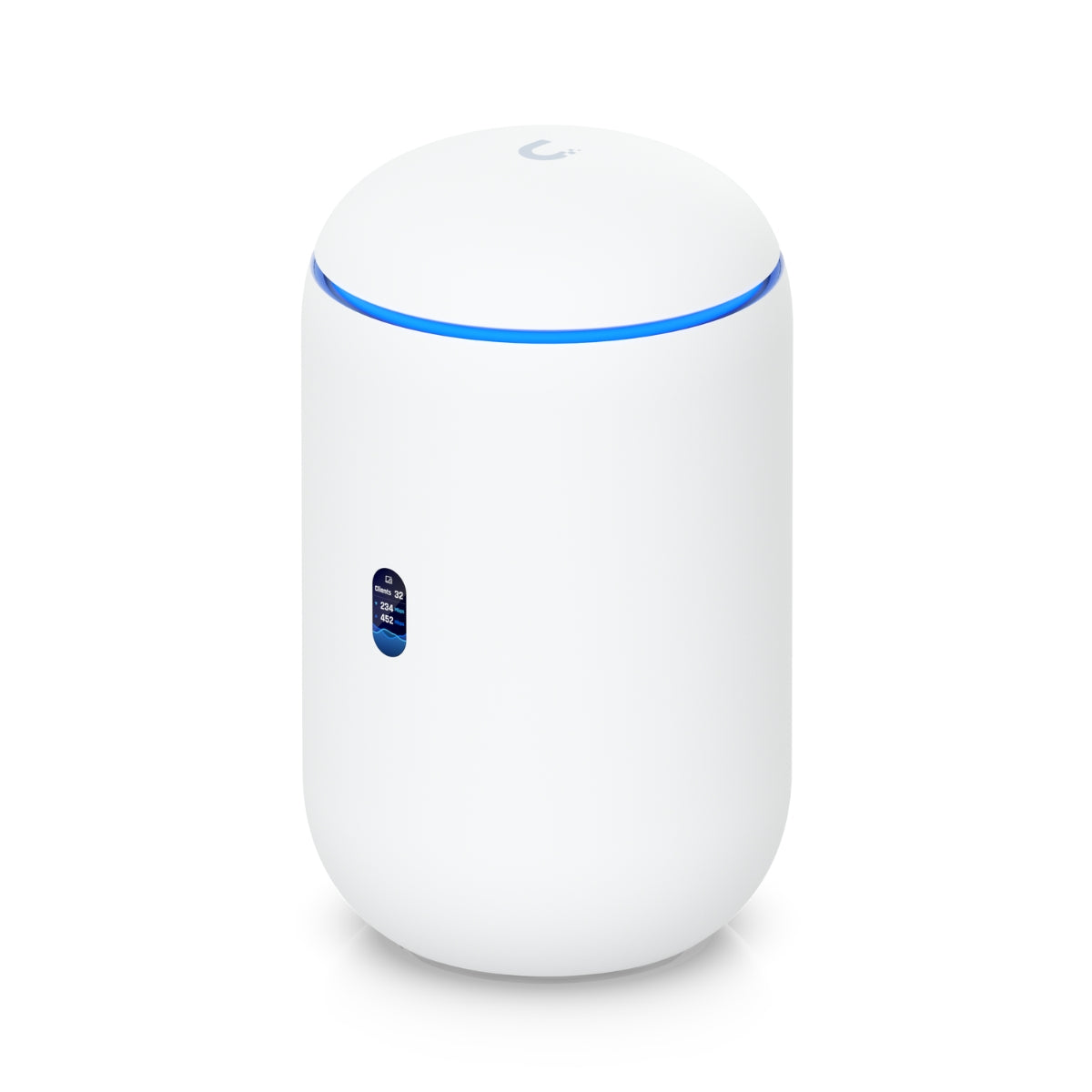

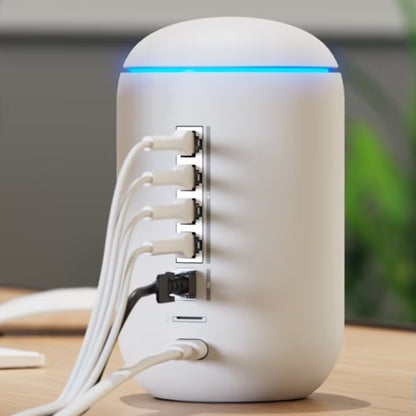

Ubiquiti UDR7 Dream Router 7 White Color, Desktop 10G Cloud Gateway, Wi-Fi 7, Quad-core ARM® Cortex®-A53 at 1.5 GHz Processor, 1x 10G SFP+ & 1x 2.5 GbE RJ45 Ports, PoE Switch

Dimensions:

Ø110 x 184.1 mm (Ø4.3 x 7.3")

UniFi Application Suite:

Network: Yes

Protect: Yes

Access: Yes

Talk: Yes

Connect: Yes

Managed UniFi Devices:

30+

Managed Cameras:

(5) HD, (2) 2K, (1) 4K

Simultaneous Users Connected:

300+

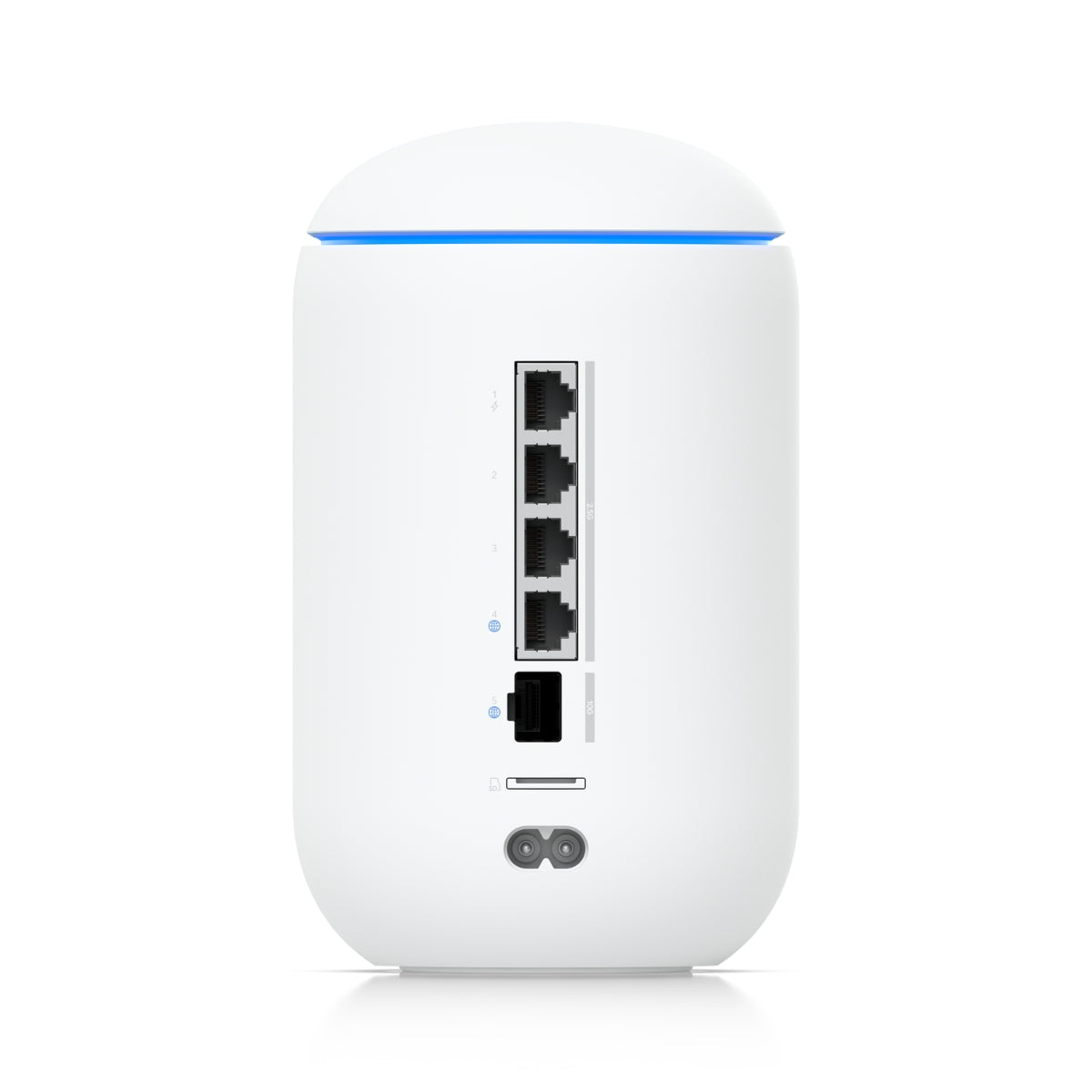

Default WAN Ports:

(1) 10G SFP+, (1) 2.5 GbE RJ45

LAN Ports:

(3) 2.5 GbE RJ45 (including 1 PoE)

IDS/IPS Throughput:

2.3 Gbps

Form Factor:

Compact desktop

Coverage Area:

160 m² (1,750 ft²)

Security:

Stateful Firewall: Yes

Application-Aware Layer 7 Firewall: Yes

DPI & Traffic Identification: Yes

Zone-Based Firewall Filtering: Yes

Content Filtering: Yes

Intrusion Prevention (IPS/IDS): Yes

Ad Blocking: Yes

IDS/IPS Signatures: 20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation: Yes

VPN & SD-WAN:

License-Free SD-WAN: Yes

Site-to-Site VPN (Site Magic): Yes

IPsec: Yes

OpenVPN: Yes

VPN Server (Identity Endpoint): Yes

Teleport Zero-Configuration VPN: Yes

WireGuard: Yes

L2TP: Yes

VPN Client (OpenVPN, WireGuard): Yes

Networking:

Multi-WAN Load Balancing: Yes

Dynamic Routing (OSPF): Yes

Advanced QoS: Yes

Multicast DNS (mDNS): Yes

Advanced NAT (SNAT / DNAT / NAT Pooling / etc.): Yes

Integrated RADIUS Server: Yes

RADIUS over TLS (RadSec): Yes

LTE Backup Support: Yes

Internet Quality/Outage Reporting: Yes

MAC Address Table Size: 2,000

Policy-based WAN and VPN Routing: Yes

Customizable DHCP Server: Yes

IPv6 ISP Support: Yes

IGMP Proxy: Yes

Integrated WiFi:

WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7)

6 GHz Throughput: 5.7 Gbps

5 GHz Throughput: 4.3 Gbps

2.4 GHz Throughput: 688 Mbps

MIMO:

2x2 DL/UL MU-MIMO on 6 GHz, 5 GHz, 2.4 GHz

Antenna Gain:

6 GHz: 6 dBi

5 GHz: 7 dBi

2.4 GHz: 5 dBi

Max. TX Power:

6 GHz: 24 dBm

5 GHz: 26 dBm

2.4 GHz: 23 dBm

Wireless Security:

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs:

4 per Radio

Supported Data Rates:

802.11a: 6-54 Mbps

802.11b: 1-11 Mbps

802.11g: 6-54 Mbps

802.11n: 6.5 Mbps to 600 Mbps

802.11ac: 6.5 Mbps to 1.7 Gbps

802.11ax: 7.3 Mbps to 2.4 Gbps

802.11be: 7.3 Mbps to 5.7 Gbps

Hardware:

NVR Storage: 64GB pre-installed microSD

Expansion Slot: MicroSD Card

PoE Budget: 15.4W

Max. PoE Wattage per Port: 15.4W

Voltage Range (PoE Mode): 44-57V

Max Power Consumption: 26W (excluding PoE output)

Power Method: Universal AC input 100–240V AC

Power Supply: Internal 50W AC/DC

Supported Voltage Range: 100–240V AC

Processor:

Quad-core ARM Cortex-A53 at 1.5 GHz

System Memory:

3 GB

Weight:

1.1 kg (2.4 lb)

Enclosure Material:

Polycarbonate

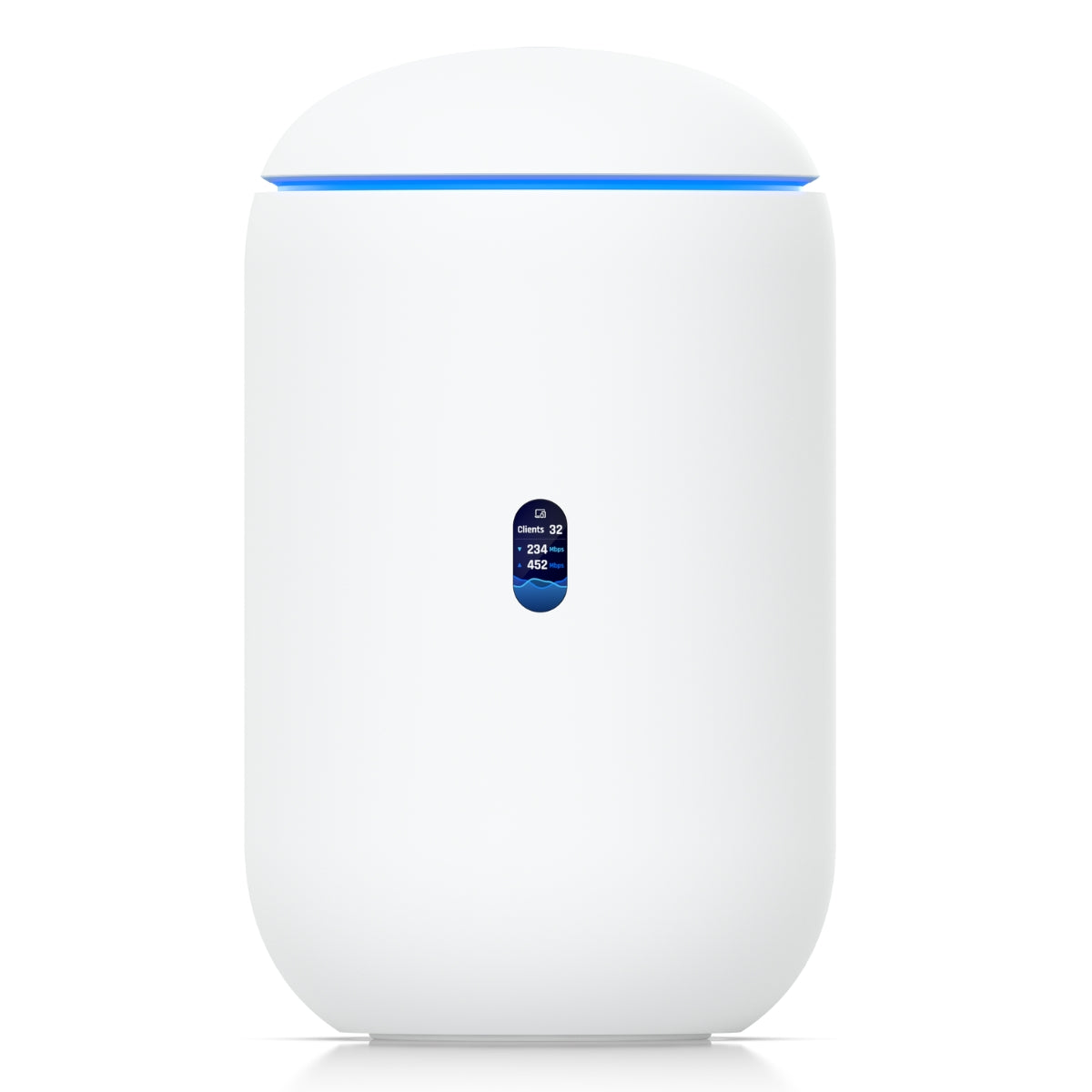

LCM Display:

0.96" Status Display

Management:

Ethernet, Bluetooth

LEDs:

System

Button:

(1) Factory-reset

ESD/EMP Protection:

Air: ±8kV, Contact: ±4kV

Operating Temperature:

-10 to 40°C (14 to 104°F)

Operating Humidity:

5 to 95% noncondensing

Certifications:

CE, FCC, IC

NDAA Compliant:

Yes

Software:

VLAN 802.1Q, Guest Traffic Isolation

Application Requirements:

UniFi Network version 9.0.108 and later
