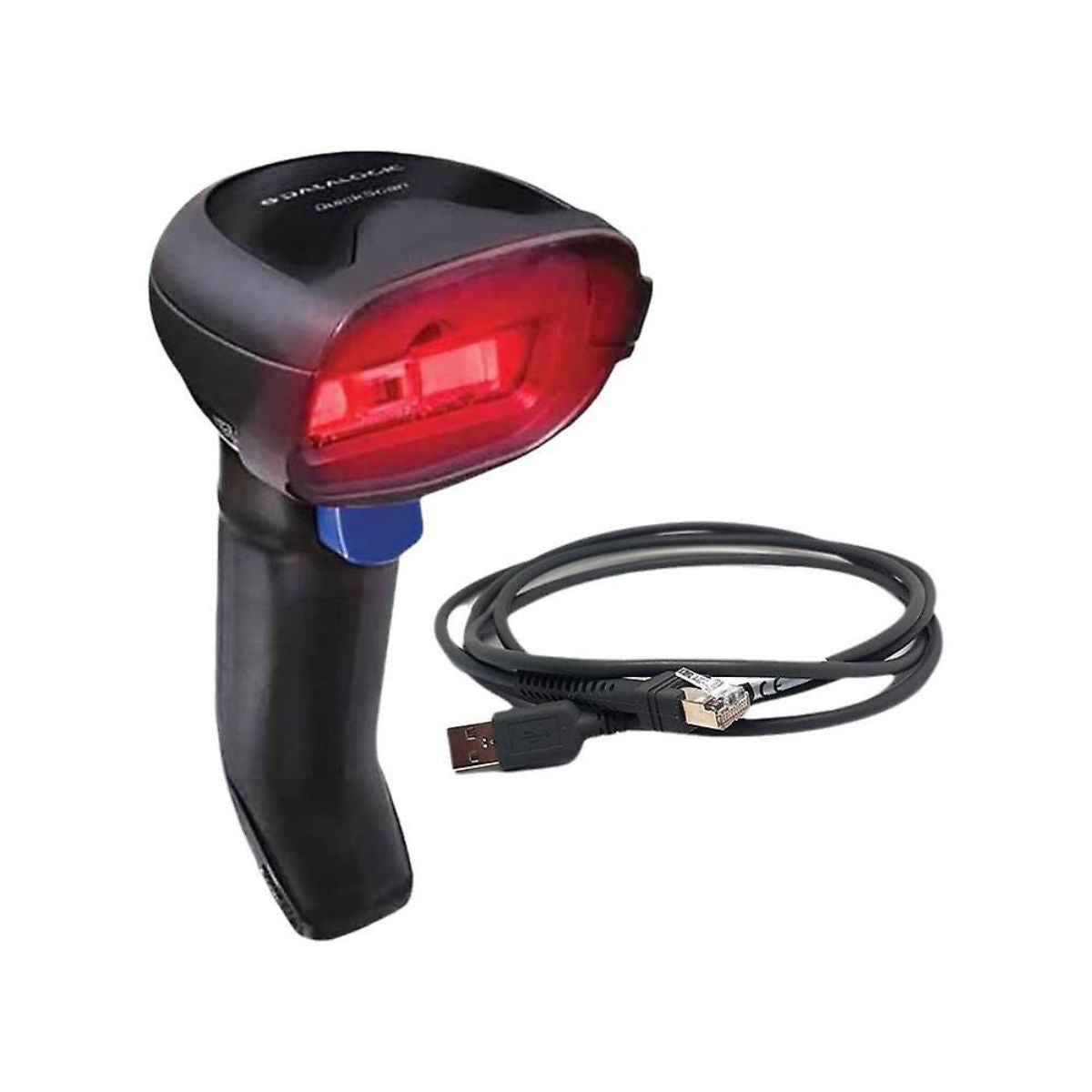

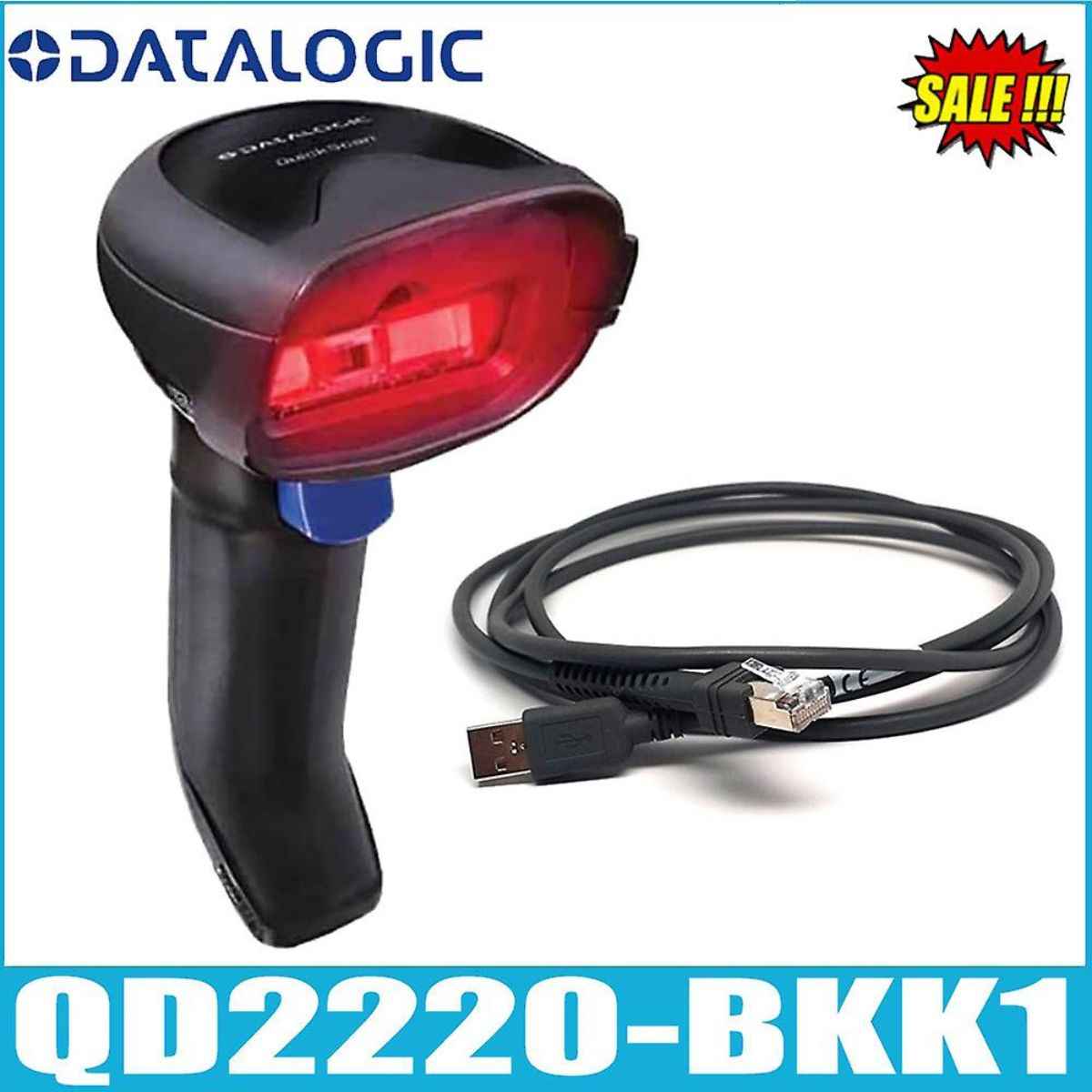

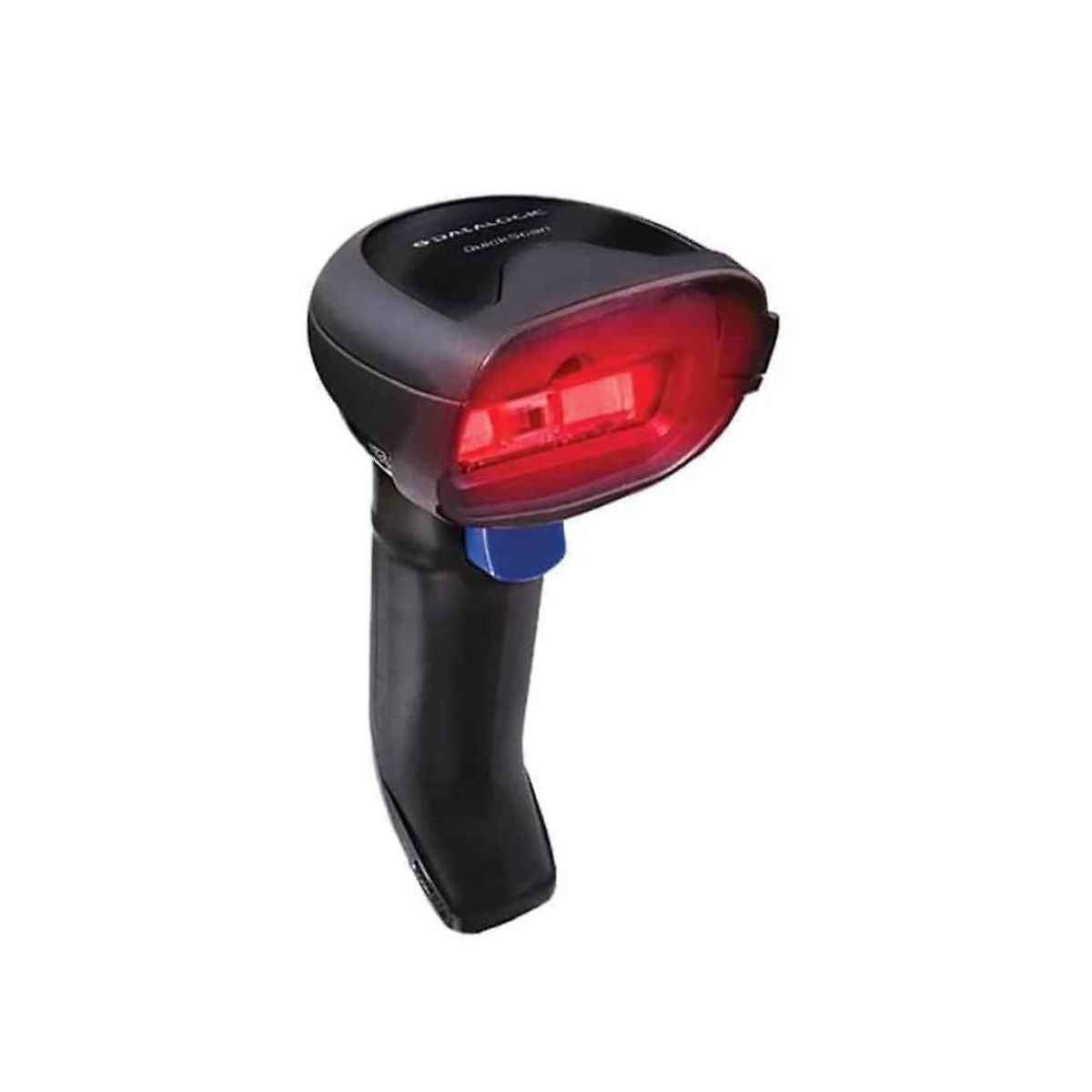

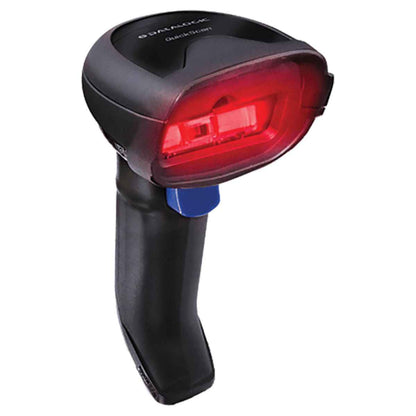

Datalogic QD2220-BKK1S Barcode Scanner, 1D/Linear Codes Decoding Capability, Cable (USB, 2m, Straight), Stand, Protection Class, IP42 Rated Protection, USB Cable, Black | QD2220-BKK1S

The Datalogic QuickScan QD2220-BKK1S is a dependable handheld 1D barcode scanner engineered for retail checkout desks, inventory tracking, hospitality counters, and commercial POS applications. Featuring an advanced CCD imager, automatic 1D barcode discrimination including GS1 DataBar™, and rugged IP42 protection, this scanner delivers fast and accurate scanning performance from close range to longer distances. With USB plug-and-play connectivity and adjustable mounting options, the QD2220-BKK1S is ideal for UAE businesses requiring efficient and reliable barcode capture.

Key Features

• 1D Barcode Scanning: Automatically reads all standard 1D codes including GS1 DataBar™.
• CCD Solid-State Imager: High performance for accurate decoding of printed barcodes.
• USB Connectivity: Plug-and-play connection with USB interface; USB-C adapter cable available.
• Fast Read Rate: Up to 1,000,000 pixels/sec with 400 scans per second.
• Datalogic Green Spot: On-code visual confirmation of successful reads for efficient operation.
• Durable IP42 Design: Dust and splash resistance for daily commercial use.
• Drop and Trigger Resistance: Withstands repeated drops from up to 1.5 m and 3 million trigger pulls.
• Wide Operating Range: Reads from near contact to extended distances (e.g., up to ~103 cm for larger barcodes).

Technical Specifications

• Model: QD2220-BKK1S.
• Decoding Capability: Auto-discriminates 1D/linear codes including GS1 DataBar™.
• Imager Type: CCD solid-state.
• Light Source: Red LED illumination (617 nm).
• Field of View: 56° ±2°.
• Read Rate: Up to 1,000,000 pixels/sec (≈400 reads/sec).
• Motion Tolerance: 40 IPS.
• Print Contrast: ≥15%.
• Resolution (Max): 0.077 mm / 3 mils.
• Reading Angles: Pitch ±65°, Roll ±45°, Skew ±65°.
• Depth of Field Examples:
  • Code 39 (4 mils): ~2.5–22 cm; 10 mils: ~1–60 cm; 20 mils: ~3–103 cm.
• Interface: USB (standard); USB-C cable available.
• Operating Current: <165 mA @ 5 V.
• Standby Current: <40 mA @ 5 V.
• Operating Temperature: 0–50 °C / 32–122 °F.
• IP Rating: IP42 (dust and splash resistant).
• Drop Resistance: Up to 1.5 m / 5 ft onto concrete.
• Dimensions: 15.6 × 6.7 × 10.7 cm / 6.1 × 2.6 × 4.2 in.
• Weight: 123 g / 4.3 oz.

Ideal For

• Retail point-of-sale checkout counters.
• Inventory control and stock tracking.
• Hospitality-based scanning at reception desks.
• Ticketing, event check-in and admission scanning.
• Document handling and utility billing workflows.

Why Buy from IT Splendid (UAE)

• 100% Genuine Datalogic Product: OEM build quality with long-term reliability and 5-year warranty support.
• UAE-Ready Compatibility: Plug-and-play USB setup compatible with POS, PC, and inventory systems used locally.
• Durable Construction: IP42 protection and robust trigger mechanism for commercial environments.
• Accurate & Fast Scanning: High read rate and Green Spot good-read feedback reduce processing time.
• Fast Delivery Across UAE: Prompt shipping to Dubai, Abu Dhabi, Sharjah, and other Emirates.

Choose the Datalogic QuickScan QD2220-BKK1S USB Barcode Scanner for fast, reliable 1D scanning — ideal for retail, inventory, hospitality, and commercial operations across the UAE.
