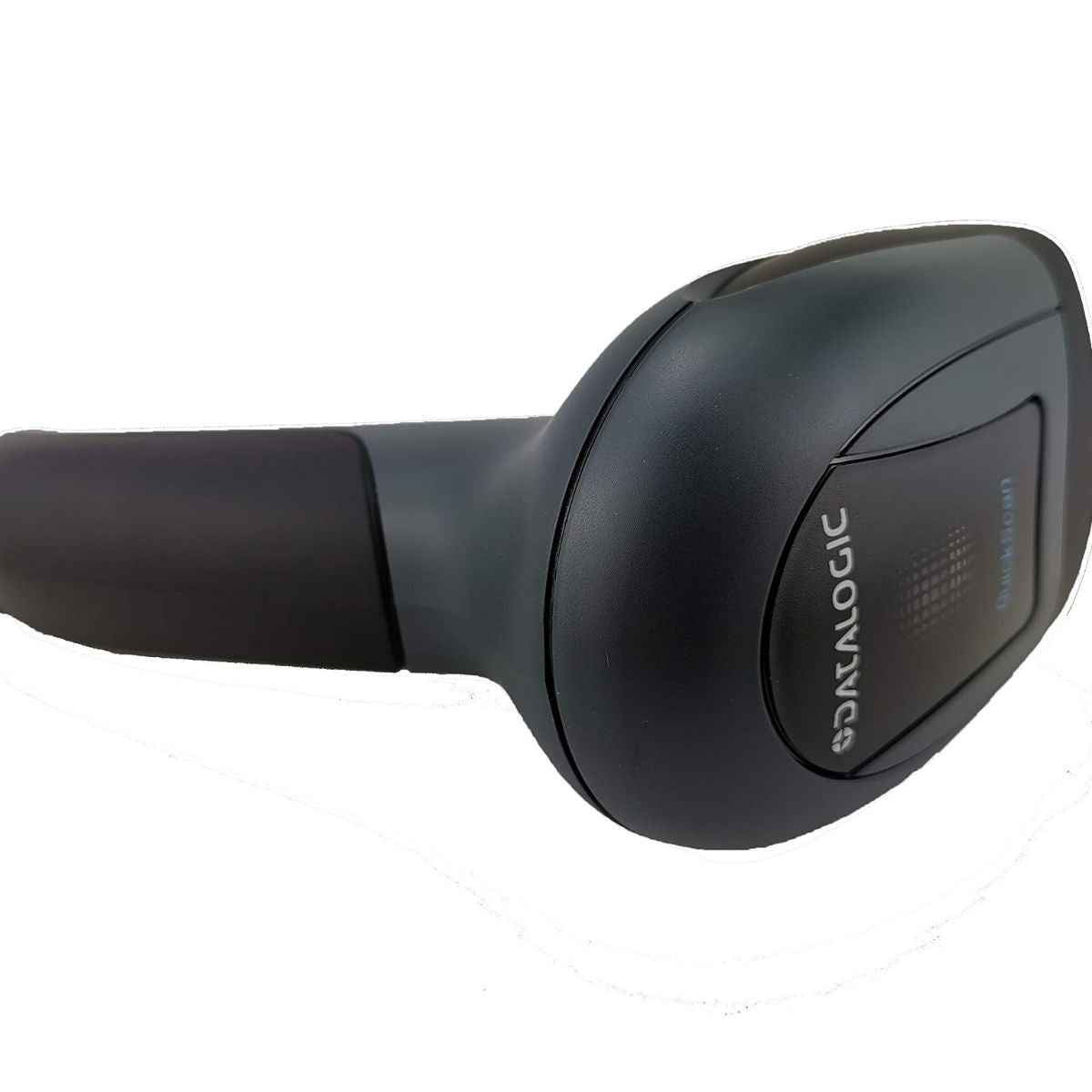

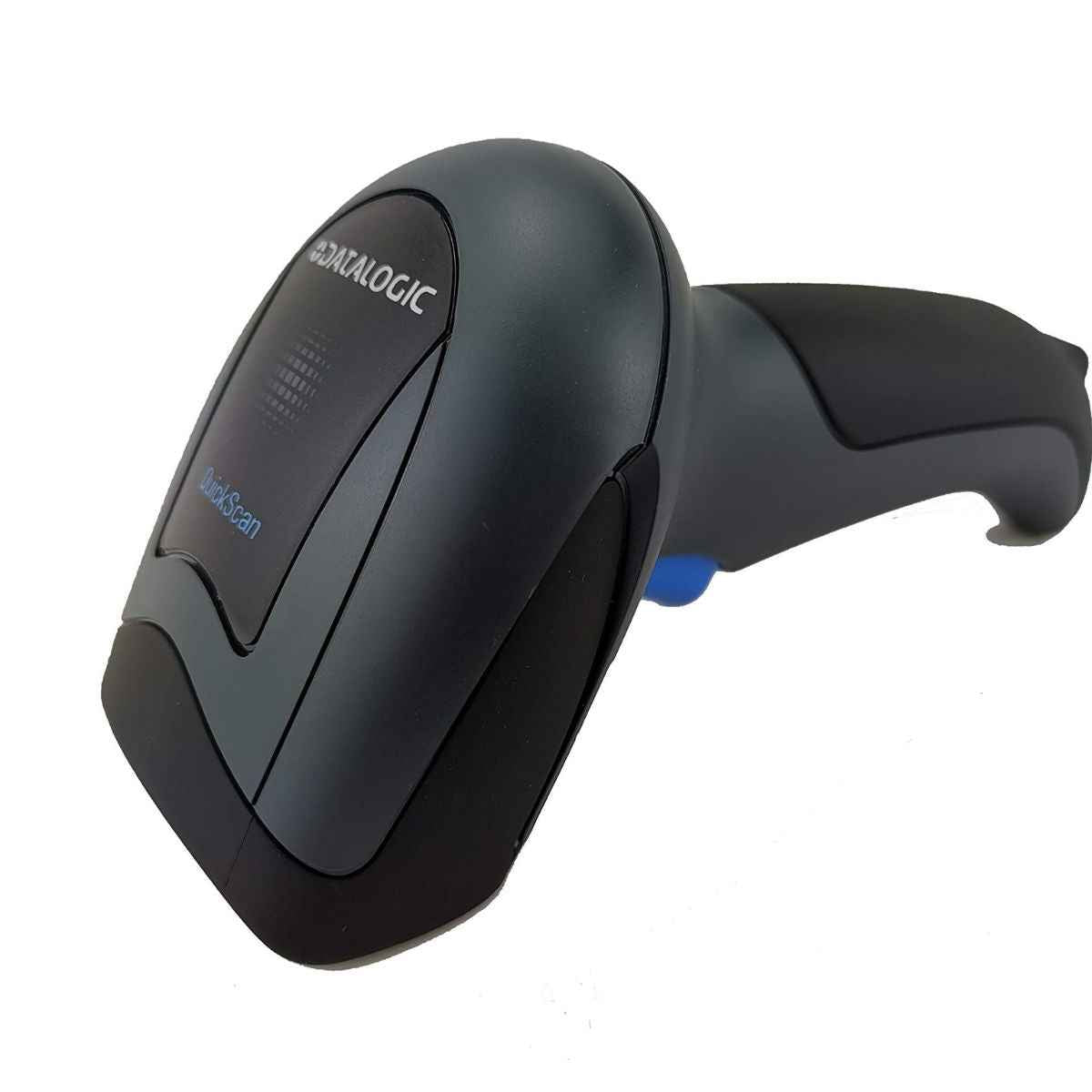

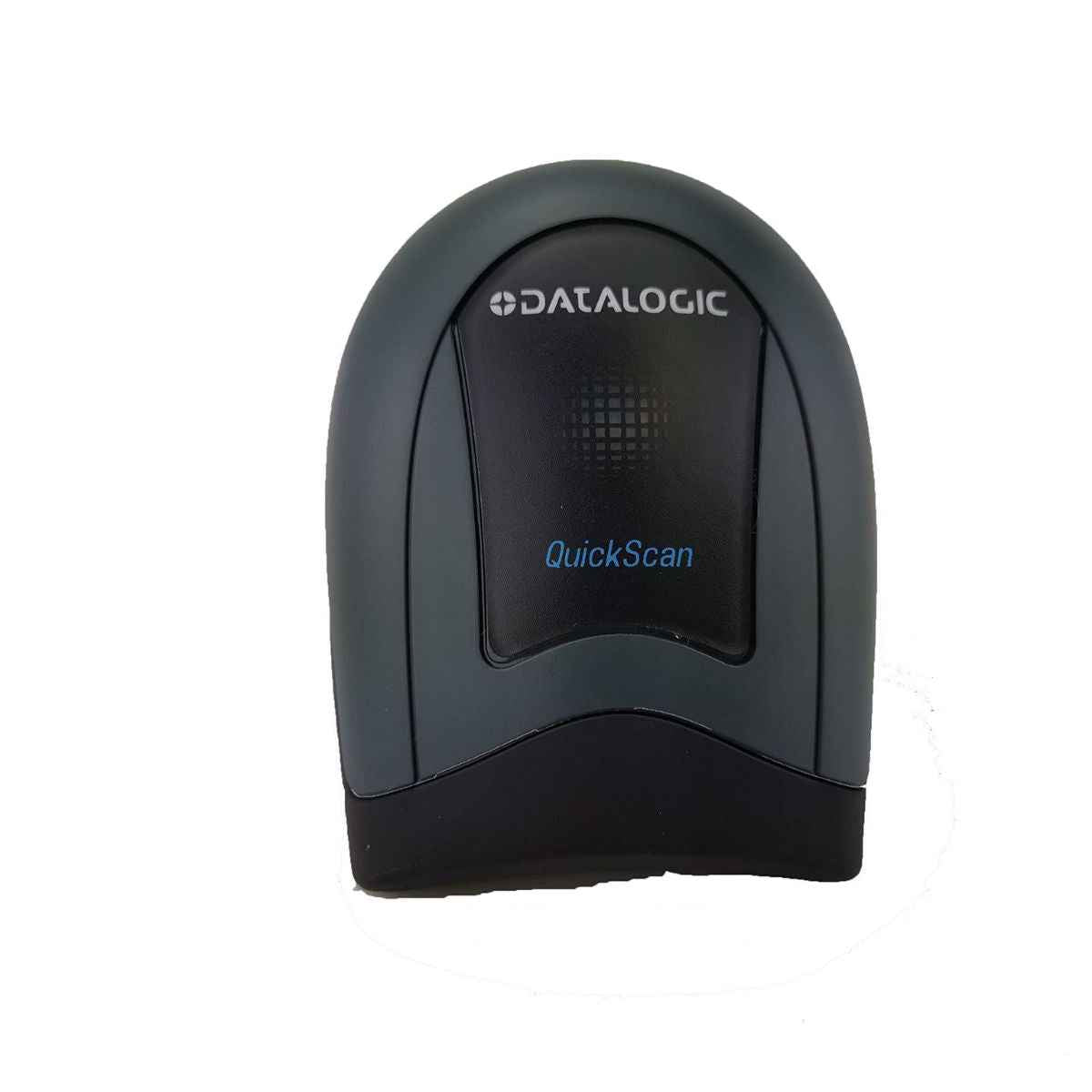

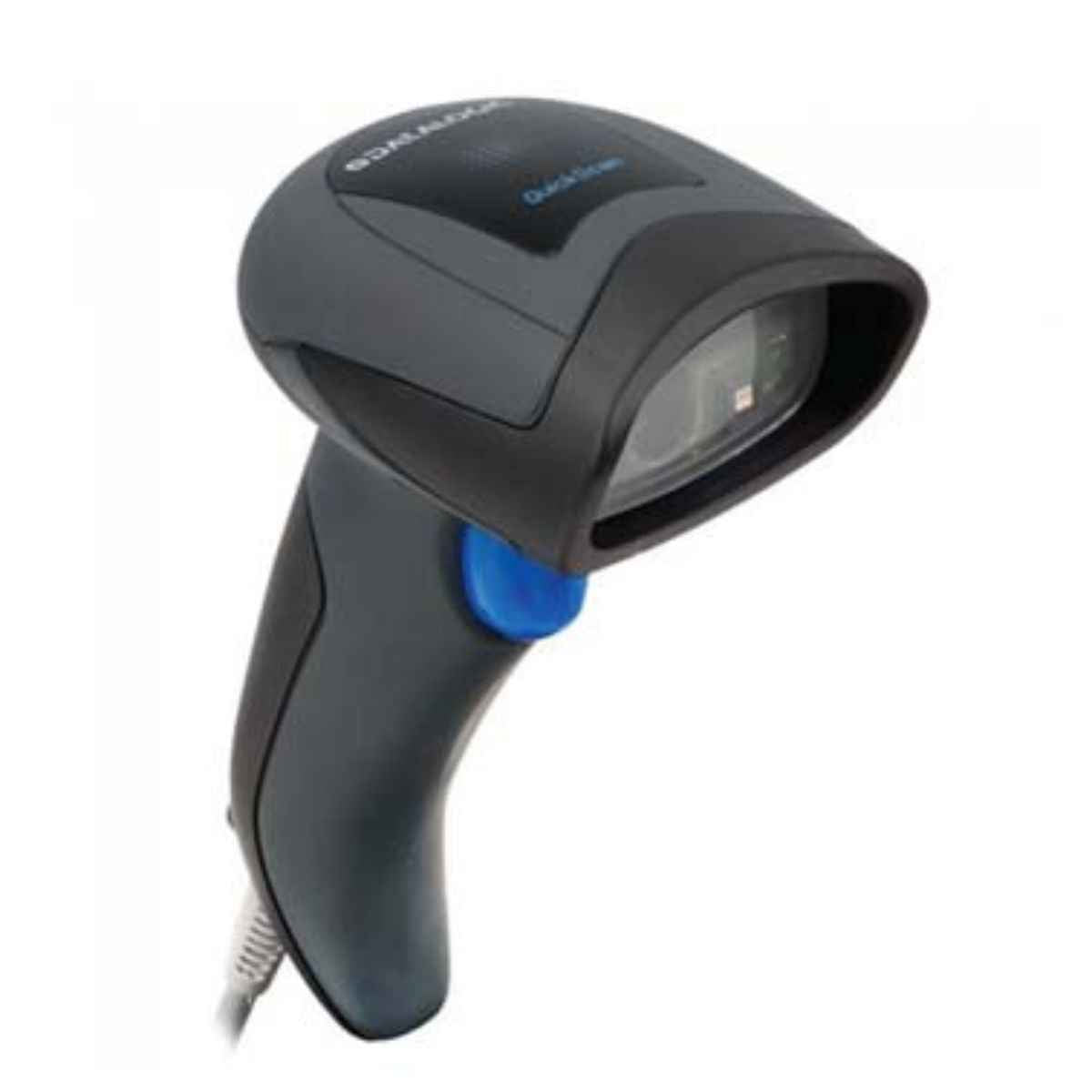

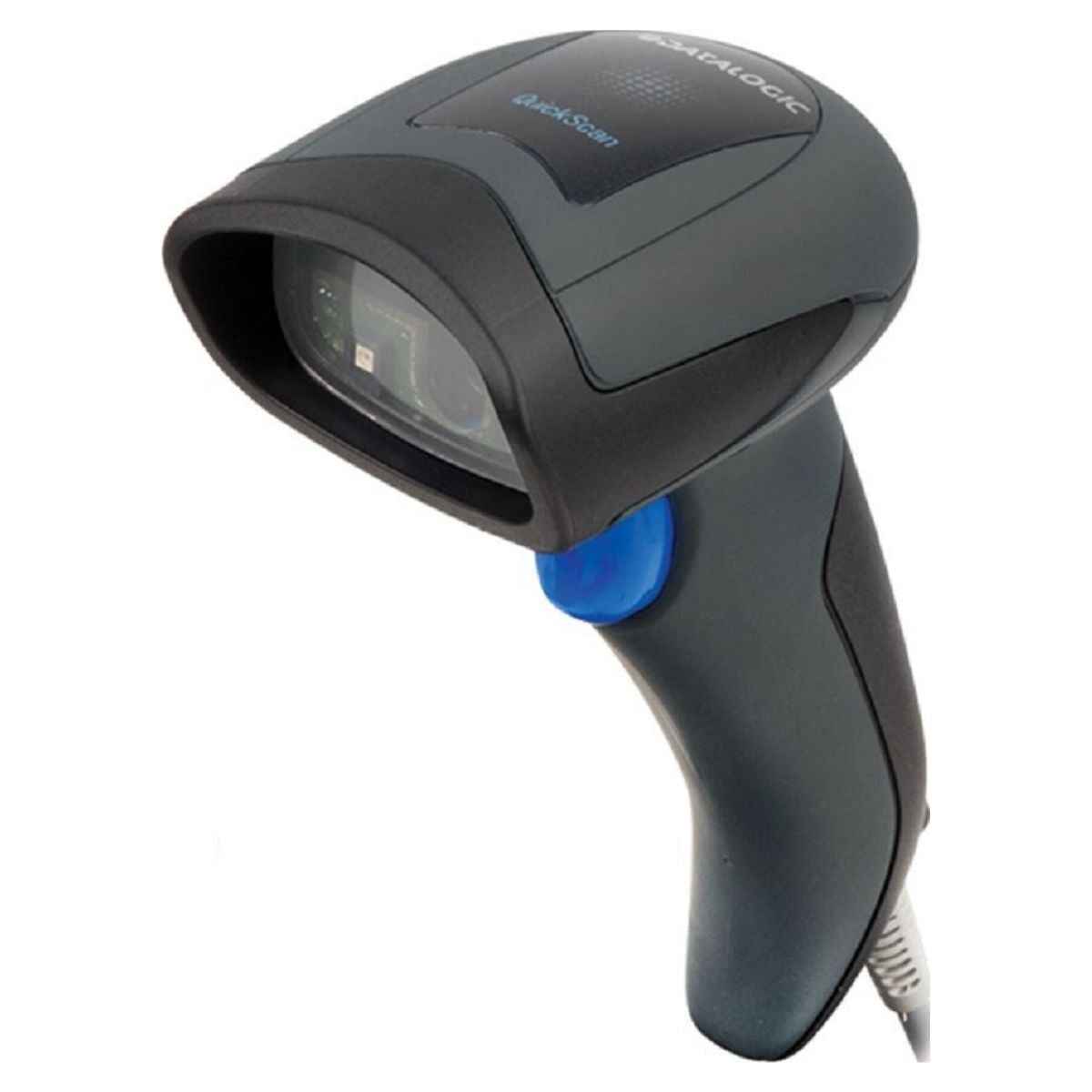

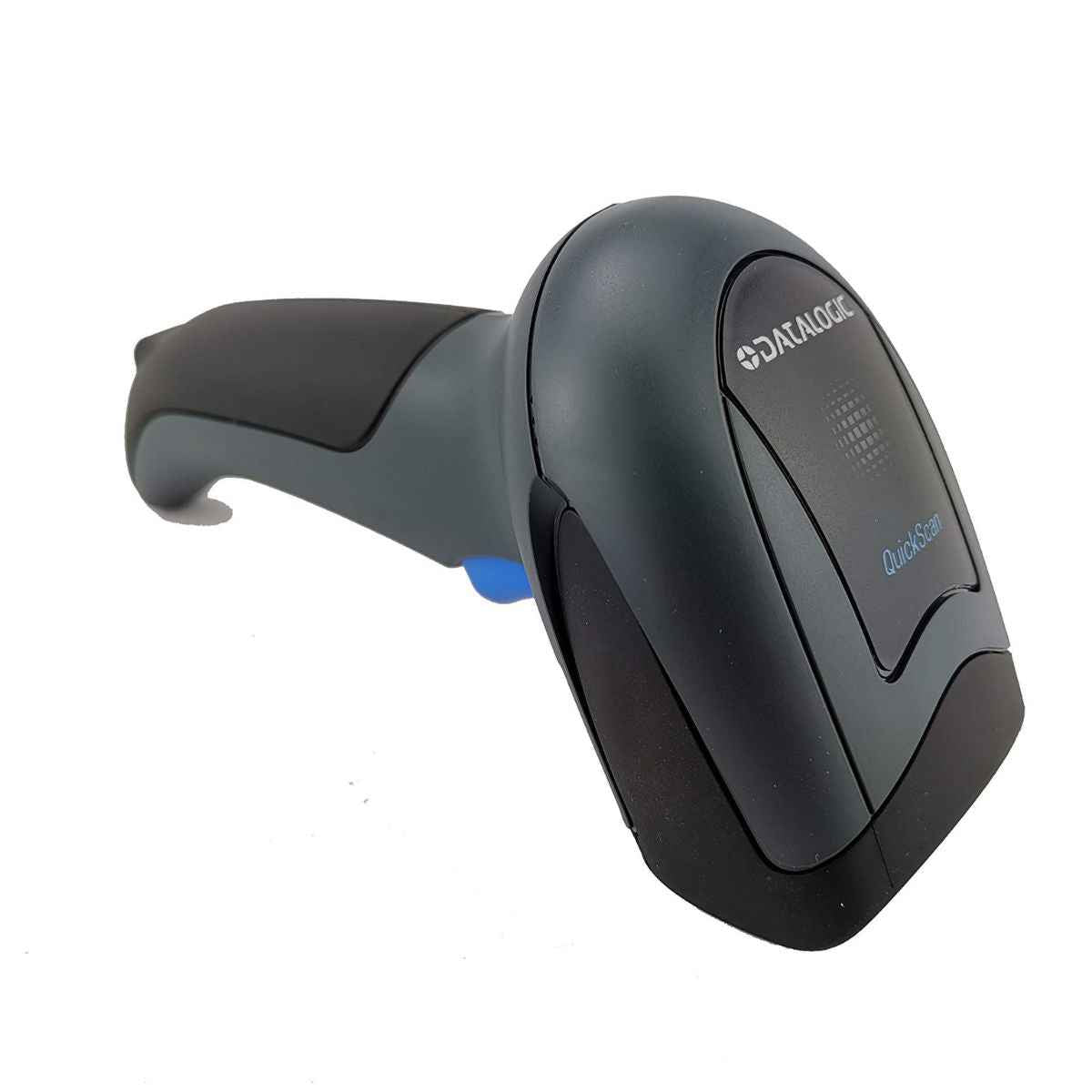

Datalogic QD2430-BKK1S QuickScan 2D Laser Corded Barcode Scanner, 2D Imager, General Purpose, Handheld, USB Kit with 90A052065 Cable, Black

Datalogic QD2430-BKK1S QuickScan 2D Laser Corded Barcode Scanner, 2D Imager, General Purpose, Handheld, USB Kit with 90A052065 Cable, Black

The Datalogic QuickScan QD2430-BKK1S is a professional handheld 2D barcode scanner designed for efficient scanning in retail, logistics, inventories, and commercial environments. Featuring an advanced 2D area imager, multi-interface connectivity, and rugged IP42 protection, the QD2430 decodes both 1D and 2D codes (including QR, Data Matrix, Aztec and MaxiCode) with fast omnidirectional scanning performance. Its plug-and-play USB kit with cable and stand makes setup quick and convenient for POS systems, PC stations, and inventory workstations across the UAE.

Key Features

• 2D Multi-IF Scanning: Reads 1D and 2D barcodes including QR Code, Data Matrix, Aztec, MaxiCode, and GS1 DataBar formats.
• Wide Connectivity Options: Multi-interface support including USB, RS-232, and keyboard wedge (via adapters).
• Omnidirectional Reading: Captures barcodes from any angle without alignment.
• Datalogic Green Spot: Visual confirmation of successful scans directly on the barcode.
• Shock-Resistant IP42 Design: Durable build resists dust and light splashes for daily commercial use.
• Ergonomic Handheld Form: Lightweight and balanced for comfortable all-day use (approx. 145 g).
• Wide Operating Range: Works well in varied light conditions, up to 86,000 lux.

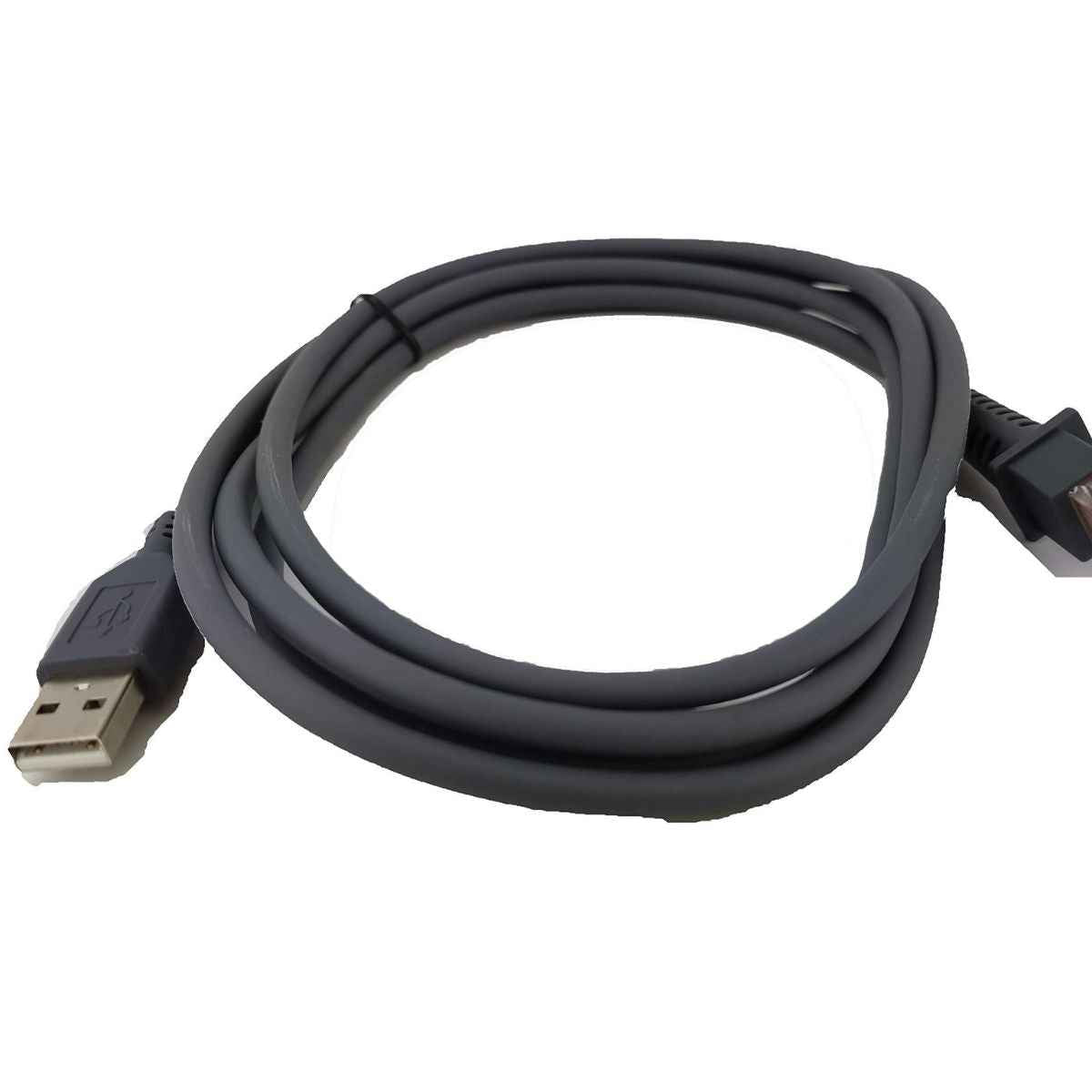

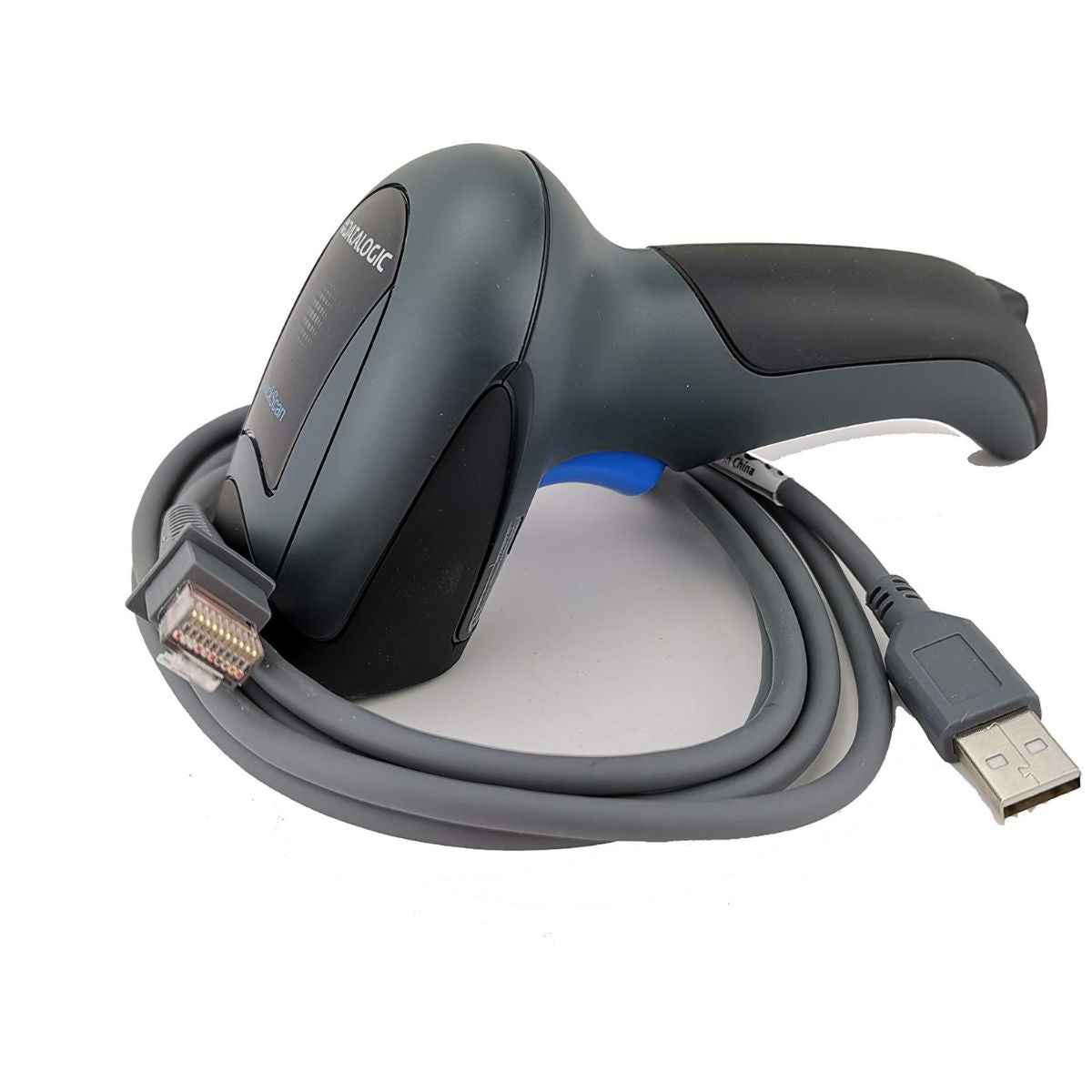

• Full USB Kit: Includes USB cable and stand for easy deployment on counters or desks.

Technical Specifications

• Model: QD2430-BKK1S
• Scanner Type: Handheld 2D area imager supported by multi-interface connectivity (USB/RS-232/keyboard wedge).
• Barcode Symbologies Supported: Standard 1D, QR Code, Data Matrix, Aztec Code, MaxiCode, Micro QR, Postal & Composite symbologies.
• Imager Sensor: Wide VGA (752 × 480) area imager.
• Light Source: Red LED (610–650 nm) for illumination with blue LED sighting.
• Resolution: Up to 0.102 mm (4 mils) for linear codes.
• Motion Tolerance: 25 IPS.
• Print Contrast Requirement: ≥25%.
• Reading Angles: Pitch ±65°, Skew ±60°, Tilt 360°.
• Interface Voltage: DC 4.5–14 V.
• Current Consumption: ~140 mA (operating).
• Environmental Protection: IP42 dust/water spray resistance.
• Drop Resistance: Withstands drops from up to 1.5 m / 5 ft.
• Operating Temperature: 0 °C to 50 °C.
• Dimensions: 16.3 × 9.1 × 4.1 cm (HxDxW).
• Weight: ~145 g.

Ideal For

• Retail point-of-sale checkout scanning.
• Inventory and stock management in stores or warehouses.
• Ticket validation and event entry scanning.
• Courier, logistics, and shipping barcode capture.
• Healthcare and office document scanning workflows.

Why Buy from IT Splendid (UAE)

• 100% Genuine Datalogic Product: Reliable OEM quality with multi-year warranty support.
• Wide Compatibility: USB plug-and-play works seamlessly with PCs, POS systems, and inventory software.
• Durable & Commercial Design: IP42 protection and shock resistance for daily business use.
• Easy Deployment: USB kit with cable and stand simplifies counter or desk installation.
• Fast Delivery Across UAE: Prompt shipping to Dubai, Abu Dhabi, Sharjah, and other Emirates.

Choose the Datalogic QuickScan QD2430-BKK1S 2D USB Barcode Scanner for high-performance, versatile barcode capture — ideal for retail, inventory, and logistics use throughout the UAE.
