Eaton 5PX2200IRT3UG2 – 2200 VA / 2200 W Line-Interactive UPS (Rack/Tower 3U)

Eaton 5PX2200IRT3UG2 – 2200 VA / 2200 W Line-Interactive UPS (Rack/Tower 3U)

The Eaton 5PX2200IRT3UG2 is a high-capacity, professional-grade uninterruptible power supply (UPS) designed to provide clean, stable, and reliable power for servers, NAS/storage, network equipment, workstations and critical electronics. With a 2200 VA / 2200 W output, pure-sine wave output and versatile rack/tower mounting, it is suitable for data centres, small to medium server rooms, or demanding office environments.

Key Features

• 2200 VA / 2200 W Output (Unity Power Factor): Provides full wattage capacity — ideal for PFC power supplies, servers, storage arrays and mixed loads.
• Line-Interactive Topology with Pure Sine-Wave Output: Ensures stable and clean AC power even during outages or voltage fluctuations.
• Automatic Voltage Regulation (AVR): Automatically corrects under- or over-voltage conditions — protects connected equipment from unstable mains power.

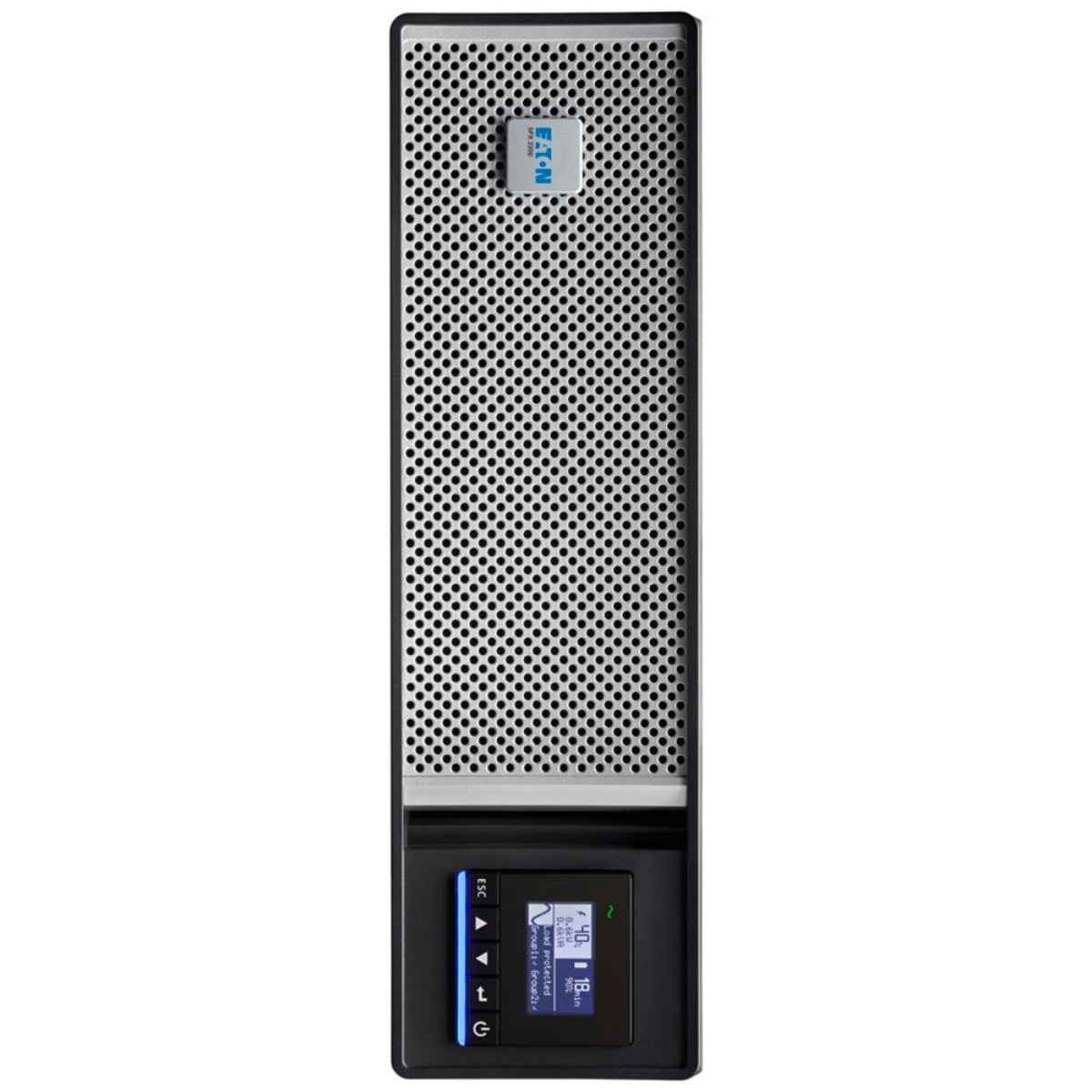

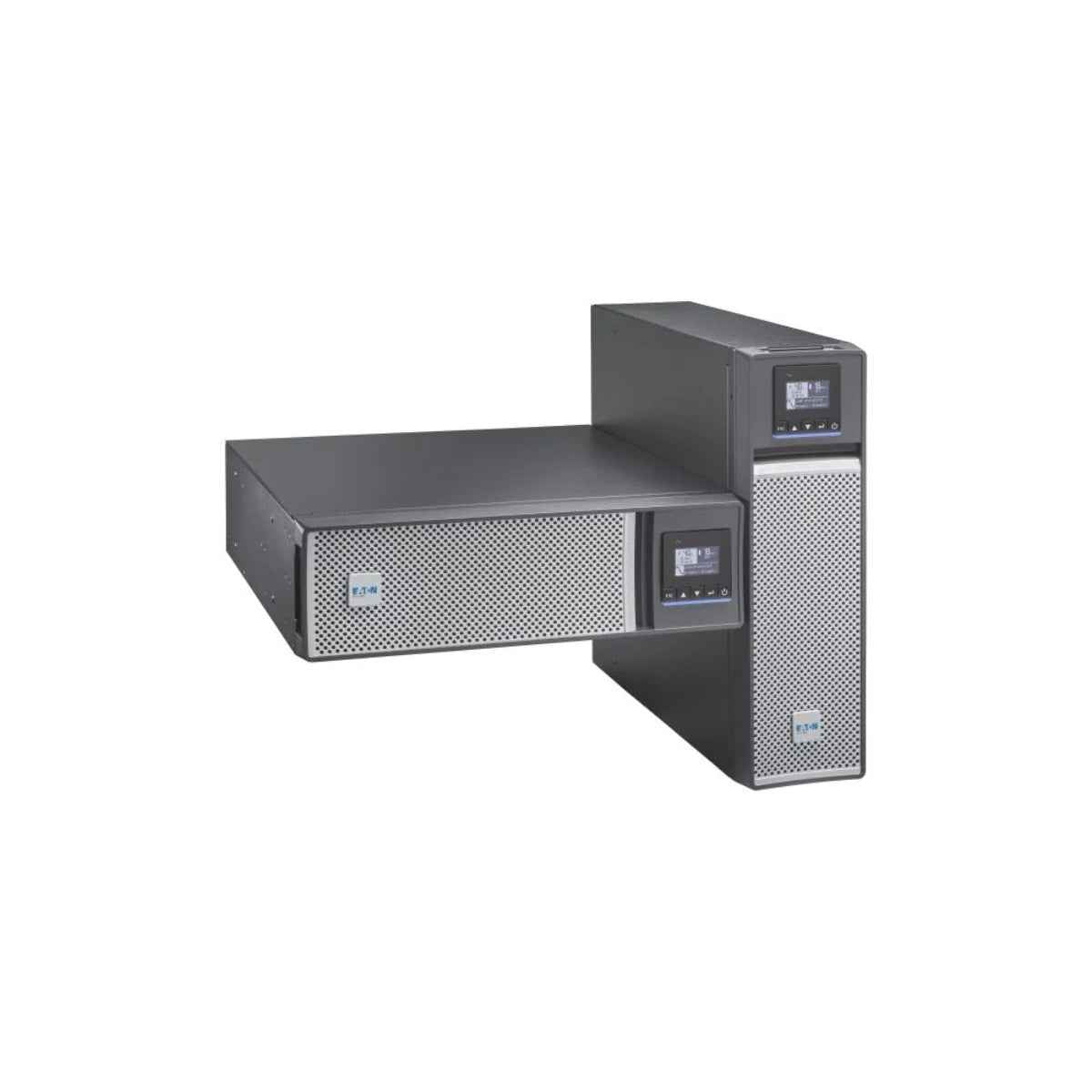

• Rack or Tower Mountable (3U Form Factor): Includes rack-mount kit and optional tower-mount supports — flexible installation in racks or as standalone unit.

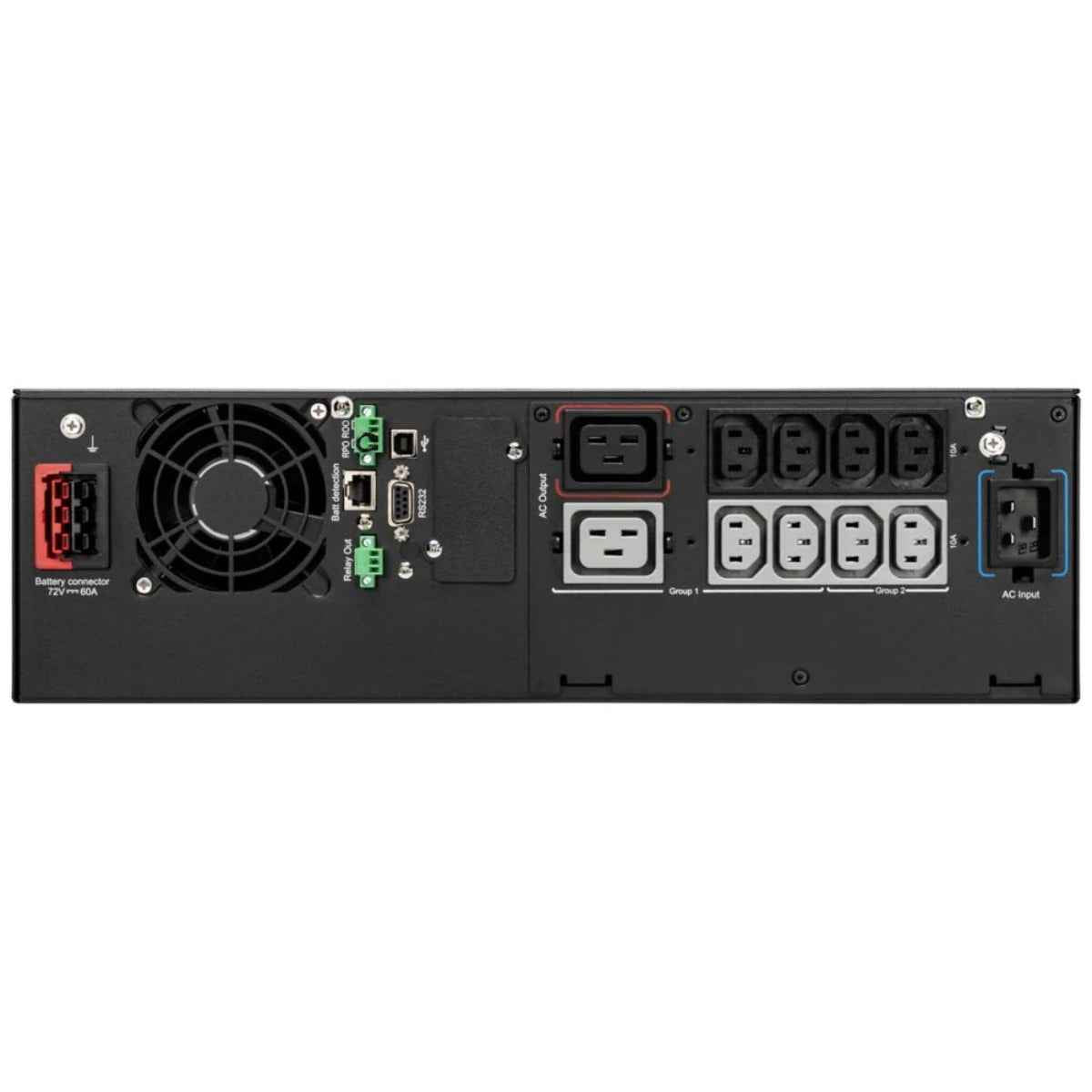

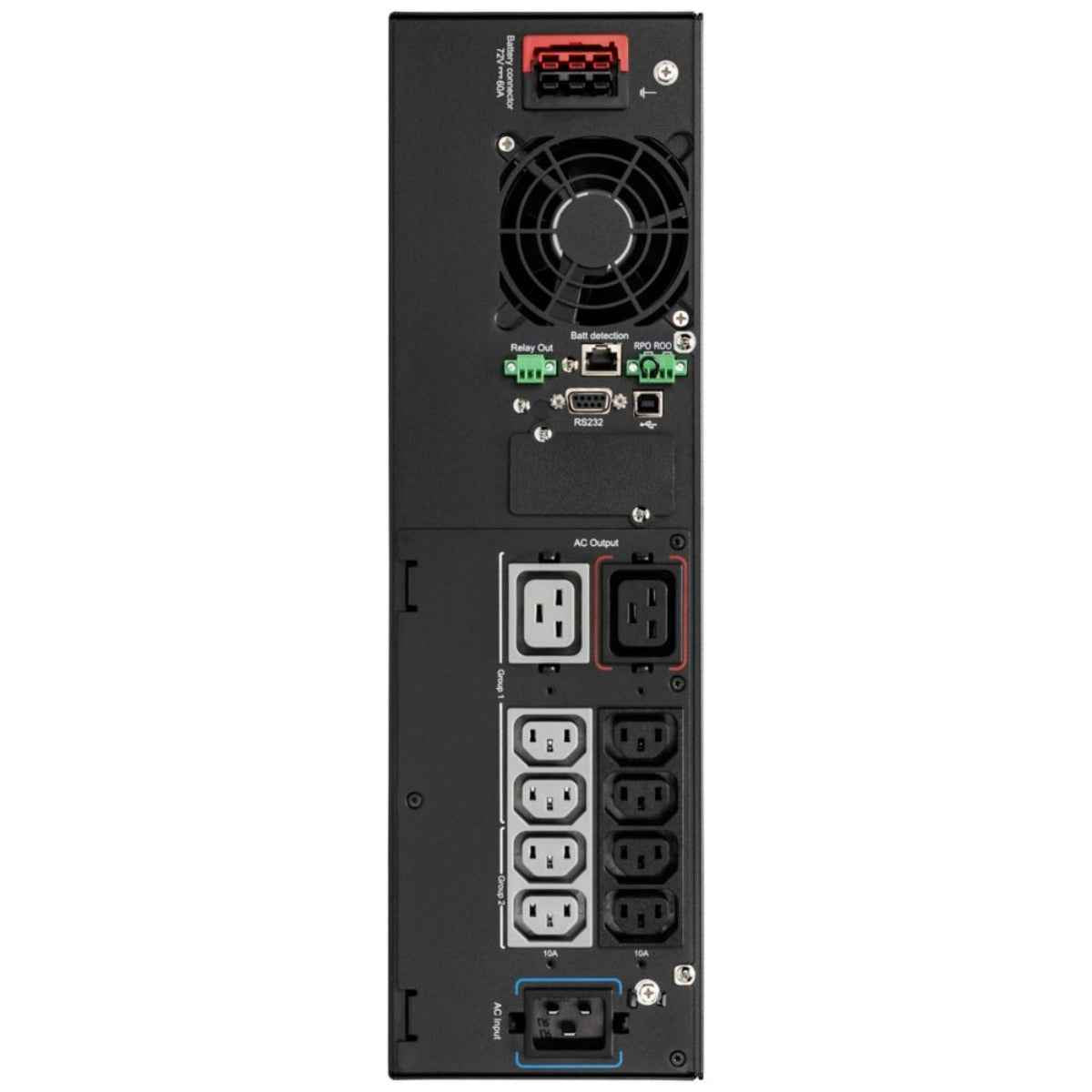

• Multiple Output Outlets: 8 × IEC C13 + 2 × IEC C19 — supports servers, switches, NAS units and multiple peripherals.
• Hot-Swappable Internal Batteries: Replaceable lead-acid batteries (maintenance-free) allow easy battery replacements without shutting down connected equipment.
• Extended Runtime Support: Compatible with up to 4 external battery modules (EBMs) for longer backup times when needed.

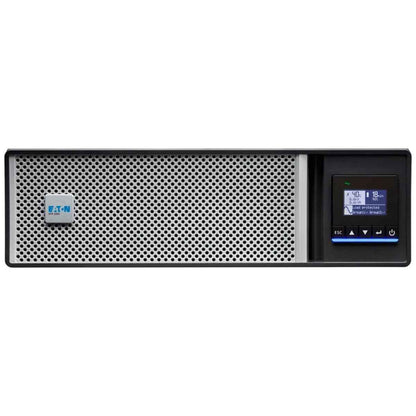

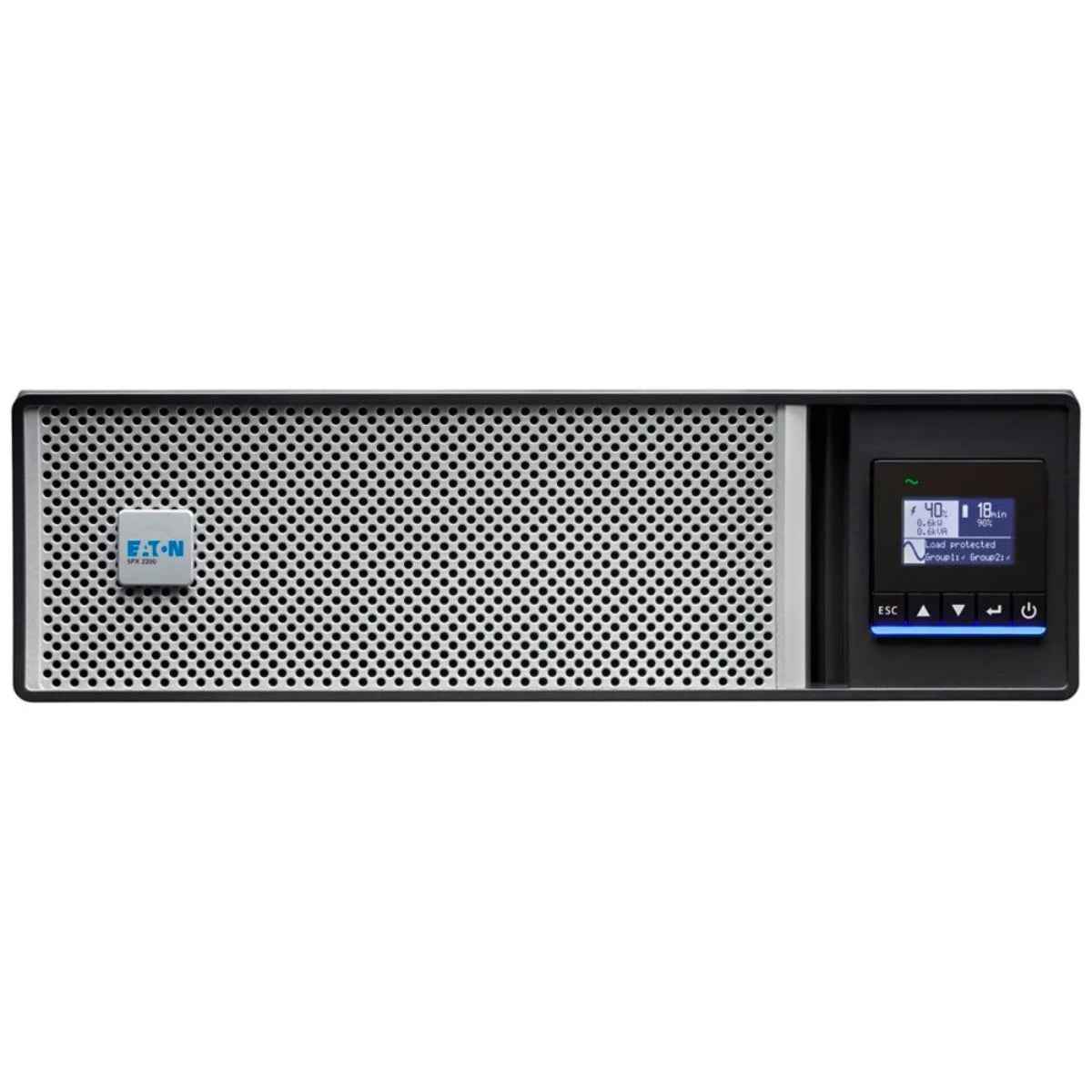

• Real-Time Monitoring & Energy Metering: Graphical LCD display shows load, battery status, input/output voltage; supports energy consumption metering per outlet-group — useful for managing power in server rooms or data centres.
• Wide Input Voltage & Frequency Range: Accepts input from 160–294 V (adjustable to 150–294 V) and 47–70 Hz — accommodates unstable or fluctuating power conditions.
• Communication & Management Options: USB (HID), RS-232, remote-on/off, relay / dry-contact support, optional communication card slot — good for automated shutdowns, monitoring or integration with network management tools.

Technical Specifications

• Model / Part Number: 5PX2200IRT3UG2
• Output Power: 2200 VA / 2200 W (Unity PF = 1.0)
• Topology: Line-Interactive (High-Frequency, Pure Sinewave)
• Form Factor / Rack Size: Rack-mount or Tower convertible, 3U (19″ rack compatible)
• Output Outlets: 8 × IEC C13, 2 × IEC C19
• Input Connection: IEC C20 plug
• Input Voltage Range: 160–294 V (adjustable to 150–294 V)
• Input Frequency Range: 47–70 Hz (50 Hz system) / 56.5–70 Hz (60 Hz system) / as low as 40 Hz in low-sensitivity mode
• Output Voltage: 230 V (configurable to 200/208/220/230/240 V)
• Waveform: Pure sine wave
• Battery Type: Lead-acid, maintenance-free, user-replaceable
• Battery Quantity: 6 internal 12 V / 7 Ah batteries
• Extended Battery Support: Up to 4 external battery modules (EBMs)
• Typical Backup Time (Half Load): ~ 10 min (varies with load & battery condition)
• Dimensions (W × D × H): 438 × 483 × 129 mm
• Weight: ~ 27.5 kg
• Noise Level: < 40 dB at 1 m (quiet enough for office/server-room use)
• Certifications / Compliance: IEC/EN 62040-1 / -2 / -3, UL 1778, CSA 22.2, CE, cTUVus, EAC, UKCA, ENERGY STAR, RoHS, REACH

Ideal For

• Server rooms, data-centres or virtualization hosts requiring stable, uninterrupted power for servers, storage, networking gear and PFC-enabled devices.
• Small to medium businesses or offices needing reliable UPS backup for workstations, networking equipment, NAS units or mixed workloads.
• Environments with unstable power supply or frequent voltage fluctuations — AVR helps maintain stable output without stressing equipment.
• Setups requiring rack-mountable UPS — 19″ rack or tower installation flexibility helps adapt to different IT infrastructure layouts.
• Scalable backup systems — internal battery provides immediate protection, with option to add external battery modules (EBMs) for extended runtime.

Why Buy from IT Splendid (UAE)

• 100% Genuine Eaton Unit: Official 5PX2200IRT3UG2 — not a rebranded or grey-market product.
• Local Warranty & Support: Warranty coverage and spare-part availability via our UAE network, with quick customer service and replacement support if needed.
• Ready for UAE Electrical Standards: Compatible with 220-240 V, 50 Hz mains — works reliably in UAE offices, server rooms or home labs.
• Flexibility for Rack & Tower Installations: Includes rack-mount kit and tower supports — ideal for different server room layouts or home/lab setups.
• Expandable & Scalable Backup: Allows external battery modules (up to 4 EBMs) — perfect for growing businesses or evolving server/storage needs.

Choose the Eaton 5PX2200IRT3UG2 UPS for dependable, efficient, and scalable power protection — a robust solution for servers, storage and critical electronics across UAE offices, data-centres or home labs.
