Eaton 5PX3000IRT3UG2 5PX Gen2 UPS, 3000VA / 3000W Capacity, Line Interactive Topology, 230V Output Voltage, 50-60 Hz Operational Frequency, Black/silver | 5PX3000IRT3UG2

Eaton 5PX3000IRT3UG2 5PX Gen2 UPS, 3000VA / 3000W Capacity, Line Interactive Topology, 230V Output Voltage, 50-60 Hz Operational Frequency, Black/silver | 5PX3000IRT3UG2

The Eaton 5PX3000IRT3UG2 is a professional-grade uninterruptible power supply (UPS) offering 3000 VA / 3000 W output, designed for servers, network equipment, storage systems, and other critical infrastructure. Its versatile rack or tower form factor combined with reliable line-interactive topology ensures clean sine-wave output, automatic voltage regulation, and flexible deployment — ideal for data centers, offices, or any high-availability environment.

Key Features

• High Power Capacity: 3000 VA / 3000 W — supports multiple servers, switches, NAS units, and workstations.
• Clean Pure Sine Wave Output: Safe for sensitive equipment including PFC PSUs, network gear, and active electronics.

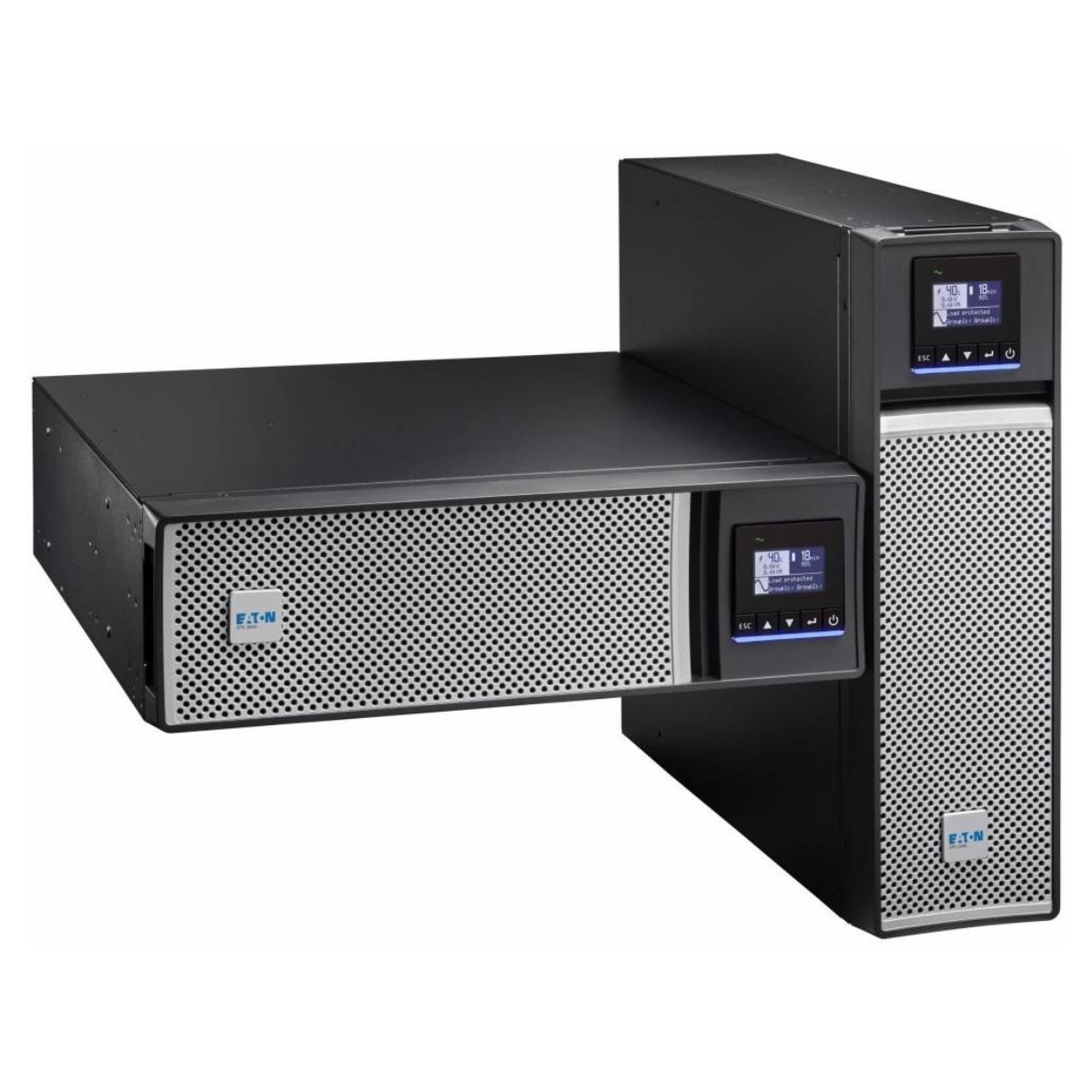

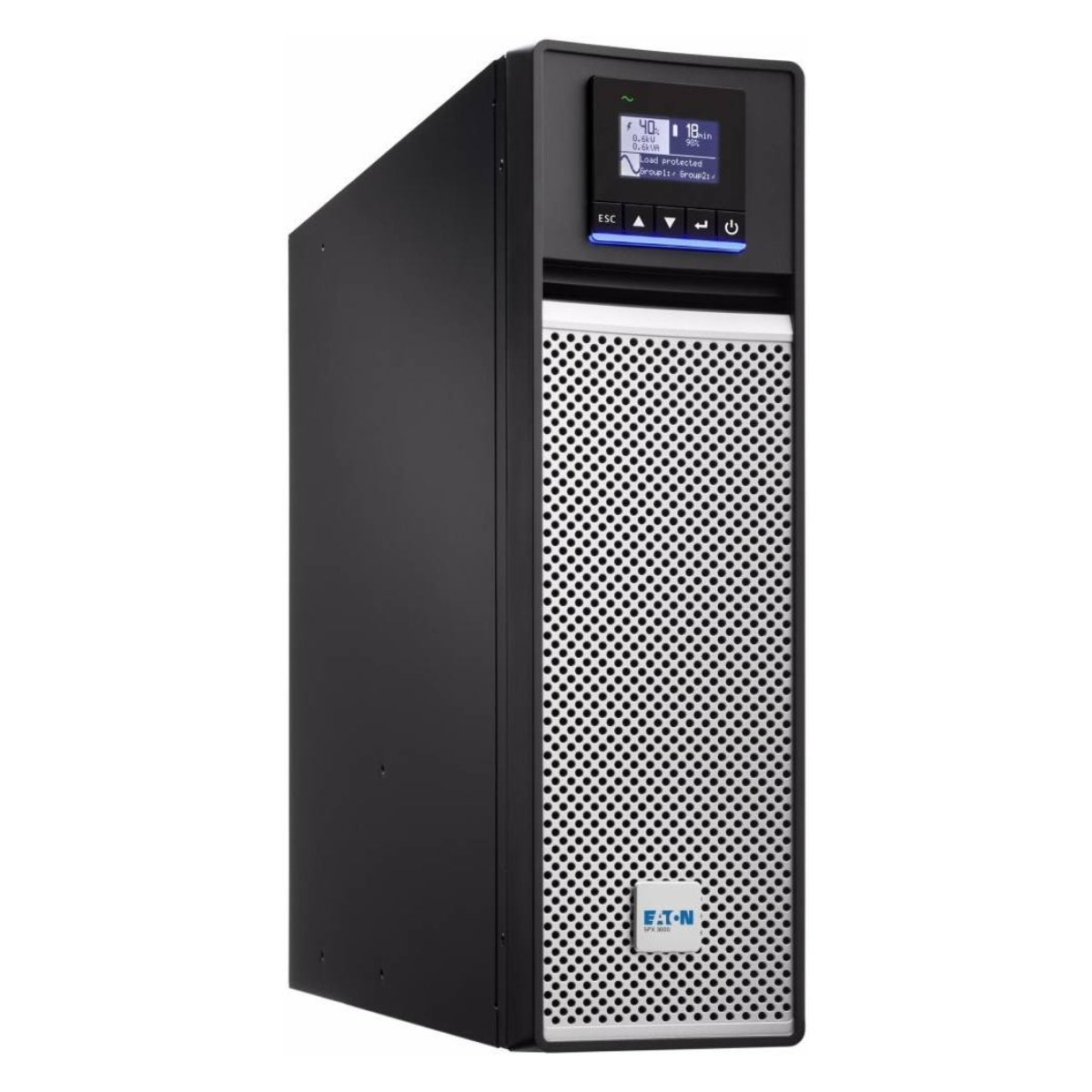

• Rack or Tower Installation (3U): Flexible mounting — 19″ rack-mountable or standalone tower setup, with included mounting kit.
• Automatic Voltage Regulation (AVR): Stabilizes input voltage fluctuations (sags/surges) — protects devices without draining battery unnecessarily.
• Expandable Runtime: Supports external battery modules (EBMs) for extended backup times when needed.
• Multiple Output Outlets: 8 × IEC C13 + 2 × IEC C19, accommodating a variety of devices and power needs.

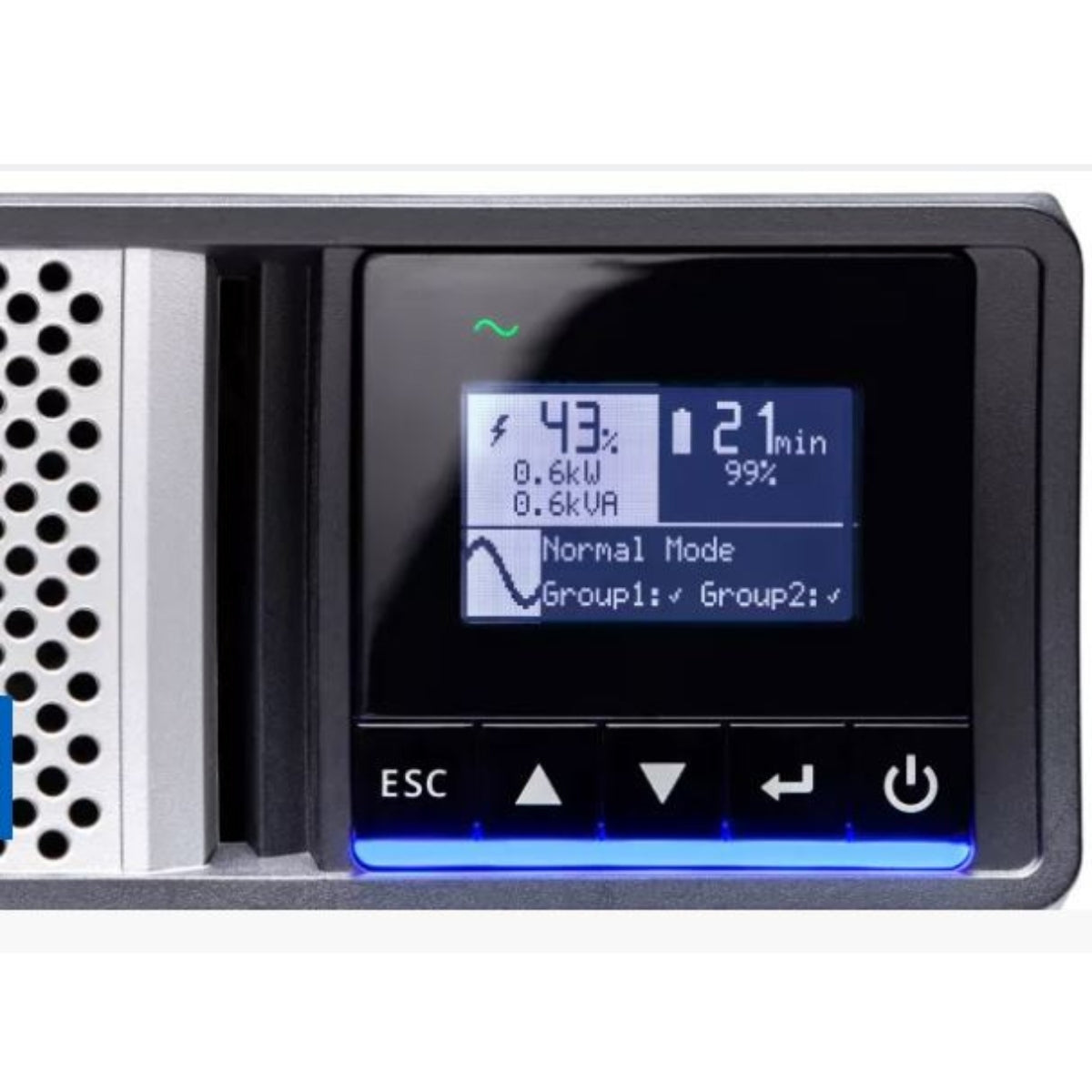

• Monitoring & Management Ready: Includes USB and serial ports, LCD display for status and measurements, plus an expansion slot for optional network/management cards.
• Efficient & Certified: Energy-efficient design, High output power factor (VA = W), compliant with major safety and EMC standards.

Technical Specifications

• Model / Part Number: 5PX3000IRT3UG2
• Topology: Line-Interactive (Pure Sine Wave Output)
• Power Capacity: 3000 VA / 3000 W
• Outputs: 8 × IEC C13, 2 × IEC C19
• Input Connection: IEC C20 plug, input cord ~1.8 m
• Input Voltage Range: 160–294 V (adjustable 150–294 V)
• Output Voltage: 230 V nominal (configurable to 200/208/220/230/240 V)
• Form Factor: Rack / Tower convertible, 3U (482.6 mm width, 438 mm depth, 129 mm height)
• Weight: 31.1 kg
• Efficiency: Up to 98% under load
• Battery Type: Lead-acid, user-replaceable, hot-swappable

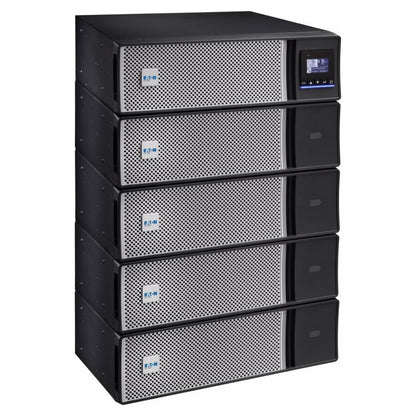

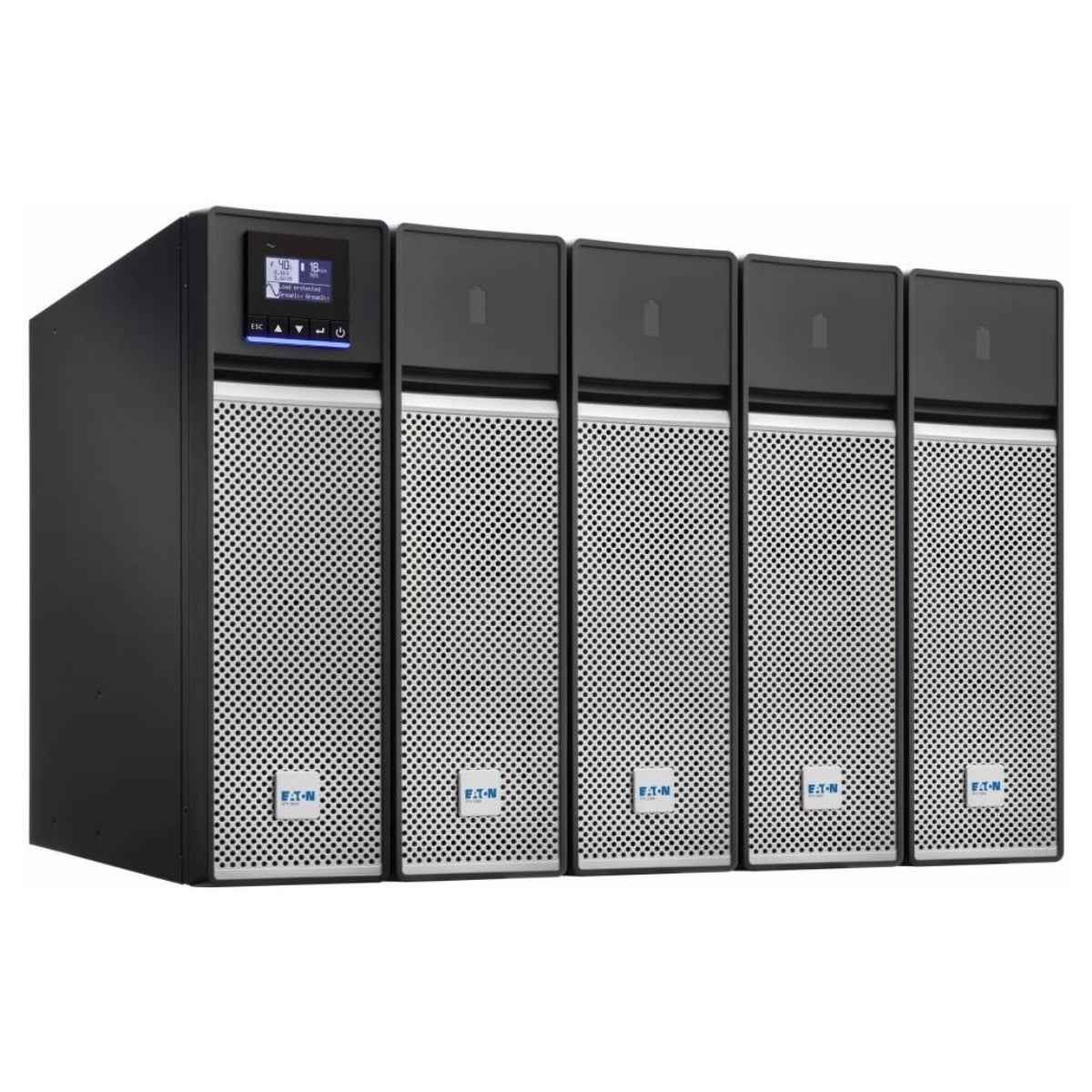

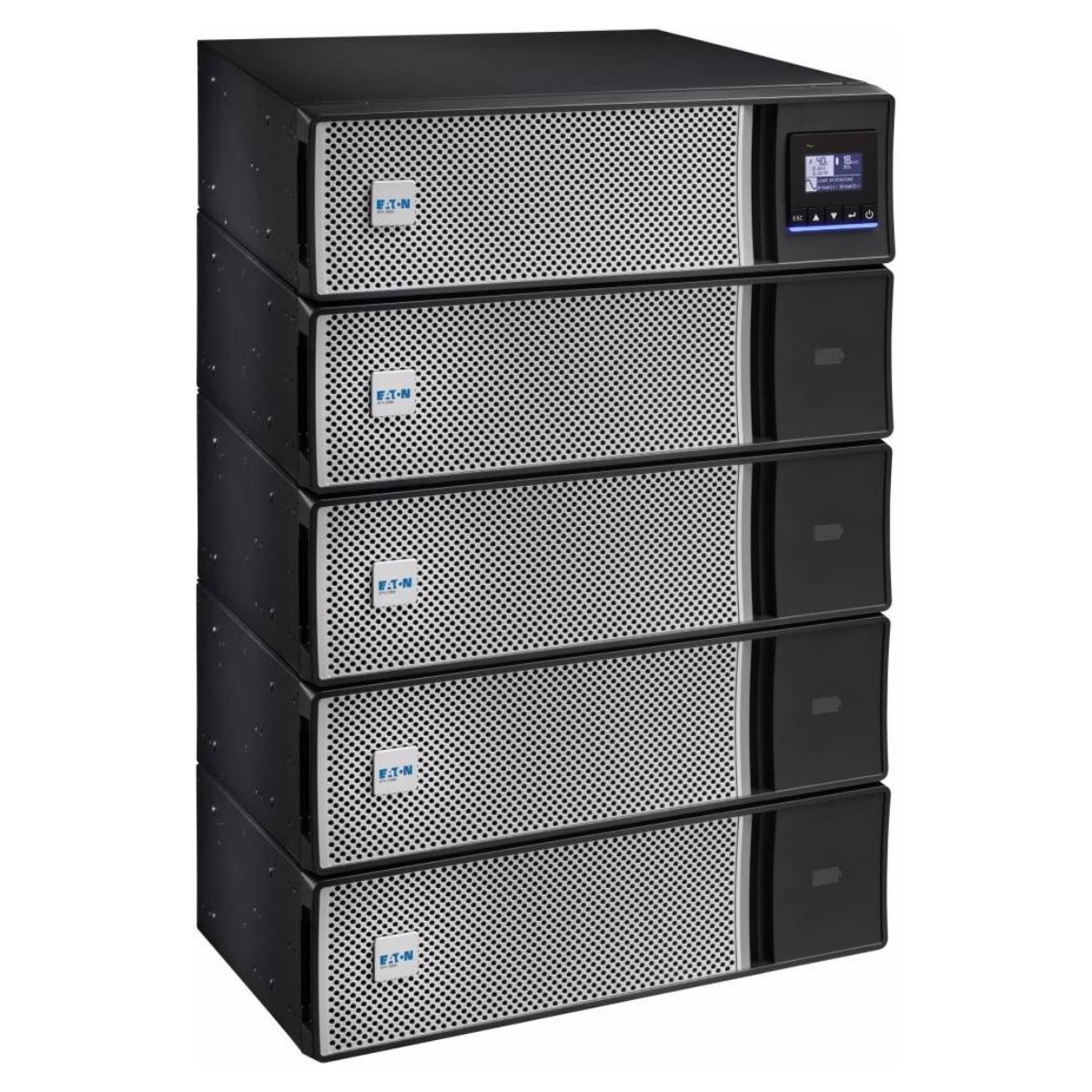

• Extended Battery Support: Up to 4 external battery packs (EBMs) for longer runtime

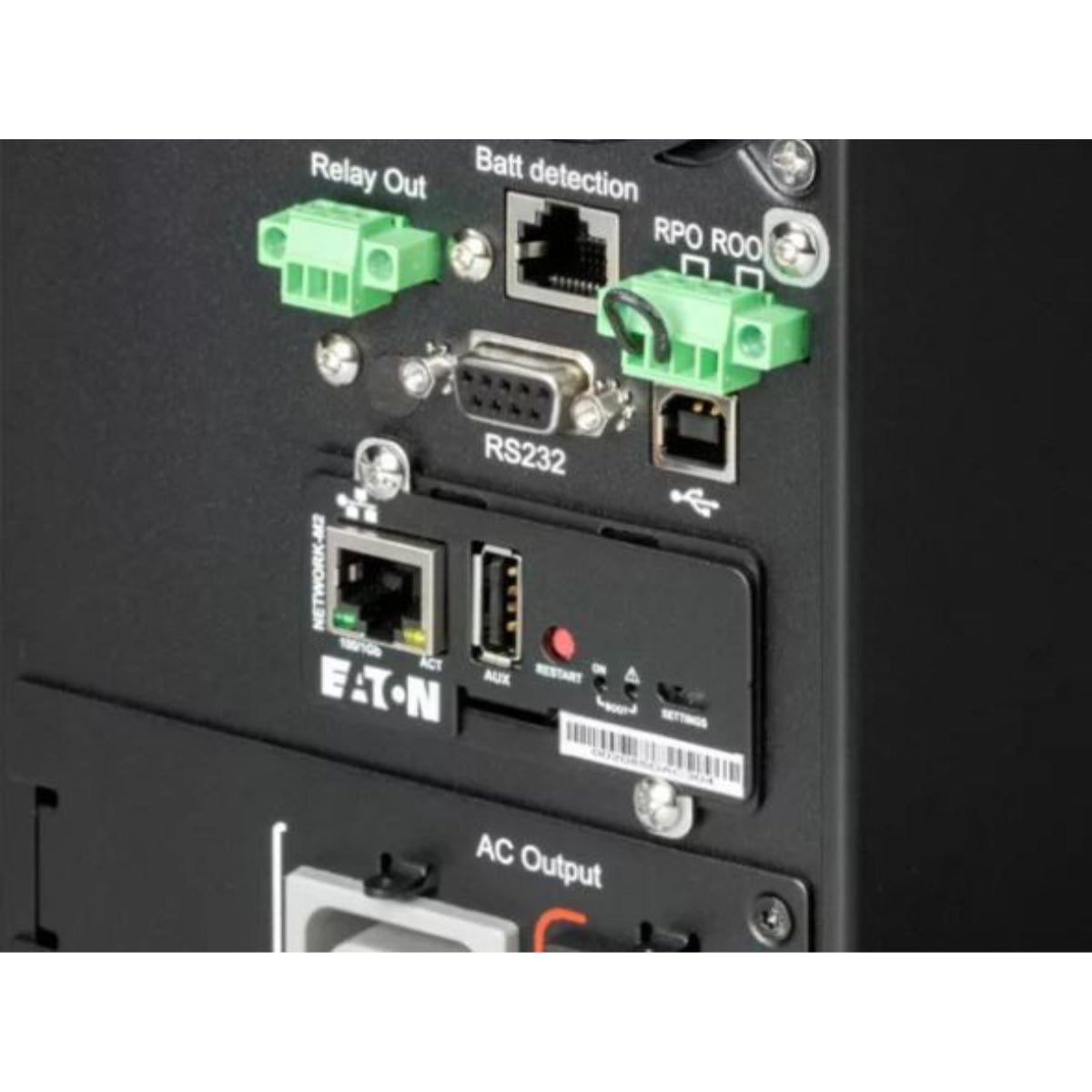

• Communication & Monitoring: USB (HID), Serial (RS232), Dry contacts, Remote On/Off, Slot for optional SNMP/Network card
• Noise Level: < 40 dB at 1 meter
• Operating Conditions: 0–40 °C, up to 3000 m altitude, 0–90% non-condensing humidity
• Certifications: IEC/EN 62040–1/2/3, UL 1778, CE, ENERGY STAR, RoHS, cTUVus, etc.

Ideal For

• Server rooms, data centers, and network closets requiring stable power for racks of servers, switches, storage or virtualization hosts.
• Small to medium businesses needing reliable UPS backup for mission-critical equipment (servers, NAS, network infrastructure, telecom gear).
• Offices with sensitive electronics — protects against power fluctuations, surges, and provides clean sine-wave power for PFC-based devices.
• Environments where rack-mountable or tower-style UPS is preferred — flexible installation with included rack/tower kit.
• Systems requiring expandable runtime — by adding external battery modules for longer backup periods (e.g. for clean shutdowns or extended runtime during outages).

Why Buy from IT Splendid (UAE)

• Genuine Eaton 5PX Gen2 UPS — official model 5PX3000IRT3UG2, not a clone or generic substitute.
• Flexible Rack or Tower Deployment — fits both rack-mount and standalone setups, suitable for data closets or dedicated server racks.
• Expandable & Hot-Swappable Battery Options — ensures minimal downtime and scalable runtime for growing infrastructure.
• High Efficiency & Sine-Wave Output — safe for sensitive electronics, reduces heat and power costs — important in UAE climate and electrical environment.
• Comprehensive Management & Monitoring Features — USB/serial ports, optional network card slot, power metering and remote shutdown support — useful for server rooms and IT admins.

Choose the Eaton 5PX3000IRT3UG2 UPS when you need high-capacity, reliable, and manageable power protection — an ideal solution for server racks, network infrastructure, and critical business systems across UAE.
