Eaton 9PX3000IRT3U – 3000 VA / 3000 W Online Rack/Tower UPS (3U)

Eaton 9PX3000IRT3U – 3000 VA / 3000 W Online Rack/Tower UPS (3U)

The Eaton 9PX3000IRT3U is a premium, double-conversion (online) UPS built to deliver clean, reliable power to critical IT infrastructure — including servers, networking equipment, storage arrays, and professional workstations. With unity power factor, hot-swappable batteries, rack or tower mounting flexibility, and advanced battery management, it’s ideal for data centers, server rooms or offices where power quality and uptime are essential.

Key Features

• Online Double-Conversion Topology: Provides pure sine-wave output and fully isolates connected equipment from mains fluctuations, surges, brownouts or frequency irregularities.
• 3000 VA / 3000 W Output: High capacity output allows powering multiple servers, switches, NAS, and storage units simultaneously.

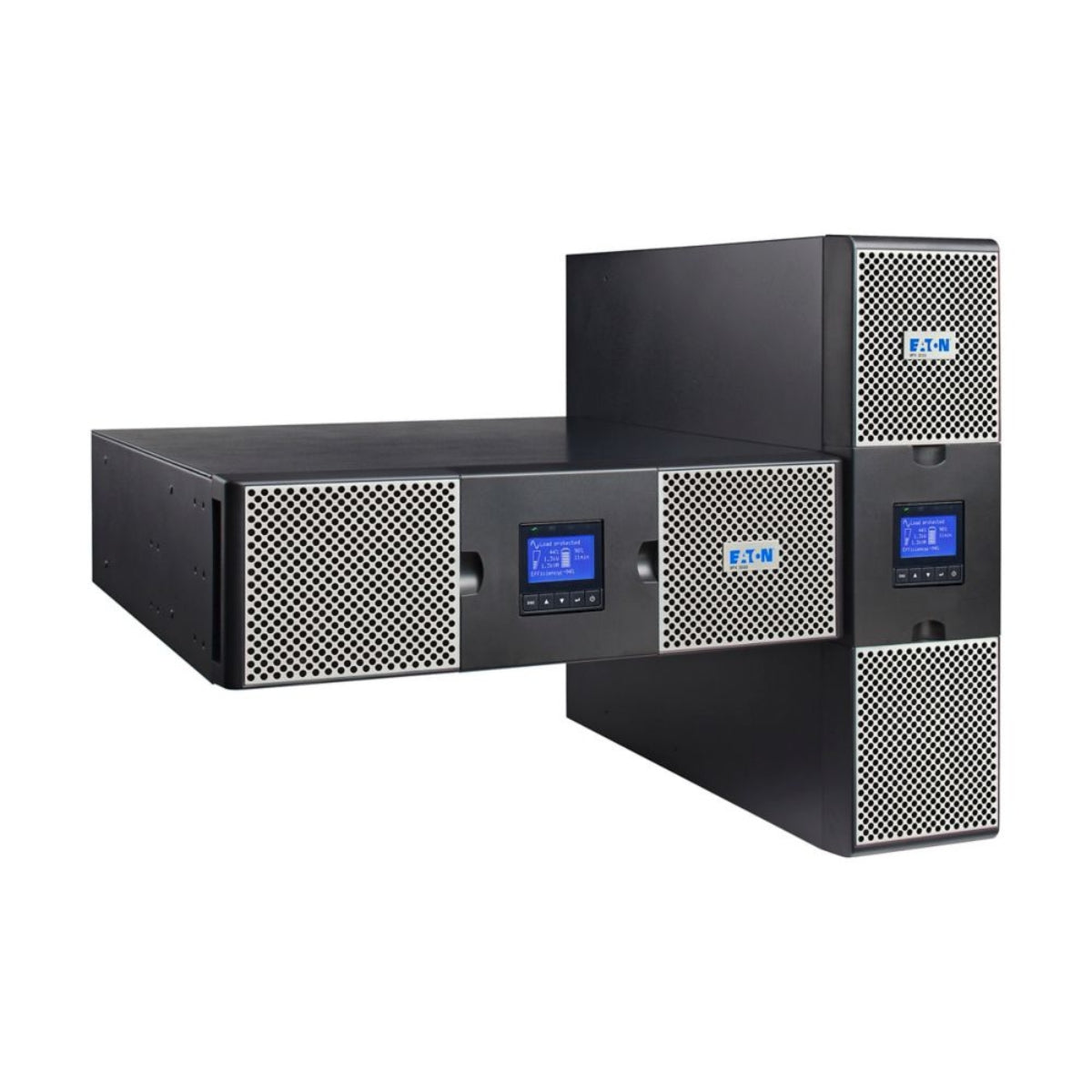

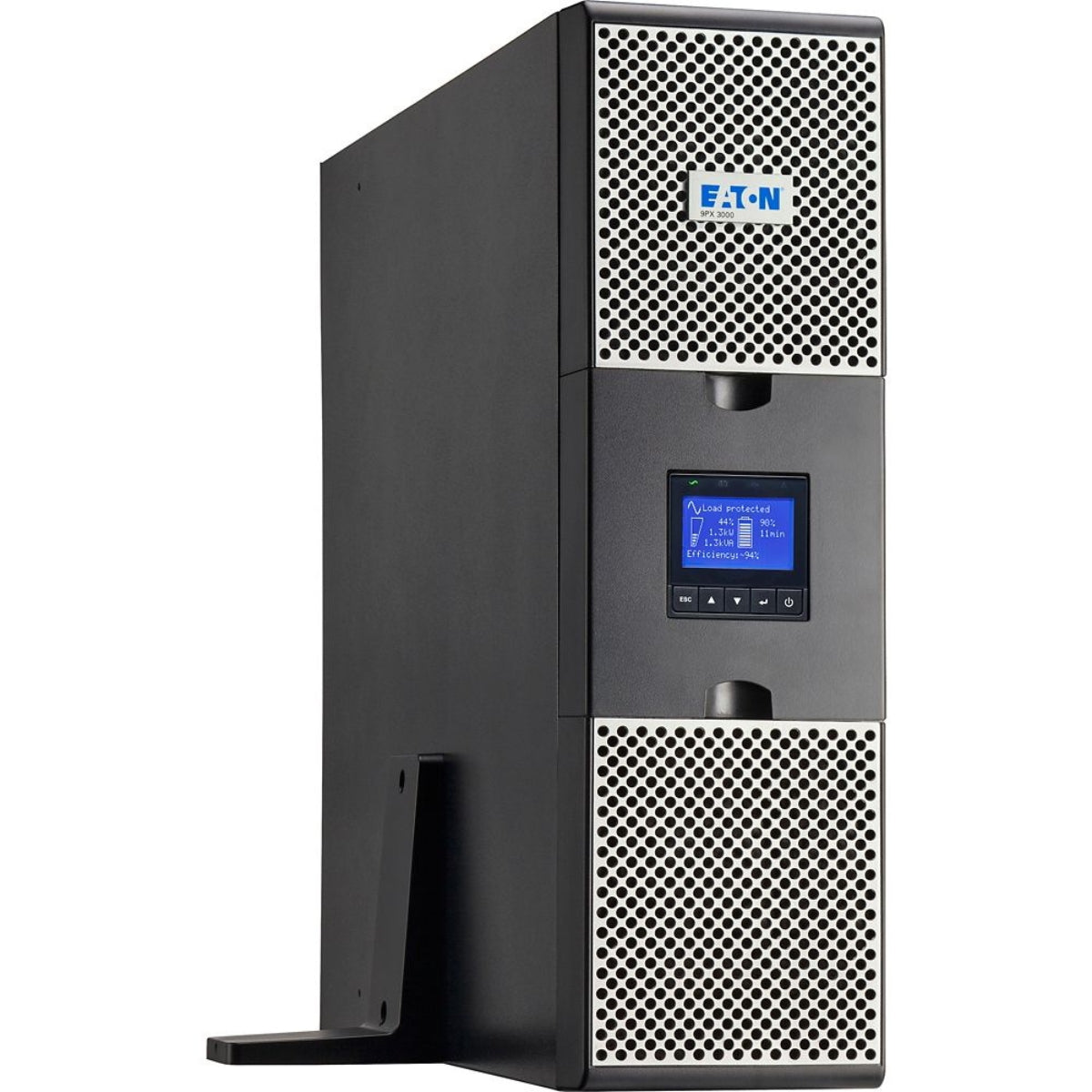

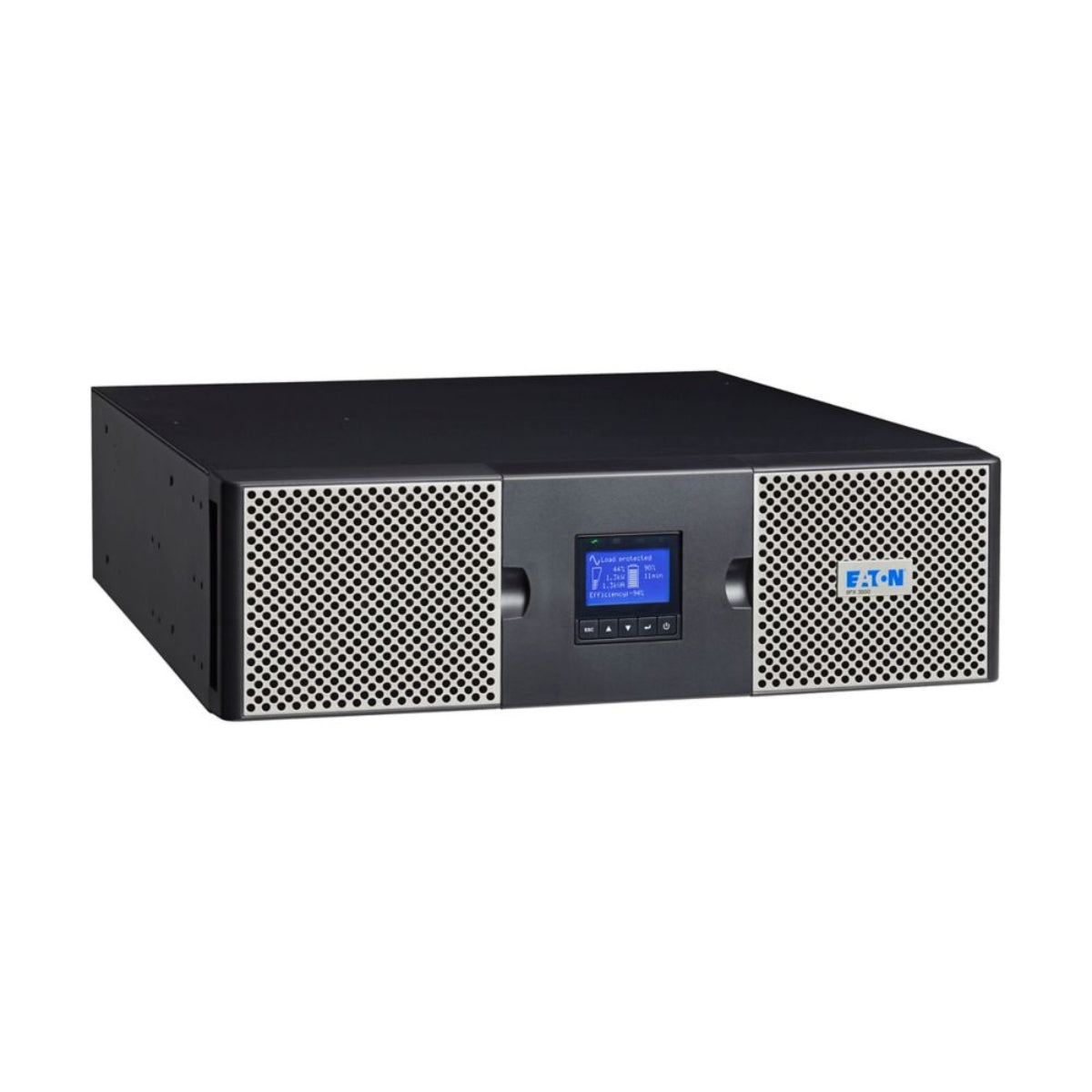

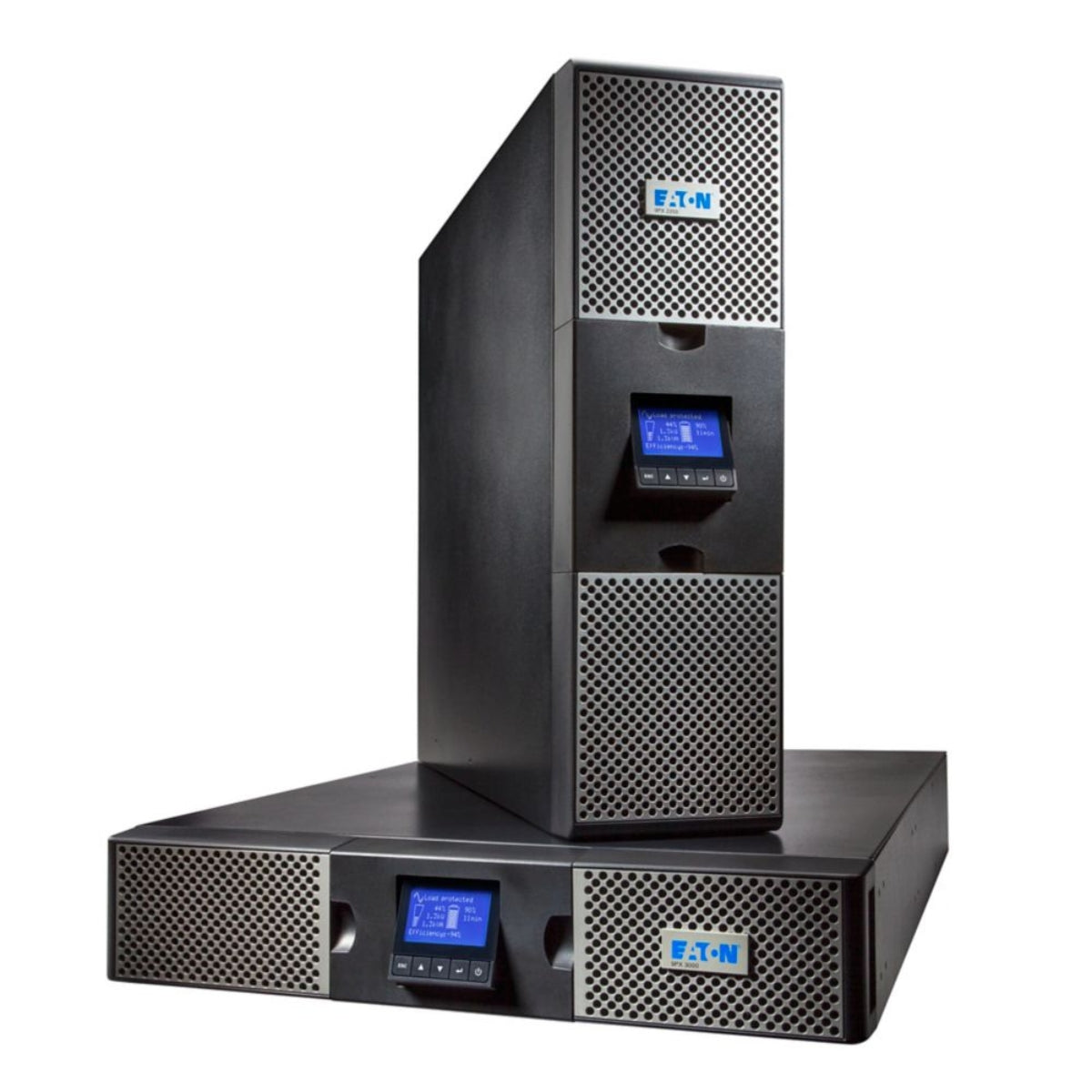

• Rack or Tower Form Factor (3U): Can be installed in a 19" rack or used standalone — includes rack-mount kit.

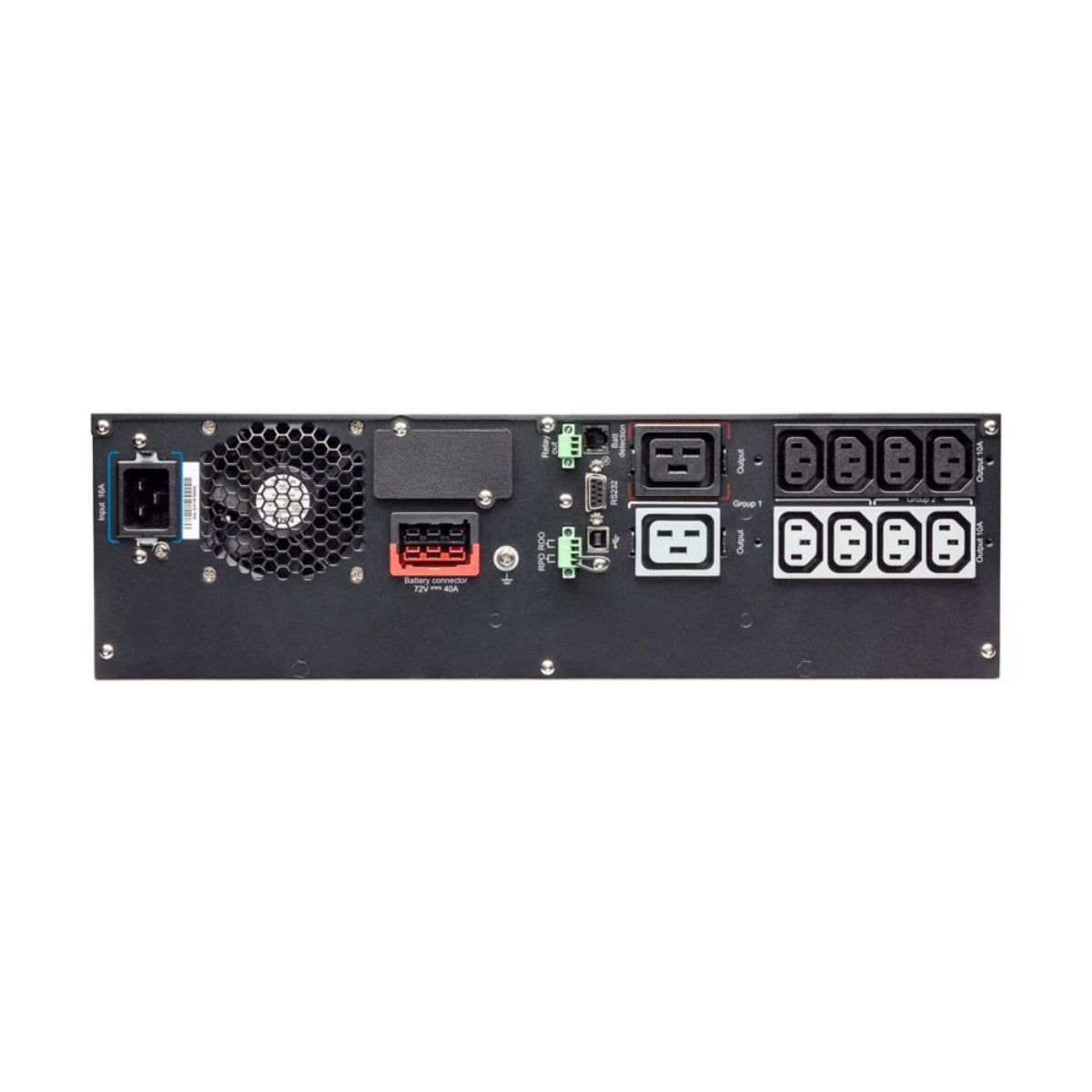

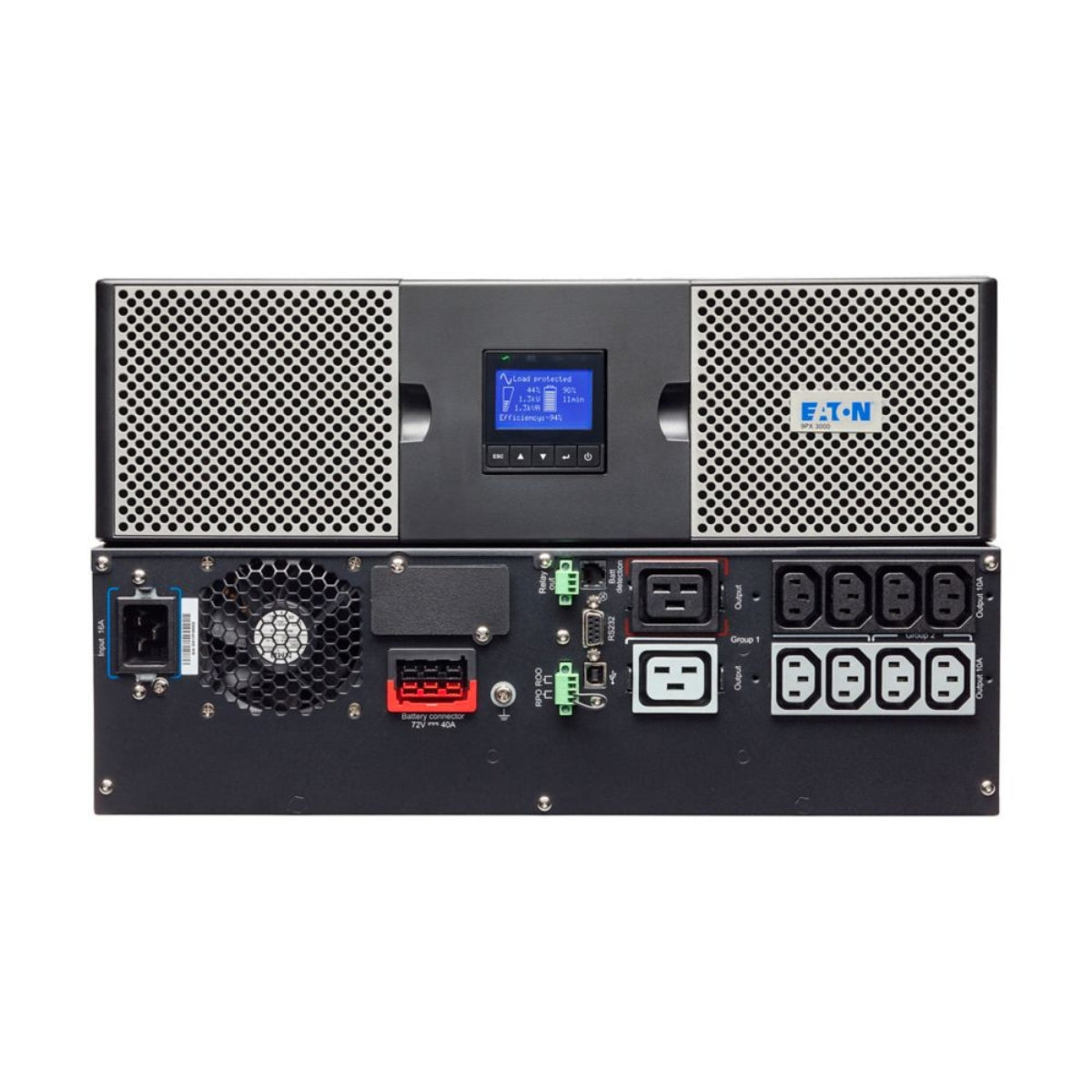

• 8× IEC C13 + 2× IEC C19 Outlets: Supports a variety of connected equipment.

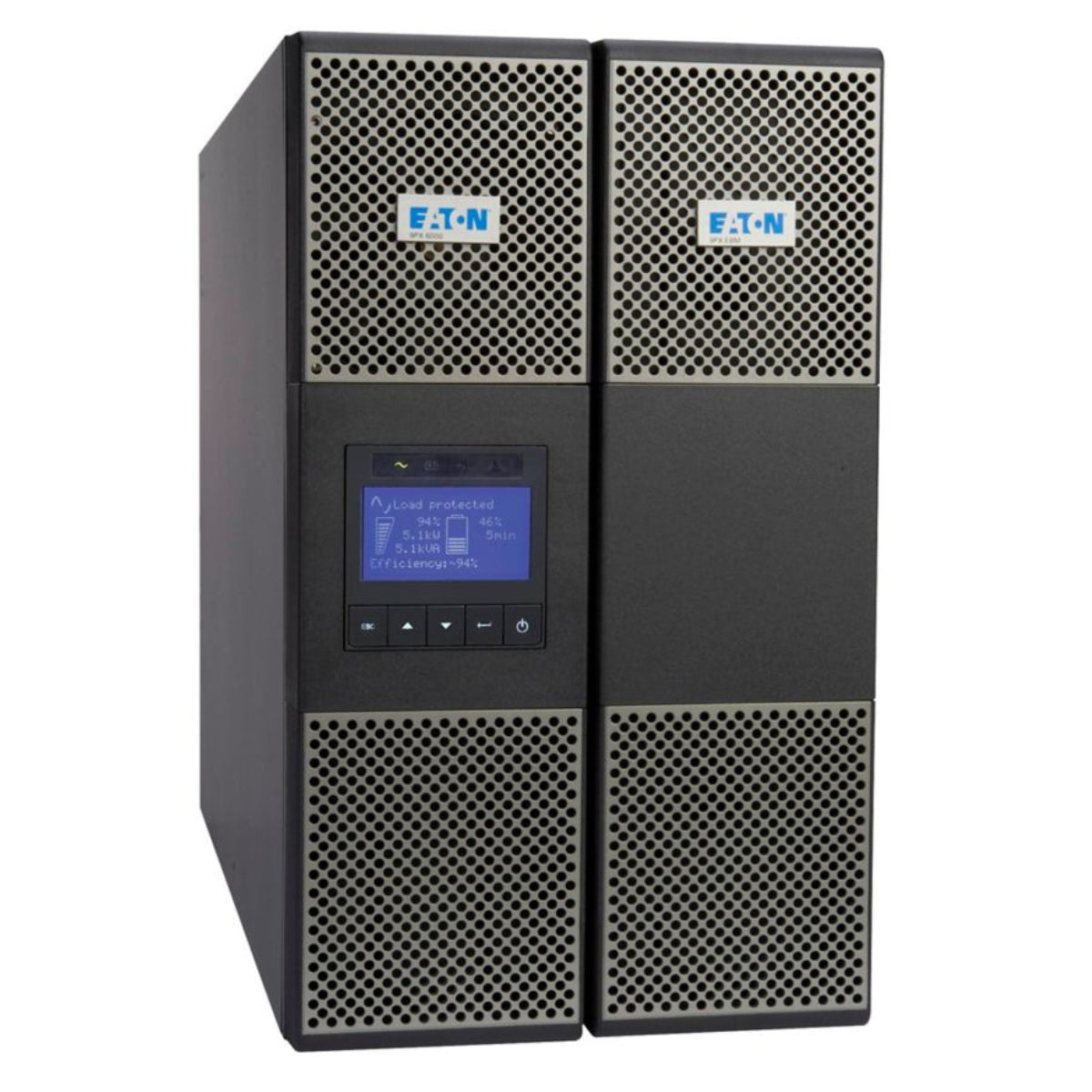

• Hot-Swappable Internal Batteries + External Battery Module (EBM) Support: Allows battery replacement or runtime expansion without shutting down connected loads.
• Advanced Battery Management (ABM): Optimizes charging and extends battery lifespan.

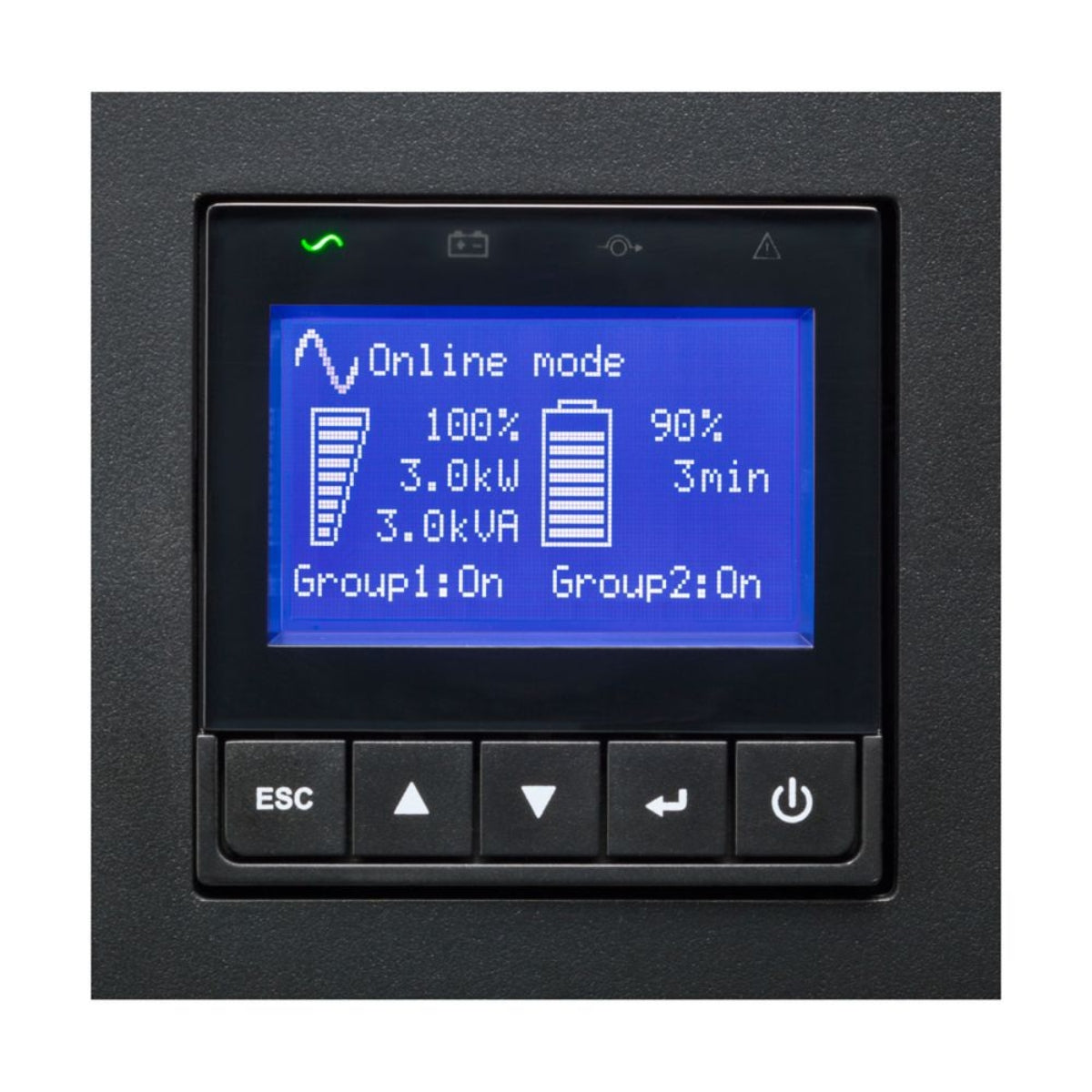

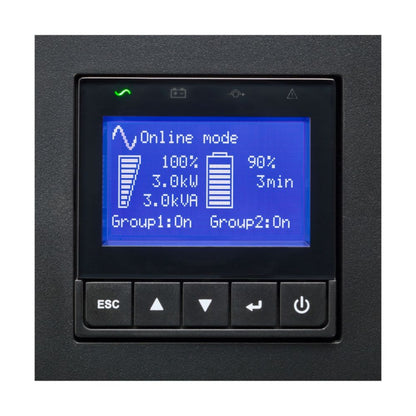

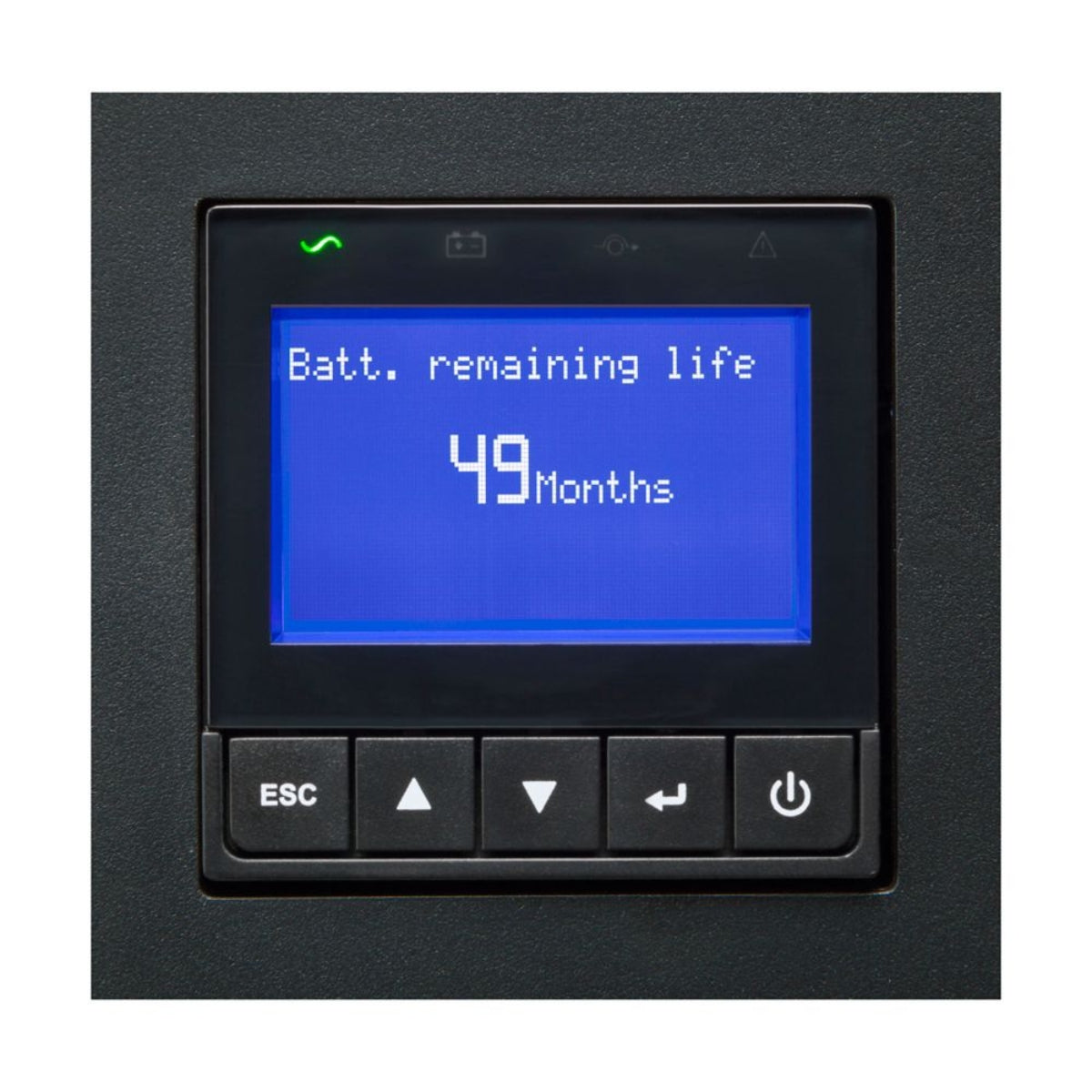

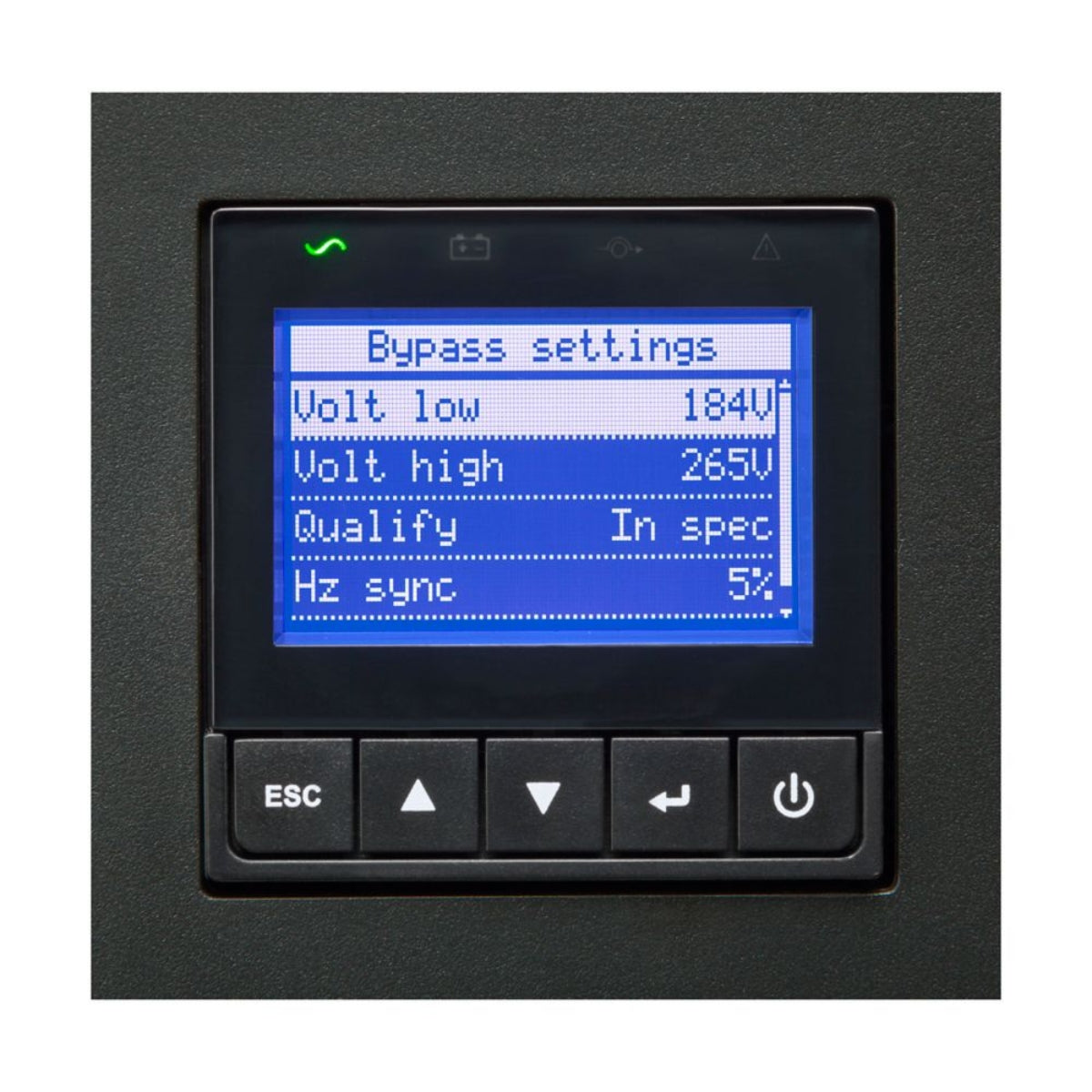

• Graphical LCD Display & Smart Monitoring: Shows load, battery status, input/output voltage, allows energy consumption metering per outlet group, remote-shutdown support, and optional communication cards.
• High Efficiency: Up to ~94% efficiency in normal online mode (higher in eco-mode) — reduces heat / power waste.
• Wide Input Voltage Range: Accepts input from ~176 V to 276 V (up to 100–276 V with derating) — good for environments with unstable power.

Technical Specifications

• Model / Part Number: 9PX3000IRT3U
• Topology: Online / Double-Conversion with Power Factor Correction (PFC)
• Power Capacity: 3000 VA / 3000 W
• Output Power Factor: 1.0 (Unity) — full watt capacity usable.
• Output Voltage (Nominal): 200 / 208 / 220 / 230 / 240 V (selectable)
• Input Voltage Range: 176–276 V (without derating); wider range 100–276 V with derating
• Frequency: 50/60 Hz auto-select (input 40–70 Hz)
• Outlets: 8 × IEC C13, 2 × IEC C19 (total 10)
• Form Factor / Rack Size: Rack-mountable / Tower, 3U, 482.6 mm 19″ rack width
• Dimensions (HxWxD): 130 × 440 × 485 mm
• Weight: ~27.4 kg
• Battery Type: Sealed Lead-Acid (VRLA), 6 × 12 V/9 Ah internal batteries
• Typical Backup Time (Half Load): ~9.5 min (varies with load and battery capacity)
• Efficiency (Normal Mode): Up to 94% online; higher in eco-mode (up to 98%)
• Noise Level: < 40 dB @ 1 m
• Communication Ports: USB (HID), RS-232, Mini terminal block (remote on/off, output relay, dry contacts), expansion slot for optional comm card.
• Special Features: Energy-Star certified, internal bypass for fault tolerance, hot-swappable batteries, advanced battery management, energy consumption metering per load-group, virtualization environment support (VMware, Hyper-V, Citrix, etc.)

Ideal For

• Server rooms, data-centers, network closets with racks of servers, switches, storage or virtualization hosts.
• Small to medium enterprises requiring reliable clean power for mission-critical equipment (servers, NAS, networking gear, telecom, etc.).
• Offices with sensitive electronics — protects against surges, brownouts, and ensures clean sine-wave power for devices with active PFC power supplies.
• Environments that benefit from rack-mount or tower-mount flexibility — useful for both rack infrastructure and standalone setups.
• Workloads needing scalable runtime — supports external battery modules (EBMs) for longer backup durations.

Why Buy from IT Splendid (UAE)

• Official Eaton 9PX Series Unit (3000 VA / 3000 W) — not a clone or lower-spec substitute.
• Rack-/Tower Flexibility & Included Mounting Kit — easy integration into server racks or standalone deployment.
• Hot-Swappable Battery & EBM Support — longer service life and extendable runtime without downtime.
• High Efficiency & Energy Savings — reduces electricity and cooling overhead, which is advantageous in UAE's climate.
• Smart Monitoring & Management Ready — supports advanced management, virtualization-friendly shutdown, energy metering and remote control — ideal for professional IT deployments.

Choose the Eaton 9PX3000IRT3U UPS for robust, enterprise-grade power protection — a reliable choice for servers, data-center racks, network infrastructure, and critical electronics across UAE and beyond.
