MERCUSYS AC12 AC1200 Dual-Band Wi-Fi 5 Router | 1200 Mbps | 4× 5 dBi Antennas | Guest Network | Black

MERCUSYS AC12 AC1200 Dual-Band Wi-Fi 5 Router | 1200 Mbps | 4× 5 dBi Antennas | Guest Network | Black

The MERCUSYS AC12 AC1200 Dual-Band Wireless Router is designed to provide convenient wireless connectivity for homes, apartments, and small offices. Supporting Wi-Fi 5 technology, it delivers combined theoretical wireless speeds of up to 1200 Mbps, with 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. This dual-band design helps accommodate everyday browsing, online learning, video streaming, video calls, and other internet-connected activities. Featuring four external 5 dBi antennas, the AC12 is designed to distribute wireless signals throughout the surrounding environment. Users can connect compatible laptops, smartphones, tablets, smart TVs, and other Wi-Fi-enabled devices without requiring a separate wireless access point. The router also supports guest networking, WPA/WPA2 wireless security, and web-based configuration. Its black desktop design makes it a practical option for everyday home and small-office networking. Please note that Ethernet port configurations and software features can vary by AC12 hardware revision and regional model.

Key Features

• AC1200 Dual-Band Wi-Fi: Supports wireless speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
• Wi-Fi 5 Technology: Uses the IEEE 802.11ac standard on the 5 GHz band for compatible wireless devices.
• Four External 5 dBi Antennas: Help distribute wireless signals and provide coverage for compatible devices.
• Wired Ethernet Connectivity: Provides Ethernet ports for connecting a modem and compatible wired network devices. Port count and speed depend on the hardware version.
• Guest Network: Allows visitors to connect through a separate Wi-Fi network on supported versions.
• Wireless Security: Supports WPA-PSK and WPA2-PSK encryption on the original specified version.
• Web-Based Setup: Provides a browser-based interface for configuring the internet connection and wireless network.
• Black Desktop Design: Offers a compact router design suitable for common home and office environments.

Technical Specifications

• Brand: MERCUSYS
• Model: AC12
• Product Type: Dual-Band Wireless Router
• Colour: Black
• Wi-Fi Class: AC1200
• Wireless Generation: Wi-Fi 5
• Maximum 5 GHz Speed: Up to 867 Mbps
• Maximum 2.4 GHz Speed: Up to 300 Mbps
• Wireless Standards: IEEE 802.11a/n/ac on 5 GHz; IEEE 802.11b/g/n on 2.4 GHz
• Antennas: 4 external omnidirectional antennas, 5 dBi each on the referenced version
• Ethernet Ports: Original specification lists 1 × 10/100 Mbps WAN and 4 × 10/100 Mbps LAN ports; verify the supplied revision because configurations may differ.
• Wireless Security: WPA-PSK / WPA2-PSK on the original specified version
• Guest Network: Supported; available bands depend on hardware revision
• WAN Connection Types: Dynamic IP, Static IP, and PPPoE on the original specified version
• Network Management: DHCP server, access control, local management, and remote management
• Port Forwarding: Virtual server, UPnP, and DMZ on the original specified version
• Firewall Feature: IP and MAC address binding
• Dimensions: Approximately 222 × 140 × 32 mm for the original specified version
• Power Supply: 9 V DC, 0.85 A for the referenced version

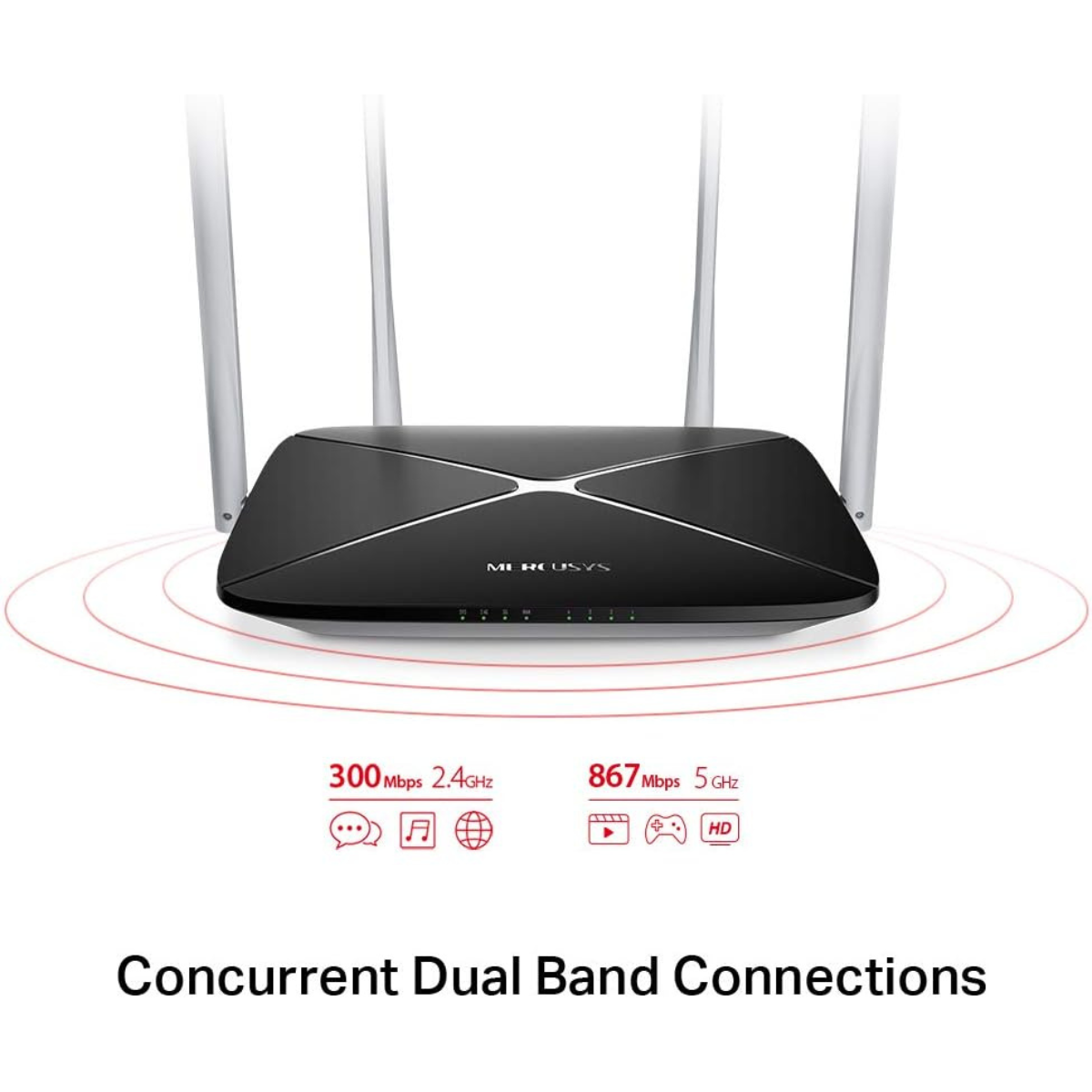

AC1200 Dual-Band Wireless Connectivity

The MERCUSYS AC12 operates on both the 2.4 GHz and 5 GHz frequency bands, giving compatible devices flexibility when connecting to the wireless network. The 2.4 GHz band is suitable for general browsing, emails, and everyday connected devices, while the 5 GHz band supports higher theoretical wireless speeds for activities such as HD streaming and online gaming.

Both bands can operate concurrently, allowing compatible devices to use the frequency that best suits their needs. Actual performance depends on the internet plan, connected devices, signal strength, interference, and network conditions.

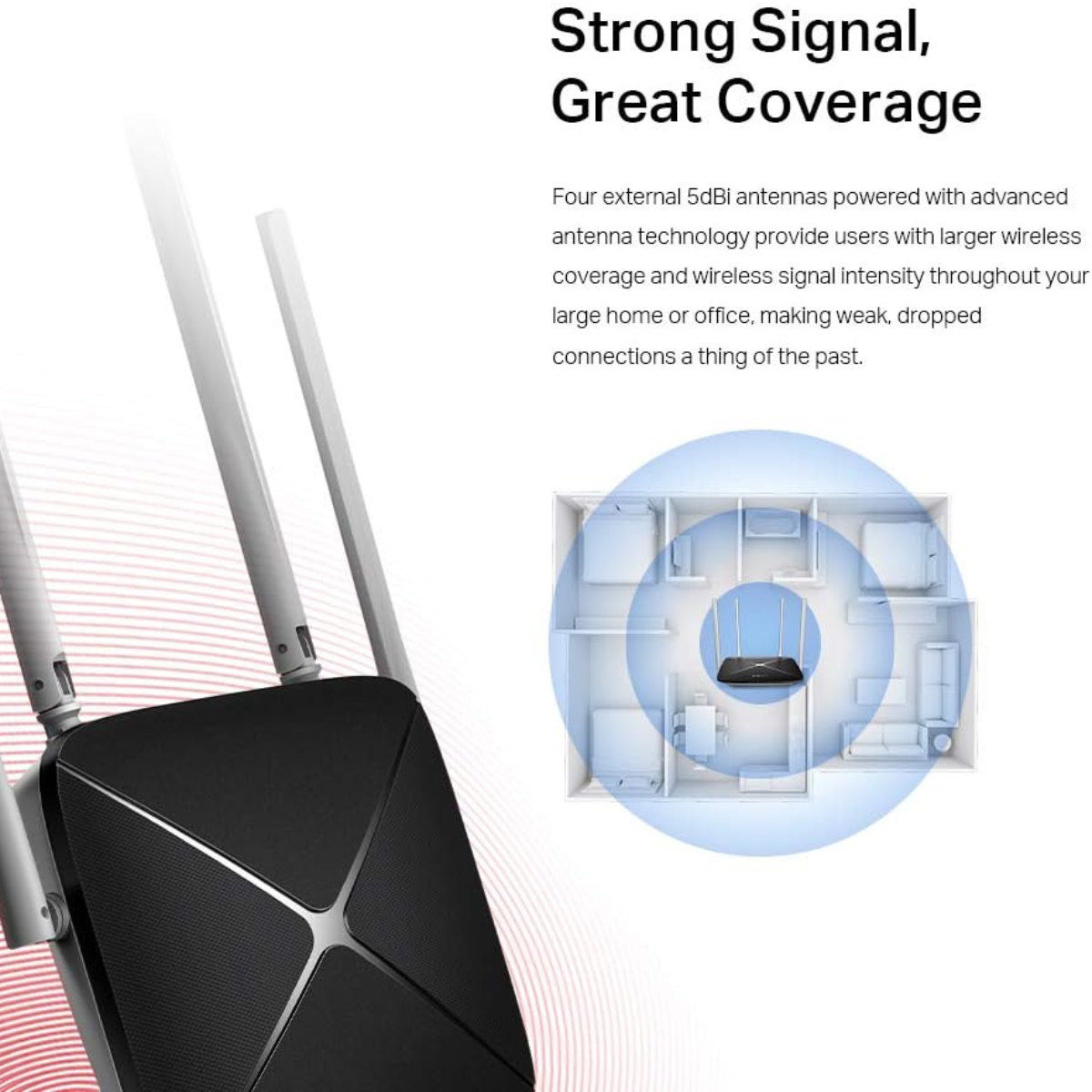

Four External 5 dBi Antennas

The router features four external 5 dBi antennas designed to help distribute wireless signals around the coverage area. This antenna arrangement supports wireless connectivity for compatible devices in different parts of a home or small office.

For the best results, place the router in a central, elevated location away from major obstructions and sources of interference. Actual wireless coverage varies with building materials, walls, device placement, and the capabilities of connected equipment.

Wired Network Connectivity

The MERCUSYS AC12 provides Ethernet connectivity for compatible wired devices. Depending on the hardware revision, the router may have a different number of LAN ports, so verify the exact unit's port configuration before purchase.

The original AC12 specification lists Fast Ethernet interfaces rated at up to 100 Mbps. This is important when choosing a router for a high-speed internet subscription, because the WAN Ethernet port can limit the maximum internet throughput even when the wireless connection has a higher theoretical link rate.

Guest Network Access

The guest network feature on supported AC12 versions allows visitors to use a separate Wi-Fi connection rather than sharing the primary wireless credentials. This is useful in households and small offices where guests regularly need internet access.

Guest network availability and supported frequency bands may vary by hardware revision and firmware. Check the settings available on the specific model supplied.

Wireless Security and Network Management

The original specified version supports WPA-PSK and WPA2-PSK wireless encryption to help protect the Wi-Fi network against unauthorized access. Network management functions include DHCP server capabilities, access control, and IP/MAC address binding.

For improved network security, configure a strong and unique Wi-Fi password and change default administrator credentials where supported. The available security options and management functions depend on the router's hardware version and firmware.

Simple Installation and Configuration

The AC12 supports web-based configuration to help users set up their internet connection and wireless network. Typical installation involves connecting the router to the modem or internet source, opening the router's configuration interface, selecting the appropriate connection type, and creating the wireless network name and password.

Some internet service providers require specific connection credentials or additional settings. Follow the supplied installation guide and your ISP's instructions to complete the setup.

Ideal Applications

• Home wireless networking and everyday internet access
• Small apartments and residential environments
• Internet browsing, emails, and online learning
• Video streaming and online entertainment
• Video calls and home-office connectivity
• Connecting compatible smartphones, tablets, and laptops
• Guest Wi-Fi access on supported hardware versions
• Basic networking for small offices and home offices

Benefits

• Dual-Band Flexibility: Provides 2.4 GHz and 5 GHz wireless bands for different connectivity requirements.
• AC1200 Wireless Performance: Offers theoretical combined wireless speeds of up to 1200 Mbps.
• External Antenna Design: Helps distribute wireless signals around the intended coverage area.
• Guest Access: Allows visitors to use a separate network on supported versions.
• Convenient Setup: Offers web-based configuration for everyday installation and management.
• Compact Design: Fits into common home and small-office networking environments.
• Practical Everyday Connectivity: Supports common internet activities on compatible wireless devices.

Why Choose the MERCUSYS AC12?

• AC1200 dual-band Wi-Fi 5 with up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
• Four external 5 dBi antennas for wireless signal distribution.
• Guest network support on compatible hardware versions.
• WPA/WPA2 wireless security on the original specified version.
• Web-based configuration and common network management functions.
• A practical option for everyday home and small-office internet use.

Compatibility and Important Considerations

• Hardware Revision: MERCUSYS AC12 has multiple hardware versions. Specifications and available features may vary between revisions and regions.
• Ethernet Speed: The original specification lists 10/100 Mbps Ethernet ports. Do not assume Gigabit Ethernet support without confirming the exact model revision.
• Wireless Speed: The advertised 867 Mbps and 300 Mbps figures are theoretical maximum wireless link rates, not guaranteed internet download speeds.
• Internet Service: A compatible broadband service and modem or ISP-provided equipment may be required.
• Security Features: Wireless security options vary by hardware version and firmware. Confirm the supported encryption standards for the exact unit.
• Product Selection: If your internet plan exceeds 100 Mbps, check the router's WAN port speed carefully. A Gigabit router may be more suitable if you want to take advantage of a faster broadband connection.
