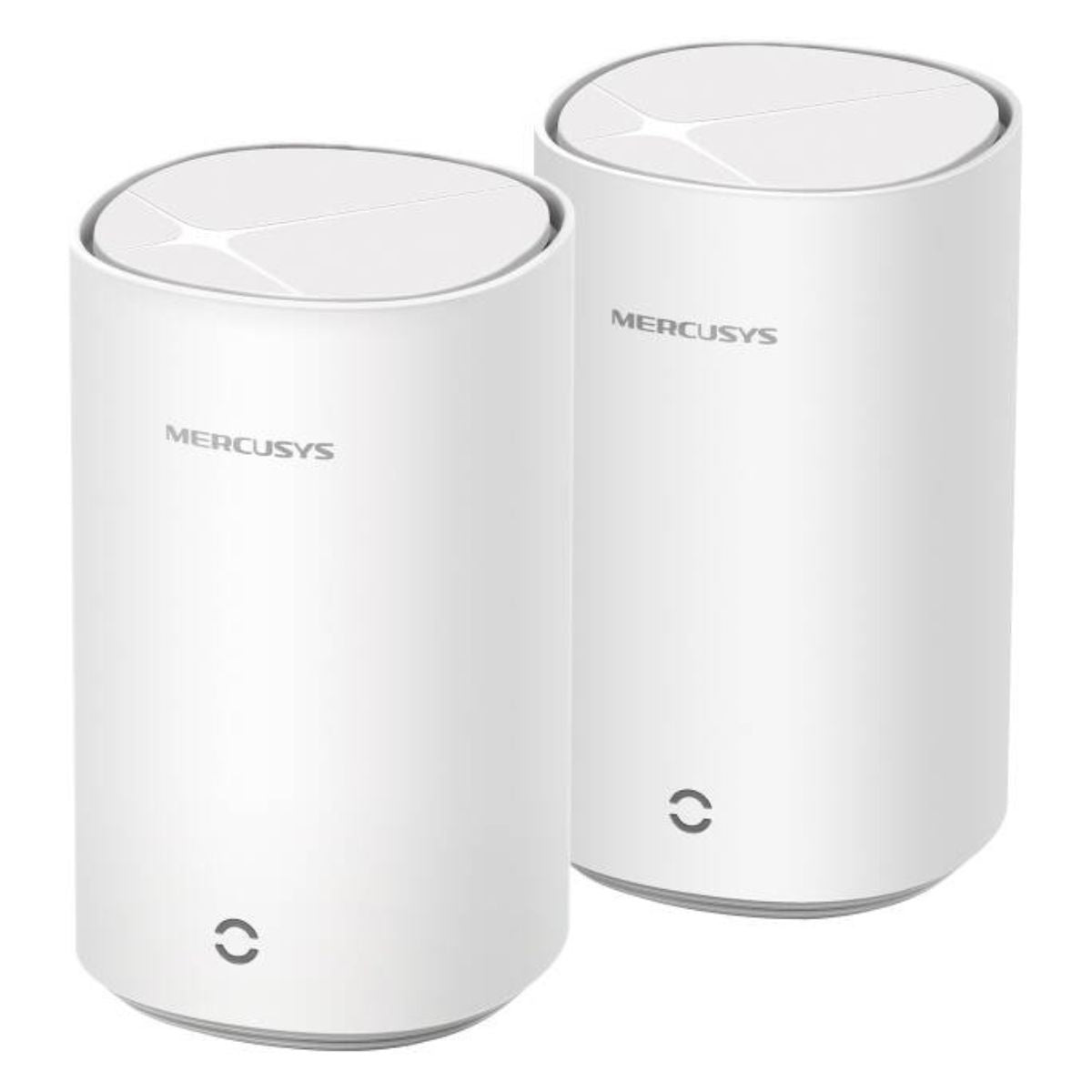

MERCUSYS Halo E27BE Whole Home Mesh Wi-Fi 7 System | BE3600 Dual-Band | 2880Mbps 5GHz + 688Mbps 2.4GHz | MLO & 4K-QAM | 2.5Gbps + 2× Gigabit Ports | 200+ Devices | 460m² Coverage | 2-Pack

MERCUSYS Halo E27BE Whole Home Mesh Wi-Fi 7 System | BE3600 Dual-Band | 2880Mbps 5GHz + 688Mbps 2.4GHz | MLO & 4K-QAM | 2.5Gbps + 2× Gigabit Ports | 200+ Devices | 460m² Coverage | 2-Pack

The MERCUSYS Halo E27BE Whole Home Mesh Wi-Fi 7 System is designed to deliver fast, reliable, and seamless wireless connectivity throughout your home or small office. Featuring advanced Wi-Fi 7 technology, this BE3600 dual-band mesh system provides combined wireless speeds of up to 3.6Gbps, with up to 2880Mbps on the 5GHz band and 688Mbps on the 2.4GHz band. Its two-unit configuration helps extend Wi-Fi coverage across larger spaces, reduce dead zones, and maintain a consistent connection as you move between rooms. Equipped with Multi-Link Operation (MLO), 4K-QAM, and Multi-RUs, the Halo E27BE is engineered to improve wireless efficiency, throughput, and network responsiveness with compatible devices. Whether you are streaming high-resolution video, attending online meetings, gaming, browsing, or connecting smart-home equipment, this mesh system provides a versatile networking solution for modern connected households. The two-pack system offers advertised coverage of up to 460m² (5,000 ft²) and supports more than 200 connected devices under specified laboratory conditions. Each Halo E27BE unit includes one 2.5Gbps Ethernet port and two Gigabit Ethernet ports, providing flexible wired connectivity for compatible computers, smart TVs, gaming consoles, and other network devices.

Key Features

• Wi-Fi 7 Technology: Uses the latest-generation Wi-Fi 7 wireless standard to support improved speed, efficiency, and connectivity with compatible devices.
• BE3600 Dual-Band Wi-Fi: Delivers wireless signal rates of up to 2880Mbps on 5GHz and 688Mbps on 2.4GHz.
• Whole-Home Mesh Coverage: The two-unit package is designed to cover areas up to 460m², helping reduce Wi-Fi dead zones across multiple rooms.
• Multi-Link Operation (MLO): Enables compatible devices to use multiple Wi-Fi bands and links to improve throughput, reduce latency, and enhance connection reliability.
• 4K-QAM Technology: Supports higher data density per transmission when compatible client devices and network conditions allow.
• Multi-RUs: Helps improve wireless resource allocation and network efficiency in supported environments.
• Multi-Gigabit Ethernet: Each unit provides one 2.5Gbps port and two 1Gbps ports for compatible wired connections.
• Seamless Mesh Roaming: Creates a unified Wi-Fi network so compatible devices can transition between Halo units as you move around your home.
• 200+ Connected Devices: Designed to accommodate a large number of connected devices, subject to network conditions and device requirements.
• App-Based Network Management: Configure and manage your network through the MERCUSYS app, including connected-device monitoring, guest networking, parental controls, and quality-of-service options.
• Enhanced Network Security: Supports WPA-PSK, WPA2-PSK, and WPA3 wireless security, subject to compatible client-device support.
• Router and Access Point Modes: Supports different deployment configurations to suit home networking requirements.

Technical Specifications

• Brand: MERCUSYS
• Product Model: Halo E27BE
• Product Type: Whole Home Mesh Wi-Fi System
• Wireless Standard: Wi-Fi 7
• Wi-Fi Class: BE3600
• Wireless Configuration: Dual-Band
• 5GHz Wireless Speed: Up to 2880Mbps
• 2.4GHz Wireless Speed: Up to 688Mbps
• Combined Advertised Wireless Speed: Up to 3.6Gbps
• Wi-Fi 7 Features: Multi-Link Operation (MLO), 4K-QAM, Multi-RUs
• Ethernet Interfaces per Unit: 1 × 2.5Gbps port and 2 × 1Gbps ports
• Port Functionality: WAN/LAN auto-sensing
• Maximum Advertised Coverage: Up to 460m² (5,000 ft²) for the two-pack system
• Advertised Device Capacity: More than 200 devices under specified laboratory conditions
• Mesh Roaming Protocol: IEEE 802.11k/v/r
• Wireless Security: WPA-PSK, WPA2-PSK, WPA3
• Operating Modes: Router Mode, Access Point Mode
• Internet Connection Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
• Network Protocols: IPv4 and IPv6
• Firewall: SPI Firewall
• VPN Server and Client: OpenVPN, PPTP, L2TP/IPSec, WireGuard
• Guest Network: Separate 2.4GHz and 5GHz guest networks
• Quality of Service: WMM and supported QoS management features
• Management: Local management, remote management, and multi-manager support
• Dimensions per Unit: 100 × 100 × 167.65mm
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10%–90%, non-condensing
• Package Configuration: 2-Pack
• Package Contents: 2 × Halo E27BE units, 1 × RJ45 Ethernet cable, 2 × power adapters, and quick installation guide

Advanced Wi-Fi 7 Performance with BE3600 Dual-Band Connectivity

The MERCUSYS Halo E27BE combines 5GHz and 2.4GHz wireless connectivity to support a wide range of connected devices and everyday networking activities. The 5GHz band offers a higher advertised signal rate of up to 2880Mbps, making it suitable for bandwidth-intensive activities when supported by the client device and network environment. The 2.4GHz band provides an additional connectivity option for compatible devices, including many smart-home products and other wireless equipment.

Its BE3600 classification represents the combined advertised wireless signal rates across the two bands, rather than a guaranteed speed for a single device. Actual throughput depends on the internet service plan, client hardware, wireless interference, network congestion, and other environmental factors.

Multi-Link Operation (MLO) for Improved Connectivity

Multi-Link Operation is one of the key Wi-Fi 7 capabilities supported by the Halo E27BE. With compatible client devices, MLO can use multiple wireless links to help improve data throughput, reduce latency, and increase connection reliability. This technology can benefit activities such as online gaming, video conferencing, and responsive communication between supported network devices.

To benefit from MLO, the connected client devices must support the corresponding Wi-Fi 7 features. Performance also depends on the wireless environment and the configuration of the network.

4K-QAM and Multi-RUs for Wireless Efficiency

The Halo E27BE supports 4K-QAM, a Wi-Fi 7 modulation feature that can carry more data per transmission under suitable signal conditions. This can help improve wireless data efficiency with compatible devices. The system also supports Multi-RUs, which helps manage wireless resource allocation and improve spectrum efficiency in supported environments.

Together, these Wi-Fi 7 technologies are designed to help the mesh system make better use of available wireless resources when multiple compatible devices are active on the network.

Whole-Home Mesh Coverage up to 460m²

The two-pack Halo E27BE system is advertised to cover up to 460m² (5,000 ft²), making it suitable for larger homes and multi-room layouts. The two units work together to provide a unified wireless network, helping extend connectivity to areas that may receive a weak signal from a single router.

Coverage can vary depending on building materials, walls, floors, interference, unit placement, and the number of connected devices. For best results, position the Halo units in locations that allow a strong connection between them and adequate coverage of the areas where Wi-Fi is required.

Seamless Roaming Across a Unified Network

Instead of requiring users to manually switch between separate Wi-Fi networks, the Halo E27BE mesh system uses a unified network name and password. Compatible client devices can transition between Halo units as users move from one room to another, helping maintain connectivity during video calls, streaming, browsing, and other online activities.

The system supports IEEE 802.11k/v/r mesh roaming protocols. Seamless roaming behaviour depends on client-device compatibility, network configuration, and environmental conditions.

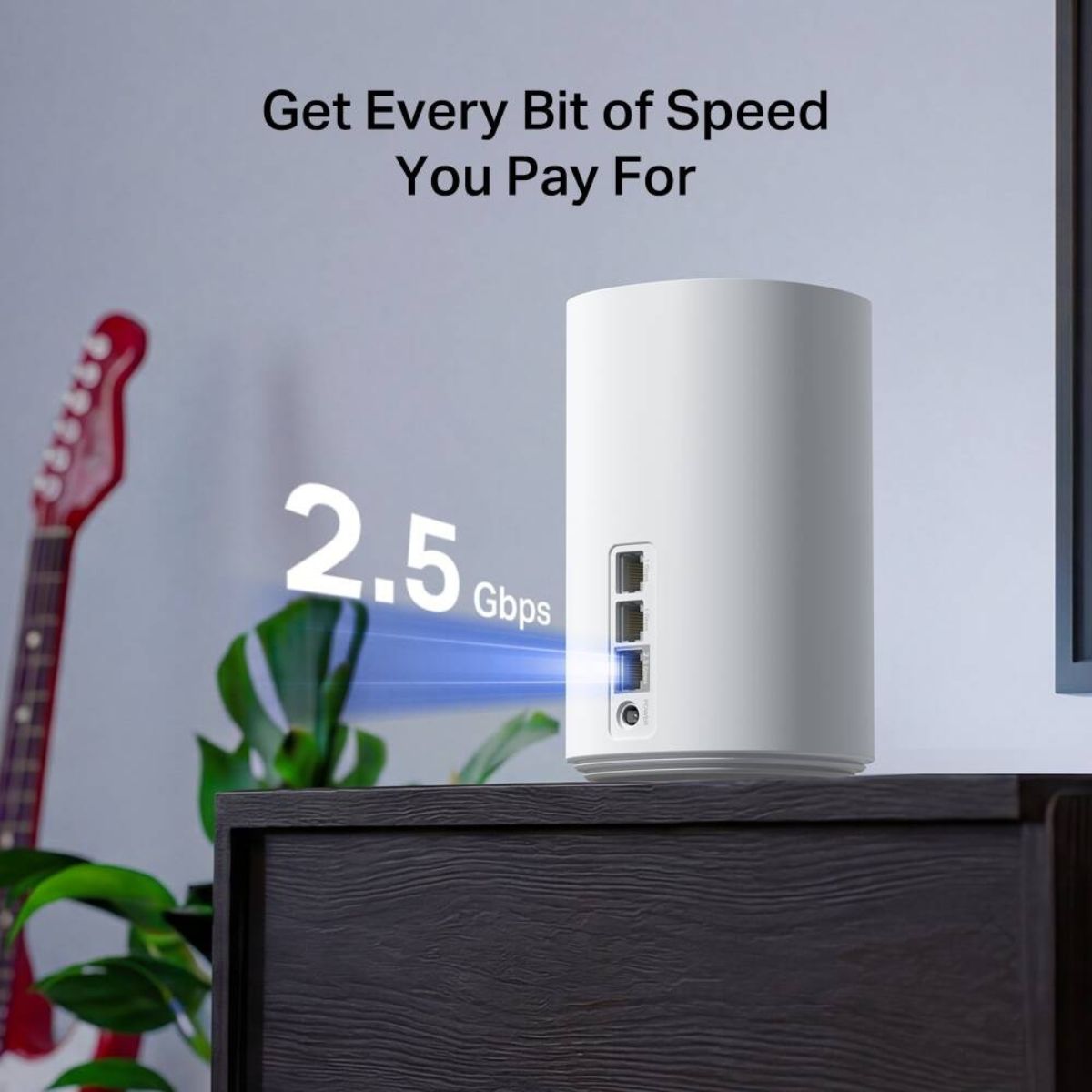

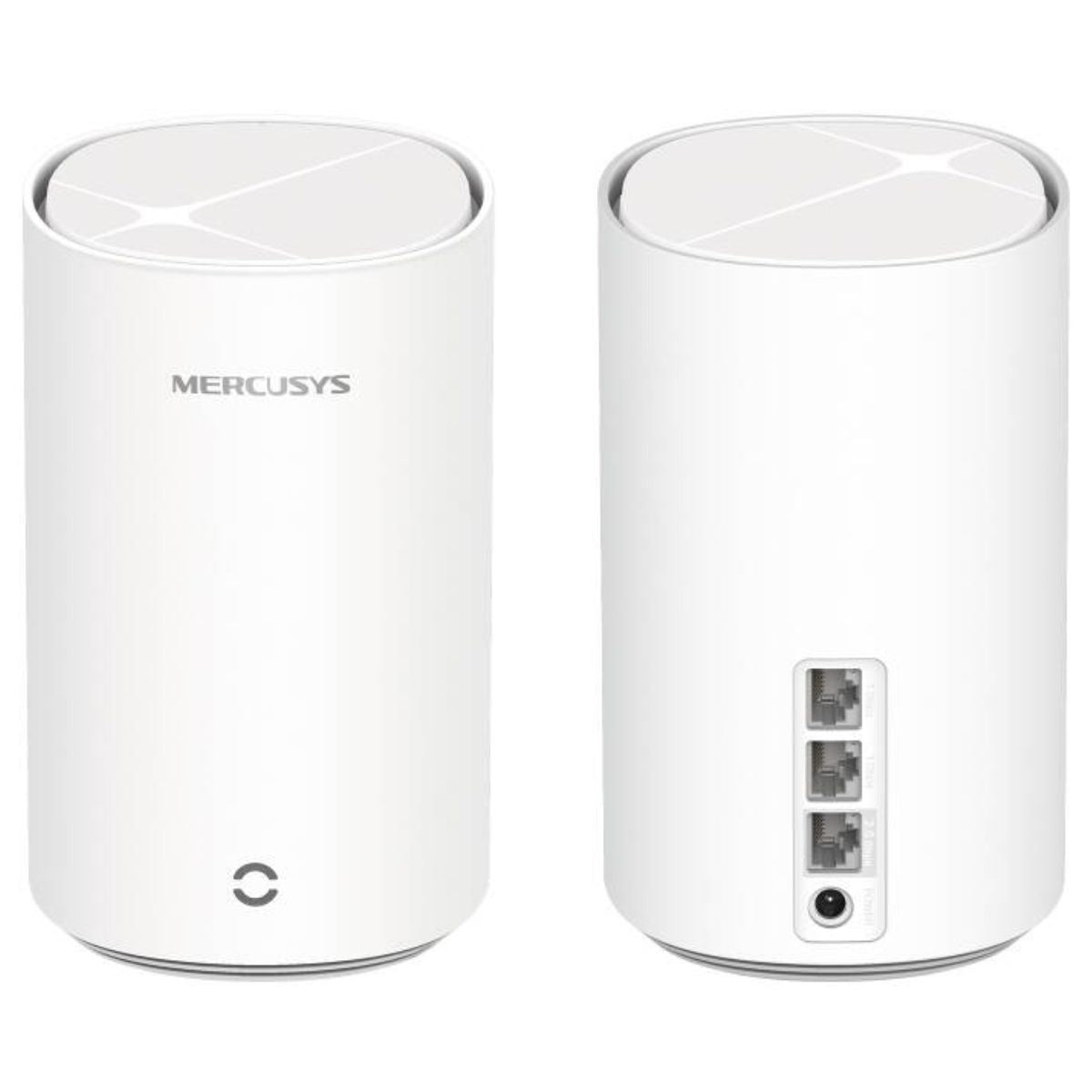

2.5Gbps Multi-Gigabit and Gigabit Ethernet Ports

Each Halo E27BE unit includes one 2.5Gbps Ethernet port and two Gigabit Ethernet ports. These ports provide wired connectivity options for compatible PCs, gaming consoles, smart TVs, network equipment, and other Ethernet-enabled devices. The 2.5Gbps interface can support higher-speed wired connections when the connected equipment and internet service plan support the required speed.

The Ethernet ports use WAN/LAN auto-sensing functionality. A compatible port can operate as a WAN or LAN interface according to the network configuration, but only one port can serve as a WAN port at a time. Actual wired speeds depend on the connected hardware, cabling, service plan, and configuration.

Smart Network Management Through the MERCUSYS App

The MERCUSYS app provides a convenient way to set up and manage the Halo E27BE network using a compatible iOS or Android device. Its supported management features include checking connected devices, monitoring network status, configuring guest Wi-Fi, applying quality-of-service settings, and managing parental controls.

Parental controls can help users manage online time and restrict access to selected websites. Guest networking provides a separate connection for visitors, while connected-device management helps users review devices on the network and apply supported access controls.

Network Security and VPN Support

The Halo E27BE supports WPA-PSK, WPA2-PSK, and WPA3 wireless security options, helping users configure wireless protection for compatible devices. WPA3 functionality requires client devices that support the same security standard. The system also includes an SPI firewall and supports IPv4 and IPv6 network protocols.

For supported network configurations, the system provides VPN server and VPN client functionality for OpenVPN, PPTP, L2TP/IPSec, and WireGuard. These capabilities can support selected remote-access and VPN connectivity requirements, depending on configuration and the capabilities of the chosen VPN service.

Router Mode and Access Point Mode

The Halo E27BE supports both Router Mode and Access Point Mode. Router Mode allows the system to manage the local network and distribute connectivity to connected devices. Access Point Mode allows the system to provide wireless access through an existing wired network infrastructure.

This flexibility makes the system suitable for different home network layouts and selected small-office environments. The appropriate mode depends on the existing router, internet connection, and intended network design.

Ideal Applications

• Large Homes and Multi-Room Properties: Extend Wi-Fi coverage across bedrooms, living rooms, and other frequently used areas.
• Home Offices: Support video meetings, cloud applications, file transfers, and everyday business connectivity.
• 4K Video Streaming: Provide high-speed wireless connectivity for compatible streaming devices and smart TVs.
• Online Gaming: Support responsive gaming connections when the network, internet service, and client devices are appropriately configured.
• Smart Homes: Connect compatible smart-home devices, cameras, entertainment equipment, and other wireless products.
• Multiple Connected Devices: Accommodate busy household networks with phones, laptops, tablets, televisions, and other connected equipment.
• Small Offices: Provide wireless and wired networking for selected small-office layouts requiring broader coverage.
• Multi-Gigabit Networking: Connect compatible wired devices and network equipment through the 2.5Gbps and Gigabit Ethernet ports.

Benefits

• Next-Generation Wireless Technology: Wi-Fi 7 features support improved wireless efficiency and performance with compatible devices.
• Broad Advertised Coverage: Two Halo units can cover up to 460m² under suitable conditions, helping reduce dead zones.
• Fast Dual-Band Connectivity: Supports advertised wireless rates of up to 3.6Gbps across the 5GHz and 2.4GHz bands.
• Flexible Wired Connections: Each unit offers one 2.5Gbps port and two Gigabit ports.
• Unified Mesh Network: Provides one Wi-Fi network across the coverage area, reducing the need for manual network switching.
• Convenient Management: App-based setup and supported network controls make everyday administration more accessible.
• Parental and Guest Controls: Supports selected tools for managing access, online time, and guest connectivity.
• VPN Capabilities: Provides VPN server and client options for supported configurations.
• Flexible Deployment: Router and Access Point modes support different network arrangements.
• Scalable Mesh Design: Additional compatible Halo units can be considered to expand coverage, subject to model compatibility and configuration requirements.

Why Choose MERCUSYS Halo E27BE?

• Modern Wi-Fi 7 Mesh System: A practical upgrade for households looking for next-generation wireless networking.
• BE3600 Dual-Band Performance: Combines high advertised 5GHz speeds with 2.4GHz connectivity for compatible devices.
• Advanced Wireless Features: MLO, 4K-QAM, and Multi-RUs support the improved efficiency of Wi-Fi 7.
• Two-Unit Coverage Solution: Helps extend wireless connectivity across larger homes and multi-room layouts.
• Multi-Gigabit Connectivity: Includes a 2.5Gbps Ethernet port on each unit alongside two Gigabit ports.
• Centralised Management: The MERCUSYS app provides supported setup, monitoring, and network-management functions.
• Useful Security Options: Includes WPA3 support, an SPI firewall, guest networking, and VPN functionality.
• Flexible Network Integration: Router and Access Point modes accommodate different home and small-office network designs.

Compatibility and Important Considerations

• Client Compatibility: The full benefits of Wi-Fi 7, MLO, 4K-QAM, and other advanced features require compatible client devices. Devices using older Wi-Fi standards can connect according to their supported capabilities.
• Coverage: The advertised 460m² coverage is a maximum stated by the manufacturer, not a guarantee for every building or layout.
• Device Capacity: The advertised 200+ device capacity is based on specified laboratory testing. Performance depends on traffic levels, device types, and network conditions.
• Ethernet Ports: Each port can operate as WAN or LAN, but only one port can serve as WAN at a time. Multi-Gigabit performance requires compatible equipment and service.
• Mesh Compatibility: MERCUSYS Halo E27BE is compatible with Halo E and Halo H series units for mesh expansion, subject to firmware and model compatibility. Halo S series units are not compatible with the E27BE mesh network.
• Dual-Band System: This model operates on 2.4GHz and 5GHz bands; it does not provide a 6GHz Wi-Fi band.
• Installation: The package includes two Halo units, two power adapters, one RJ45 Ethernet cable, and a quick installation guide.
