MERCUSYS Halo H32G AC1200 Whole Home Mesh Wi-Fi System, 3-Pack | Dual-Band Wi-Fi 5 | 867 Mbps + 300 Mbps | MU-MIMO | Beamforming | Access Point Mode | White

MERCUSYS Halo H32G AC1200 Whole Home Mesh Wi-Fi System, 3-Pack | Dual-Band Wi-Fi 5 | 867 Mbps + 300 Mbps | MU-MIMO | Beamforming | Access Point Mode | White

The MERCUSYS Halo H32G AC1200 Whole Home Mesh Wi-Fi System (3-Pack) is designed to extend wireless coverage throughout homes, apartments, and small offices by creating a unified mesh network. The system combines three mesh units to help reduce Wi-Fi dead zones and provide more consistent connectivity across multiple rooms and living or working areas. Featuring AC1200 dual-band Wi-Fi, the Halo H32G system supports theoretical wireless speeds of up to 1,200 Mbps, combining up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. Its mesh technology enables compatible devices to connect through one Wi-Fi name and password, helping users move between covered areas without manually switching networks. The three-pack is rated to cover up to 3,500 ft² (320 m²) under suitable conditions and supports up to 100 connected devices, depending on network conditions and usage. With MU-MIMO, Beamforming, seamless roaming support, and convenient management through the MERCUSYS app, it is suitable for everyday browsing, video streaming, online communication, and connected home devices. This package has a specific hardware configuration: one Halo H30G unit and two Halo H30 units. The H30G provides two Gigabit Ethernet ports, while each H30 has two 10/100 Mbps Ethernet ports. This mixed-port configuration should be considered when planning wired connections.

Key Features

• AC1200 Dual-Band Wi-Fi: Provides theoretical combined wireless speeds of up to 1,200 Mbps, with 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
• Three-Unit Mesh System: Combines one Halo H30G and two Halo H30 units to extend wireless coverage across a larger area.
• Whole-Home Coverage: Rated to cover up to 3,500 ft² (320 m²), depending on building layout, interference, and unit placement.
• One Unified Network: Uses one Wi-Fi name and password across the mesh network for convenient connectivity.
• Seamless Roaming Support: Supports mesh roaming protocols to help compatible devices transition between units as users move around the property.
• Connect up to 100 Devices: Designed to support numerous connected devices, subject to network traffic and device capabilities.
• MU-MIMO Technology: Helps the network communicate with multiple compatible wireless devices more efficiently.
• Beamforming Technology: Helps direct wireless signals towards connected devices for improved signal reception under suitable conditions.
• Router and Access Point Modes: Supports different network configurations for new networks or extending an existing wired network.
• Easy App Control: Use the MERCUSYS app to configure and manage the mesh network from a compatible mobile device.
• Parental Controls: Offers supported tools for managing internet access, setting time limits, and blocking selected websites.
• Guest Network: Supports separate guest Wi-Fi networks on the 2.4 GHz and 5 GHz bands.

Technical Specifications

• Brand: MERCUSYS
• Product Model: Halo H32G
• Product Type: Whole Home Mesh Wi-Fi System
• Package Configuration: 3-Pack
• Package Hardware: 1× Halo H30G unit + 2× Halo H30 units
• Colour: White
• Wi-Fi Standard: Wi-Fi 5 (IEEE 802.11ac)
• Wireless Standards: IEEE 802.11 a/n/ac on 5 GHz; IEEE 802.11 b/g/n on 2.4 GHz
• Wireless Class: AC1200
• Maximum Theoretical Combined Speed: Up to 1,200 Mbps
• 5 GHz Signal Rate: Up to 867 Mbps
• 2.4 GHz Signal Rate: Up to 300 Mbps
• Coverage (3-Pack): Up to 3,500 ft² (320 m²)
• Connected Devices: Up to 100, depending on network conditions and usage
• Ethernet Ports – Halo H30G: 2× Gigabit Ethernet ports with WAN/LAN auto-sensing
• Ethernet Ports – Each Halo H30: 2× 10/100 Mbps Ethernet ports
• Mesh Protocol: IEEE 802.11k/v/r
• Wireless Security: WPA-PSK/WPA2-PSK
• Operation Modes: Router, Access Point
• Quality of Service: WMM
• WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
• DHCP: Server, Client
• Firewall Security: SPI Firewall
• Network Protocols: IPv4 and IPv6
• Guest Network: One 2.4 GHz guest network and one 5 GHz guest network
• Management: Local management, remote management, multi-manager support
• Dimensions: Approximately 88 × 88 × 88 mm per unit
• Reset Button: Yes
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10%–90%, non-condensing
• Storage Humidity: 5%–90%, non-condensing
• Package Contents: 1× Halo H30G unit, 2× Halo H30 units, 1× RJ45 Ethernet cable, 3× power adapters, 1× Quick Installation Guide

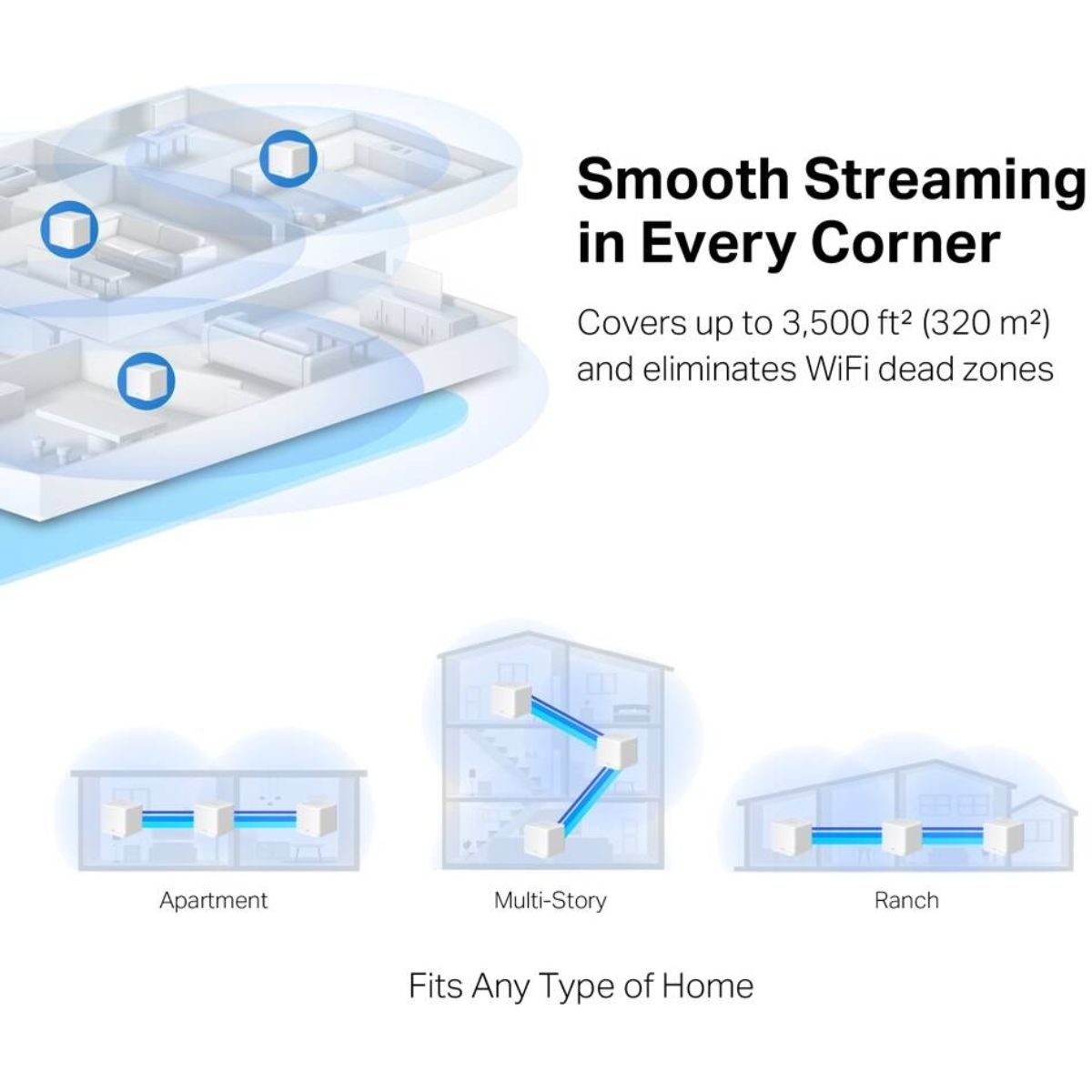

Whole-Home Mesh Wi-Fi Coverage

The MERCUSYS Halo H32G three-pack is designed to provide broader Wi-Fi coverage than a single wireless router can typically deliver throughout a property. Its three-unit configuration allows the mesh nodes to be placed in different areas to help extend the network into rooms where the existing wireless signal may be weak.

With a rated coverage of up to 3,500 ft² (320 m²), the system can suit many homes, multi-room apartments, and small office environments. Actual coverage depends on the property's layout, wall materials, interference, node placement, and the capabilities of connected devices.

AC1200 Dual-Band Wi-Fi Performance

The Halo H32G system uses two wireless frequency bands to support a range of connected devices and everyday online activities. It provides theoretical wireless speeds of up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, giving it an AC1200 combined wireless classification.

The 5 GHz band is suited to compatible devices that benefit from higher wireless throughput, while the 2.4 GHz band can be useful for devices that require broader signal reach. Actual performance depends on the internet connection, interference, distance, network traffic, and wireless capabilities of the connected devices.

Important: The Halo H32G is a Wi-Fi 5 (802.11ac) mesh system, not a Wi-Fi 6 (802.11ax) product.

One Unified Network with Seamless Roaming

The Halo mesh system allows its units to work together under one Wi-Fi name and password. This simplifies network access for users moving between rooms because they do not need to manually select a different Wi-Fi network for each mesh node.

The system supports mesh roaming protocols IEEE 802.11k/v/r, which help compatible client devices transition between nodes as they move around the coverage area. Roaming behaviour depends on the connected device's capabilities and may require appropriate configuration.

MU-MIMO for Multiple Connected Devices

Homes and small offices often connect smartphones, laptops, tablets, smart TVs, printers, and other wireless equipment simultaneously. The Halo H32G system is designed to support up to 100 connected devices, making it suitable for environments with a variety of network-connected products.

MU-MIMO technology helps the network serve multiple compatible wireless devices more efficiently. The overall experience depends on the number of actively used devices, their capabilities, the available bandwidth, and the amount of network traffic.

Beamforming for Improved Wireless Signal Direction

Beamforming technology helps direct wireless signals towards connected devices rather than distributing them uniformly in every direction. This can help improve signal reception for compatible devices within the network's effective range.

For better results, position the mesh units in suitable locations with fewer physical obstructions and sources of wireless interference. Proper placement also helps maintain a reliable connection between the mesh nodes.

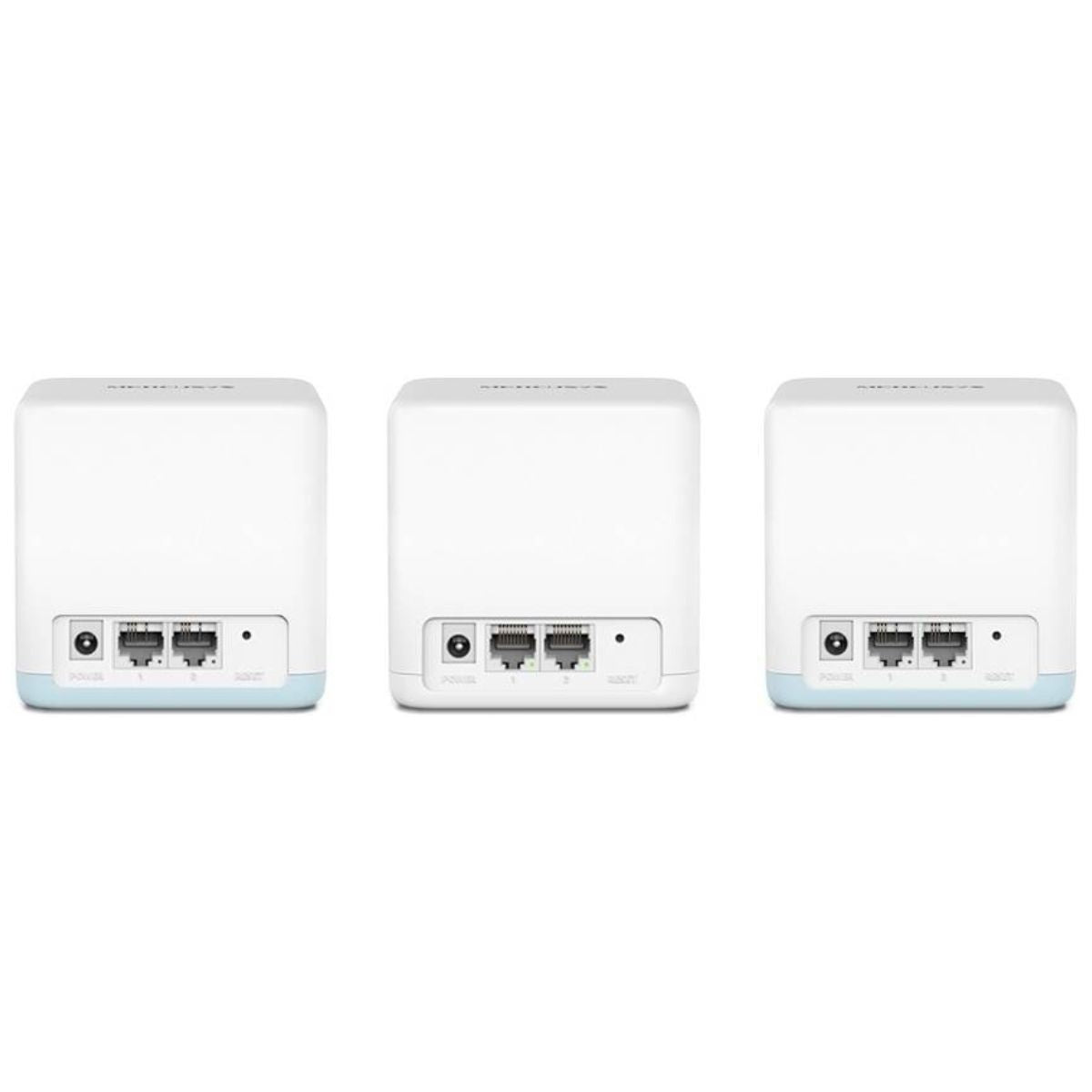

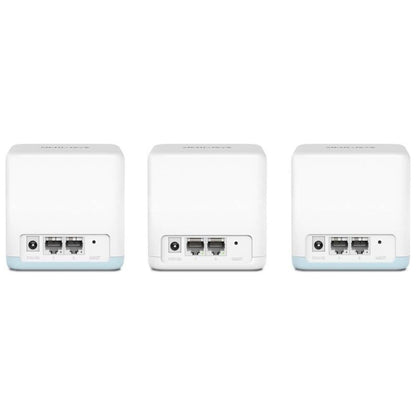

Mixed Gigabit and Fast Ethernet Connectivity

The Halo H32G three-pack has a mixed Ethernet configuration. The package contains one Halo H30G unit with two Gigabit Ethernet ports and two Halo H30 units, each equipped with two 10/100 Mbps Ethernet ports.

The Gigabit ports on the H30G are suitable for compatible wired devices that benefit from higher Ethernet throughput. The Fast Ethernet ports on the H30 units can connect devices such as compatible computers, printers, and other network equipment that do not require Gigabit Ethernet speeds.

Before purchasing, consider which locations require wired Gigabit connectivity. The Ethernet capabilities differ between the H30G and H30 units, so this three-pack should not be treated as three identical Gigabit mesh nodes.

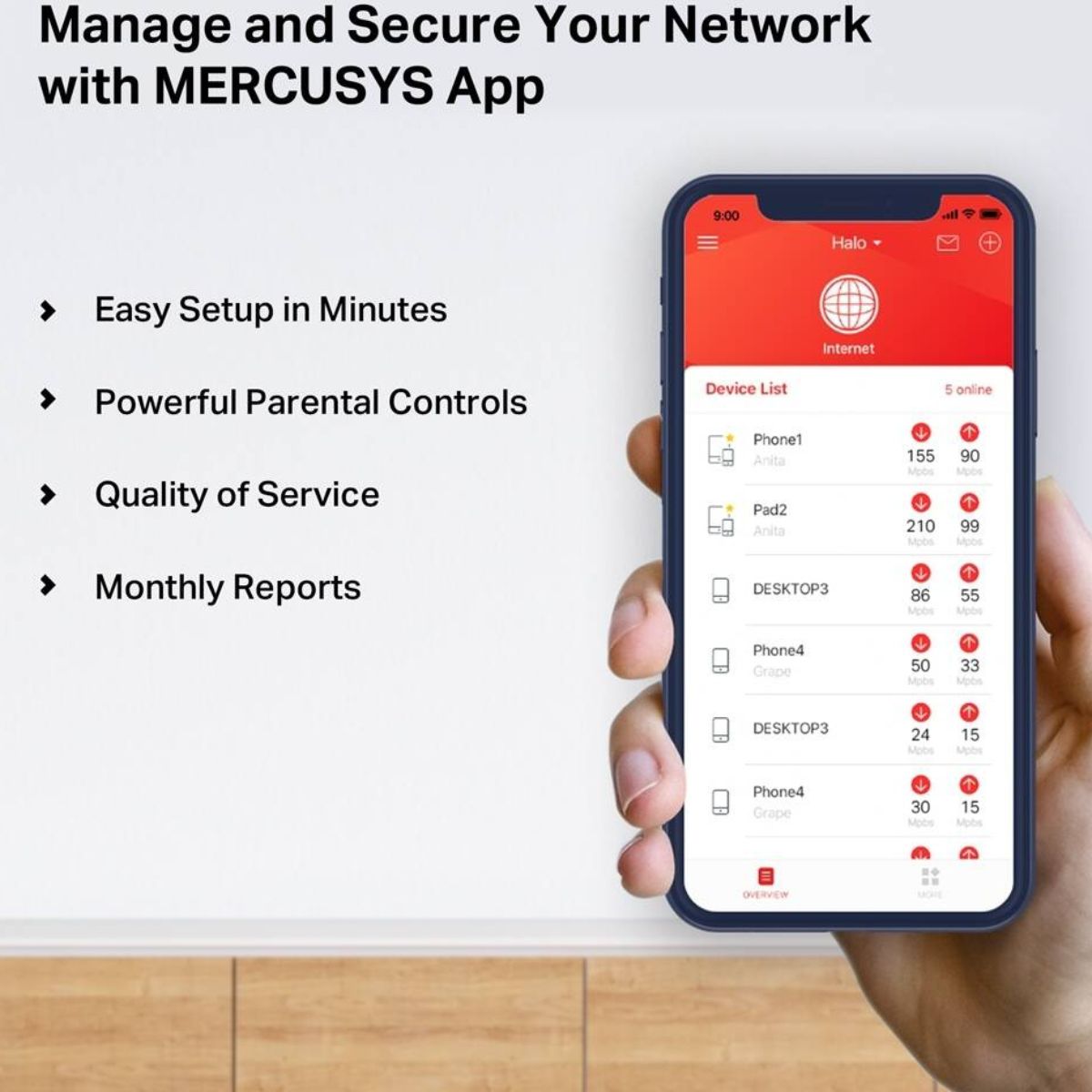

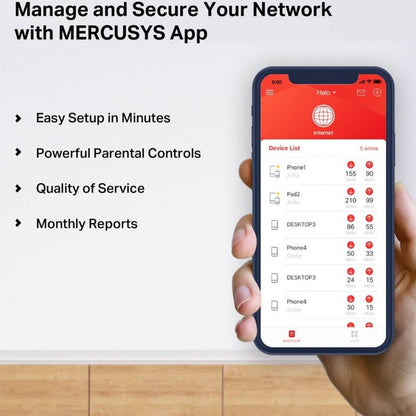

Easy Setup and MERCUSYS App Management

The MERCUSYS app helps users configure and manage the Halo mesh system using a compatible mobile device. App-based setup simplifies installation and provides convenient access to supported network-management functions.

Depending on the firmware and app version, supported tools can include connected-device management, parental controls, guest-network configuration, and other network settings. These features make the system practical for users who want convenient control without requiring advanced networking knowledge.

Network Security, Guest Wi-Fi and Parental Controls

The Halo H32G supports WPA-PSK/WPA2-PSK wireless security and includes an SPI firewall. It also provides separate guest-network options for the 2.4 GHz and 5 GHz bands, allowing visitors to connect without needing access to the primary Wi-Fi credentials.

Supported parental-control functions include setting online time limits, blocking selected websites, and pausing internet access for managed devices. These options can help households manage internet access according to their needs.

Flexible Router and Access Point Modes

The Halo H32G system supports both Router Mode and Access Point Mode. Router Mode allows the system to create a wireless network, while Access Point Mode can extend an existing wired network by providing wireless connectivity.

The suitable mode depends on the existing modem or router and the intended network configuration. Review the existing setup before installation to select the appropriate mode and avoid unnecessary configuration conflicts.

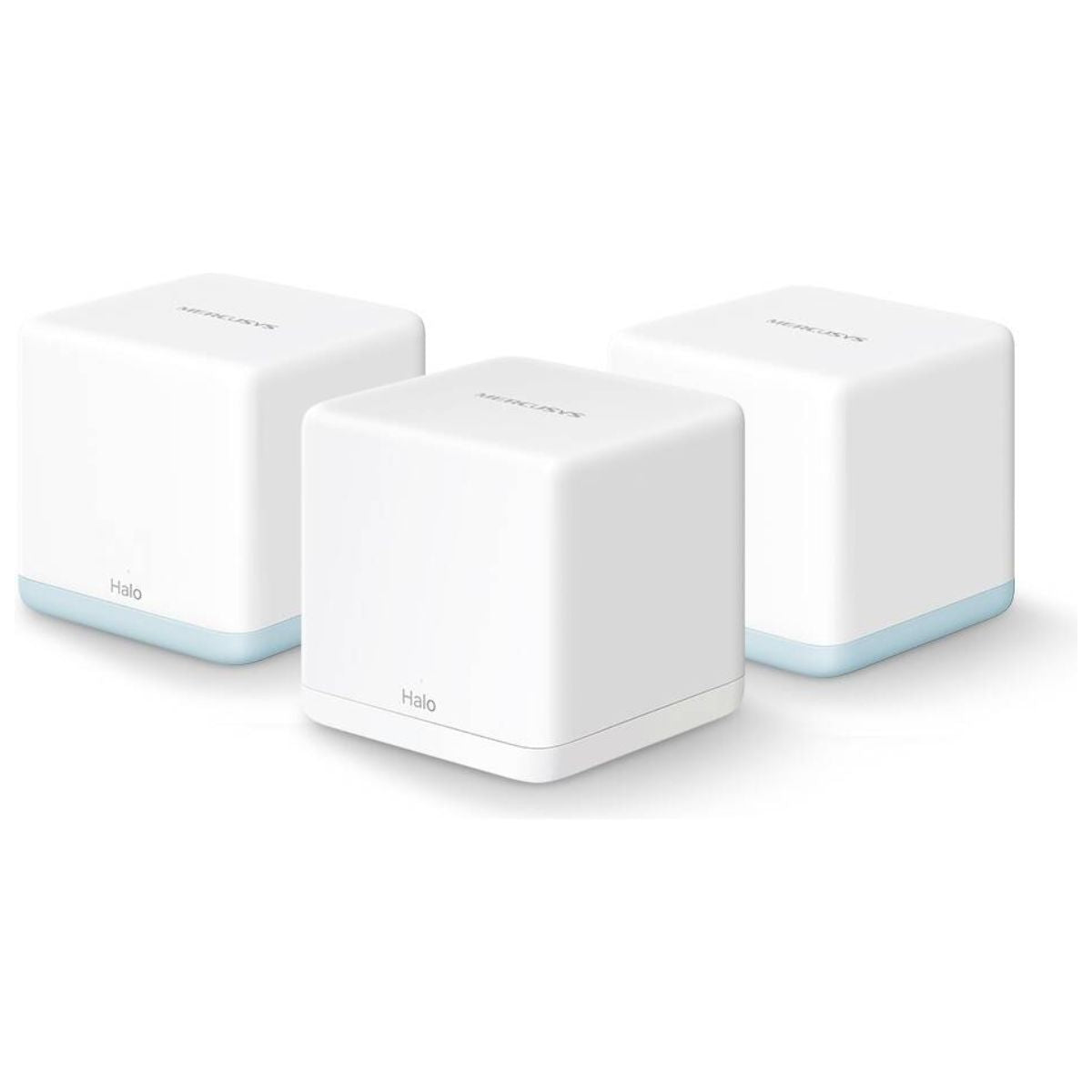

Compact Design for Home and Office Use

The Halo units feature a compact white design with dimensions of approximately 88 × 88 × 88 mm per unit. Their small footprint makes them suitable for placement on desks, shelves, and other appropriate surfaces around the property.

The three-unit configuration provides flexibility when positioning the mesh nodes across different rooms. Selecting appropriate locations helps improve coverage and maintain reliable communication between the units.

Ideal Applications

• Homes and Apartments: Extend Wi-Fi coverage across living rooms, bedrooms, and other commonly used areas.
• Multi-Room Properties: Help reduce weak-signal areas by positioning the three mesh units strategically.
• Home Offices: Provide wireless connectivity for laptops, smartphones, printers, and compatible network devices.
• Small Offices: Support everyday browsing, online communication, and general business connectivity.
• Smart Homes: Connect compatible smart TVs, smartphones, tablets, and smart-home devices.
• Streaming and Online Entertainment: Support compatible devices used for video streaming and other internet-based activities.
• Guest Wi-Fi: Provide separate guest wireless access when configured appropriately.
• Mixed Wired and Wireless Networks: Connect compatible Ethernet devices using the different port capabilities of the H30G and H30 units.

Benefits

• Expanded Wi-Fi Coverage: Three coordinated units help extend wireless connectivity across a larger area.
• Unified Network Access: One Wi-Fi name and password simplifies connectivity around the property.
• Dual-Band Wireless Performance: Supports 2.4 GHz and 5 GHz connections for compatible devices.
• Support for Multiple Devices: Designed to accommodate up to 100 connected devices, subject to network conditions.
• Flexible Network Configuration: Router and Access Point modes support different compatible network setups.
• App-Based Management: Simplifies installation and everyday network administration.
• Guest Network Functionality: Helps separate visitor access from the main wireless network.
• Parental-Control Tools: Provides supported options for managing internet access and online time.
• Compact Design: White, compact units fit conveniently into many home and office environments.
• Flexible Ethernet Connectivity: Combines Gigabit ports on the H30G with Fast Ethernet ports on the H30 units.

Why Choose MERCUSYS Halo H32G?

• Three-Unit Mesh System: Provides one Halo H30G and two Halo H30 units for extending coverage across multiple areas.
• AC1200 Dual-Band Wi-Fi: Offers up to 1,200 Mbps combined theoretical wireless speed.
• Up to 3,500 ft² Coverage: Rated coverage makes the three-pack suitable for many homes and small offices, depending on the environment.
• MU-MIMO and Beamforming: Supports wireless technologies designed to improve service for compatible devices.
• One Unified Network: Helps simplify connectivity as users move around the mesh coverage area.
• Router and Access Point Modes: Supports flexible deployment in compatible networks.
• Useful Network Controls: Includes guest-network options, parental controls, and app-based management.
• Compact White Units: Provides a discreet mesh networking solution for everyday environments.

Compatibility and Important Considerations

• Wi-Fi Generation: The Halo H32G uses Wi-Fi 5 (802.11ac), not Wi-Fi 6.
• Mixed Hardware Package: The three-pack contains one H30G unit and two H30 units.
• Ethernet Port Speeds: The H30G has two Gigabit ports, while each H30 has two 10/100 Mbps ports.
• Coverage: The stated 3,500 ft² figure is a maximum rated coverage estimate. Real-world performance varies with building materials, layout, interference, and unit placement.
• Wireless Speeds: The AC1200 rating combines theoretical speeds across two bands; it is not a guaranteed speed for a single device or internet connection.
• Connected Devices: The stated capacity of up to 100 devices does not guarantee optimal performance for every device under heavy simultaneous usage.
• Mesh Compatibility: MERCUSYS states that Halo H-series and S-series products cannot work together. The H32G is compatible with supported Halo H-series units, subject to hardware and firmware requirements.
• Internet Connection: Compatible with major internet service providers and modems when the required connection type and network configuration are supported.
• Mobile App: A compatible mobile device is required for app-based setup and management.
• Package Contents: Includes one Halo H30G, two Halo H30 units, one RJ45 Ethernet cable, three power adapters, and one Quick Installation Guide.
