The MERCUSYS Halo H47BE (2-Pack) BE9300 Whole Home Mesh Wi-Fi 7 System is designed to deliver high-speed wireless connectivity, expanded network coverage, and seamless roaming across larger homes and modern workspaces. Featuring the next-generation Wi-Fi 7 standard, this tri-band mesh system combines 2.4GHz, 5GHz, and 6GHz wireless bands to support bandwidth-intensive activities such as 4K and 8K streaming, online gaming, video conferencing, large file transfers, and smart home connectivity. With advertised combined wireless speeds of up to 9.3Gbps, Multi-Link Operation (MLO), 320MHz channel support on the 6GHz band, and 4K-QAM technology, the Halo H47BE is designed for compatible devices that require high throughput and responsive wireless performance. Its two mesh units work together under a unified network name, helping devices move between coverage areas without requiring manual network switching. Each Halo H47BE unit includes three 2.5Gbps WAN/LAN auto-sensing Ethernet ports, providing flexible wired connectivity for multi-gigabit internet services, desktop computers, gaming consoles, network storage, and compatible switches. WPA3 wireless security and app-based configuration add convenience for everyday network management. The two-pack is suitable for extending Wi-Fi coverage across larger homes, including multi-bedroom properties, subject to building layout, construction materials, interference, and node placement.

Key Features

• Wi-Fi 7 Technology: Uses the IEEE 802.11be wireless standard to support higher throughput, wider channels, and improved efficiency with compatible devices.
• BE9300 Tri-Band Performance: Advertises combined wireless speeds of approximately 9.3Gbps across the 2.4GHz, 5GHz, and 6GHz bands.
• Multi-Link Operation (MLO): Allows supported Wi-Fi 7 devices to use multiple wireless links for improved throughput, reduced latency, and greater connection reliability.
• 320MHz Channel Bandwidth: Supports ultra-wide 320MHz channels on the 6GHz band for compatible devices and permitted regional configurations.
• Three 2.5Gbps Ports per Unit: Each mesh unit includes three WAN/LAN auto-sensing ports for multi-gigabit wired connections.
• Whole-Home Mesh Coverage: The two units work together as a unified mesh network to help reduce weak-signal areas throughout the home.
• Seamless Roaming: Supports 802.11k/v/r mesh roaming protocols to help compatible devices move between mesh nodes.
• WPA3 Wireless Security: Supports WPA-PSK, WPA2-PSK, and WPA3-SAE security options, depending on device compatibility and configuration.
• Easy App Configuration: The MERCUSYS app provides guided installation and convenient network management.
• Router and Access Point Modes: Supports different network deployment requirements through its available operating modes.
• IPv4 and IPv6 Support: Supports both major internet protocol versions for compatible network environments.
• Flexible Guest Networks: Supports guest Wi-Fi networks across the available frequency bands, subject to configuration.

Technical Specifications

• Brand: MERCUSYS
• Product Series: Halo Mesh Wi-Fi 7 System
• Model: Halo H47BE
• Package Configuration: 2-Pack
• Product Type: Tri-Band Whole-Home Mesh Wi-Fi System
• Wi-Fi Class: BE9300
• Wireless Standard: IEEE 802.11be (Wi-Fi 7), with support for compatible legacy wireless standards
• Frequency Bands: 2.4GHz, 5GHz, and 6GHz
• Maximum Advertised Combined Wireless Speed: Approximately 9.3Gbps
• 2.4GHz Wireless Speed: Up to 688Mbps for the v2 hardware specification
• 5GHz Wireless Speed: Up to 2880Mbps
• 6GHz Wireless Speed: Up to 5760Mbps
• Maximum Channel Width: 320MHz on the 6GHz band
• Wireless Modulation: 4K-QAM
• Multi-Link Operation: Supported
• Wireless Security: WPA-PSK, WPA2-PSK, WPA3-SAE
• Mesh Roaming Protocols: IEEE 802.11k/v/r
• Ethernet Ports per Unit: 3 × 2.5Gbps RJ45 WAN/LAN auto-sensing ports
• Total Ethernet Ports in the 2-Pack: 6 × 2.5Gbps ports across both units
• Operating Modes: Router and Access Point
• Internet Connection Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
• Network Protocols: IPv4 and IPv6
• Firewall: SPI Firewall
• DHCP: Server and Client
• Guest Network: 2.4GHz, 5GHz, and 6GHz guest networks
• Management: MERCUSYS app, with supported local and remote management features
• Device Dimensions per Unit: 170 × 122.4 × 103.5mm (W × D × H)
• Power Adapter Output: 12V DC / 2A per unit
• Maximum Power Consumption: Approximately 19.5W per unit, according to the v2 specifications
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10%–90%, non-condensing
• Package Contents: 2 × Halo H47BE units, 1 × RJ45 Ethernet cable, 2 × power adapters, and a quick installation guide
• Recommended Application: Larger multi-bedroom homes, smart homes, home offices, and multi-device wireless environments

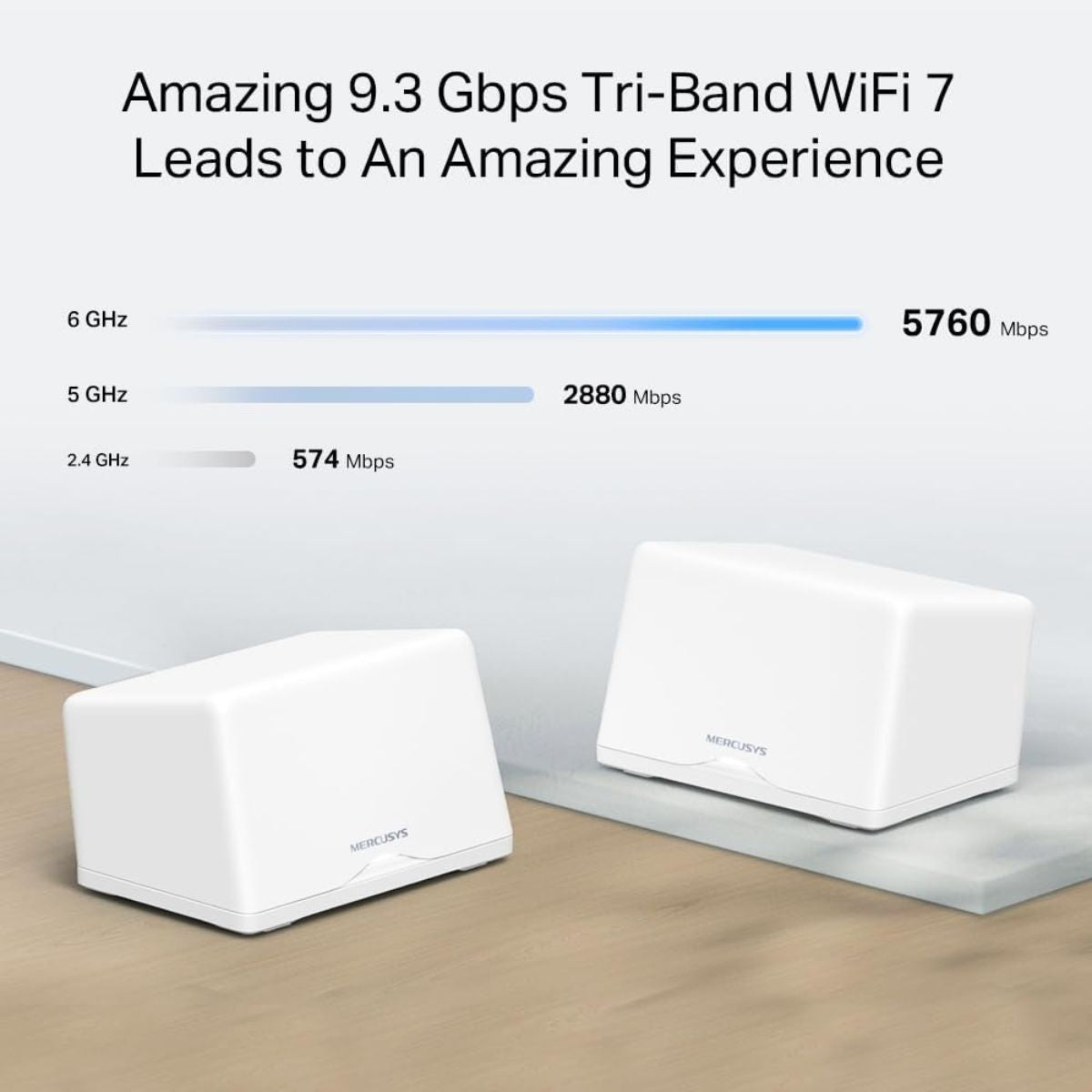

Wi-Fi 7 and BE9300 Tri-Band Performance

The MERCUSYS Halo H47BE uses Wi-Fi 7 technology to provide high-speed wireless connectivity for compatible modern devices. Its BE9300 classification represents the combined advertised wireless rates across three frequency bands rather than the speed available to a single device.

The 6GHz band offers a maximum advertised rate of up to 5760Mbps, while the 5GHz band supports up to 2880Mbps and the 2.4GHz band supports up to 688Mbps on the v2 hardware specification. These bands provide different connectivity characteristics, allowing compatible devices to use the most suitable available frequency based on their capabilities and network conditions.

The 6GHz band provides additional spectrum for compatible devices, while the 5GHz band supports a wide range of modern wireless equipment. The 2.4GHz band remains useful for compatible smart home products and devices that prioritise broader signal reach over maximum throughput.

Actual wireless speeds depend on client-device capabilities, signal strength, interference, distance, channel availability, internet service speed, and regional wireless regulations. The maximum advertised rates are theoretical physical-layer speeds and should not be interpreted as guaranteed internet download speeds.

Multi-Link Operation (MLO) for Responsive Connectivity

Multi-Link Operation is one of the key Wi-Fi 7 features supported by the Halo H47BE. With compatible Wi-Fi 7 client devices, MLO can enable communication across multiple wireless links, helping improve throughput, reduce latency, and enhance connection reliability under suitable conditions.

This technology can benefit online gaming, video calls, cloud applications, and other activities that rely on responsive network performance. It may also help compatible devices make more efficient use of available wireless resources.

MLO functionality requires compatible client devices and supported configurations. Devices using older Wi-Fi standards cannot take full advantage of Wi-Fi 7-specific features, and actual benefits vary according to the device, software, interference, and network environment.

320MHz Channels and 4K-QAM Technology

The Halo H47BE supports channel bandwidths of up to 320MHz on the 6GHz band. Wider channels can provide additional wireless capacity for compatible Wi-Fi 7 devices, supporting higher data rates in environments where the required spectrum is available.

The system also supports 4K-QAM modulation, which can carry more data per transmission than lower-order modulation under suitable signal conditions. Together, these technologies help the mesh system deliver the high advertised throughput associated with Wi-Fi 7.

To achieve the best results, compatible client devices must support the relevant Wi-Fi 7 features, and the signal must be sufficiently strong. Channel availability and permitted bandwidth can also vary by country and regulatory requirements. The 320MHz channel width is not available on every frequency band.

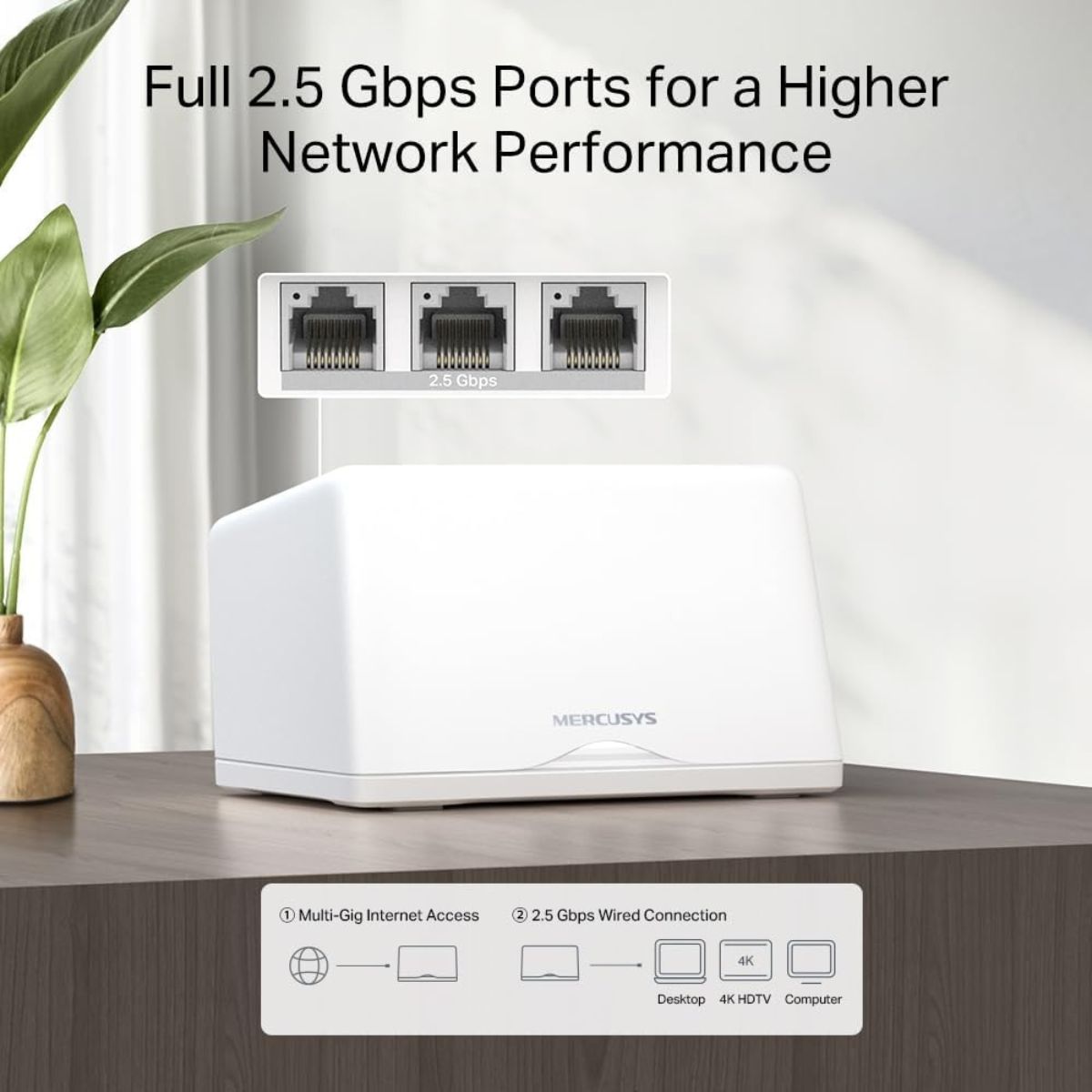

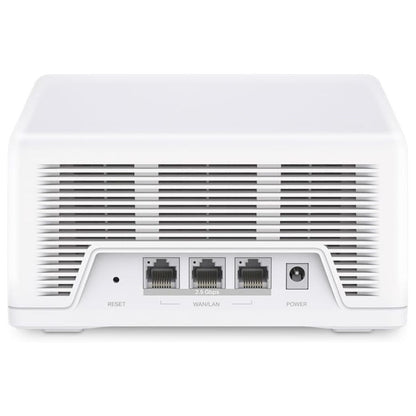

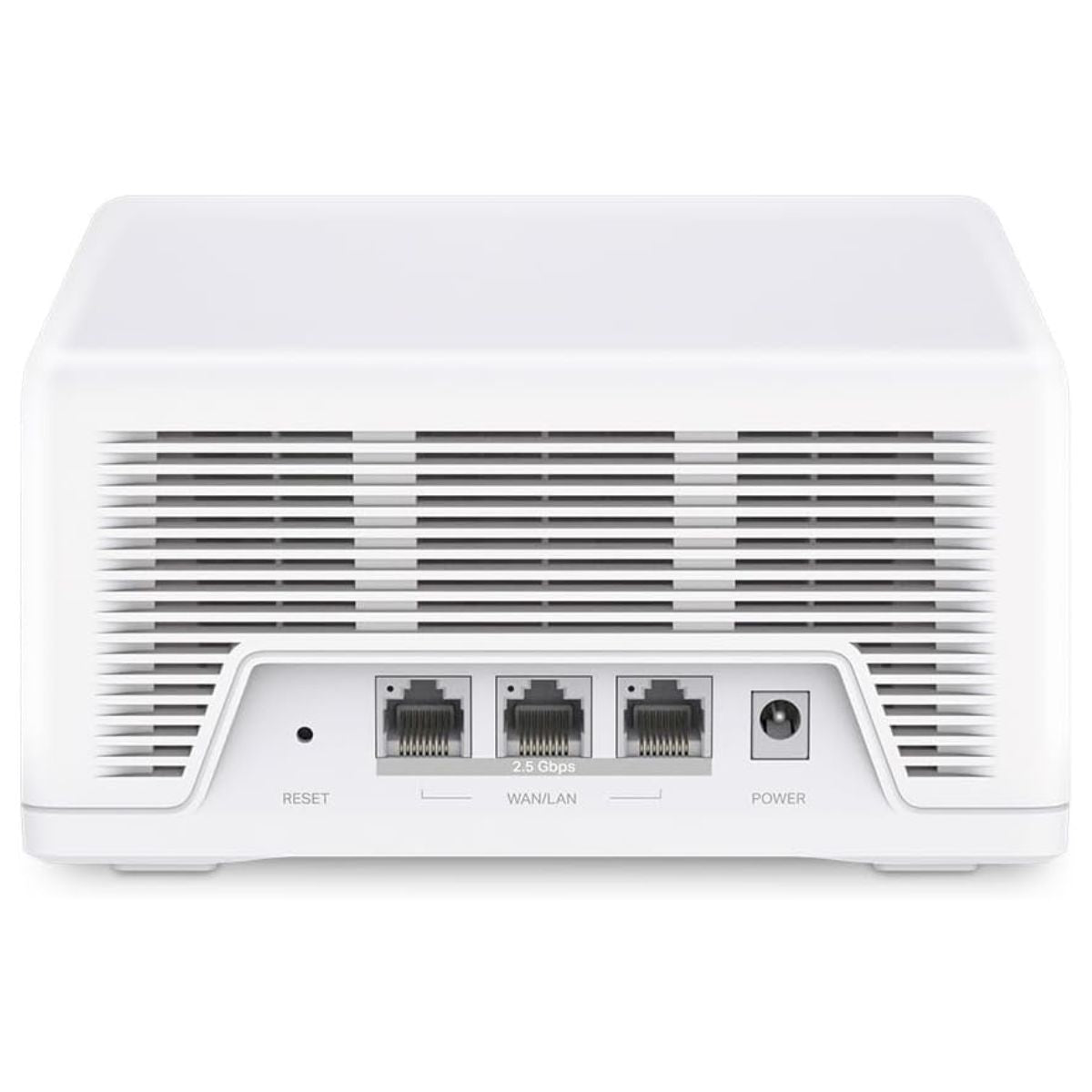

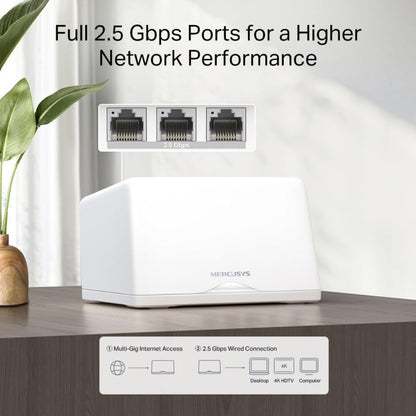

Three 2.5Gbps Ethernet Ports on Every Unit

Each Halo H47BE mesh unit is equipped with three 2.5Gbps WAN/LAN auto-sensing Ethernet ports. These multi-gigabit interfaces help prevent a conventional 1Gbps Ethernet connection from becoming a bottleneck when used with compatible internet services and wired devices.

The ports can connect compatible computers, gaming consoles, smart televisions, network storage devices, and Ethernet switches. Depending on the deployment, an available port can also support a wired connection between compatible Halo units, helping create a mesh network with a wired backhaul.

All three ports can operate as WAN or LAN ports, but only one port can serve as a WAN port at a time. A multi-gigabit internet plan, compatible modem or ONT, suitable Ethernet cabling, and supporting client hardware are required to benefit from 2.5Gbps connectivity. Actual throughput also depends on the connected devices and network configuration.

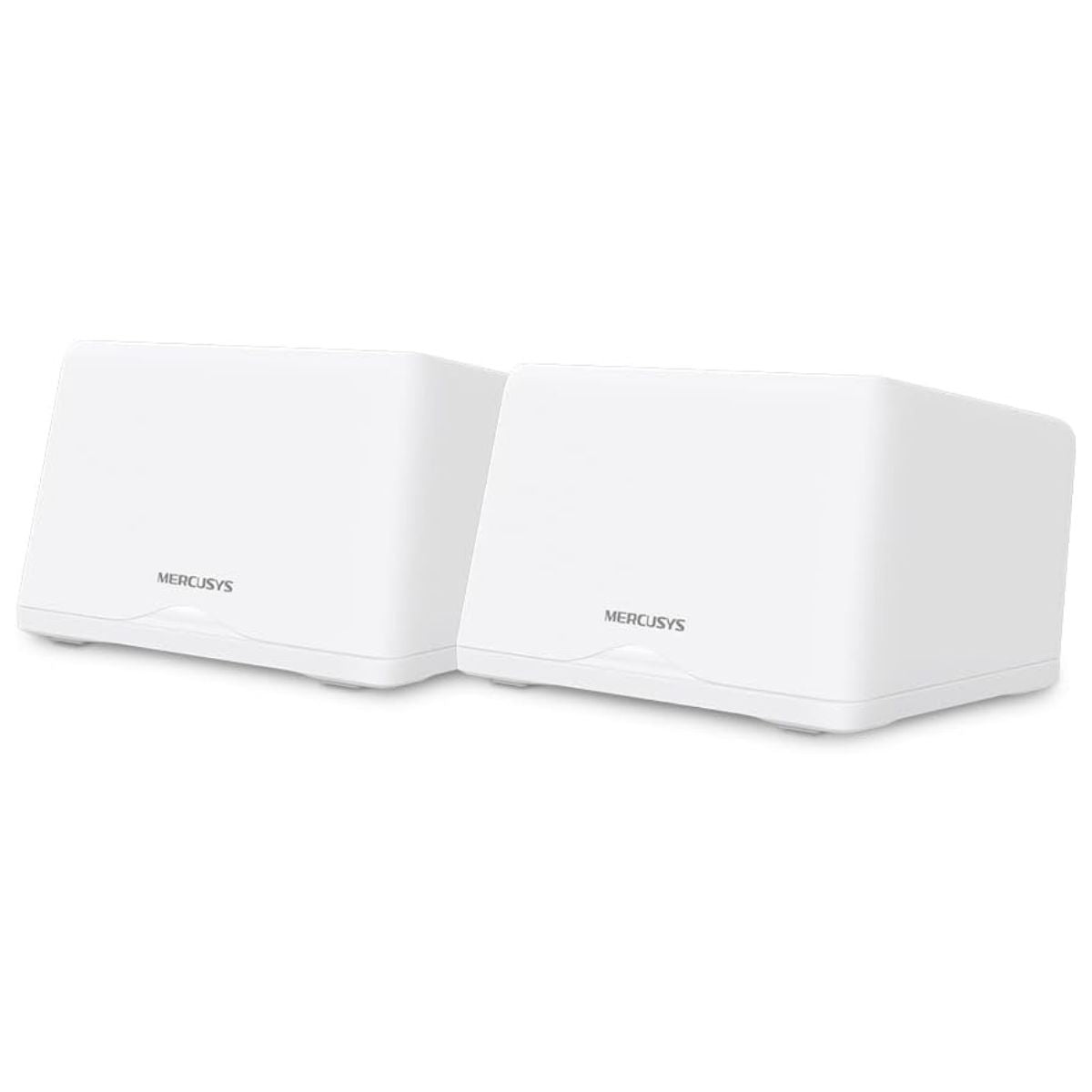

Whole-Home Mesh Coverage for Multi-Bedroom Properties

The two Halo H47BE units work together to create a unified mesh network with a single network name and password. Instead of relying on one router to provide coverage throughout the entire property, users can position the two units in suitable locations to extend wireless connectivity into additional rooms and living areas.

The manufacturer specifies coverage of up to approximately 550m² or 6000 square feet for the v2 two-pack, with its published guidance identifying homes with around three to five bedrooms as a suitable application. The system can also be considered for larger multi-bedroom properties, depending on the layout and construction of the building.

Walls, reinforced concrete, multiple floors, neighbouring wireless networks, furniture, and node placement can affect real-world coverage. For a four- to six-bedroom home, the actual results will depend on the property's dimensions and layout; additional mesh units or a wired backhaul may be appropriate in challenging environments.

Seamless Roaming Across a Unified Network

The Halo mesh system is designed to help compatible phones, tablets, laptops, and other wireless devices move between mesh nodes without manually switching networks. Both units operate as part of the same mesh network, allowing supported clients to select an appropriate connection as users move around the property.

The system supports IEEE 802.11k/v/r roaming protocols to help compatible clients identify and transition between access points. This is useful for households where users frequently move between bedrooms, living rooms, workspaces, and other areas while streaming content or participating in video calls.

Seamless roaming does not guarantee that every device will switch instantly or without interruption. Client-device support, wireless signal conditions, firmware, and mesh-node placement all influence the roaming experience.

WPA3 Security and Guest Network Management

The MERCUSYS Halo H47BE supports WPA3-SAE wireless security, along with WPA-PSK and WPA2-PSK options for compatible devices. WPA3 provides a modern wireless security option designed to improve protection when connecting supported devices to the home network.

The system also supports guest networks across the 2.4GHz, 5GHz, and 6GHz bands. Guest access can be useful when visitors need internet connectivity without using the main wireless network credentials. The available security and access-control options depend on the device firmware and app configuration.

For improved network security, users should apply a strong administrator password, use an appropriate wireless security mode, keep firmware updated, and review connected devices regularly. WPA3 requires compatible client hardware and software to use its corresponding security features.

Easy Installation and MERCUSYS App Configuration

The MERCUSYS app provides a guided setup process designed to simplify installation and everyday network management. Users can follow the on-screen instructions to connect the primary Halo unit to their internet equipment, configure the wireless network, and add the second unit to extend coverage.

App-based management makes the system accessible to home users who want a modern mesh network without manually configuring every wireless access point. Supported management features can include wireless settings, guest network configuration, device management, and network status monitoring.

Available controls depend on the installed firmware, app version, operating mode, and regional product variant. Users should follow the manufacturer's installation instructions and confirm that their internet service configuration is supported.

Router and Access Point Modes for Flexible Deployment

The Halo H47BE supports Router and Access Point operating modes, allowing it to fit different home-network arrangements. Router mode is suitable when the Halo system is intended to manage the primary network connection and routing functions.

Access Point mode is useful when an existing router already handles routing and the Halo units are intended to provide wireless mesh coverage. This can be particularly relevant when integrating the system with an existing internet gateway or compatible network installation.

The correct mode depends on the existing network equipment, internet service configuration, and desired network management arrangement. Users should avoid creating unintended double-NAT configurations when using multiple routing devices.

Ideal Applications

• Large Family Homes: Extend Wi-Fi connectivity across multiple bedrooms, living areas, and shared spaces.
• Smart Homes: Support compatible smart televisions, connected appliances, smart speakers, cameras, and other wireless devices.
• 4K and 8K Streaming: Provide high-bandwidth wireless connectivity for compatible streaming devices and media services.
• Online Gaming: Support responsive networking for compatible gaming systems and Wi-Fi 7 devices.
• Home Offices: Support video conferencing, cloud applications, remote working, and everyday business connectivity.
• Content Creation: Provide high-speed wireless and wired connectivity for compatible creative workstations and network storage.
• Multi-Device Households: Connect multiple smartphones, tablets, computers, televisions, and smart home products.
• Multi-Gigabit Internet: Take advantage of compatible broadband services and wired equipment supporting speeds above 1Gbps.
• Home Entertainment: Connect compatible televisions, consoles, media players, and other network-enabled entertainment equipment.
• Existing Wired Networks: Integrate with compatible Ethernet equipment using the available 2.5Gbps ports.

Benefits

• Next-Generation Wireless Technology: Wi-Fi 7 supports advanced wireless features for compatible devices.
• High Combined Wireless Rates: BE9300 tri-band connectivity provides advertised aggregate speeds of approximately 9.3Gbps.
• Expanded Home Coverage: Two mesh units help extend wireless connectivity beyond a single-router installation.
• Multi-Gigabit Wired Connectivity: Three 2.5Gbps Ethernet ports per unit provide flexible wired networking options.
• Improved Network Responsiveness: MLO can reduce latency and improve reliability for supported Wi-Fi 7 clients.
• Flexible Deployment: Router and Access Point modes support different network layouts.
• Convenient Management: The MERCUSYS app simplifies setup and supported network administration tasks.
• Modern Wireless Security: WPA3 support provides a security option for compatible client devices.
• Unified Network Experience: Mesh roaming helps compatible devices move between nodes across the property.
• Smart Home Connectivity: Supports wireless networking requirements across compatible connected devices.

Why Choose MERCUSYS Halo H47BE (2-Pack)

• Wi-Fi 7 Mesh Technology: Combines next-generation wireless capabilities with whole-home mesh networking.
• BE9300 Tri-Band Design: Provides dedicated 2.4GHz, 5GHz, and 6GHz wireless bands for compatible devices.
• Three 2.5G Ports per Node: Offers flexible multi-gigabit connectivity for wired devices and network equipment.
• MLO and 320MHz Support: Provides advanced Wi-Fi 7 features for supported clients and compatible regional configurations.
• Two-Unit Coverage: Helps improve connectivity across larger homes compared with relying on a single wireless access point.
• WPA3 Wireless Security: Supports modern wireless security alongside compatible legacy options.
• Simple App Setup: Provides a guided installation and network management experience.
• Flexible Network Integration: Supports Router and Access Point modes for different network requirements.

Important Considerations

• Wi-Fi 7 Compatibility: Wi-Fi 7-specific features require compatible client devices. Older devices can connect using their supported wireless standards but cannot use every Wi-Fi 7 feature.
• Advertised Wireless Speed: The 9.3Gbps BE9300 rating is a combined theoretical rate across the wireless bands, not a guaranteed single-device internet speed.
• 6GHz Availability: The 6GHz band and 320MHz channel support are subject to local regulations, regional hardware variants, and available spectrum.
• 2.5Gbps Internet: Speeds above 1Gbps require a compatible internet subscription, modem or ONT, network cable, and connected equipment.
• Coverage: Actual coverage depends on floor area, wall materials, interference, node placement, and building layout. Four- to six-bedroom properties may require additional coverage planning.
• Mesh Compatibility: MERCUSYS Halo H-series and S-series products cannot form a single compatible mesh system together. Check model and hardware-version compatibility before expanding the network.
• Wired Backhaul: Using Ethernet between mesh nodes requires suitable cabling and compatible network configuration.
• Security: WPA3 requires compatible client devices. Older devices may need a supported alternative security configuration.
• Internet Equipment: A compatible modem or ONT and an active internet service are required for internet access.
• Package Contents: The standard two-pack includes two Halo H47BE units, two power adapters, one RJ45 Ethernet cable, and a quick installation guide. Verify the contents of the specific regional package.
• Hardware Version: Wireless specifications can vary between hardware revisions. Confirm the exact version supplied and its regional specifications before purchase.
• Warranty: Check the applicable warranty and return terms for the product supplied by the seller.
