MERCUSYS Halo H80X V1 AX3000 Whole Home Mesh Wi-Fi 6 System | 3-Pack | Dual-Band Wireless Networking | Up to 3000 Mbps | White

MERCUSYS Halo H80X V1 AX3000 Mesh WiFi 6 System | 3-Pack | Dual-Band Wireless Router | Up to 3000 Mbps | Whole Home Coverage | White

The Mercusys Halo H80X V1 AX3000 Whole Home Mesh WiFi 6 System (3-Pack) is a powerful home networking solution designed to deliver fast, reliable, and consistent wireless connectivity across multiple rooms and larger living spaces. Combining WiFi 6 technology, dual-band wireless performance, intelligent mesh networking, and seamless roaming, this three-unit mesh system helps eliminate WiFi dead zones and provides a more consistent internet experience throughout your home. Operating with combined wireless speeds of up to 3000 Mbps, the Halo H80X delivers up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band under ideal conditions. This AX3000 mesh WiFi system is designed to support bandwidth-intensive activities such as 4K video streaming, online gaming, video conferencing, large file transfers, and everyday browsing across multiple connected devices. Its WiFi 6 technologies, including OFDMA and MU-MIMO, help improve wireless network efficiency when several compatible devices access the network simultaneously. The three-pack configuration provides whole-home WiFi coverage of up to 7,000 ft² (650 m²) under suitable conditions, making it suitable for larger homes, multi-room apartments, villas, and multi-floor residential environments. The Halo units work together using a single unified WiFi network name and password, allowing compatible devices to move between mesh nodes with minimal disruption. Each Halo H80X unit includes three Gigabit Ethernet ports with WAN/LAN auto-sensing, providing flexible wired connectivity for compatible computers, smart TVs, gaming consoles, and other network devices. With the MERCUSYS mobile app, users can configure their mesh network, monitor connected devices, manage guest access, prioritise selected devices through Quality of Service (QoS), and configure parental controls. Supporting router and access point modes, the Mercusys Halo H80X V1 is a flexible networking solution for modern households that need dependable wireless coverage, improved network capacity, and convenient network management.

Key Features

• AX3000 Dual-Band WiFi 6: Delivers combined theoretical wireless speeds of up to 3000 Mbps, with 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.
• Three-Unit Whole-Home Mesh System: Includes three Halo H80X units designed to work together to extend wireless coverage across multiple rooms and floors.
• Coverage up to 7,000 ft²: Provides a manufacturer-rated coverage area of up to 650 m² under suitable conditions, helping reduce WiFi dead zones in larger homes.
• Connect Over 150 Devices: Designed to support more than 150 connected devices, depending on network conditions, device capabilities, and usage patterns.
• Seamless Mesh Roaming: Uses a unified WiFi network name and password to help compatible client devices transition between Halo units as users move around the home.
• WiFi 6 OFDMA Technology: Improves wireless efficiency by allowing compatible devices to share available wireless resources more effectively.
• MU-MIMO Technology: Helps the network communicate with multiple compatible devices more efficiently, improving performance in busy home networks.
• 160 MHz Channel Support: Supports wider wireless channels for higher potential throughput with compatible devices and where regional regulations permit.
• Three Gigabit Ethernet Ports per Unit: Each Halo provides three 1 Gbps Ethernet ports with WAN/LAN auto-sensing for wired connectivity.
• App-Based Network Management: Allows users to set up and manage their mesh WiFi network using the MERCUSYS app on supported iOS and Android devices.
• Parental Controls and Guest Network: Provides tools for managing online time, blocking selected websites, pausing internet access, and creating separate guest WiFi access.
• Router and Access Point Modes: Supports flexible deployment as a router or as an access point connected to an existing router.
• Wireless Security: Supports WPA-PSK, WPA2-PSK, and WPA3 wireless security options, subject to client compatibility and configuration.
• IPv4 and IPv6 Support: Supports both major internet protocol versions for compatibility with suitable network configurations.
• Clean White Design: Features a compact white enclosure that fits naturally into home interiors and residential workspaces.

Technical Specifications

• Brand: Mercusys
• Product Model: Halo H80X
• Hardware Version: V1
• Product Type: AX3000 Whole Home Mesh WiFi 6 System
• Package Configuration: 3-Pack
• Colour: White
• Wireless Standard: WiFi 6 (IEEE 802.11ax)
• Supported Wireless Standards: IEEE 802.11ax/ac/n/a on 5 GHz; IEEE 802.11ax/n/b/g on 2.4 GHz
• Wireless Frequency Bands: Dual-band 2.4 GHz and 5 GHz
• Combined Advertised Wireless Speed: Up to 3000 Mbps
• 5 GHz Wireless Speed: Up to 2402 Mbps
• 2.4 GHz Wireless Speed: Up to 574 Mbps
• Maximum Advertised Coverage: Up to 7,000 ft² (650 m²) for the three-pack under suitable conditions
• Maximum Advertised Device Capacity: Over 150 devices, subject to network conditions
• Mesh Protocol: IEEE 802.11k/v/r
• Mesh Networking: Unified WiFi network with seamless roaming support for compatible clients
• Ethernet Ports: 3 × Gigabit Ethernet ports per Halo unit
• Ethernet Port Speed: Up to 1 Gbps per port
• WAN/LAN Configuration: Auto-sensing WAN/LAN ports; only one port per unit can serve as WAN at a time
• Wireless Security: WPA-PSK, WPA2-PSK, WPA3
• Wireless Technologies: OFDMA, MU-MIMO, Beamforming, 1024-QAM, and 160 MHz channel support
• Operation Modes: Router Mode and Access Point Mode
• WAN Connection Types: Dynamic IP, Static IP, PPPoE, L2TP, and PPTP
• Quality of Service: WMM and app-based device prioritisation features
• Guest Network: Separate 2.4 GHz and 5 GHz guest network options
• DHCP: Server and client support
• Firewall: SPI Firewall
• Internet Protocols: IPv4 and IPv6
• Network Management: MERCUSYS app, local management, remote management, and multi-manager support
• Control Button: Reset button
• Dimensions per Unit: Approximately 128 × 81 × 83.7 mm (5 × 3.2 × 3.3 inches)
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90%, non-condensing
• Storage Humidity: 5% to 90%, non-condensing
• Package Contents: 3 × Halo H80X units, 1 × RJ45 Ethernet cable, 3 × power adapters, and 1 × Quick Installation Guide

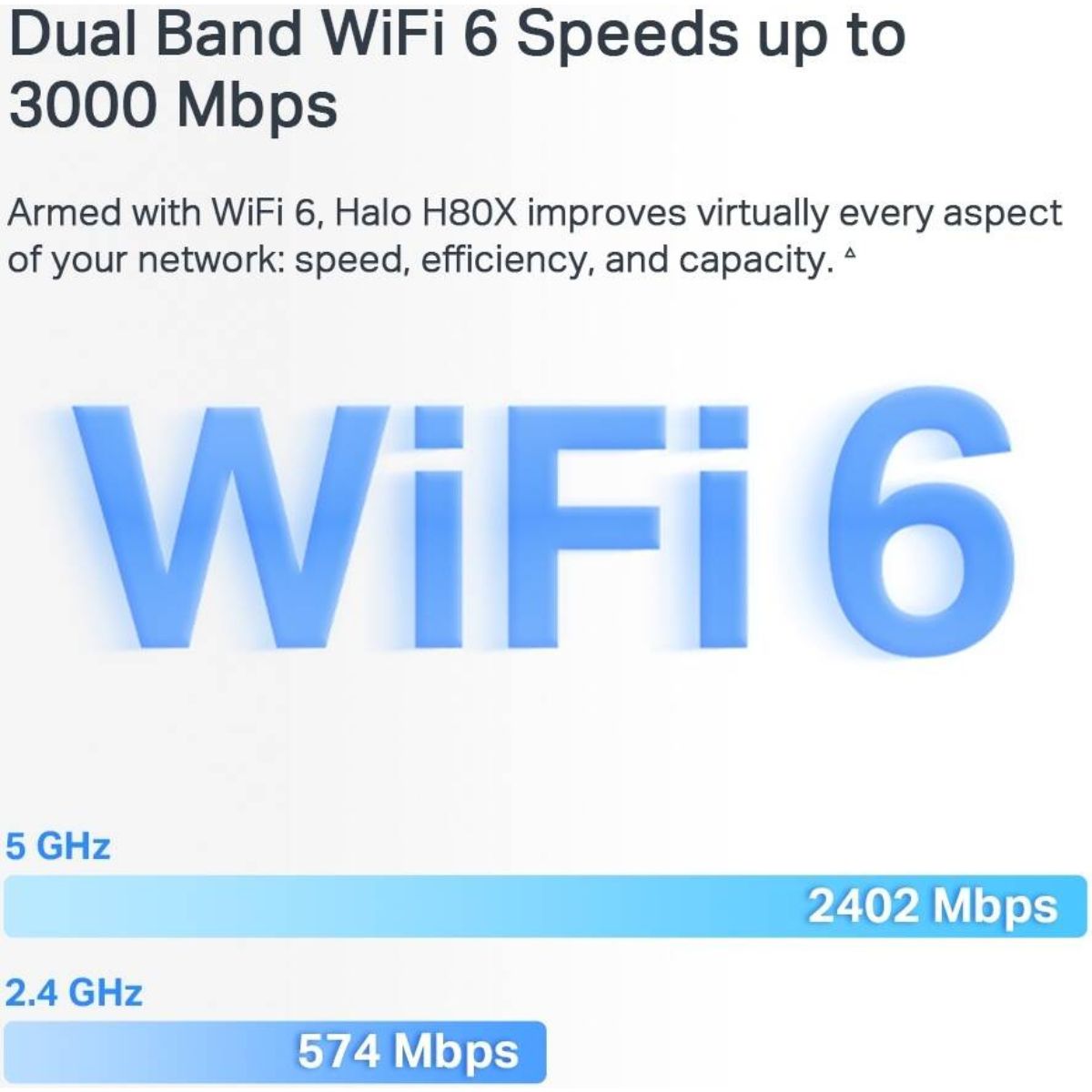

AX3000 Dual-Band WiFi 6 Performance

The Mercusys Halo H80X V1 combines dual-band wireless connectivity with WiFi 6 technology to provide a high-capacity home networking experience. With theoretical wireless speeds of up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, it offers a combined advertised rate of up to 3000 Mbps across both frequency bands.

The 5 GHz band is suitable for higher-throughput activities such as high-definition streaming, online gaming, video calls, and large file transfers when devices are within suitable wireless range. The 2.4 GHz band provides broader compatibility with many everyday wireless devices and can be useful for connected equipment that prioritises range over peak throughput.

WiFi 6 technologies, including OFDMA, MU-MIMO, and 1024-QAM, help improve wireless efficiency and data handling when supported client devices connect to the network. Actual speeds depend on the internet subscription, connected devices, signal strength, interference, building materials, and other network conditions.

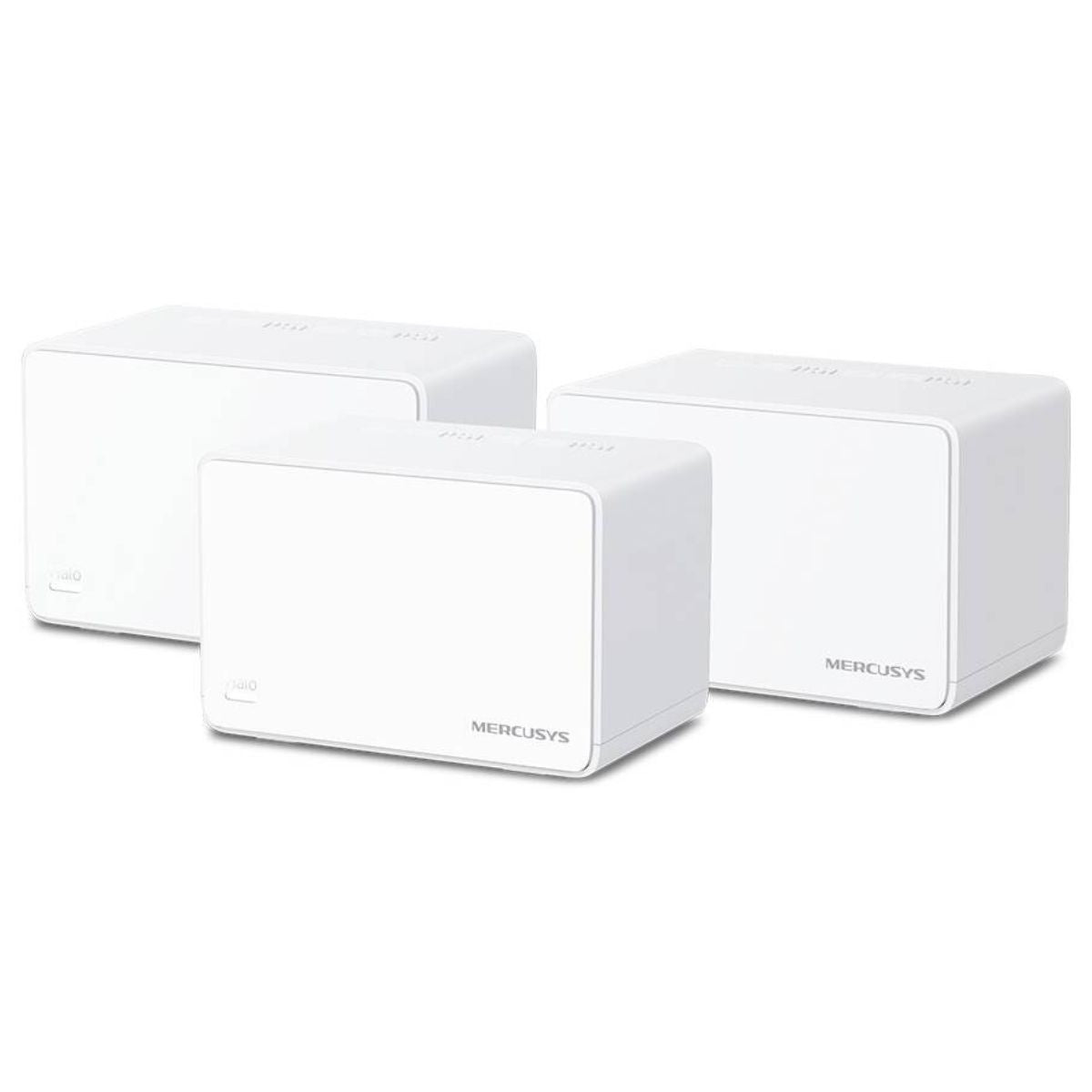

Three-Pack Mesh WiFi for Whole-Home Coverage

The Halo H80X three-pack is designed to extend wireless connectivity across larger homes where a single router may struggle to deliver consistent coverage. The three Halo units work together as one mesh network, helping distribute WiFi across multiple rooms and floors instead of relying on one central wireless access point.

With manufacturer-rated coverage of up to 7,000 ft² (650 m²), the system is suitable for many villas, large apartments, multi-room residences, and home offices. Appropriate placement of the Halo units is important: nodes should be positioned where they can maintain a reliable connection with the rest of the mesh network while extending coverage to the areas that need it.

Coverage varies according to walls, floors, construction materials, interference, node placement, and the number of active devices. The advertised coverage is a maximum under suitable conditions rather than a guaranteed result for every property.

Seamless Roaming with One Unified Network

The Mercusys Halo H80X creates a unified wireless network with a single WiFi name and password across the mesh system. Instead of manually selecting a different network when moving between rooms, users can keep their devices connected to the same home network as they move around the property.

The mesh system supports IEEE 802.11k/v/r roaming protocols to help compatible client devices transition between Halo units. This is useful for activities such as video calls, online meetings, music streaming, and general internet use while moving between rooms. The actual roaming experience depends on client-device support, wireless conditions, and network configuration.

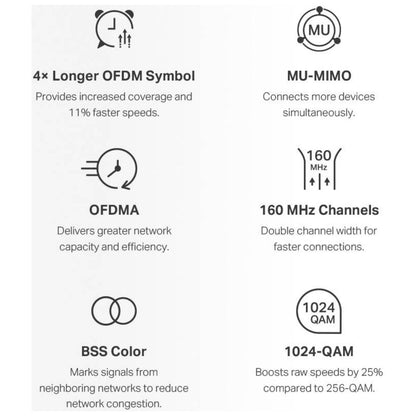

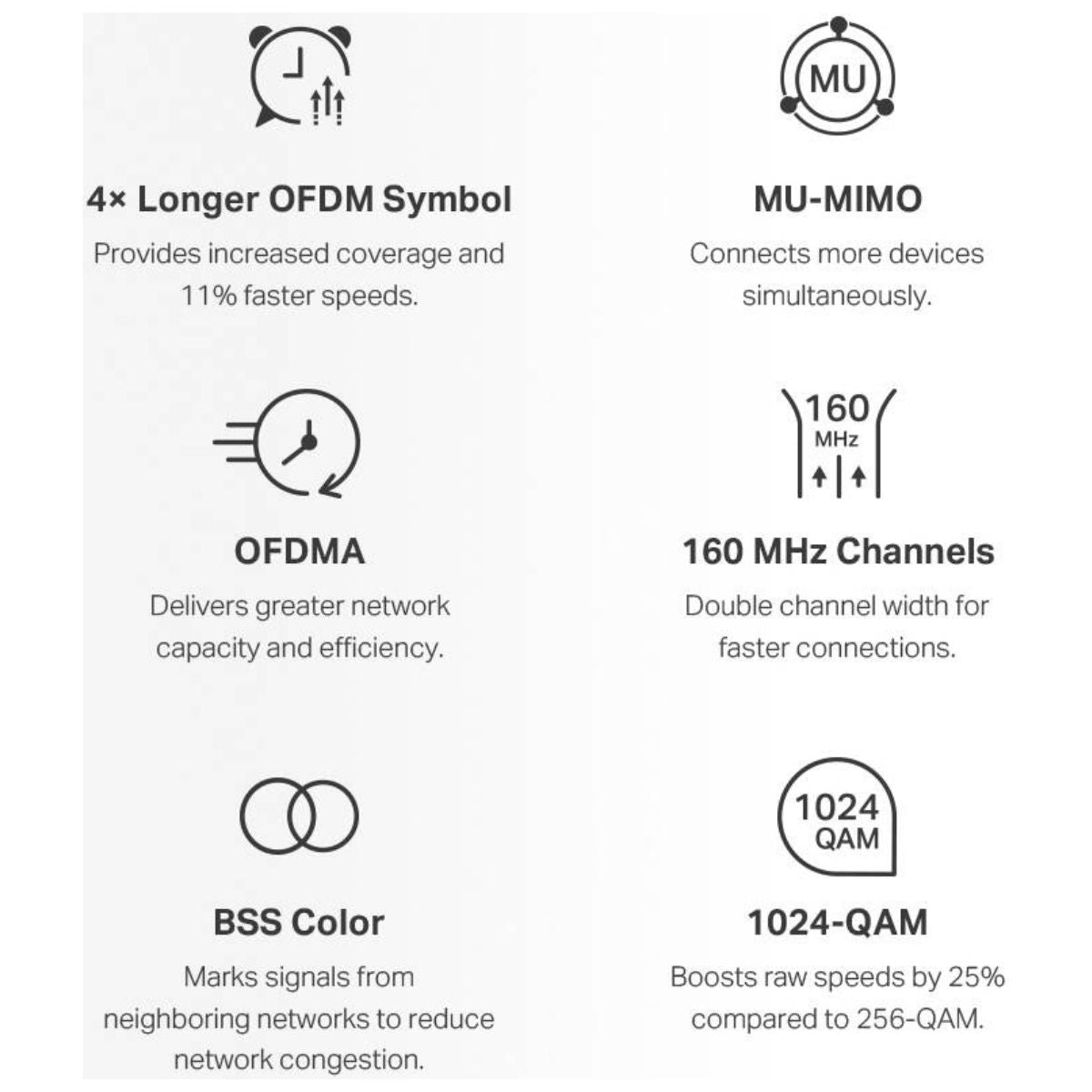

WiFi 6 OFDMA and MU-MIMO for Multiple Devices

Modern households often connect smartphones, laptops, tablets, smart TVs, gaming consoles, cameras, and smart home equipment simultaneously. The Halo H80X uses WiFi 6 technologies to help manage wireless communication more efficiently when multiple compatible devices are active.

OFDMA allows a compatible WiFi access point to allocate wireless resources to multiple clients more efficiently, while MU-MIMO helps support simultaneous communication with multiple compatible devices. Together, these technologies can improve network efficiency in busy environments where many devices compete for wireless capacity.

The Halo H80X is advertised as supporting over 150 connected devices. This figure represents the manufacturer's stated connection capacity and does not mean that every device can operate at maximum speed simultaneously. Real-world performance depends on traffic levels, device capabilities, application requirements, and available internet bandwidth.

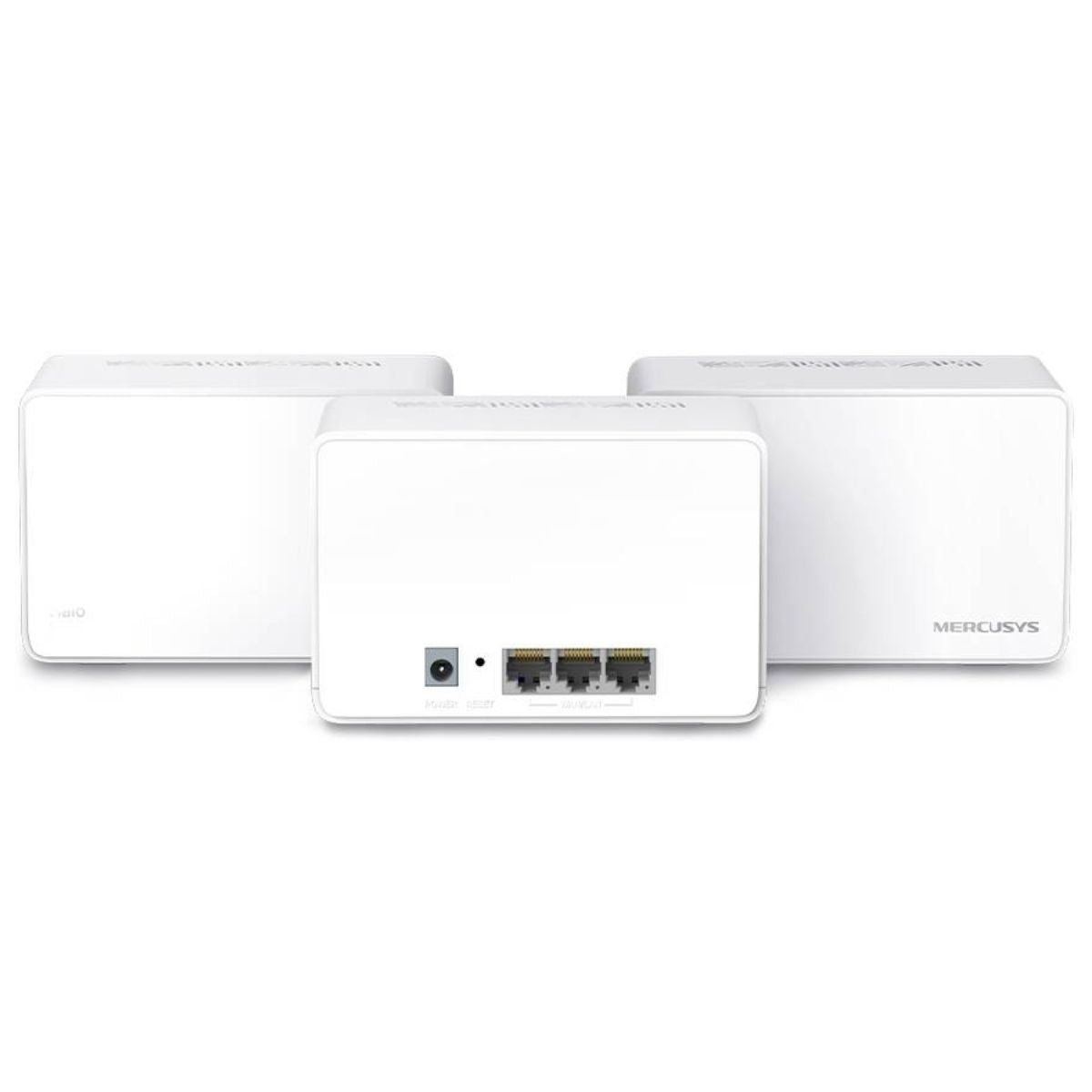

Gigabit Ethernet Ports for Wired Connectivity

Each Mercusys Halo H80X unit includes three Gigabit Ethernet ports with WAN/LAN auto-sensing. These ports allow compatible wired devices to connect directly to a Halo unit, providing an alternative to wireless connections for devices that benefit from a stable Ethernet link.

Compatible devices such as desktop computers, smart TVs, gaming consoles, and other network equipment can use the available ports for local network access and internet connectivity. The auto-sensing functionality simplifies port configuration by allowing a supported port to operate as WAN or LAN according to the network setup.

Ethernet connections can be particularly useful for stationary devices that require consistent connectivity. However, wired throughput is limited by the Gigabit Ethernet interface, the connected device, cable quality, internet service, and other network components.

Easy Setup and Management with the MERCUSYS App

The MERCUSYS app provides a convenient way to configure and manage the Halo H80X mesh network through supported iOS and Android devices. Users can follow the setup process to establish their home network, configure WiFi settings, and check the status of connected Halo units.

Network management features include viewing connected devices, prioritising selected devices through Quality of Service controls, managing guest WiFi access, and receiving alerts when an unfamiliar device connects. These tools help users monitor their home network and manage connectivity without relying exclusively on a computer-based administration interface.

App availability and individual features may depend on the hardware version, firmware, application version, and region. A compatible smartphone and the appropriate MERCUSYS app are required for app-based setup and management.

Parental Controls and Guest Network Management

The Halo H80X provides parental control features designed to help families manage internet access. Users can create profiles, assign devices to family members, set online time limits, block selected websites, and pause internet access when needed.

The guest network feature allows visitors to connect to a separate WiFi network rather than using the primary home network credentials. Separate 2.4 GHz and 5 GHz guest network options provide flexibility for compatible wireless devices. These features are useful for households that want more control over network access while maintaining convenient connectivity for family members and guests.

Flexible Router and Access Point Modes

The Mercusys Halo H80X supports both router mode and access point mode, allowing the system to be deployed according to the existing home network configuration.

In Router Mode, the Halo system creates and manages the home network, handling supported WAN connection types such as Dynamic IP, Static IP, PPPoE, L2TP, and PPTP. This mode is suitable when the Halo system is intended to serve as the main router, subject to compatibility with the internet service provider.

In Access Point Mode, the Halo system extends an existing wired network by providing mesh WiFi connectivity. This configuration can be useful when an existing router must remain in place or when the network design requires another device to manage routing functions.

Wireless Security and Network Compatibility

The Halo H80X supports WPA-PSK, WPA2-PSK, and WPA3 wireless security options, helping users configure suitable protection for their home WiFi network. WPA3 availability requires compatible client devices, while older devices may require an alternative supported security configuration.

Support for IPv4 and IPv6 provides flexibility for compatible internet connections and local network configurations. The system also includes an SPI firewall and supports DHCP server and client functionality, depending on the operating mode and configuration.

For best results, users should keep the system firmware updated, use a strong WiFi password, and connect devices using supported security settings. Compatibility with a particular internet service or network environment should be confirmed before deployment.

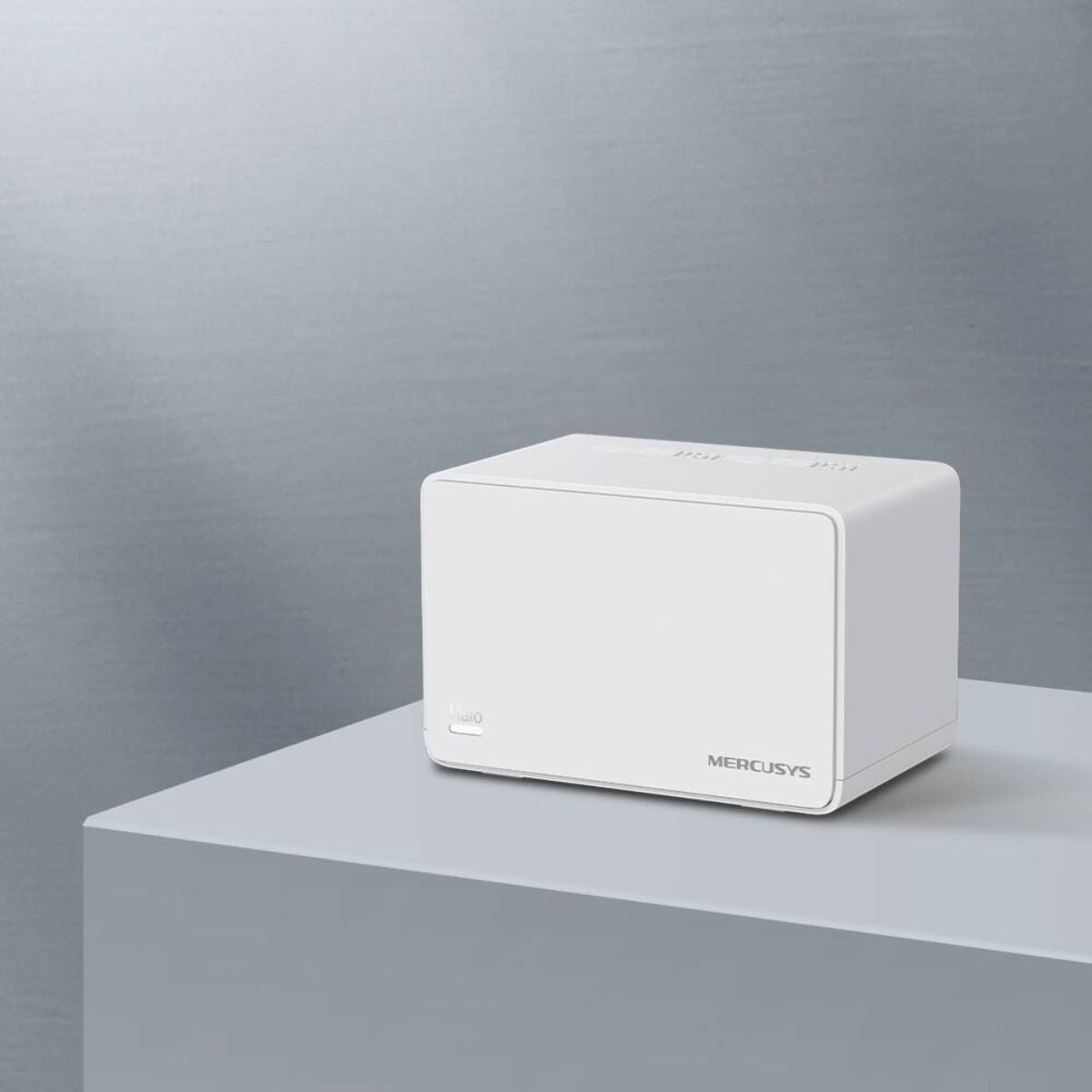

Compact White Design for Modern Homes

Each Halo H80X unit features a compact white enclosure measuring approximately 128 × 81 × 83.7 mm. Its understated design fits comfortably into home interiors, living rooms, bedrooms, study areas, and residential workspaces.

The three-unit configuration provides flexibility when distributing the mesh nodes around the property. The units can be positioned in appropriate locations to improve coverage while keeping the networking equipment visually unobtrusive. Proper placement and sufficient ventilation help support reliable operation.

Ideal Applications

• Large Homes and Villas: Extend WiFi coverage across multiple rooms and floors with a three-unit mesh system.
• Large Apartments: Improve wireless coverage in properties where a single router may not reach every room effectively.
• Multi-Floor Residences: Position mesh units on suitable floors to improve connectivity in different areas of the home.
• Home Offices: Support video conferencing, remote work, cloud applications, and everyday business connectivity.
• 4K Video Streaming: Provide high-speed WiFi connectivity for compatible streaming devices and televisions.
• Online Gaming: Support gaming consoles and computers with suitable wireless or wired network connections.
• Smart Home Devices: Connect compatible smart TVs, smartphones, tablets, and other WiFi-enabled home equipment.
• Multiple Connected Devices: Manage a busy household network with support for over 150 connected devices under suitable conditions.
• Family Internet Management: Use parental controls, user profiles, time limits, and website-blocking features.
• Guest Connectivity: Provide separate guest WiFi access for visitors and household guests.
• Wired Home Networking: Connect compatible computers, televisions, consoles, and other Ethernet-enabled devices through the available Gigabit ports.
• Existing Router Integration: Use access point mode when extending an existing wired network.

Benefits

• Improved Whole-Home WiFi: Three coordinated Halo units help distribute wireless connectivity across a larger residential area.
• High Advertised Wireless Speed: AX3000 dual-band WiFi 6 supports theoretical combined wireless speeds of up to 3000 Mbps.
• Reduced WiFi Dead Zones: Distributed mesh nodes can improve coverage in rooms that receive weak signals from a single router.
• Convenient Roaming: A unified WiFi network helps compatible devices move between mesh units without manually changing networks.
• Greater Network Efficiency: OFDMA and MU-MIMO help compatible devices use available wireless resources more efficiently.
• Support for Numerous Devices: Designed to accommodate over 150 connected devices, subject to network conditions.
• Reliable Wired Options: Three Gigabit Ethernet ports per unit provide flexible connections for compatible wired equipment.
• Easy Network Administration: The MERCUSYS app provides setup, device monitoring, prioritisation, and network management features.
• Family-Friendly Controls: Parental controls and guest networking offer additional flexibility over internet access.
• Flexible Deployment: Router and access point modes support different residential networking requirements.
• Modern WiFi Security: WPA2 and WPA3 support provides options for compatible devices and security configurations.
• Compact Three-Unit Design: Multiple small white units can be positioned around the home according to coverage needs.

Why Choose Mercusys Halo H80X V1 AX3000 Mesh WiFi 6 System?

• Advanced WiFi 6 Technology: Combines dual-band connectivity with modern wireless technologies for improved network efficiency.
• Complete Three-Pack Solution: Includes three Halo H80X units to create a coordinated mesh network throughout a larger home.
• AX3000 Wireless Performance: Offers advertised combined speeds of up to 3000 Mbps for compatible devices and suitable network conditions.
• Whole-Home Coverage Potential: Supports manufacturer-rated coverage of up to 650 m² under suitable conditions.
• Seamless Mesh Networking: Uses a single WiFi network name and password with roaming support for compatible devices.
• Gigabit Ethernet Connectivity: Provides three Gigabit ports on every unit for wired devices and network integration.
• App-Based Control: Simplifies setup and everyday network management through the MERCUSYS app.
• Useful Family Features: Includes parental controls, guest WiFi, device monitoring, and prioritisation features.
• Flexible Network Modes: Supports both router and access point deployments.
• Suitable for Modern Households: Designed for families, remote workers, smart homes, and households with many connected devices.

Compatibility and Important Considerations

• Internet Service Requirement: An active internet connection and compatible modem or internet termination equipment may be required, depending on the ISP and network configuration.
• WiFi Speed: The advertised AX3000 rate is the combined theoretical wireless link rate across the 2.4 GHz and 5 GHz bands, not a guaranteed single-device internet speed.
• Coverage Limitations: The advertised coverage of up to 650 m² varies with building layout, walls, floors, interference, node placement, and other environmental factors.
• Device Capacity: The stated capacity of over 150 devices does not guarantee maximum throughput for all connected devices at the same time.
• Roaming Compatibility: Seamless roaming performance depends on client-device support for IEEE 802.11k/v/r and the network configuration.
• WiFi 6 Features: OFDMA, MU-MIMO, 1024-QAM, and 160 MHz channel support require compatible client devices. The availability of 160 MHz channels also depends on regional regulations.
• Ethernet Limitations: The Ethernet ports support up to 1 Gbps per port. Actual wired throughput depends on the connected equipment, cable, internet service, and network conditions.
• WAN/LAN Port Configuration: The ports are auto-sensing, but only one port per Halo unit can operate as WAN at a time.
• Wireless Security: WPA3 requires compatible client devices. Select a supported security configuration appropriate for the devices on your network.
• Hardware Version: This description refers to the Halo H80X V1 model. Confirm the hardware version and regional specification before purchase.
• Mesh Expansion: Halo H80X can form a mesh network with compatible Halo H-series units. Halo H-series and S-series products cannot work together in the same mesh system.
• Power and Placement: Each unit requires its supplied power adapter and should be placed where it can maintain a suitable mesh connection.
• App and Firmware: App features and compatibility may vary by hardware revision, firmware, region, and mobile operating system.
• Package Contents: The standard three-pack includes three Halo H80X units, one RJ45 Ethernet cable, three power adapters, and a Quick Installation Guide. Confirm the supplied package before installation.
