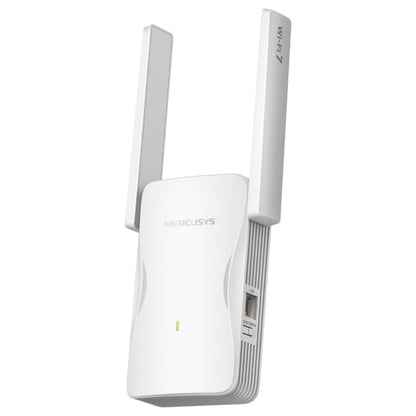

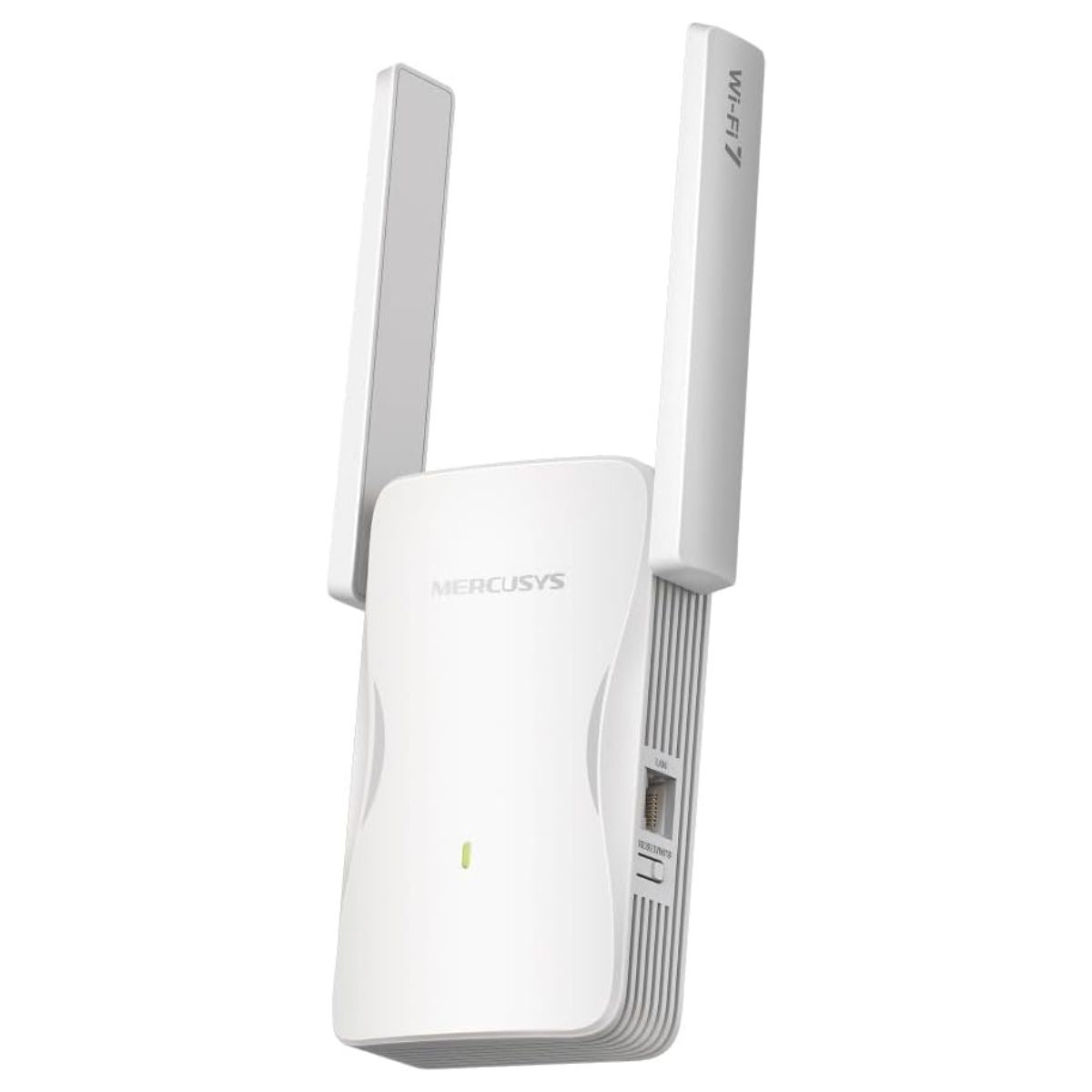

MERCUSYS ME25BE BE3600 Wi-Fi 7 Range Extender | Dual-Band 3.6 Gbps | EasyMesh | Gigabit Ethernet | Access Point Mode

MERCUSYS ME25BE BE3600 Wi-Fi 7 Range Extender | Dual-Band 3.6 Gbps | EasyMesh | Gigabit Ethernet | Access Point Mode

The MERCUSYS ME25BE BE3600 Wi-Fi 7 Range Extender is designed to expand your existing wireless network and improve Wi-Fi coverage in areas where the signal is weak or unreliable. Featuring advanced Wi-Fi 7 technology, dual-band connectivity, and combined wireless speeds of up to 3,600 Mbps, it provides a practical solution for homes and small offices that need more consistent connectivity across multiple rooms. Operating on the 2.4 GHz and 5 GHz frequency bands, the ME25BE delivers theoretical speeds of up to 688 Mbps on 2.4 GHz and 2,882 Mbps on 5 GHz. Its support for Multi-Link Operation (MLO), 160 MHz channel bandwidth, and 4K-QAM helps compatible Wi-Fi 7 devices make better use of available wireless capacity. Actual speeds and coverage depend on the main router, connected devices, building layout, interference, and internet connection. Equipped with two adjustable external antennas, a Gigabit Ethernet port, and EasyMesh compatibility, this MERCUSYS range extender offers flexible placement and connectivity options. One-touch WPS setup and MERCUSYS app management make installation and network configuration convenient, while Access Point mode allows the device to create a wireless network from a wired Ethernet connection.

Key Features

• Wi-Fi 7 BE3600: Supports combined theoretical wireless speeds of up to 3,600 Mbps across both frequency bands.
• Dual-Band Connectivity: Provides up to 688 Mbps on 2.4 GHz and 2,882 Mbps on 5 GHz.
• Multi-Link Operation (MLO): Supports Wi-Fi 7 technology that allows compatible devices to use multiple wireless links for improved performance.
• Extended Wi-Fi Coverage: Helps reduce wireless dead zones in hard-to-reach areas of your home or office.
• Two Adjustable External Antennas: Help direct and distribute wireless coverage according to your installation environment.
• Gigabit Ethernet Port: Offers a wired connection of up to 1,000 Mbps for compatible computers, smart TVs, game consoles, and other Ethernet-enabled devices.
• EasyMesh Compatibility: Can work with compatible EasyMesh devices to create a more unified whole-home wireless network.
• Access Point Mode: Converts a wired Ethernet connection into a dual-band wireless access point.
• One-Touch WPS Setup: Simplifies initial configuration with compatible routers that support WPS.
• MERCUSYS App Management: Supports setup and network management through the MERCUSYS app on compatible mobile devices.
• Modern Wireless Security: Supports WPA-PSK, WPA2-PSK, and WPA3 wireless security options.

Technical Specifications

• Brand: MERCUSYS
• Model: ME25BE
• Product Type: Wi-Fi Range Extender
• Wireless Class: BE3600
• Wi-Fi Generation: Wi-Fi 7
• Frequency Bands: 2.4 GHz and 5 GHz
• Maximum Theoretical Speed: Up to 3,600 Mbps combined
• 2.4 GHz Speed: Up to 688 Mbps
• 5 GHz Speed: Up to 2,882 Mbps
• Wireless Standards: IEEE 802.11be/ax/ac/a/n/g/b, depending on frequency band
• Maximum Channel Width: 160 MHz
• Modulation: 4K-QAM (4096-QAM)
• Wireless Features: Multi-Link Operation (MLO), Multi-RUs, Beamforming, EasyMesh
• Antennas: 2 adjustable external high-gain antennas
• Ethernet Interface: 1 × 10/100/1000 Mbps RJ45 Gigabit Ethernet port
• Operating Modes: Range Extender (RE), Access Point (AP)
• Wireless Security: WPA-PSK, WPA2-PSK, WPA3
• Network Protocols: IPv4 and IPv6
• Setup and Management: WPS button, MERCUSYS app, web management interface
• Button: 1 × Reset/WPS
• Dimensions: Vary by hardware version; check the supplied unit's specification
• Package Contents: ME25BE Wi-Fi Range Extender and Quick Installation Guide

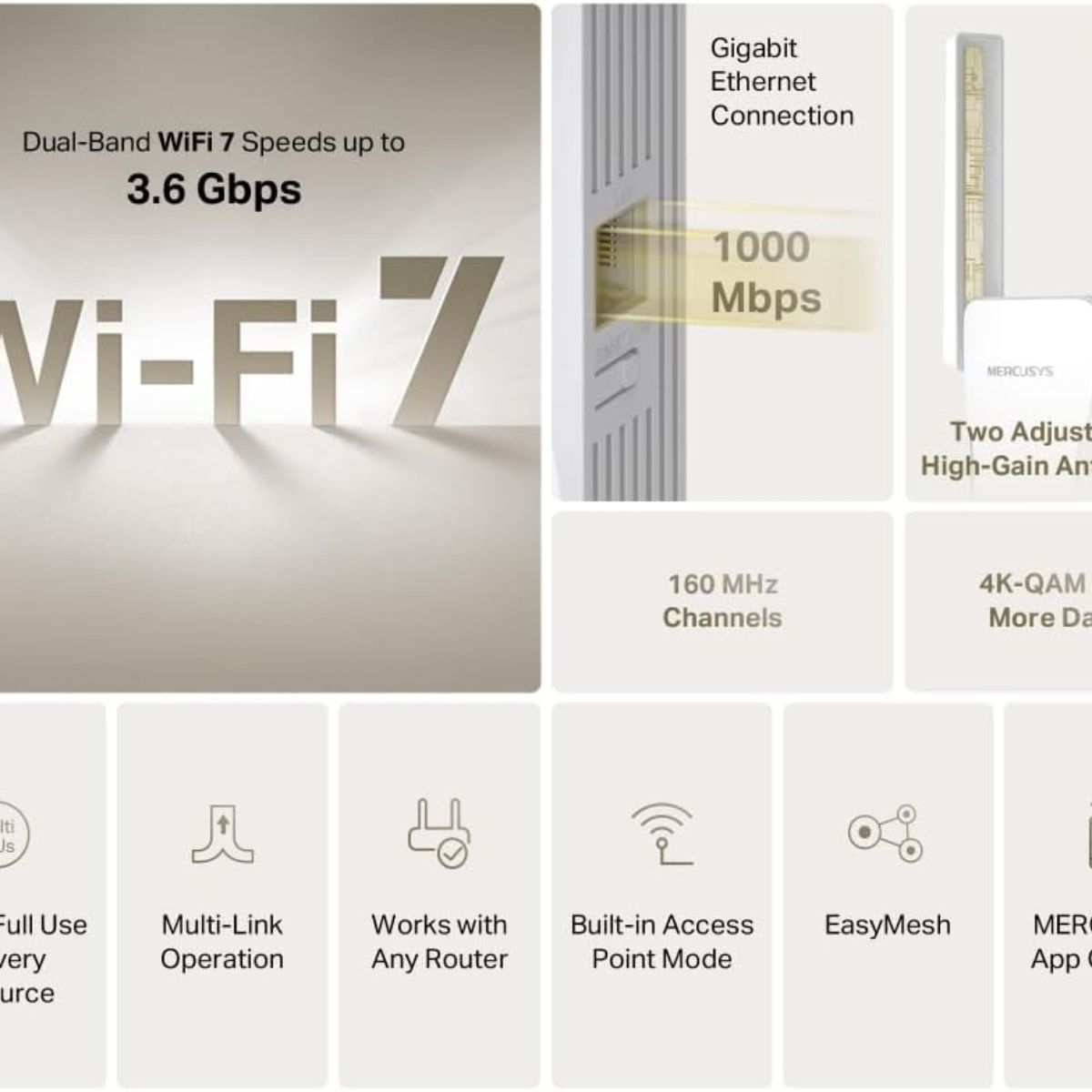

Wi-Fi 7 Technology for Enhanced Wireless Performance

The ME25BE brings Wi-Fi 7 capabilities to an existing wireless network. With a combined theoretical speed of up to 3.6 Gbps, it is designed to support demanding wireless activities such as high-definition video streaming, online gaming, video calls, and simultaneous connections from multiple devices.

Its support for 160 MHz channels and 4K-QAM helps compatible devices transfer more data under suitable network conditions. For the best results, pair the extender with a compatible Wi-Fi 7 router and client devices. Older Wi-Fi devices can also connect, although they will not benefit from every Wi-Fi 7 feature.

Dual-Band Wi-Fi for Everyday Connectivity

The 2.4 GHz band provides broader reach in many environments and supports everyday browsing, messaging, and connected home devices. The 5 GHz band offers higher theoretical speeds and is useful for bandwidth-intensive activities when devices are within a suitable signal range.

By extending the wireless network into areas with weak reception, the ME25BE can help improve connectivity in bedrooms, home offices, living rooms, and other spaces. The actual improvement depends on where the extender is installed and the strength of the signal it receives from the main router.

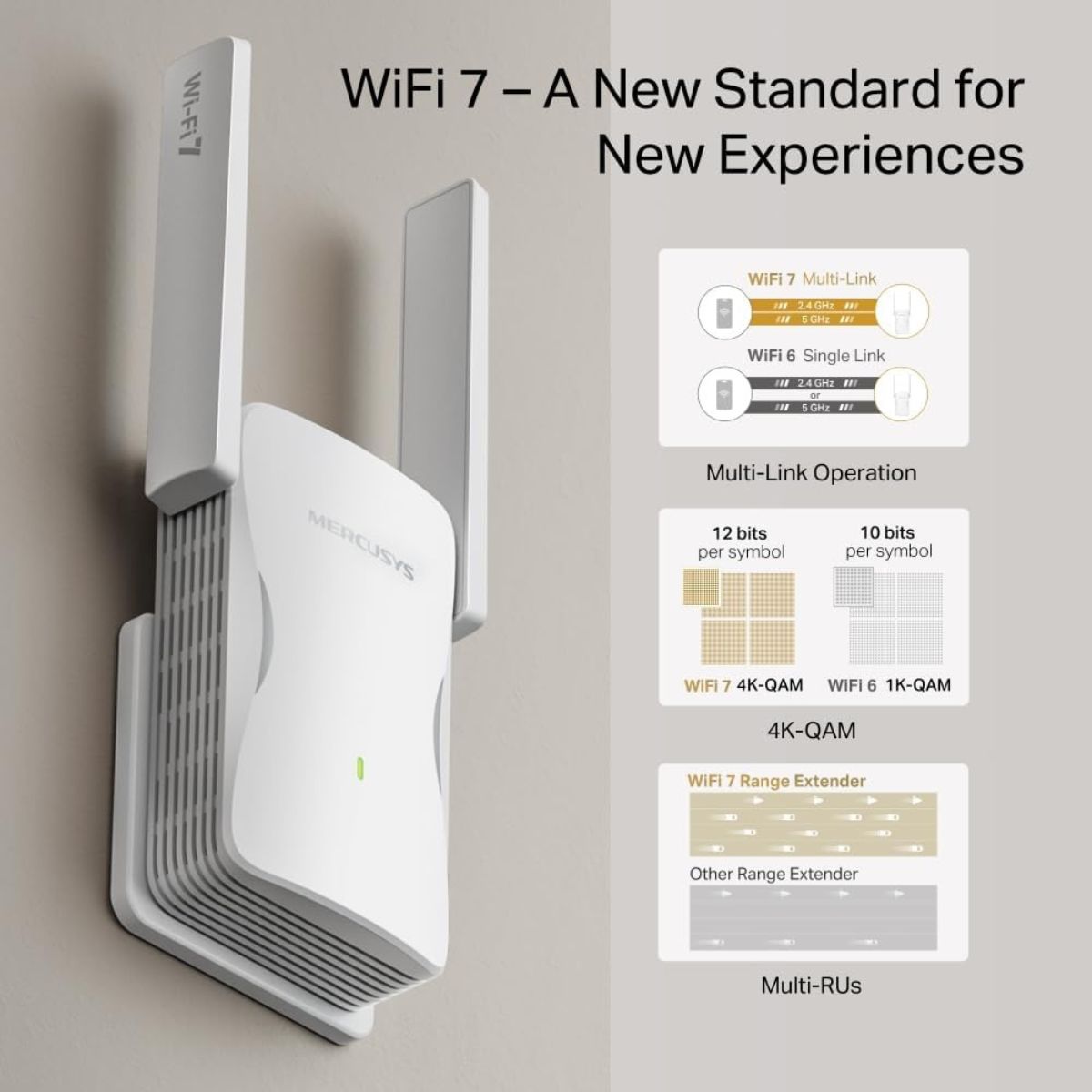

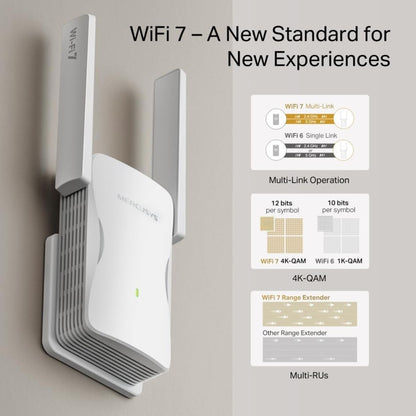

Multi-Link Operation (MLO) and Advanced Wi-Fi Features

Multi-Link Operation is a Wi-Fi 7 feature that enables compatible devices to use multiple wireless links across supported bands. Depending on device capabilities and network conditions, this can improve throughput, responsiveness, and connection efficiency.

The ME25BE also supports Multi-RUs and Beamforming. These technologies are designed to improve how compatible wireless devices use network resources and how wireless signals are directed. Benefits depend on the router, client devices, and surrounding wireless environment.

Two Adjustable External Antennas

The two adjustable external antennas provide flexibility when positioning the extender. Adjusting their orientation and selecting a suitable installation location can help improve reception from the main router and distribute the extended signal more effectively.

For reliable performance, install the ME25BE in a location where the existing router signal is still reasonably strong, rather than placing it directly inside a dead zone. The extender can then relay the received connection to devices in the target area.

Gigabit Ethernet for Wired Devices

The built-in Gigabit Ethernet port supports wired connections at up to 1,000 Mbps, making the ME25BE useful for compatible desktop computers, smart televisions, gaming consoles, and other network-enabled equipment.

A wired connection can provide a more consistent link than Wi-Fi for supported devices. The actual throughput depends on the Ethernet cable, connected equipment, upstream network, and extender operating conditions.

EasyMesh Compatibility for Expanded Coverage

The ME25BE supports EasyMesh, which can help compatible routers and range extenders work together as a more unified wireless network. When supported by the connected equipment and firmware, EasyMesh can provide a consistent network name and password across compatible access points, helping devices transition between coverage areas.

For the best compatibility, confirm that your existing router or other network equipment supports EasyMesh and that its firmware meets the manufacturer's requirements. Mesh functionality and roaming behaviour may vary by device and configuration.

Simple Setup and Convenient Management

The ME25BE is designed for straightforward installation. If your router supports WPS, you can use the WPS buttons to establish the initial connection. Alternatively, follow the available setup instructions using the MERCUSYS app or web management interface.

The built-in signal indicator helps you identify a suitable placement location. After setup, you can position the extender where it receives a stable signal from the main router while providing coverage to the required area.

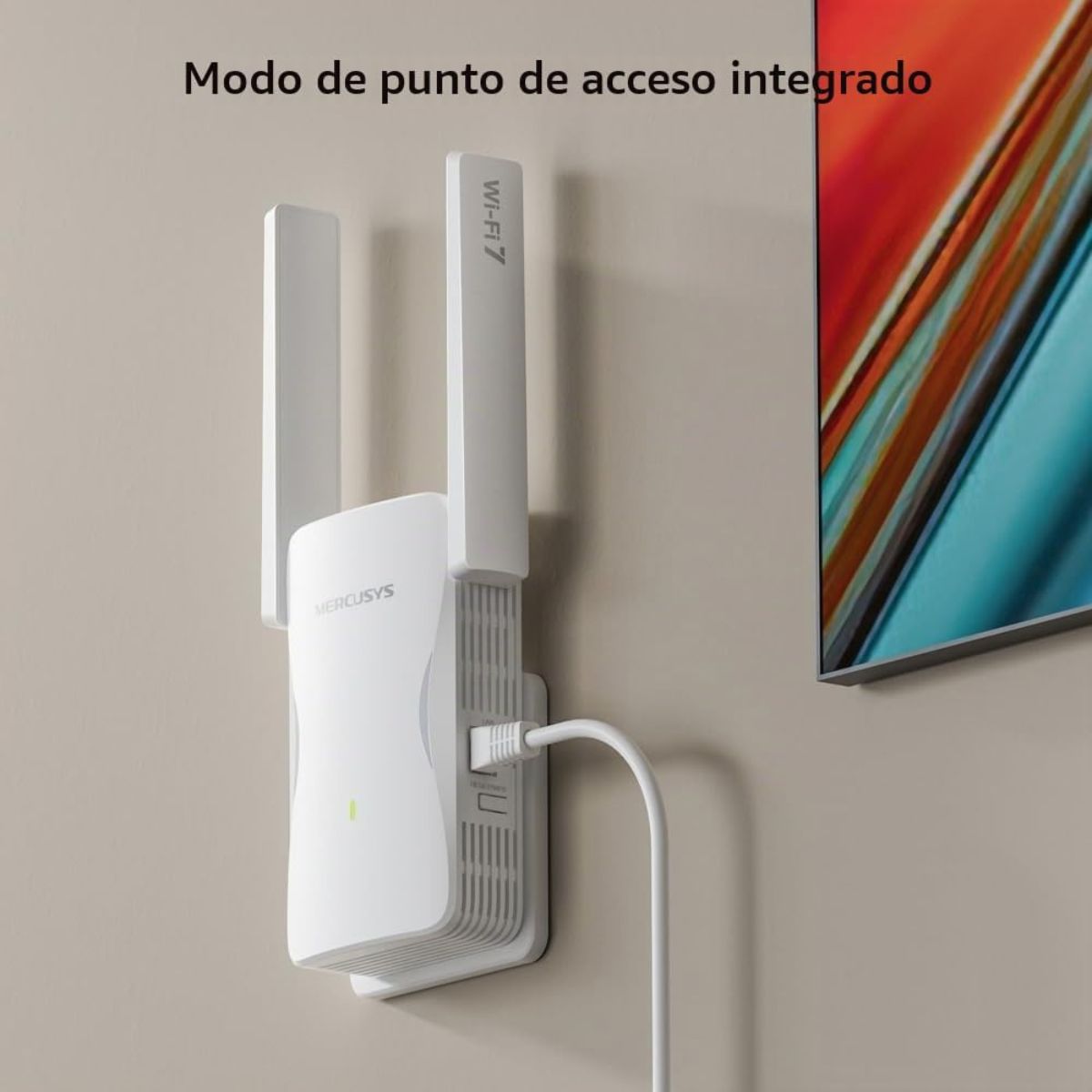

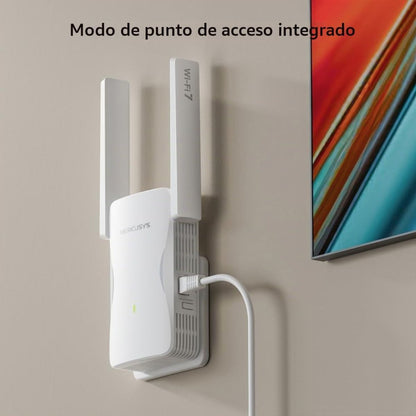

Access Point Mode for Flexible Installation

In addition to range-extender operation, the ME25BE supports Access Point mode. Connect it to your network using an Ethernet cable to create a dual-band Wi-Fi access point in a location where a wired network connection is available.

This mode is useful when you want to provide wireless connectivity in a room or area served by Ethernet cabling. It offers an alternative to receiving and repeating the router's wireless signal.

Wireless Security and Network Compatibility

The ME25BE supports WPA-PSK, WPA2-PSK, and WPA3 wireless security options. The security mode available in practice depends on the configured network and compatibility with the connected router and devices. Use a strong Wi-Fi password and an appropriate security setting supported by your network equipment.

The extender supports IPv4 and IPv6 and is designed to work with a range of earlier Wi-Fi standards as well as Wi-Fi 7. This allows it to serve as a coverage-expansion option in networks containing a mixture of newer and older wireless devices.

Ideal Applications

• Homes and Apartments: Extend Wi-Fi coverage into bedrooms, living rooms, and other areas with weak reception.
• Home Offices: Improve wireless availability for laptops, video meetings, and everyday work.
• Streaming and Entertainment: Help connect smart TVs and streaming devices in areas farther from the router.
• Online Gaming: Extend network access to gaming areas; wired Ethernet may be preferable where available.
• Connected Devices: Provide additional coverage for compatible wireless devices around the home.
• Small Offices: Extend an existing compatible network into additional work areas.
• Ethernet-Based Wi-Fi Expansion: Use Access Point mode where a wired network connection is available.

Benefits

• Helps reduce Wi-Fi dead zones and extend the reach of an existing wireless network.
• Provides Wi-Fi 7 BE3600 dual-band capability for compatible devices.
• Supports demanding wireless activities with theoretical speeds of up to 3,600 Mbps combined.
• Offers MLO, 160 MHz channel support, 4K-QAM, and other Wi-Fi 7 features.
• Includes two adjustable external antennas for flexible placement.
• Provides a Gigabit Ethernet port for compatible wired devices.
• Supports EasyMesh for compatible network configurations.
• Offers both Range Extender and Access Point operating modes.
• Provides convenient WPS setup and app-based management options.
• Supports modern wireless security protocols and IPv4/IPv6 networking.

Why Choose MERCUSYS ME25BE?

• Modern Wireless Technology: Wi-Fi 7 features make it a suitable option for compatible next-generation devices.
• Flexible Dual-Band Performance: Combines 2.4 GHz coverage with higher-speed 5 GHz connectivity.
• Versatile Installation: Choose range-extender mode or Access Point mode according to your network layout.
• Wired and Wireless Connectivity: Extend Wi-Fi coverage while retaining a Gigabit Ethernet connection for compatible equipment.
• Expandable Network Options: EasyMesh support provides flexibility with compatible networking products.
• Practical Network Management: Setup and configuration are available through supported management methods.

Compatibility and Important Considerations

• Router Compatibility: The ME25BE can extend compatible existing Wi-Fi networks. EasyMesh features require compatible equipment and firmware.
• Wi-Fi 7 Requirements: Full Wi-Fi 7 benefits require compatible client devices and suitable network conditions.
• Advertised Speeds: BE3600 is the combined theoretical wireless class, not a guaranteed internet speed or single-device throughput.
• Placement: Install the extender where it can receive a stable signal from the main router and still reach the area requiring coverage.
• Internet Performance: Actual performance depends on the internet plan, router, connected devices, interference, distance, and building materials.
• Hardware Version: Specifications and physical dimensions can vary by hardware revision and regional version. Check the exact unit supplied.
• Security Configuration: Available security options depend on compatibility with the existing wireless network and connected devices.
