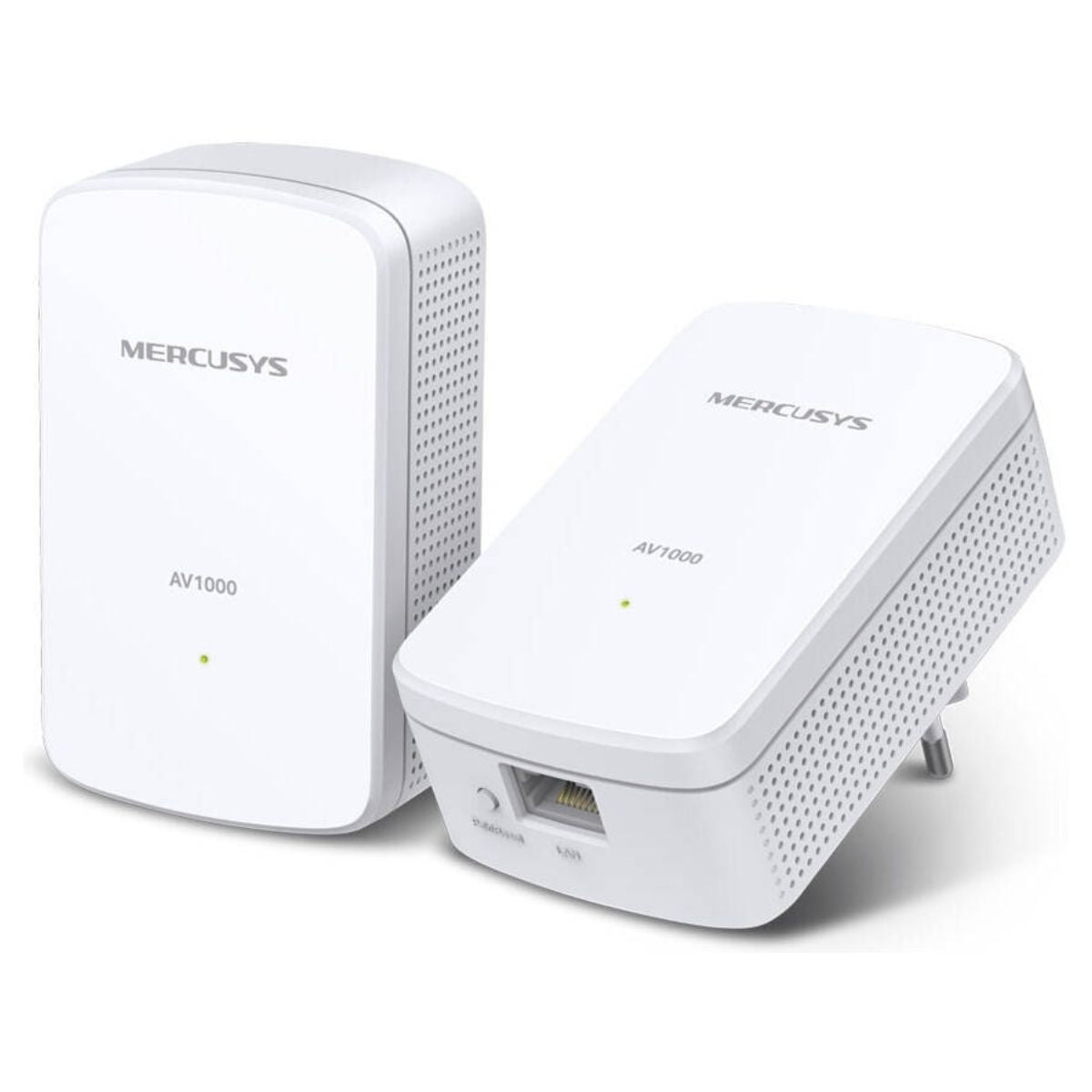

MERCUSYS MP500 KIT AV1000 Gigabit Powerline Starter Kit | 1000 Mbps HomePlug AV2 | 2 Gigabit Ethernet Ports | 128-Bit AES | 2-Pack

MERCUSYS MP500 KIT AV1000 Gigabit Powerline Starter Kit | 1000 Mbps HomePlug AV2 | 2 Gigabit Ethernet Ports | 128-Bit AES | 2-Pack

The MERCUSYS MP500 KIT AV1000 Gigabit Powerline Starter Kit is designed to extend wired network connectivity throughout your home or office using existing electrical wiring. This two-adapter kit provides a convenient alternative to running new Ethernet cables between rooms, helping connect compatible network devices in areas where installing dedicated cabling may be difficult. Powered by HomePlug AV2 technology, the MP500 KIT supports powerline transmission rates of up to 1000 Mbps. Each adapter features a Gigabit Ethernet port for connecting devices such as desktop computers, smart TVs, IPTV equipment and gaming consoles. The kit also supports 128-bit AES powerline encryption, simple plug-and-play installation and easy network expansion with compatible powerline adapters.

Key Features

• AV1000 Powerline Technology: Supports powerline transmission rates of up to 1000 Mbps using HomePlug AV2 technology.
• Two Gigabit Powerline Adapters: Includes two MP500 adapters, each equipped with a Gigabit Ethernet port.
• Uses Existing Electrical Wiring: Transmits network data through the property's electrical circuit, reducing the need to install new Ethernet cabling between rooms.
• Up to 300-Metre Range: Supports powerline communication over electrical wiring up to 300 metres under suitable conditions.
• 128-Bit AES Encryption: Helps secure communication between paired powerline adapters.
• Plug-and-Play Setup: Designed for straightforward installation without complex network configuration.
• Easy Expansion: Supports adding compatible powerline adapters to extend network access to additional areas.
• Gigabit Ethernet Connectivity: Connects compatible wired devices to the network through a standard Ethernet cable.
• Pair/Reset Button: Helps pair adapters and establish a more secure powerline network.
• LED Indicator: Provides a visual indication of the adapter's power status.

Technical Specifications

• Brand: MERCUSYS
• Model: MP500 KIT
• Product Type: AV1000 Gigabit Powerline Starter Kit
• Package Configuration: 2 × MP500 Powerline Adapters
• Powerline Speed: Up to 1000 Mbps
• Powerline Standards: HomePlug AV2, HomePlug AV, IEEE 1901
• Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Ethernet Ports: 1 × Gigabit Ethernet port per adapter; 2 ports across the kit
• Modulation Technology: OFDM (PLC)
• Powerline Security: 128-bit AES encryption
• Maximum Powerline Range: Up to 300 metres over the electrical circuit
• Buttons: Pair/Reset
• LED Indicator: Power
• Dimensions per Adapter: 101 × 60 × 36 mm
• Maximum Power Consumption: 2.87 W at 220 V/50 Hz (published V1 specification)
• Typical Power Consumption: 2.35 W at 220 V/50 Hz (published V1 specification)
• Standby Power Consumption: 0.64 W at 220 V/50 Hz (published V1 specification)
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10%–90%, non-condensing
• Certifications: CE, RoHS
• Package Contents: 2 × MP500 adapters, 2 × RJ45 Ethernet cables and quick installation guide

Ideal Applications

• Home Networking: Extend wired network access to rooms away from the main router.
• Home Offices: Connect desktop computers and other Ethernet-enabled work equipment.
• Smart TVs and IPTV: Provide a wired network connection for compatible entertainment devices.
• Gaming Setups: Connect compatible consoles and PCs through Ethernet where the powerline link offers suitable performance.
• Small Offices: Extend network connectivity between work areas without installing new Ethernet runs.
• Multi-Room Connectivity: Use existing electrical wiring to connect devices in different parts of a property.

Benefits of MERCUSYS MP500 KIT

• Reduced Cabling Requirements: Uses electrical wiring already installed in the property.
• Two Gigabit Ports: Provides one Ethernet port on each adapter for wired devices.
• High-Rated Powerline Speed: Supports HomePlug AV2 transmission rates of up to 1000 Mbps.
• Simple Installation: Offers a straightforward alternative to installing new Ethernet cables between rooms.
• Encrypted Powerline Communication: Supports 128-bit AES encryption between paired adapters.
• Expandable Network: Allows compatible powerline adapters to be added as requirements grow.
• Compact Design: Small adapters fit conveniently into suitable electrical outlets.

Why Choose the MERCUSYS MP500 KIT?

• Practical Wired Networking: Extends Ethernet connectivity to locations that are difficult to cable.
• AV1000 Technology: Supports powerline link rates of up to 1000 Mbps under suitable conditions.
• Two-Adapter Starter Kit: Includes the adapters required to establish a basic powerline connection.
• Gigabit Ethernet: Connects compatible network devices using standard Ethernet cables.
• Plug-and-Play Design: Reduces the complexity of extending a wired network.
• Secure Pairing: Provides 128-bit AES powerline encryption and a Pair/Reset button.

Compatibility and Important Considerations

• Router Compatibility: Designed to work with standard routers and compatible HomePlug AV/AV2 powerline adapters.
• Electrical Wiring: Both adapters must be able to communicate over compatible electrical wiring. Separate circuits or distribution panels may affect connectivity.
• Wired Only: The MP500 KIT does not provide Wi-Fi; it delivers network access through Gigabit Ethernet ports.
• Actual Performance: The advertised 1000 Mbps rate and 300-metre range are theoretical maximums, not guaranteed real-world results.
• Power Outlet Recommendation: Direct wall outlets are generally preferable to extension leads and surge protectors for powerline communication.
• Plug Type: Verify the supplied plug type and hardware version before installation in the UAE, as regional variants may differ.

Why Buy from IT Splendid (UAE)?

IT Splendid offers networking products and technology solutions for home users, professionals and businesses across the UAE. The MERCUSYS MP500 KIT is a practical choice for customers who need to extend wired network connectivity through existing electrical wiring without installing new Ethernet cabling between rooms.

• Networking Solutions: Explore powerline adapters, routers, Wi-Fi extenders and other networking equipment.
• UAE Delivery Options: Delivery services are available across the UAE, subject to current store terms.
• Convenient Online Shopping: Review product information and place orders through the IT Splendid online store.
• Payment Options: Choose from the payment methods available at checkout.

Extend your wired network with the MERCUSYS MP500 KIT AV1000 Gigabit Powerline Starter Kit. With HomePlug AV2 technology, two Gigabit Ethernet ports, 128-bit AES powerline encryption, plug-and-play installation and support for network expansion, it provides a convenient way to connect compatible devices across your home or office using existing electrical wiring.
