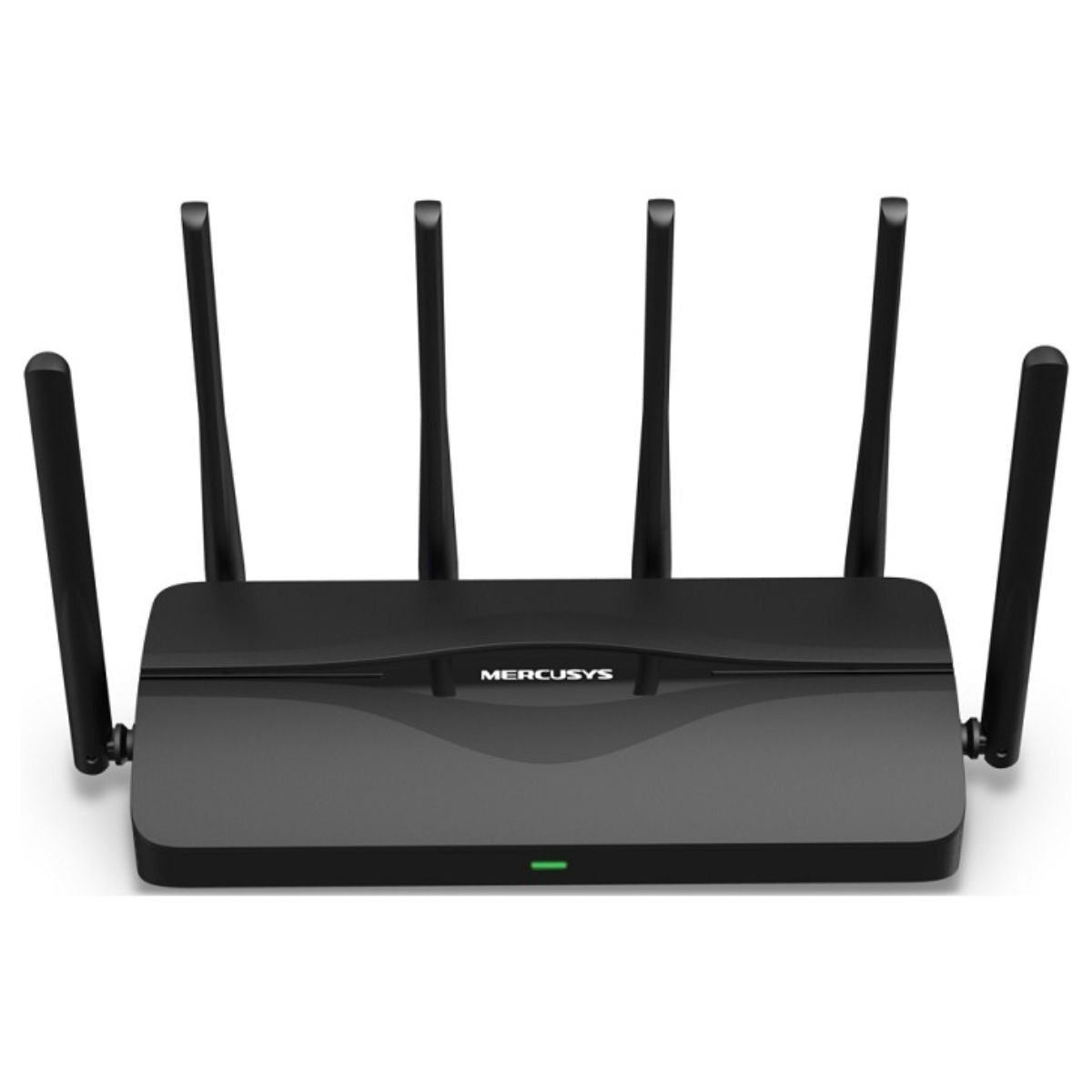

MERCUSYS MR47BE BE9300 Tri-Band Wi-Fi 7 Router | 9.3 Gbps Wireless Speed | 6 GHz Band | 4× 2.5 Gbps Ports | MLO | WPA3 Security

MERCUSYS MR47BE BE9300 Tri-Band Wi-Fi 7 Router | 9.3 Gbps Wireless Speed | 6 GHz Band | 4× 2.5 Gbps Ports | MLO | WPA3 Security

The MERCUSYS MR47BE BE9300 Tri-Band Wi-Fi 7 Router is designed for users who need high-speed wireless connectivity, advanced networking features, and fast wired Ethernet performance for modern homes and demanding network environments. Supporting the latest Wi-Fi 7 standard (IEEE 802.11be), this tri-band router combines the 2.4 GHz, 5 GHz, and 6 GHz frequency bands to deliver a combined theoretical wireless speed of up to 9,214 Mbps. With Multi-Link Operation (MLO), 320 MHz channel bandwidth, and 4K-QAM, the MR47BE is engineered to improve wireless throughput, reduce latency under suitable conditions, and make more efficient use of compatible Wi-Fi 7 devices. It is suitable for bandwidth-intensive activities such as high-resolution video streaming, online gaming, video conferencing, large file transfers, and connecting multiple devices simultaneously. The router includes one 2.5 Gbps WAN port and three 2.5 Gbps LAN ports, providing faster wired connectivity than conventional Gigabit Ethernet ports when used with compatible equipment. Six fixed omnidirectional antennas, Beamforming technology, and EasyMesh compatibility help support wireless coverage and network expansion. The MERCUSYS app also provides convenient setup and management tools for compatible mobile devices.

Key Features

• Wi-Fi 7 Technology: Supports IEEE 802.11be for enhanced wireless throughput, efficiency, and performance with compatible devices.
• BE9300 Tri-Band Wireless: Provides theoretical speeds of up to 5,760 Mbps on 6 GHz, 2,880 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz.
• 320 MHz Channel Bandwidth: Supports wider channels on the 6 GHz band to increase potential wireless capacity with compatible clients and where regulations permit.
• Multi-Link Operation (MLO): Allows compatible Wi-Fi 7 devices to use multiple wireless links to improve throughput, latency, and connection reliability under suitable conditions.
• 4K-QAM Modulation: Supports higher data density than lower-order modulation when signal conditions and client hardware allow.
• Four 2.5 Gbps Ethernet Ports: Includes one 2.5 Gbps WAN port and three 2.5 Gbps LAN ports for high-speed internet and wired device connections.
• Six Fixed Omnidirectional Antennas: Supports wireless signal distribution throughout the coverage area.
• Beamforming Technology: Helps direct wireless signals towards connected devices to improve signal reception under suitable conditions.
• EasyMesh Compatibility: Can work with compatible EasyMesh routers and range extenders to expand wireless coverage.
• WPA3 Security: Supports WPA3-SAE alongside WPA-PSK and WPA2-PSK for compatible wireless devices.
• VPN Server and Client Support: Supports OpenVPN, PPTP, L2TP, and WireGuard VPN functions as specified for the product.
• Parental Controls: Offers supported tools for managing online time, creating profiles, and blocking selected websites.
• Guest Networks: Supports separate guest Wi-Fi networks across the 2.4 GHz, 5 GHz, and 6 GHz bands.
• App-Based Management: Configure and manage the router through the MERCUSYS app on a compatible iOS or Android device.

Technical Specifications

• Brand: MERCUSYS
• Product Model: MR47BE
• Product Type: Tri-Band Wireless Router
• Wireless Class: BE9300
• Wi-Fi Standard: Wi-Fi 7 (IEEE 802.11be)
• Supported Wireless Standards: IEEE 802.11be/ax/ac/a/b/g/n
• Maximum Theoretical Combined Wireless Speed: Up to 9,214 Mbps
• 6 GHz Signal Rate: Up to 5,760 Mbps (802.11be)
• 5 GHz Signal Rate: Up to 2,880 Mbps (802.11be)
• 2.4 GHz Signal Rate: Up to 574 Mbps (802.11ax)
• Maximum Channel Width: Up to 320 MHz on the 6 GHz band
• Wireless Functions: Multi-Link Operation (MLO), 320 MHz channel, 4K-QAM, Multi-RUs
• Antennas: 6× fixed omnidirectional antennas
• WAN Interface: 1× 2.5 Gbps WAN port
• LAN Interfaces: 3× 2.5 Gbps LAN ports
• Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE
• Guest Network: 2.4 GHz, 5 GHz, and 6 GHz guest networks
• EasyMesh: Compatible with supported EasyMesh devices
• VPN Server and Client: OpenVPN, PPTP, L2TP, WireGuard
• WAN Connection Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
• DHCP: DHCP Server, DHCP Client List
• NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
• Firewall Security: SPI Firewall, IP and MAC Address Binding
• Management: Access Control, Local Management, Remote Management
• Button: Reset/WPS Button
• Dimensions (W × D × H): 258 × 119 × 43.3 mm
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10%–90%, non-condensing
• Storage Humidity: 5%–90%, non-condensing
• Package Contents: 1× MERCUSYS MR47BE router, 1× power adapter, 1× RJ45 Ethernet cable, 1× Quick Installation Guide

Next-Generation Wi-Fi 7 Tri-Band Performance

The MERCUSYS MR47BE is built around Wi-Fi 7, also known as IEEE 802.11be, to provide high theoretical wireless throughput across three frequency bands. Its BE9300 classification combines up to 5,760 Mbps on 6 GHz, 2,880 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz.

The 6 GHz band offers additional spectrum for compatible Wi-Fi 7 devices, while the 5 GHz and 2.4 GHz bands continue to support compatible existing equipment. This tri-band design is useful for networks with varied connectivity needs, from high-bandwidth computers and modern smartphones to everyday wireless devices.

The advertised combined rate represents theoretical wireless link speeds across the three bands, not a guaranteed internet speed for one device. Actual performance depends on client compatibility, signal conditions, interference, network traffic, broadband service, and regional wireless regulations.

320 MHz Channels for Higher Wireless Capacity

The MR47BE supports channel bandwidths of up to 320 MHz on the 6 GHz band. Wider channels can carry more data per transmission than narrower channels when the router and connected device support the relevant Wi-Fi 7 features and suitable spectrum is available.

This capability can benefit compatible devices that need high wireless throughput, including modern laptops, smartphones, and other Wi-Fi 7 equipment. The availability of 320 MHz channels depends on local regulatory requirements, interference, and client-device support.

Multi-Link Operation for Improved Connectivity

Multi-Link Operation (MLO) is a Wi-Fi 7 feature that allows compatible devices to use multiple wireless links. Depending on device capabilities and network conditions, this can improve throughput, reduce latency, and help maintain more reliable wireless communication.

MLO is particularly relevant for applications that benefit from responsive networking, including online gaming, video conferencing, real-time collaboration, and demanding wireless transfers. Both the router and connected client must support the relevant MLO functionality to use it.

4K-QAM for Efficient Data Transmission

The MR47BE supports 4K-QAM (4096-QAM), a Wi-Fi 7 modulation feature that can encode more data per transmission symbol than lower-order modulation schemes. Under favourable signal conditions, this can improve wireless data throughput.

The benefits depend on the distance between the router and the connected device, signal quality, interference, and client compatibility. Devices that do not support 4K-QAM will use an appropriate supported modulation method instead.

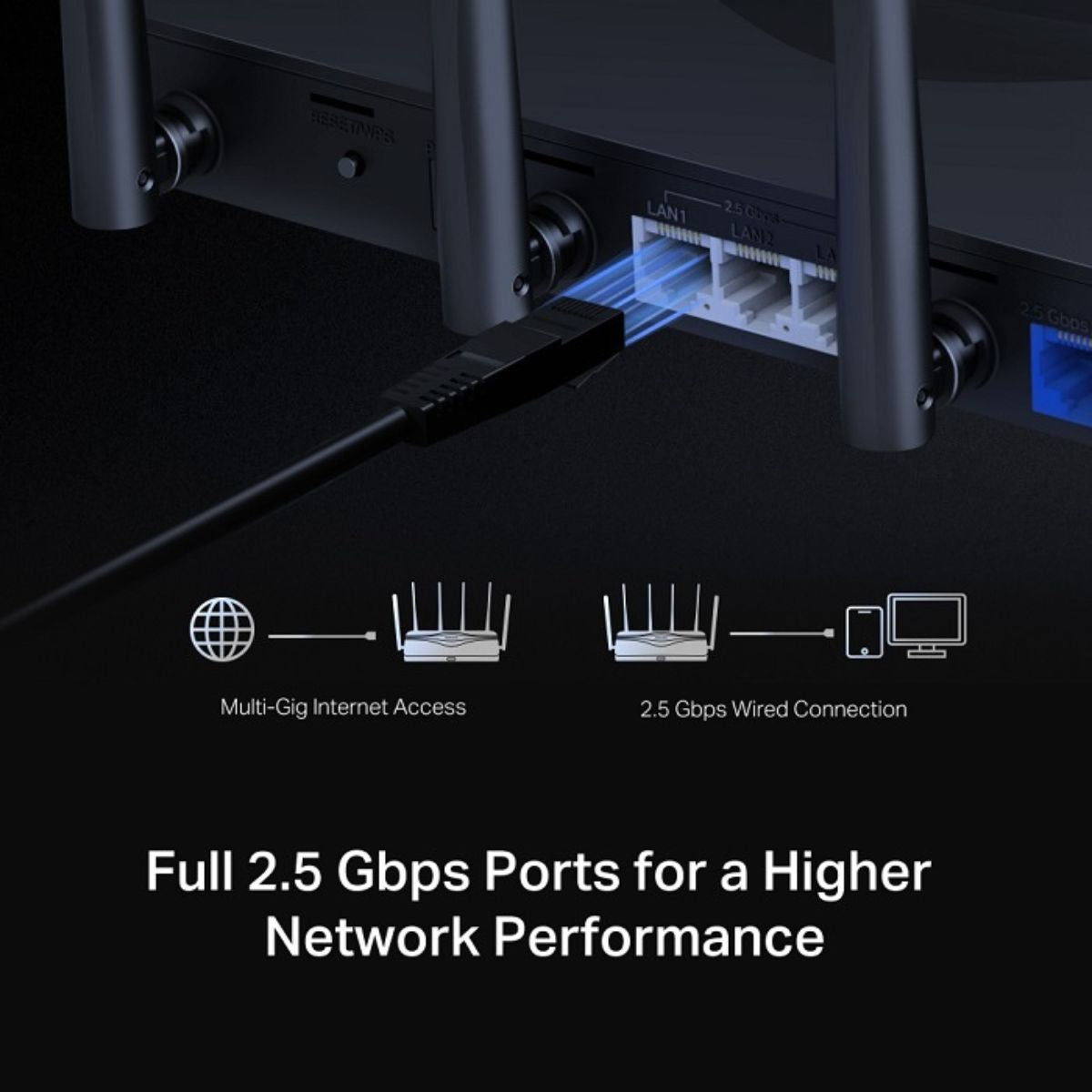

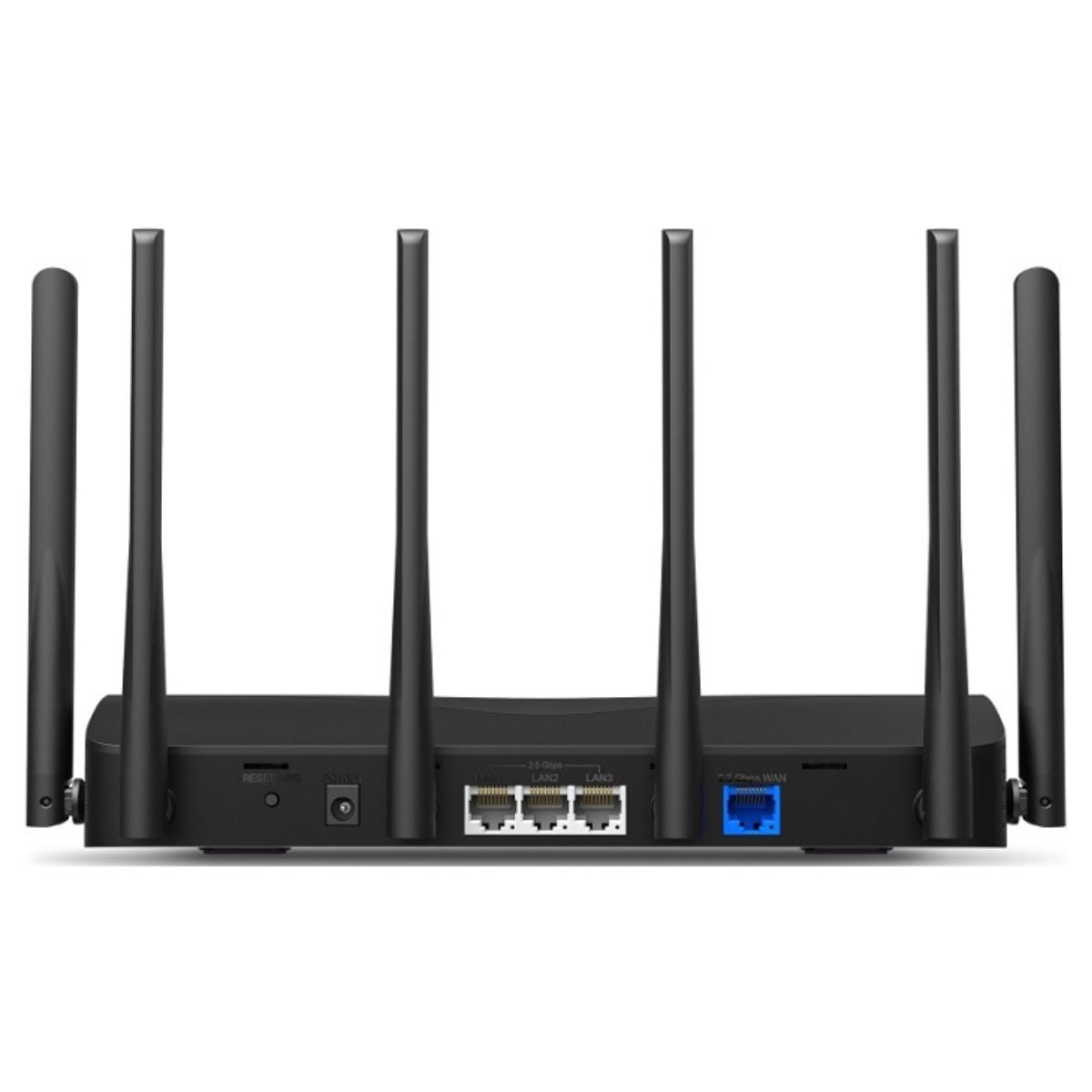

Four 2.5 Gbps Ports for High-Speed Wired Networking

The MR47BE features one 2.5 Gbps WAN port and three 2.5 Gbps LAN ports. The multi-gigabit WAN interface can connect to compatible broadband equipment, while the LAN ports can connect computers, network storage devices, gaming systems, and other Ethernet-enabled equipment.

These ports can help reduce the wired Ethernet bottleneck found in networks limited to 1 Gbps, provided the internet service, Ethernet cabling, and connected devices support the higher rate. Actual throughput also depends on the capabilities of the connected equipment and network configuration.

Six Antennas and Beamforming Technology

The router incorporates six fixed omnidirectional antennas designed to distribute wireless signals around the coverage area. Beamforming technology helps direct signal transmission towards connected devices, potentially improving signal reception and connection stability under suitable conditions.

Wireless coverage varies with building materials, walls, interference, router placement, and device location. Positioning the router in an open, central location can help improve signal distribution throughout the home or office.

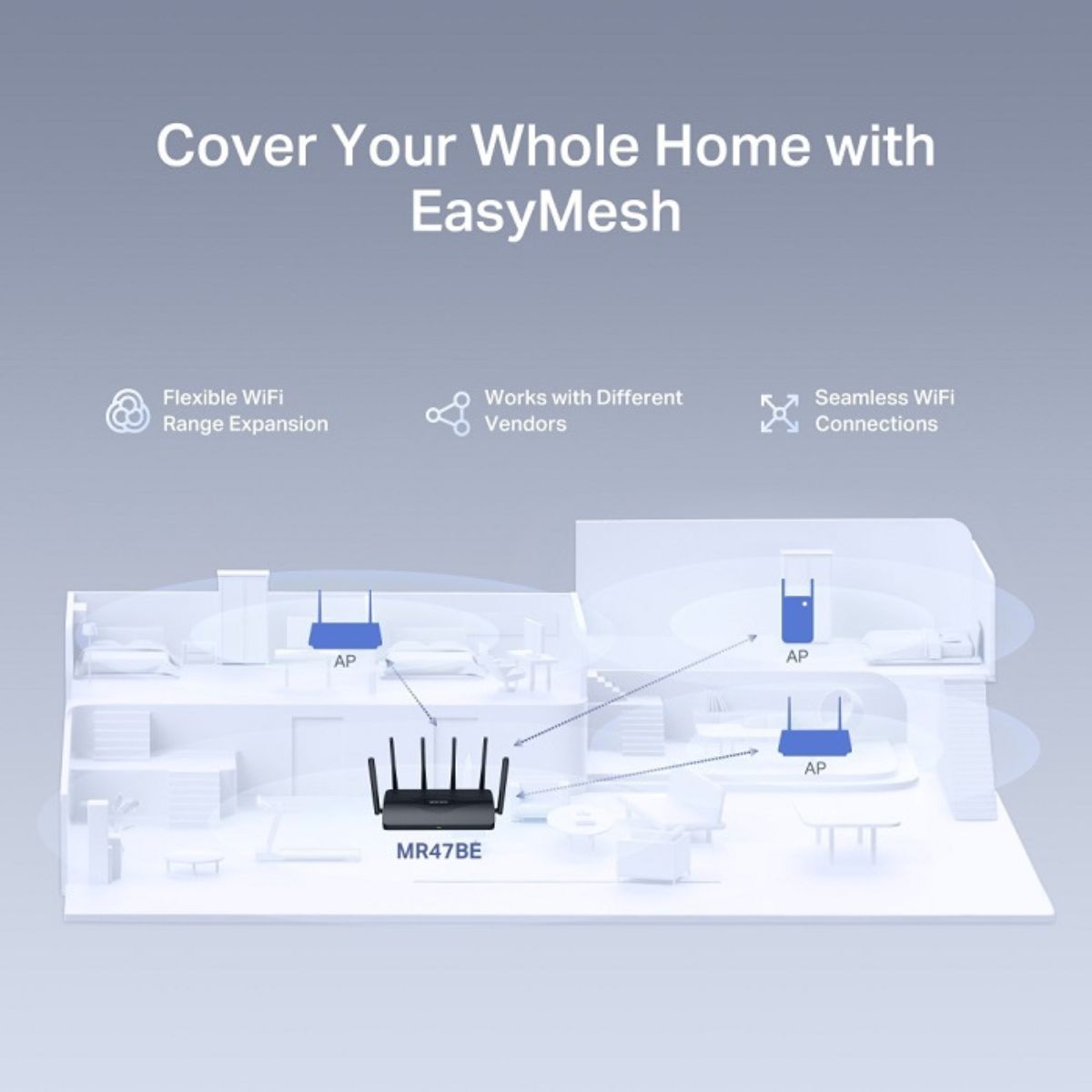

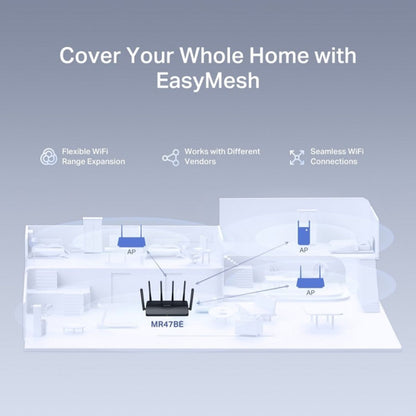

EasyMesh Compatibility for Expandable Coverage

The MR47BE supports EasyMesh compatibility, allowing it to work with compatible EasyMesh routers and range extenders to expand wireless coverage. A compatible mesh configuration can provide a unified Wi-Fi network and help devices move between supported access points as users travel around the coverage area.

EasyMesh compatibility and cross-vendor interoperability can depend on firmware versions and implementation details. Check the compatibility of the intended devices before purchasing or combining networking equipment.

Advanced Wireless Security with WPA3

The MR47BE supports WPA3-SAE alongside WPA-PSK and WPA2-PSK security options. WPA3 can provide improved protection for compatible wireless clients, helping strengthen the security of personal and business networks.

The router also includes an SPI firewall and IP and MAC address binding functions. For stronger network security, use a unique administrator password, keep firmware updated, and select the most secure wireless mode supported by the connected devices.

VPN Server and Client Functionality

The MR47BE supports VPN server and client functions for OpenVPN, PPTP, L2TP, and WireGuard, according to the manufacturer's specifications. These capabilities can support selected remote-access and VPN-routing arrangements, depending on the protocol, configuration, and intended use.

VPN availability and performance depend on firmware support, the VPN service or remote endpoint, encryption overhead, and the speed of the internet connection. Configure VPN functions carefully and verify protocol compatibility with the intended devices and services.

Guest Networks and Parental Controls

The router supports guest Wi-Fi networks across the 2.4 GHz, 5 GHz, and 6 GHz bands, allowing visitors to connect using a separate wireless network. This helps users provide guest connectivity without routinely sharing their primary Wi-Fi credentials.

Parental-control tools include user profiles, online time limits, website blocking, and the ability to pause internet access for managed devices. These features help families manage network access according to their requirements. Available options may depend on firmware and app versions.

Convenient Setup and App-Based Management

The MERCUSYS app provides a guided setup process and convenient access to router-management features using a compatible iOS or Android device. Users can manage network settings, review connected devices, configure guest Wi-Fi, and access supported network controls through the app.

App-based management is useful for users who want straightforward control over their wireless network without relying exclusively on a browser-based administration interface. Certain features and menu options may vary by firmware version.

Ideal Applications

• Wi-Fi 7 Homes: Provide next-generation wireless connectivity for compatible laptops, smartphones, and other Wi-Fi 7 devices.
• High-Speed Broadband: Take advantage of compatible internet services using the 2.5 Gbps WAN port.
• Online Gaming: Support responsive networking with compatible clients and suitable broadband conditions.
• 4K and 8K Streaming: Provide high-throughput wireless connectivity for compatible streaming devices and services.
• Home Offices: Support video conferencing, cloud applications, file transfers, and connected work equipment.
• Multi-Gigabit Wired Networks: Connect compatible PCs, NAS devices, and other equipment through the 2.5 Gbps LAN ports.
• Smart Homes: Connect a variety of compatible wireless devices across the supported frequency bands.
• Remote Access: Use supported VPN server and client functionality for compatible network configurations.
• Expandable Wireless Networks: Extend coverage using compatible EasyMesh devices.

Benefits

• Next-Generation Wireless Technology: Wi-Fi 7 provides advanced wireless capabilities for compatible client devices.
• Tri-Band Connectivity: Offers 2.4 GHz, 5 GHz, and 6 GHz bands for a range of compatible devices and networking needs.
• High Theoretical Wireless Speed: BE9300 classification delivers a combined advertised rate of up to 9,214 Mbps.
• Improved Wireless Efficiency: MLO, 320 MHz channels, and 4K-QAM support advanced Wi-Fi 7 operation.
• Multi-Gigabit Ethernet: Four 2.5 Gbps ports provide high-speed wired connectivity.
• Flexible Network Expansion: EasyMesh compatibility supports expansion with compatible equipment.
• Enhanced Wireless Security: WPA3 support provides a modern security option for compatible devices.
• VPN Capabilities: Supports multiple specified VPN server and client protocols.
• Convenient Management: App-based setup and control simplify everyday network administration.
• Network Access Management: Guest networks and parental controls provide additional options for managing connectivity.

Why Choose MERCUSYS MR47BE?

• Wi-Fi 7 Technology: Designed for modern wireless environments that need higher throughput and advanced networking capabilities.
• BE9300 Tri-Band Performance: Combines three wireless bands with advertised rates totalling up to 9,214 Mbps.
• 6 GHz Wireless Band: Supports compatible Wi-Fi 7 devices and wider channel operation where permitted.
• Advanced Wi-Fi 7 Features: Includes MLO, 320 MHz channels, and 4K-QAM.
• Four 2.5 Gbps Ports: Supports multi-gigabit WAN and LAN connectivity for compatible equipment.
• EasyMesh Compatibility: Offers an option for expanding coverage with compatible mesh equipment.
• Security and Network Controls: Includes WPA3 support, firewall features, guest networks, and parental controls.
• VPN Support: Provides specified VPN server and client capabilities for compatible setups.
• App-Based Management: Makes installation and network control more convenient.

Compatibility and Important Considerations

• Wi-Fi 7 Benefits: Features such as MLO, 320 MHz channels, and 4K-QAM require compatible client devices.
• Wireless Speed: The BE9300 rating is the combined theoretical speed across the three bands, not the guaranteed speed of a single device or internet connection.
• 6 GHz Availability: Use of the 6 GHz band and 320 MHz channels is subject to regional regulations and device support.
• 2.5 Gbps Connectivity: Multi-gigabit performance requires compatible broadband service, Ethernet cabling, and connected equipment.
• Wireless Coverage: Actual range and performance vary with the environment, building materials, interference, device location, and network traffic.
• WPA3 Compatibility: WPA3 requires compatible wireless clients. Older devices may need a different supported security setting.
• EasyMesh Compatibility: Confirm firmware and model compatibility when combining devices from different manufacturers.
• VPN Performance: Actual VPN throughput depends on the protocol, endpoint, encryption, firmware, and internet connection.
• Package Contents: Includes the MR47BE router, power adapter, RJ45 Ethernet cable, and Quick Installation Guide.
