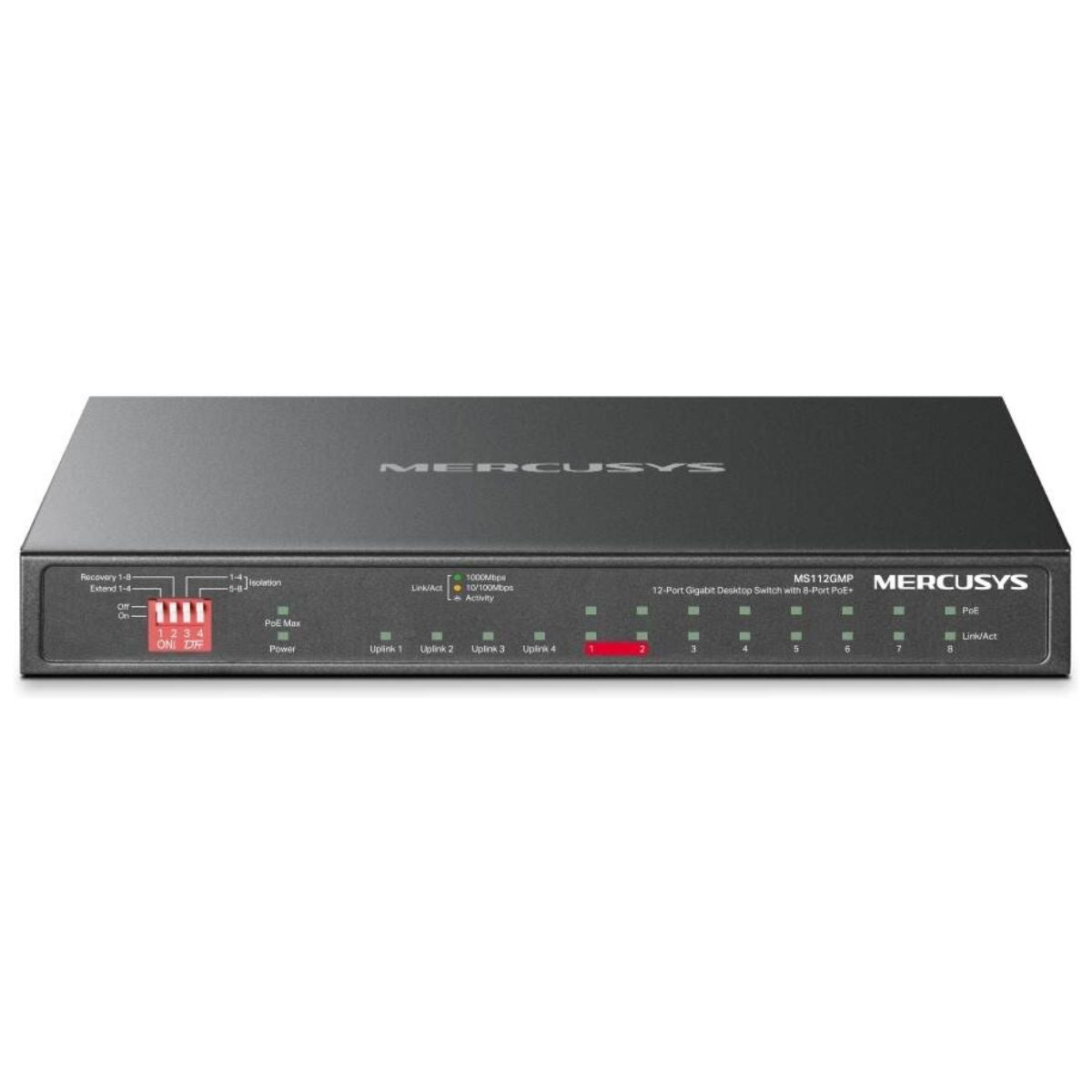

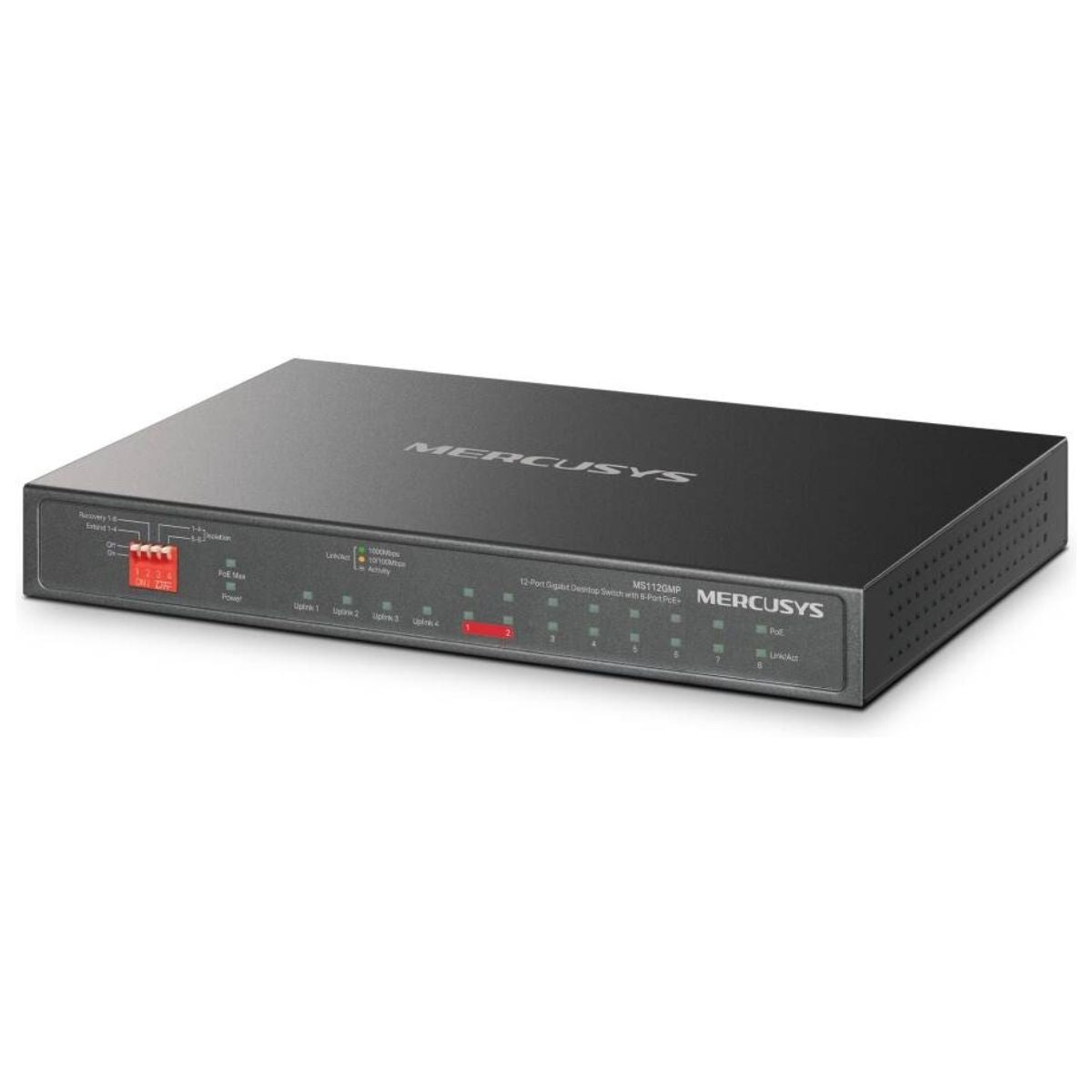

The MERCUSYS MS112GMP 12-Port Gigabit Desktop Switch is a reliable and flexible networking solution designed for small businesses, offices, CCTV surveillance systems, and commercial network installations. Featuring eight Gigabit PoE+ RJ45 ports, two additional Gigabit RJ45 ports, and two Gigabit SFP slots, it provides versatile connectivity for wired network devices and fibre-based infrastructure. With a combined 110W PoE power budget and support for IEEE 802.3af/at standards, the MS112GMP delivers both data and power through a single Ethernet cable to compatible devices such as IP cameras, wireless access points, and IP phones. Its Extend Mode, Isolation Mode, Priority Mode, and PoE Auto Recovery features help simplify network deployment and maintenance. The fanless design ensures silent operation, while its durable metal casing and compact desktop form factor make it suitable for offices, retail environments, and other professional networking applications.

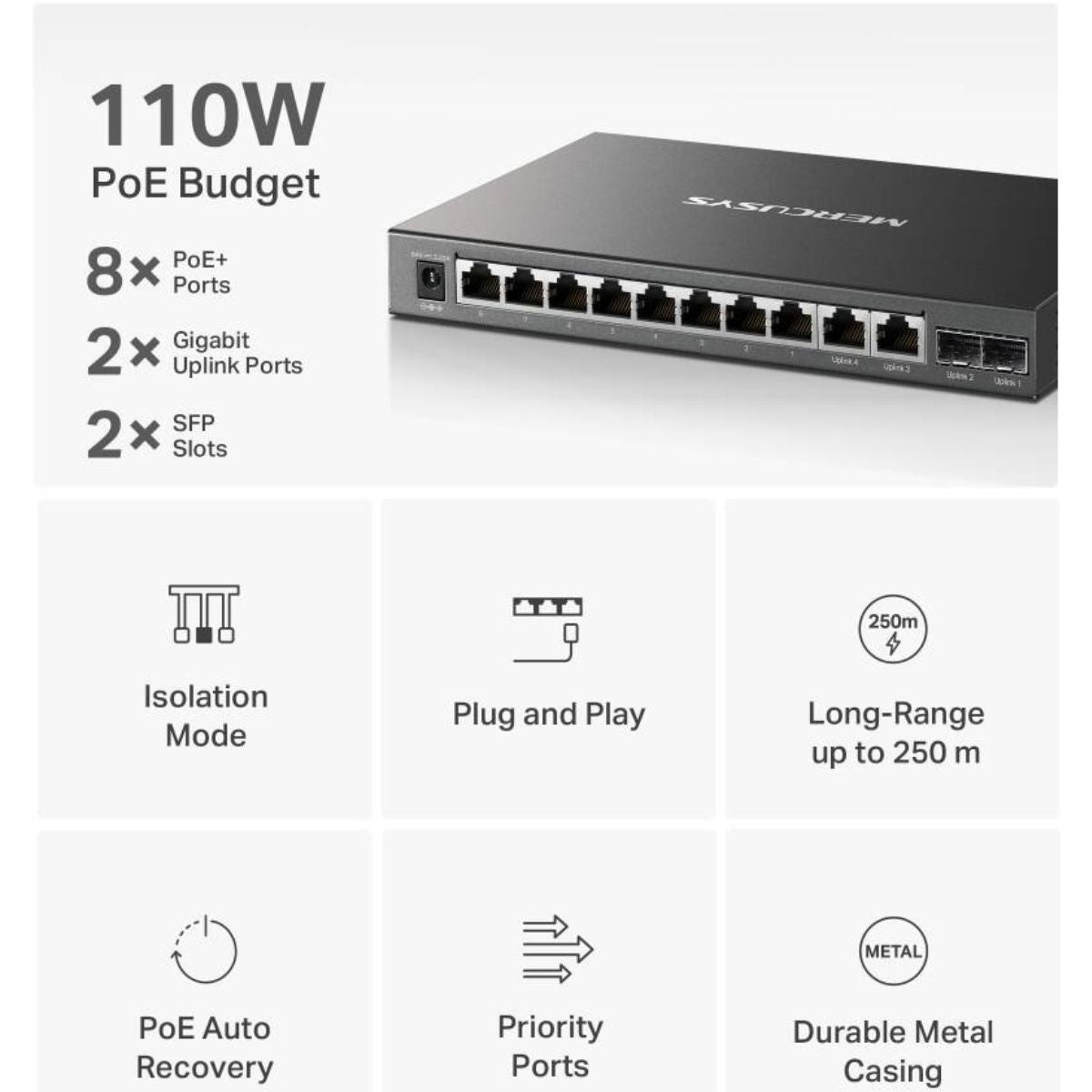

Key Features

• 12-Port Gigabit Connectivity: Includes eight Gigabit PoE+ RJ45 ports, two additional Gigabit RJ45 ports, and two Gigabit SFP slots.
• 110W PoE Power Budget: Delivers up to 30W per PoE port, with a combined power budget of 110W.
• IEEE 802.3af/at Support: Compatible with standard PoE and PoE+ powered devices.
• Gigabit SFP Connectivity: Two SFP slots support compatible fibre modules for fibre network connections.
• Extend Mode: Supports data and power transmission over distances of up to 250 metres on designated PoE ports.
• Isolation Mode: Separates connected device traffic into port groups for improved network isolation.
• Priority Mode: Gives higher priority to ports 1–2 for applications requiring preferential traffic handling.
• PoE Auto Recovery: Automatically reboots unresponsive PoE-powered devices to help restore connectivity.
• Fanless Operation: Provides silent performance without cooling fans.
• Plug-and-Play Installation: Requires no additional configuration for straightforward deployment.
• Durable Metal Casing: Offers a compact and robust design for desktop network installations.

Technical Specifications

• Brand: MERCUSYS
• Model: MS112GMP
• Product Type: 12-Port Gigabit Desktop PoE+ Switch
• PoE+ Ports: 8 × 10/100/1000 Mbps RJ45
• Additional RJ45 Ports: 2 × 10/100/1000 Mbps
• SFP Slots: 2 × Gigabit SFP
• Total Interfaces: 12
• PoE Standards: IEEE 802.3af/at
• Maximum PoE Power per Port: 30W
• Total PoE Power Budget: 110W
• Switching Capacity: 24 Gbps
• Packet Forwarding Rate: 17.856 Mpps
• MAC Address Table: 8K, automatic learning and aging
• Forwarding Mode: Store-and-forward
• Network Features: Extend Mode, Isolation Mode, Priority Mode, PoE Auto Recovery, IEEE 802.3x Flow Control
• Auto-Negotiation: Yes
• Auto MDI/MDIX: Yes
• Cooling: Fanless
• Jumbo Frame: 15 KB
• Power Supply: External power adapter, 54V DC / 2.22A
• Maximum Power Consumption: 124.32W at 220V/50Hz with 110W PoE load
• Standby Power Consumption: 3.85W at 220V/50Hz
• Dimensions: 209 × 126 × 26 mm
• Operating Temperature: -10°C to 40°C
• Operating Humidity: 10% to 90% RH, non-condensing
• Certifications: CE, RoHS

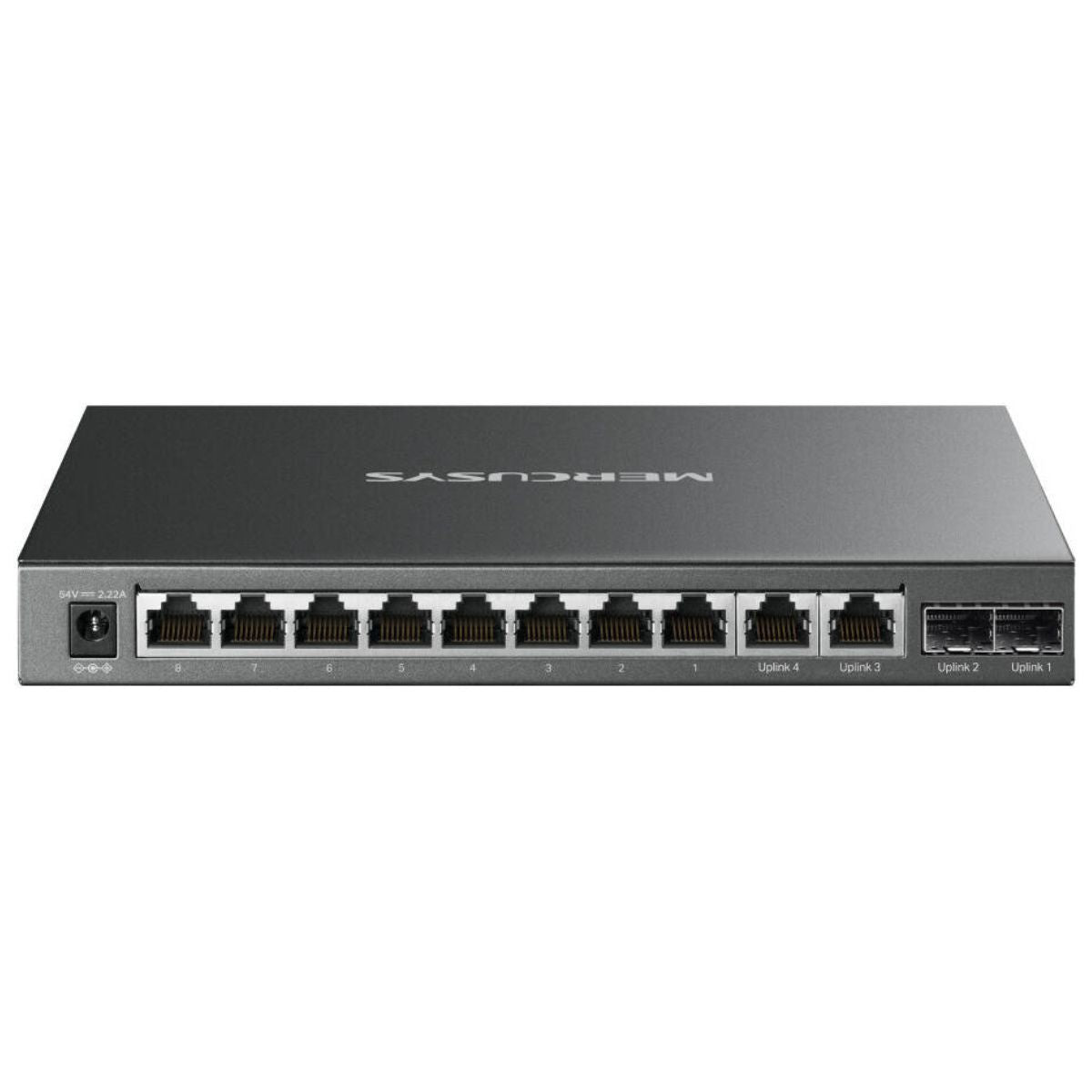

12 Gigabit Ports for Flexible Network Connectivity

The MS112GMP combines 12 network interfaces to support different connectivity requirements. Its eight Gigabit PoE+ RJ45 ports connect and power compatible network devices, while two additional Gigabit RJ45 ports provide standard wired connectivity. Two Gigabit SFP slots offer fibre connectivity options for compatible network infrastructure.

This combination makes the switch suitable for small office networks, surveillance installations, and business environments that require both copper Ethernet and fibre connections.

110W PoE+ Power for Connected Devices

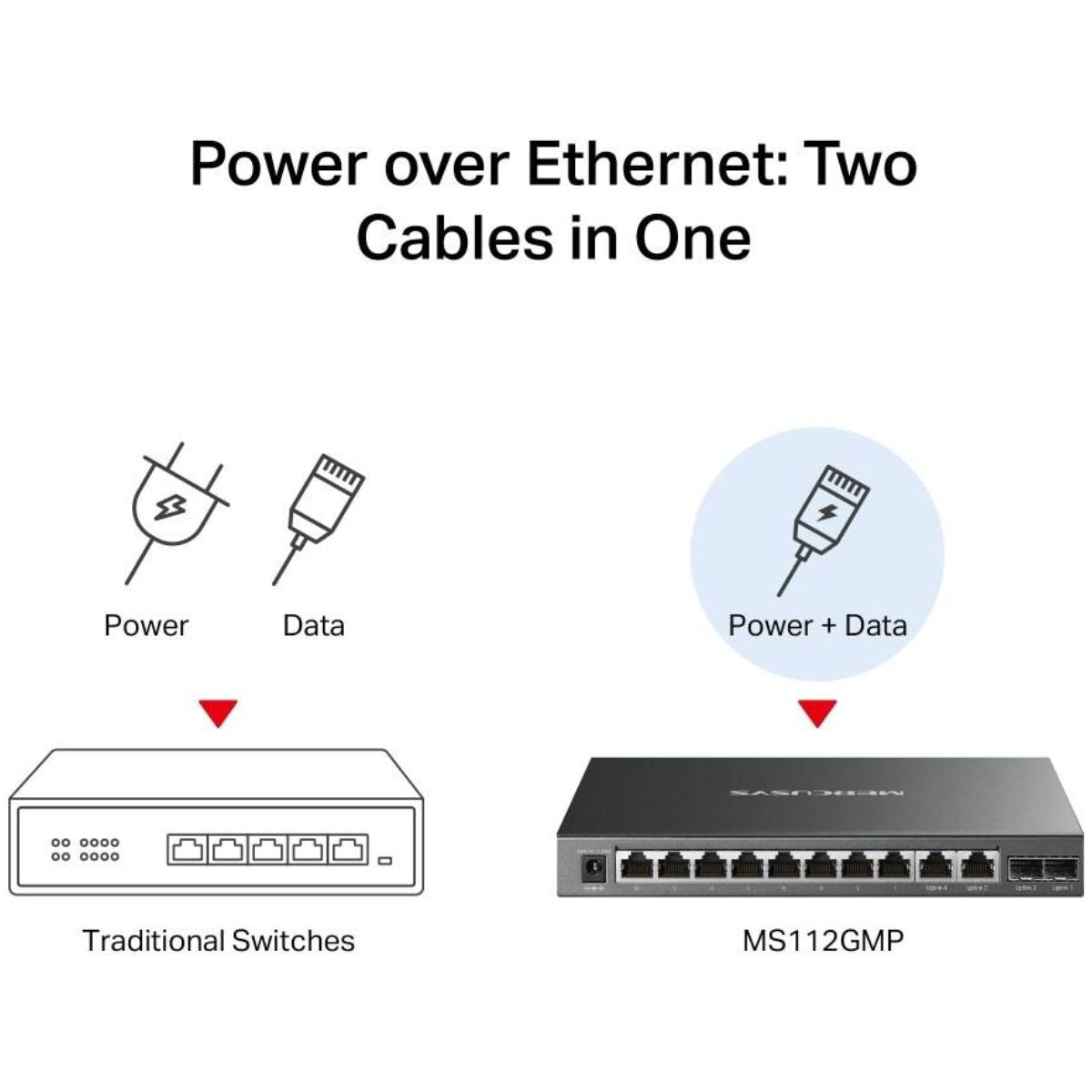

With eight PoE+ ports and a total power budget of 110W, the MS112GMP can supply power and network connectivity through a single Ethernet cable. Each PoE port supports up to 30W, making the switch compatible with a range of IEEE 802.3af/at devices, including IP cameras, wireless access points, and IP phones.

Power over Ethernet helps reduce additional power cabling and simplifies installation, particularly when devices are positioned away from convenient electrical outlets. The total available power is shared across connected PoE devices and must remain within the 110W budget.

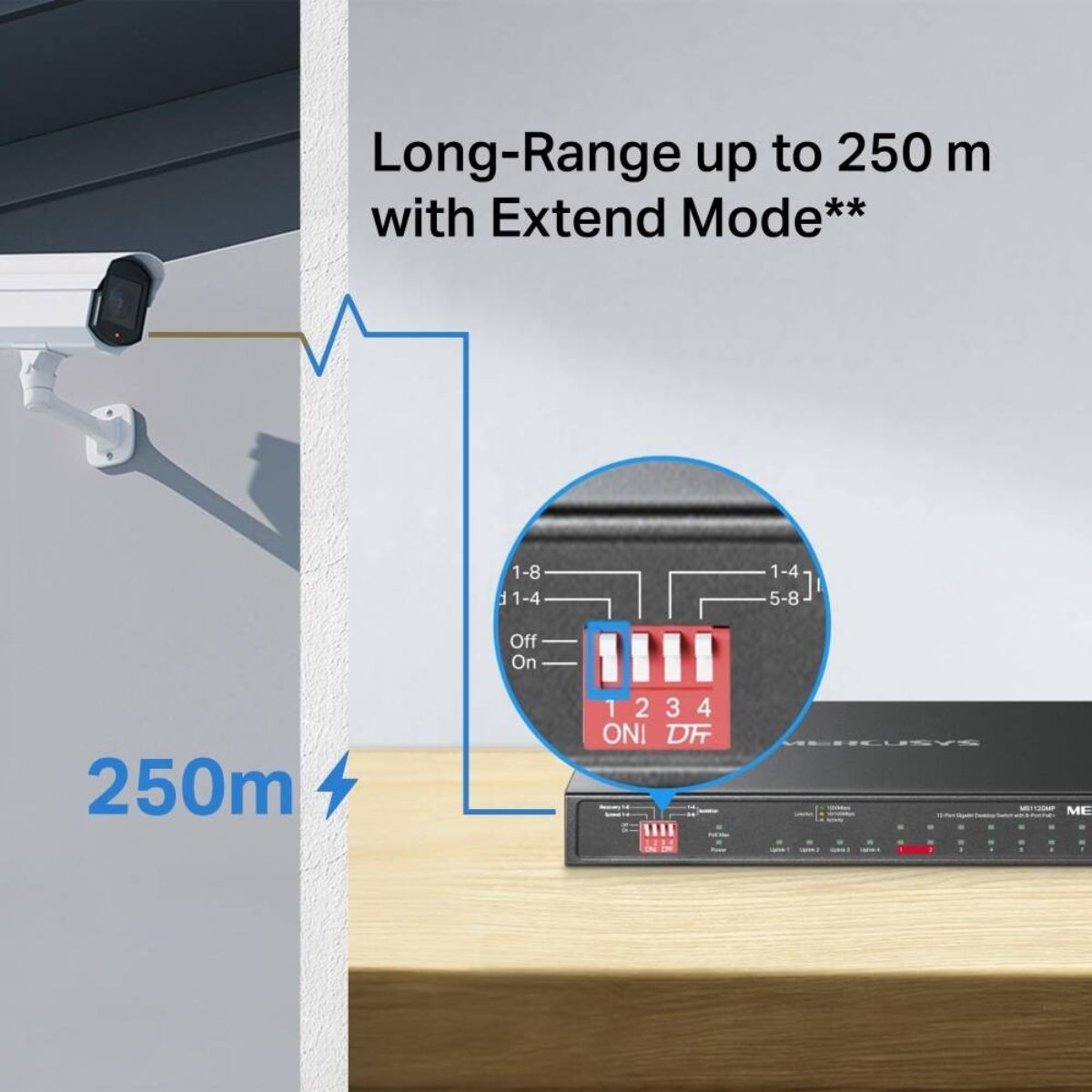

Extend Mode for Long-Distance PoE Transmission

Extend Mode supports data and power transmission over distances of up to 250 metres on designated PoE ports. This feature is particularly useful for CCTV installations and network devices positioned farther away from the main switch.

Important: When Extend Mode is enabled, the speed of the affected ports is reduced to 10 Mbps. Actual transmission distance depends on Ethernet cable quality, cable type, and the power consumption of connected devices.

Isolation Mode for Improved Network Separation

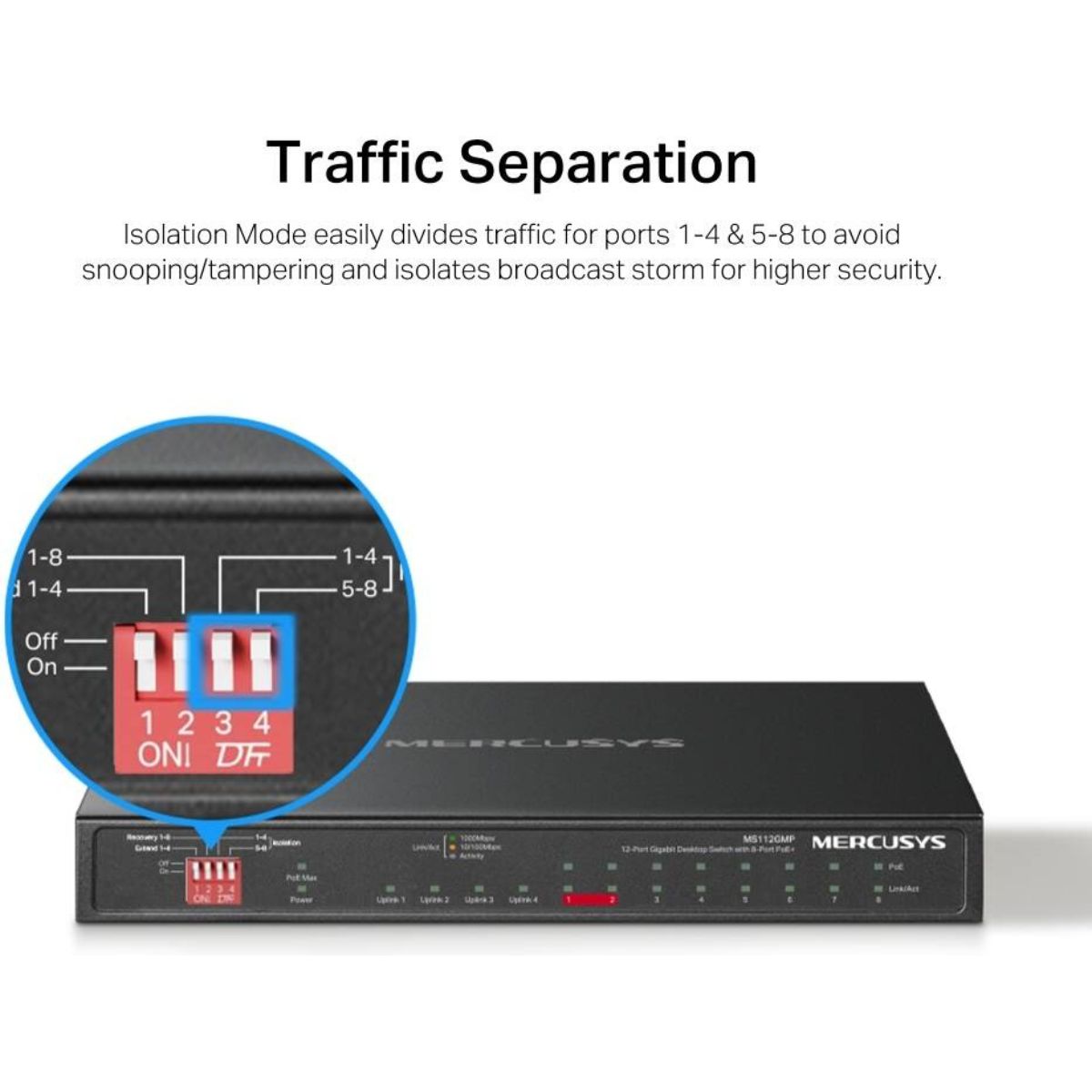

The MS112GMP includes Isolation Mode to help separate connected client traffic. It divides the PoE ports into two groups: ports 1–4 and ports 5–8. This can help restrict communication between devices in different groups, making it useful for network separation in surveillance and small-business environments.

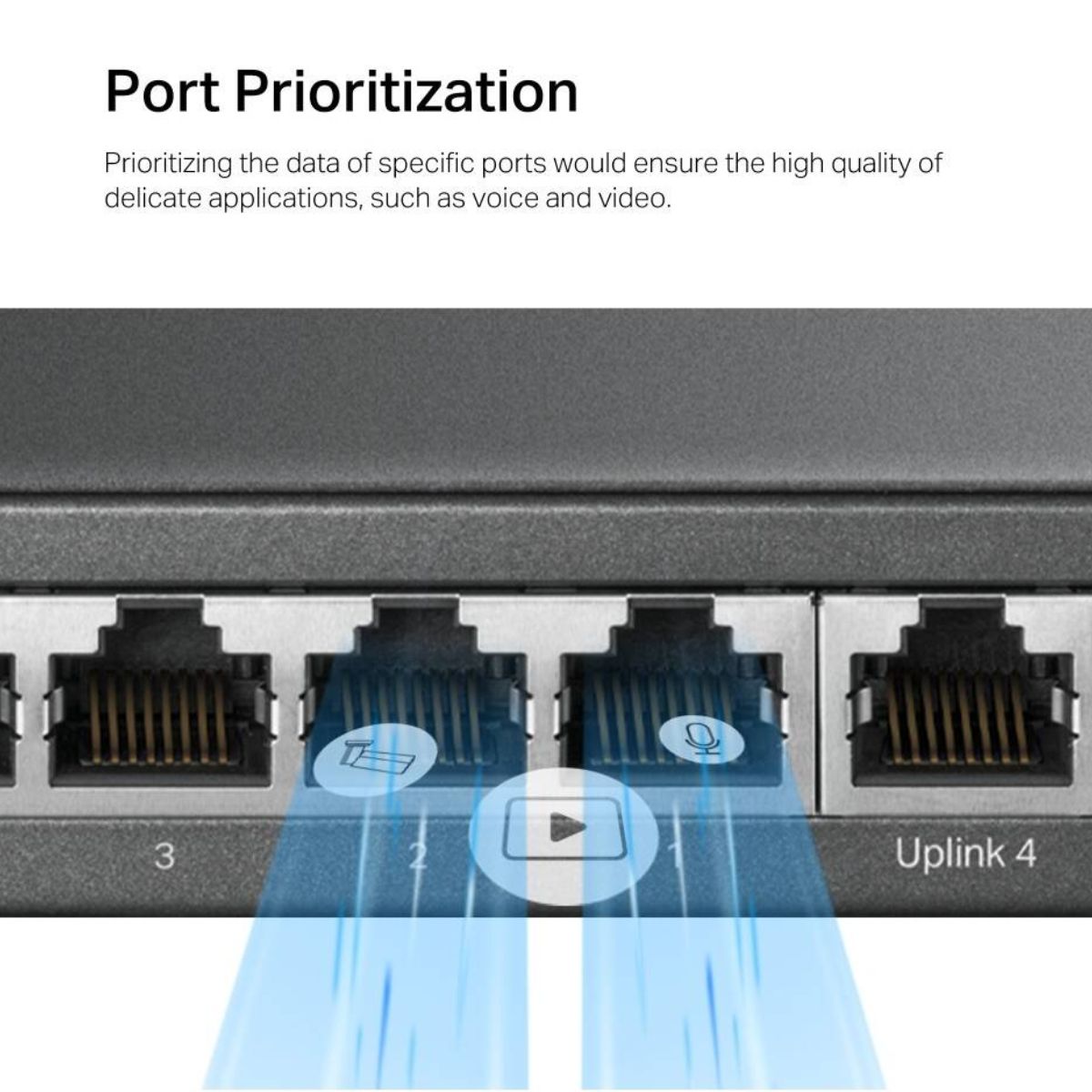

Priority Mode for Important Network Applications

Priority Mode gives higher traffic priority to ports 1–2. This feature can help support applications where preferential traffic handling is important, such as video monitoring and other network-sensitive activities.

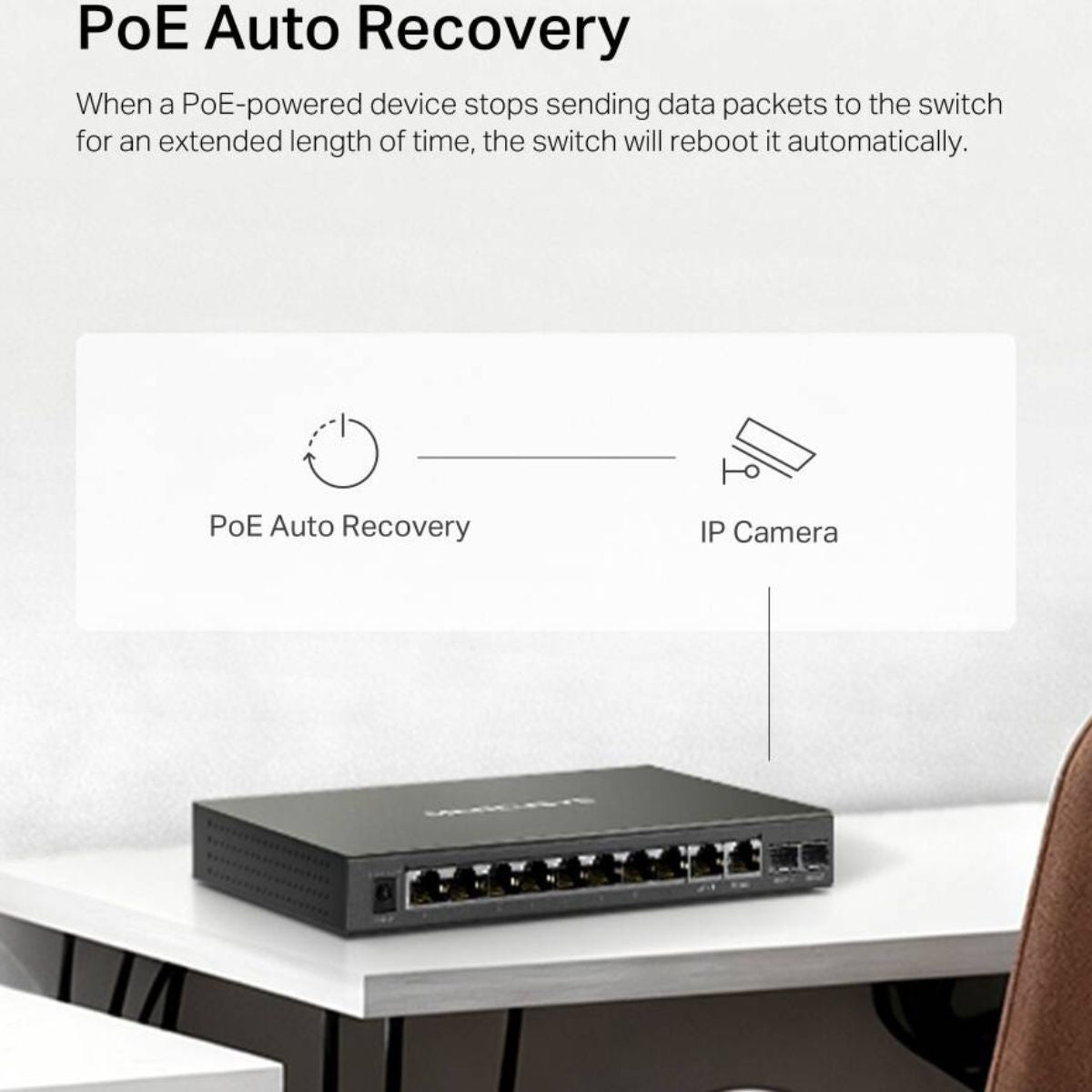

PoE Auto Recovery for Easier Maintenance

The integrated PoE Auto Recovery feature monitors connected PoE-powered devices. If a supported device becomes unresponsive, the switch can automatically reboot its PoE connection to help restore normal operation. This reduces the need for manual intervention and helps simplify maintenance of connected network equipment.

Fanless Design and Easy Installation

The MS112GMP features a fanless design that operates silently, making it suitable for offices, workspaces, and other environments where fan noise is undesirable. Its metal casing provides a durable enclosure, while the compact dimensions of 209 × 126 × 26 mm allow convenient desktop placement.

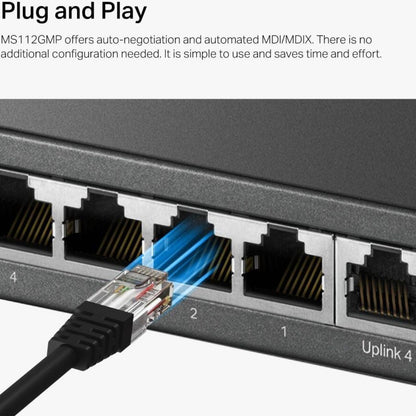

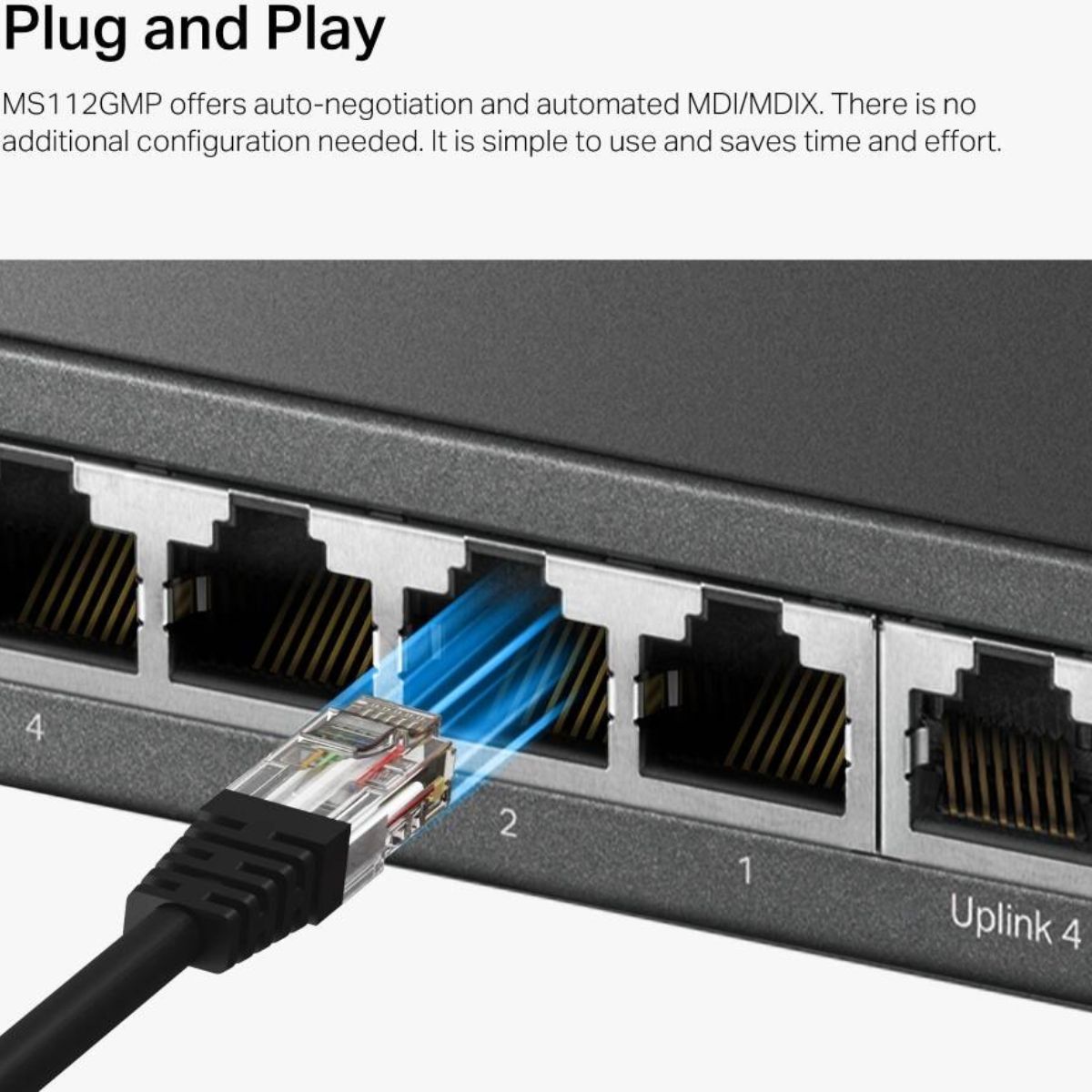

With automatic negotiation, Auto MDI/MDIX, and plug-and-play functionality, the switch simplifies network installation without requiring additional configuration.

Ideal Applications

• IP CCTV surveillance and security camera networks
• Small and medium-sized business networks
• Office and commercial building connectivity
• Wireless access point installations
• IP telephone and VoIP deployments
• Retail shops and small commercial premises
• Network installations requiring fibre connectivity
• Small network environments requiring PoE-powered devices

Benefits

• Connect up to 12 network interfaces through one compact switch.
• Power compatible PoE devices without separate power adapters at each device location.
• Reduce network cabling complexity through combined data and power transmission.
• Support extended PoE deployment distances using Extend Mode.
• Separate designated device groups using Isolation Mode.
• Prioritise traffic on ports 1–2 for selected network applications.
• Reduce manual troubleshooting with PoE Auto Recovery.
• Enjoy silent operation with a fanless design.
• Connect compatible fibre infrastructure through two Gigabit SFP slots.
• Simplify installation with plug-and-play operation.

Why Choose MERCUSYS MS112GMP?

• 12-Port Connectivity: Eight PoE+ ports, two additional Gigabit RJ45 ports, and two Gigabit SFP slots.
• 110W PoE Budget: Supports multiple PoE-powered devices within its total power capacity.
• Gigabit Performance: Provides 24 Gbps switching capacity for network traffic.
• Fibre Connectivity: Two Gigabit SFP slots for compatible fibre modules.
• Advanced Network Features: Extend Mode, Isolation Mode, Priority Mode, and PoE Auto Recovery.
• Silent Operation: Fanless construction for noise-sensitive environments.
• Simple Deployment: Plug-and-play installation without complex configuration.
• Compact Metal Design: Durable desktop form factor for professional network installations.

Compatibility and Important Considerations

• Compatible with IEEE 802.3af/at PoE-powered devices.
• PoE is available on RJ45 ports 1–8 only.
• The two additional Gigabit RJ45 ports are non-PoE ports.
• The two SFP slots require compatible Gigabit SFP modules for fibre connectivity.
• SFP modules and fibre cables are not listed as included package accessories.
• The combined PoE power budget is 110W, with a maximum of 30W per PoE port.
• Extend Mode supports up to 250 metres on designated ports, but the affected port speed is reduced to 10 Mbps.
• Actual PoE availability and transmission distance depend on connected devices, cable quality, and installation conditions.
• The switch is designed for plug-and-play operation and does not require central management.
