MERCUSYS MW306R N300 Wi-Fi 4 Wireless Router | 300 Mbps 2.4 GHz | 3 External Antennas | 1× 10/100 Mbps WAN | 3× 10/100 Mbps LAN | White

MERCUSYS MW306R N300 Wi-Fi 4 Wireless Router | 300 Mbps 2.4 GHz | 3 External Antennas | 1× 10/100 Mbps WAN | 3× 10/100 Mbps LAN | White

The MERCUSYS MW306R N300 Wireless Router is designed to provide convenient wireless connectivity for homes, apartments, and small workspaces. Operating on the 2.4 GHz frequency band, it supports wireless speeds of up to 300 Mbps, making it suitable for everyday internet activities such as web browsing, email, social media, online learning, and general home networking. Equipped with three fixed external antennas, the MW306R is designed to distribute wireless signals across suitable indoor environments. Its IEEE 802.11b/g/n compatibility allows it to connect with a wide range of Wi-Fi-enabled devices, including laptops, smartphones, tablets, and other compatible wireless equipment. The router includes one 10/100 Mbps WAN port for connecting to a compatible modem and three 10/100 Mbps LAN ports for wired devices. Depending on the hardware version, supported features include Router, Access Point, Range Extender, and WISP modes, along with WDS bridging, guest Wi-Fi, parental controls, IPv6, and IPTV functions. These capabilities make the MW306R a practical option for basic home networking and flexible wireless deployment.

Key Features

• N300 Wireless Speed: Supports theoretical wireless speeds of up to 300 Mbps on the 2.4 GHz band.
• Wi-Fi 4 Technology: Uses IEEE 802.11b/g/n wireless standards for compatibility with supported Wi-Fi devices.
• Three External Antennas: Fixed antennas help distribute wireless signals throughout suitable indoor environments.
• Multi-Mode Operation: Supported hardware and firmware versions offer Router, Access Point, Range Extender, and WISP modes.
• WDS Bridging: Supports wireless bridging with compatible network equipment and configuration.
• One 10/100 Mbps WAN Port: Connects to a compatible cable modem, fibre modem, or other internet source.
• Three 10/100 Mbps LAN Ports: Connect wired devices such as desktop computers, compatible TVs, and other Ethernet-enabled equipment.
• Guest Wi-Fi Network: Provides a separate 2.4 GHz guest network for visitors.
• Parental Controls: Supported firmware provides options for managing internet access and setting access restrictions.
• WPA/WPA2 Security: Helps protect the wireless network against unauthorised access.
• IPv6 Support: Compatible versions support IPv6 networking for internet services that use the protocol.
• IPTV Support: Supported versions provide IPTV-related network functions for compatible service configurations.
• Easy Setup: Web-based configuration and supported MERCUSYS app management help simplify installation and network administration.

Technical Specifications

• Brand: MERCUSYS
• Model: MW306R
• Product Type: Wireless N Router
• Wireless Class: N300
• Wi-Fi Generation: Wi-Fi 4
• Wireless Standards: IEEE 802.11b/g/n
• Frequency Range: 2.4–2.5 GHz
• Maximum Wireless Speed: Up to 300 Mbps (802.11n, dynamic link rate)
• IEEE 802.11g Speed: Up to 54 Mbps
• IEEE 802.11b Speed: Up to 11 Mbps
• Transmission Power: Less than 20 dBm EIRP, as specified by MERCUSYS
• Antenna Configuration: 3× fixed external antennas
• WAN Interface: 1× 10/100 Mbps Ethernet WAN port
• LAN Interfaces: 3× 10/100 Mbps Ethernet LAN ports
• Wireless Security: WPA-PSK/WPA2-PSK or WPA/WPA2, depending on hardware version and firmware
• Wireless Functions: Wireless radio enable/disable, WDS bridging
• Operation Modes: Router, Access Point, Range Extender, WISP on supported versions
• WAN Connection Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• DHCP: DHCP Server, DHCP Client List
• Guest Network: 2.4 GHz guest network
• Network Management: Local management, remote management, access control
• Port Forwarding: Virtual Server, UPnP, DMZ
• Firewall Features: IP and MAC address binding; additional security options vary by firmware
• IP Protocol: IPv4; IPv6 support on compatible hardware and firmware versions
• Buttons: WPS/Reset
• Dimensions: Approximately 168.9 × 115.4 × 34.7 mm for the V1.20 version; dimensions may vary by revision
• Power Supply: 5 V DC, 0.6 A
• Installation: Desktop or wall-mounted installation, where supported by the supplied hardware
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10%–90%, non-condensing
• Package Contents: MW306R router, power adapter, RJ45 Ethernet cable, Quick Installation Guide

N300 Wi-Fi for Everyday Internet Use

The MERCUSYS MW306R supports wireless speeds of up to 300 Mbps on the 2.4 GHz band using IEEE 802.11n technology. It is intended for routine connectivity requirements such as browsing websites, checking email, messaging, online learning, and accessing internet-based services.

The 2.4 GHz band is supported by many wireless devices and can provide useful signal reach in typical indoor environments. Actual wireless performance depends on interference, distance, building materials, connected-device capabilities, and the available internet connection.

Important: The 300 Mbps figure represents the maximum theoretical wireless link rate, not guaranteed internet throughput. The router's 10/100 Mbps Ethernet ports also limit wired throughput to Fast Ethernet speeds.

Three External Antennas for Wireless Coverage

The MW306R features three fixed external antennas designed to distribute wireless signals throughout suitable home and small-office environments. Their external design helps provide wireless coverage for compatible devices positioned within the network's effective range.

Actual signal strength varies with room layout, wall materials, interference from nearby networks, router placement, and the wireless capabilities of connected devices. For improved results, position the router in an open, central location and avoid placing it behind large obstructions.

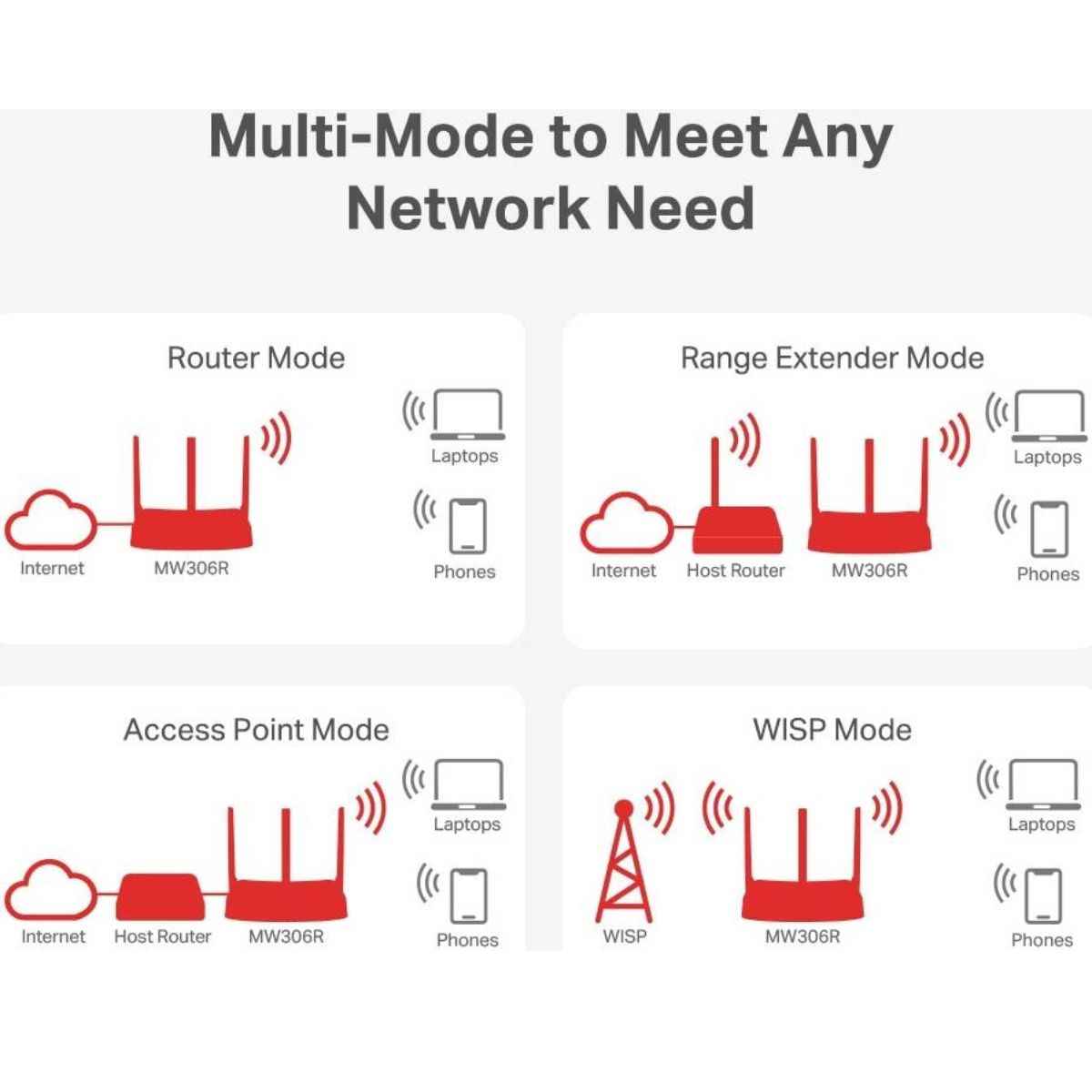

Multi-Mode Operation for Flexible Networking

The MERCUSYS MW306R supports multiple operating modes on compatible hardware and firmware versions. Router Mode creates a local network using a compatible internet connection, while Access Point Mode can provide Wi-Fi through an existing wired network.

Range Extender Mode can help extend an existing wireless network, while WISP Mode can connect to a wireless internet source where supported. The availability and exact operation of these modes depend on the hardware revision and installed firmware.

WDS Bridging for Compatible Networks

Wireless Distribution System (WDS) bridging allows the MW306R to participate in a compatible wireless bridge configuration. This can help extend network connectivity when the primary router or access point supports the required WDS settings.

Successful bridging depends on compatible security settings, wireless configuration, and equipment at both ends of the connection. Confirm the intended mode and firmware support before using the router in a specialised wireless deployment.

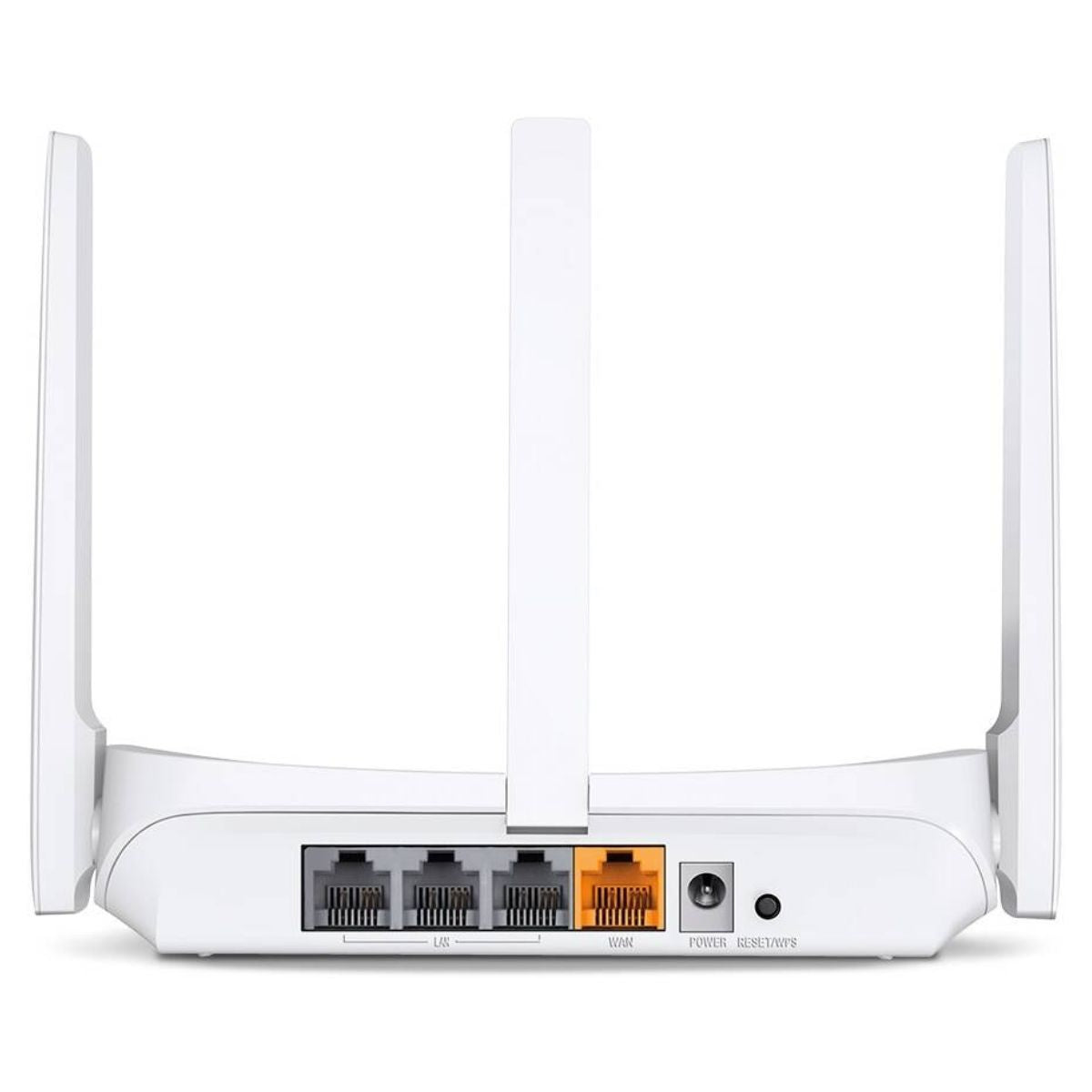

Fast Ethernet WAN and LAN Connectivity

The MW306R includes one 10/100 Mbps WAN port and three 10/100 Mbps LAN ports. The WAN port connects the router to a compatible modem or internet source, while the LAN ports connect wired devices such as computers, compatible televisions, and other Ethernet-enabled equipment.

This interface configuration is suitable for basic networking where Fast Ethernet connectivity meets the requirements. Customers using broadband packages above 100 Mbps should consider that the router's Ethernet interfaces can limit the throughput available through a wired connection.

Guest Network for Visitors

The guest-network function provides a separate 2.4 GHz Wi-Fi network for visitors. It can simplify temporary internet access without requiring guests to use the primary wireless network credentials.

Guest-network settings and available access restrictions can vary by hardware version and firmware. Configure the feature according to the network's security and access requirements.

Parental Controls and Wireless Security

Supported versions of the MW306R offer parental-control features that help users manage internet access for connected devices. Depending on the firmware, these controls may include access scheduling, device restrictions, or other supported management functions.

The router supports WPA/WPA2 wireless security on documented versions. For better protection, use a strong, unique Wi-Fi password and select the strongest security mode supported by the router and connected devices.

IPv6 and IPTV Support

Compatible MW306R hardware and firmware versions support IPv6 networking, allowing the router to work with internet services that provide IPv6 connectivity. Actual functionality depends on the internet service provider and the configuration of the local network.

IPTV-related functions are also available on supported versions and configurations. Customers using an IPTV service should verify the required VLAN, bridge, or other provider-specific settings before installation.

Simple Installation and Network Management

The MW306R is designed to simplify the process of establishing a wireless network. Users can configure supported settings through its web-based interface, and compatible hardware and firmware versions can also support MERCUSYS app management.

Depending on the version, available management options include changing the Wi-Fi name and password, managing connected devices, configuring guest access, and adjusting other network settings. The interface and feature availability can vary between hardware revisions.

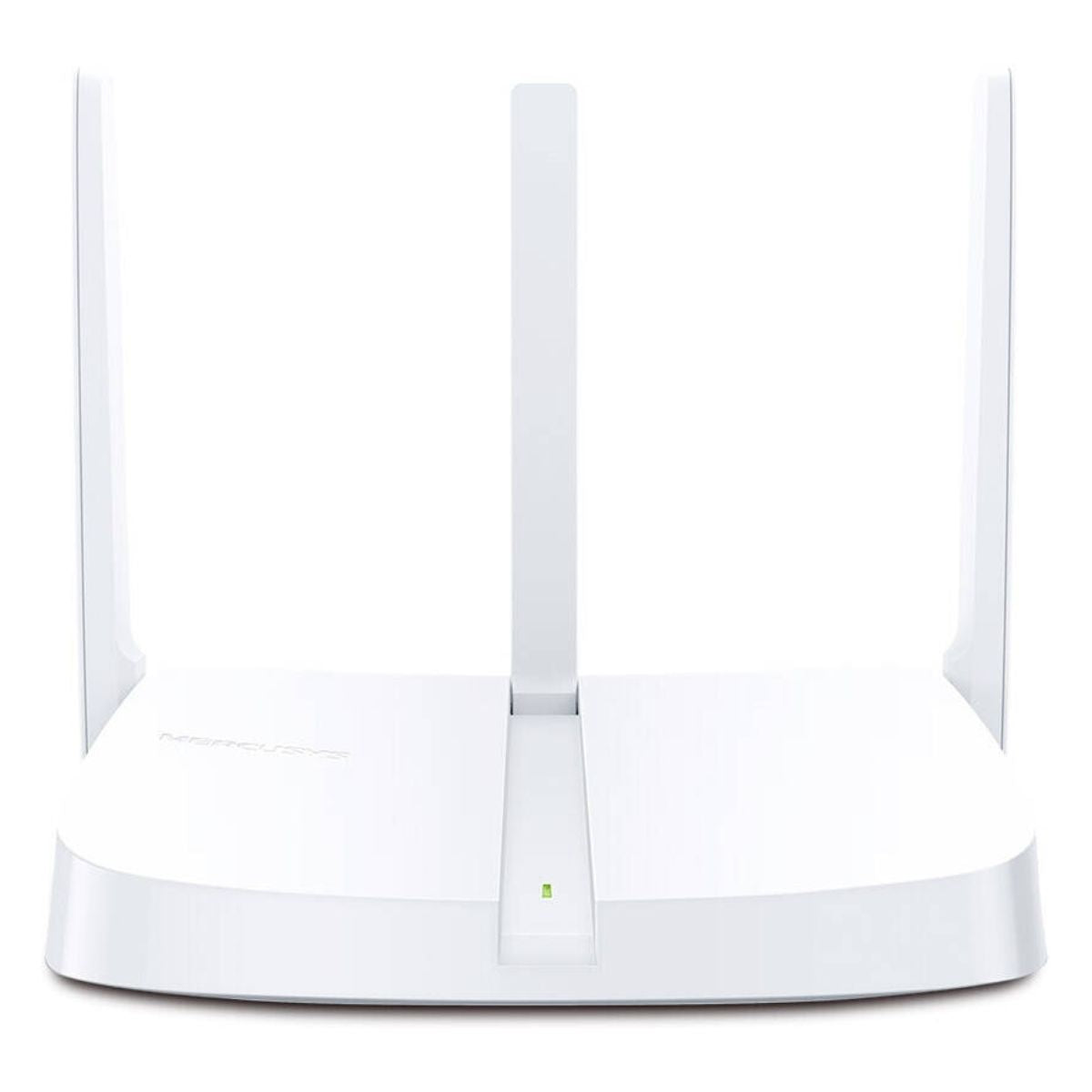

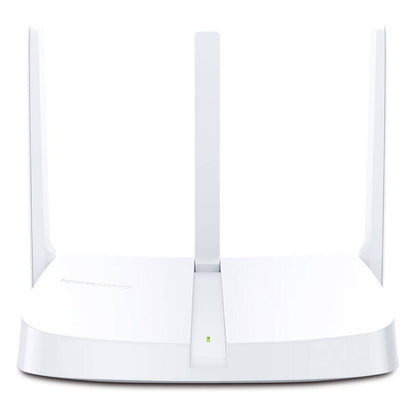

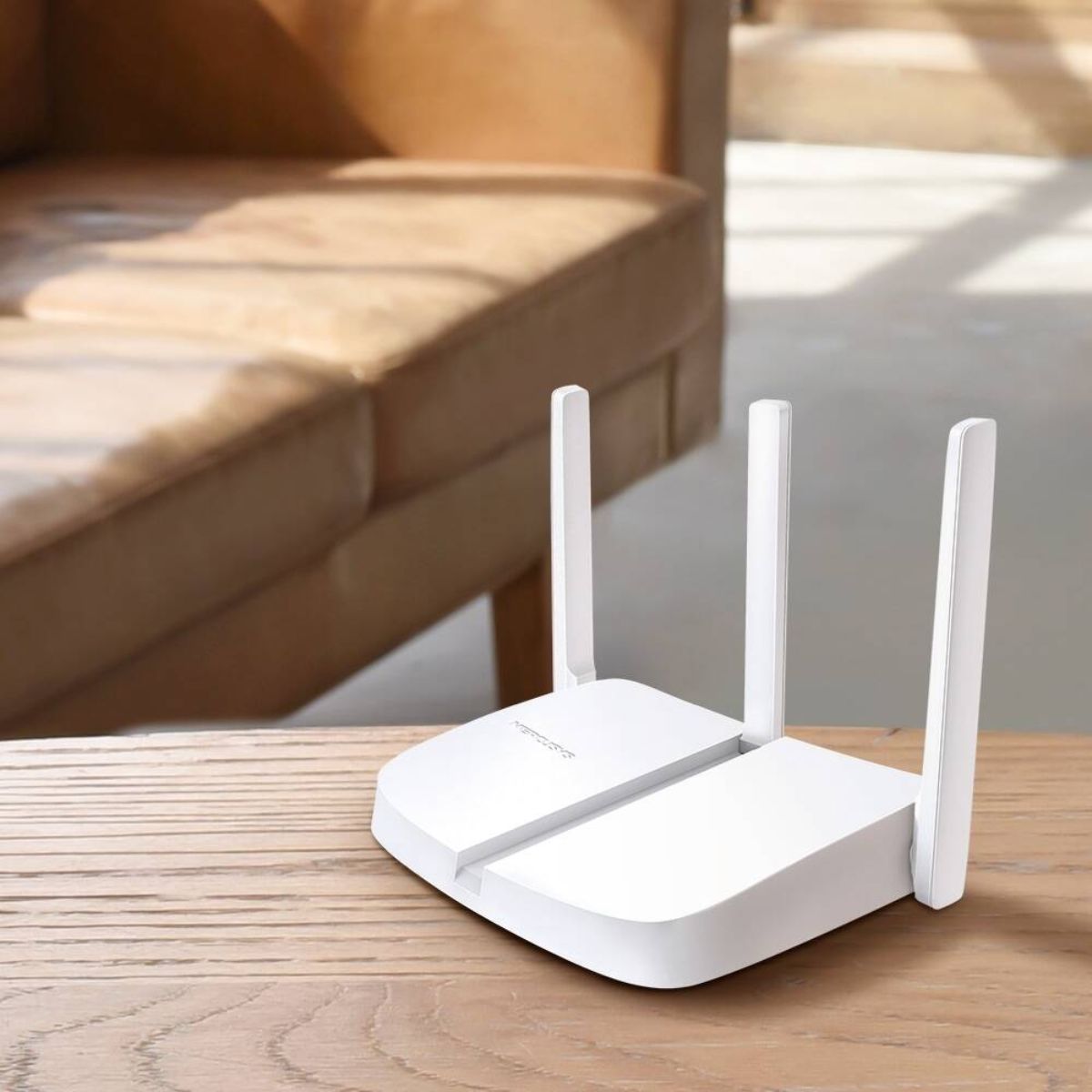

Compact Design for Home and Small Office Use

The MW306R has a compact white housing and three external antennas. Its desktop design makes it suitable for placement on a shelf, desk, or other appropriate surface near the internet connection.

Positioning the router in a central, elevated, and unobstructed location can help improve wireless signal distribution. Avoid enclosing the router in cabinets or placing it close to equipment that may cause interference.

Ideal Applications

• Homes and Apartments: Provide basic Wi-Fi connectivity for everyday internet activities.
• Small Workspaces: Connect compatible laptops, smartphones, and other wireless devices.
• Online Learning: Support routine connectivity for students using compatible devices.
• Web Browsing and Email: Handle everyday online activities and communication.
• Wired Network Devices: Connect compatible computers, TVs, and other Ethernet-enabled products through the LAN ports.
• Guest Wi-Fi Access: Provide a separate wireless network for visitors.
• Wireless Network Extension: Use supported Range Extender or WDS functions where compatible.
• Access Point Deployments: Add Wi-Fi connectivity to an existing wired network when supported.
• Basic IPTV Setups: Support compatible IPTV configurations when the required firmware and provider settings are available.

Benefits

• Everyday N300 Wi-Fi: Provides up to 300 Mbps theoretical wireless link speed on 2.4 GHz.
• Three External Antennas: Designed to help distribute wireless signals throughout suitable indoor spaces.
• Flexible Operating Modes: Supports different network configurations on compatible hardware and firmware versions.
• WDS Bridging: Provides a wireless bridging option for compatible networks.
• Multiple Ethernet Ports: Includes one WAN port and three LAN ports for basic wired connectivity.
• Guest Network: Makes it easier to provide separate Wi-Fi access for visitors.
• Parental Controls: Provides supported options for managing internet access.
• IPv6 and IPTV Functions: Offers relevant networking features on supported versions and configurations.
• Convenient Management: Supports web-based administration and app management on compatible versions.
• Compact Design: Fits conveniently into home and small-office environments.

Why Choose MERCUSYS MW306R?

• Practical N300 Router: Designed for everyday internet access and basic home networking.
• Wi-Fi 4 Compatibility: Supports IEEE 802.11b/g/n devices on the 2.4 GHz band.
• Three External Antennas: Helps distribute wireless signals across suitable indoor spaces.
• Flexible Networking: Offers multiple operating modes on supported hardware and firmware versions.
• Useful Security Options: Includes WPA/WPA2 wireless security and supported parental-control features.
• Guest Wi-Fi: Provides a separate wireless network for visitors.
• Wired Connections: Three LAN ports allow compatible Ethernet devices to connect directly.
• Simple Administration: Provides web-based configuration and app management on compatible versions.

Compatibility and Important Considerations

• Single-Band Wi-Fi: The MW306R operates on the 2.4 GHz band and does not provide a 5 GHz Wi-Fi network.
• Wi-Fi Generation: This is a Wi-Fi 4 (802.11n) router, not a Wi-Fi 5 or Wi-Fi 6 router.
• Ethernet Speed: The WAN and LAN ports support 10/100 Mbps Fast Ethernet, not Gigabit Ethernet.
• Broadband Throughput: Wired internet throughput can be limited by the 100 Mbps Ethernet interfaces and other network conditions.
• Hardware Revisions: Operating modes, IPTV functions, parental controls, IPv6 support, app management, and dimensions can vary by version and firmware.
• Wireless Coverage: Actual range depends on building materials, interference, router placement, and client-device capabilities.
• WDS Compatibility: Wireless bridging requires compatible equipment and matching configuration settings.
• Power Adapter: Confirm that the supplied power adapter matches the exact regional hardware version.
• Package Contents: The standard package includes the MW306R router, power adapter, RJ45 Ethernet cable, and Quick Installation Guide.
