Panasonic PM-ED2NLFR-W 2MP Fixed Dome Network Camera

Panasonic PM-ED2NLFR-W 2MP Fixed Dome Network Camera

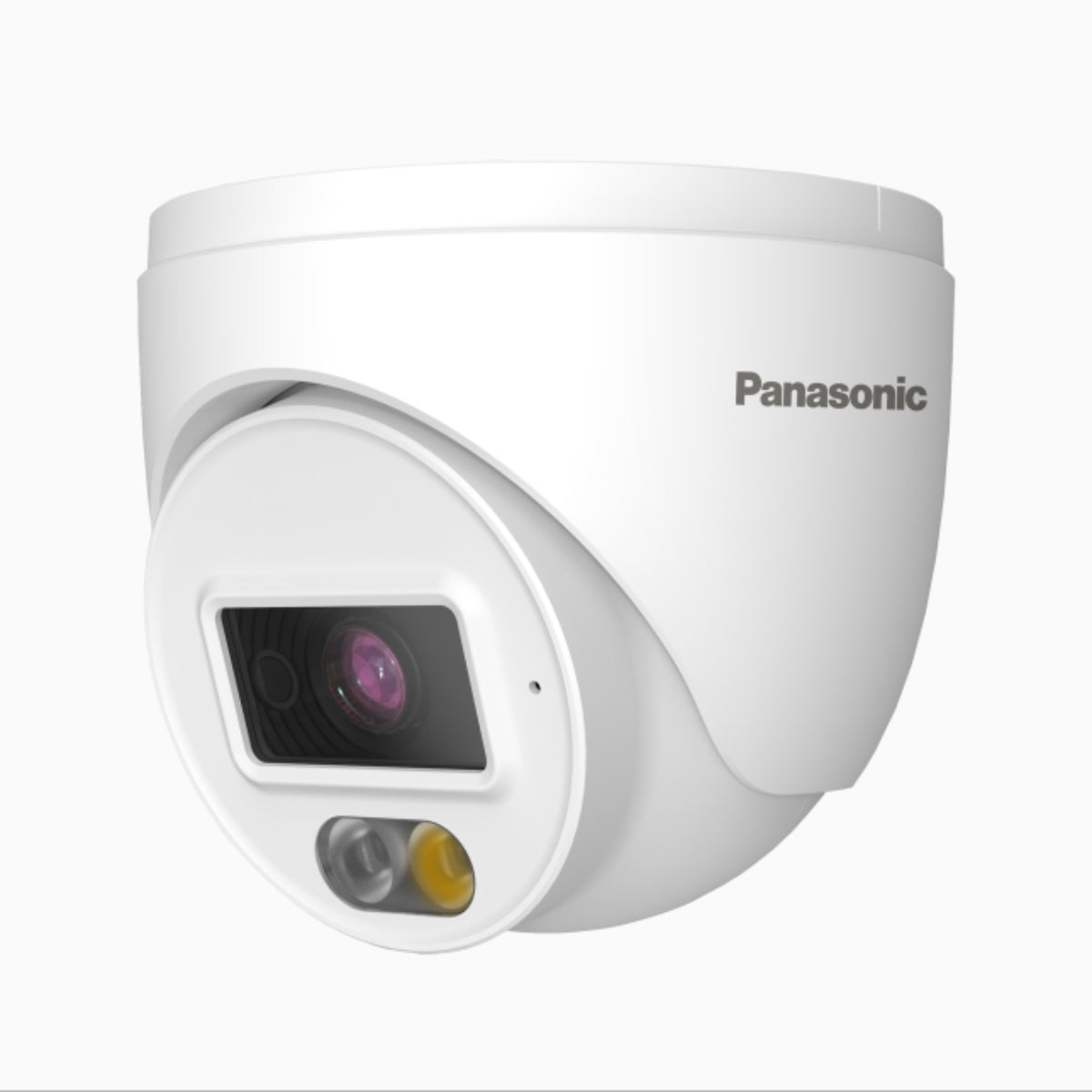

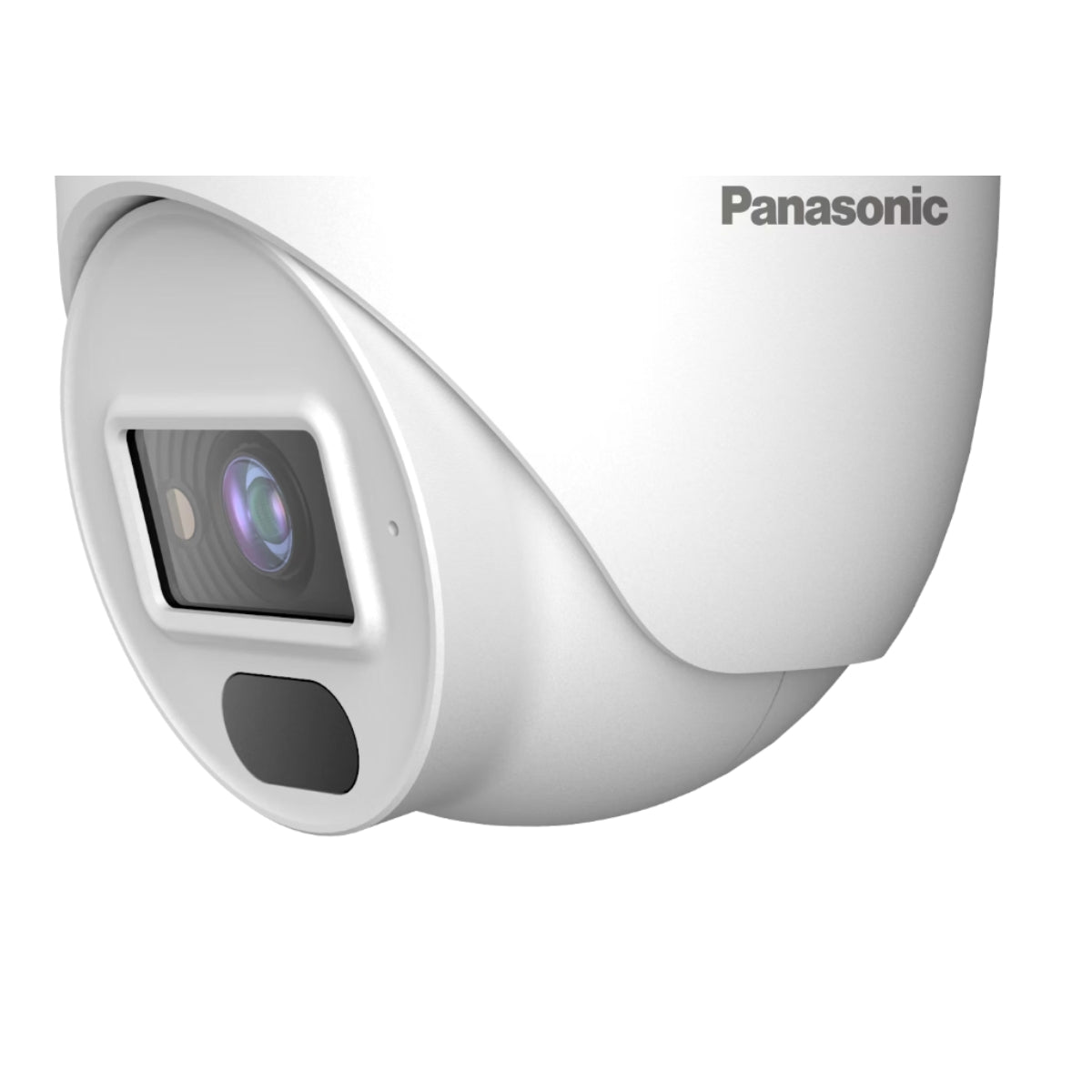

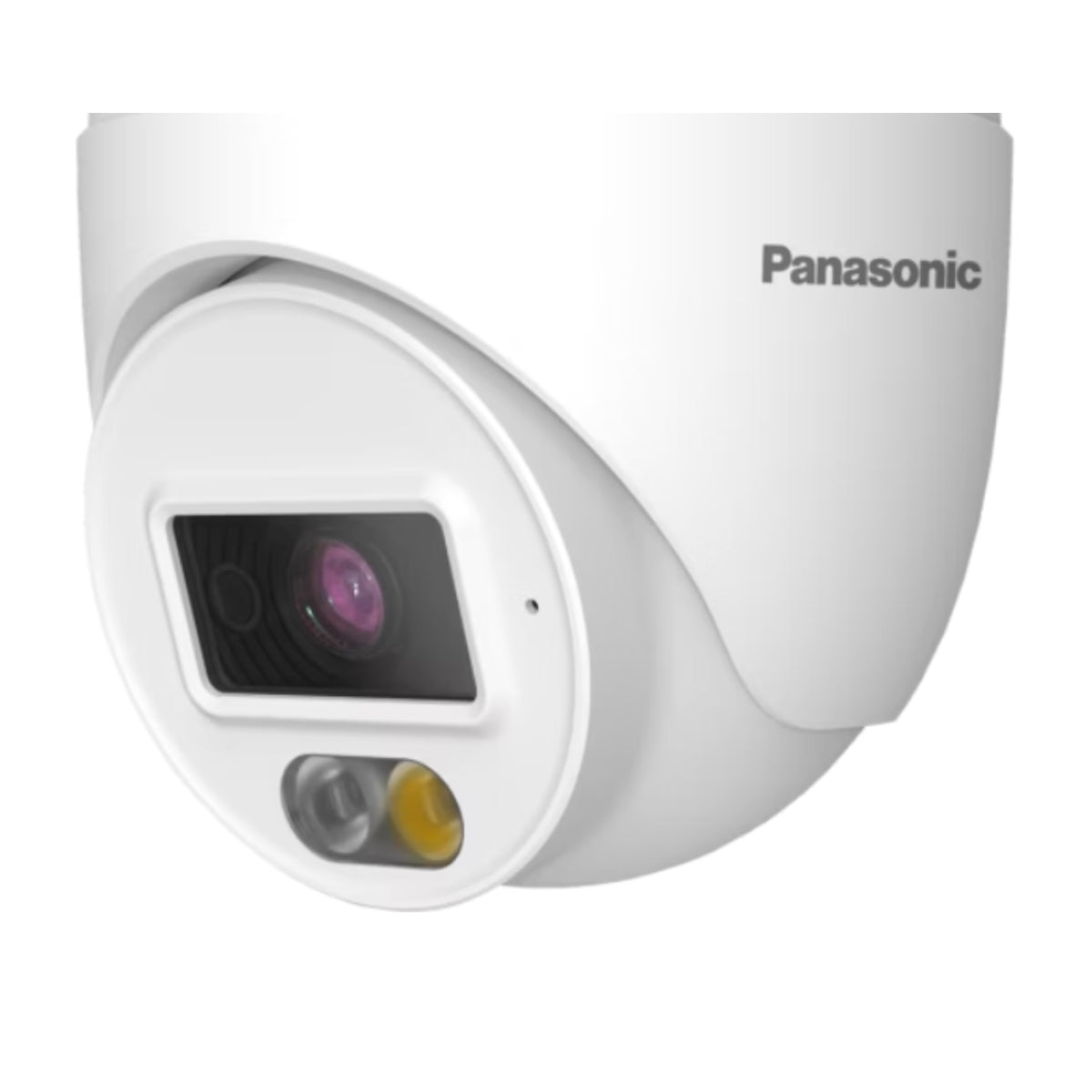

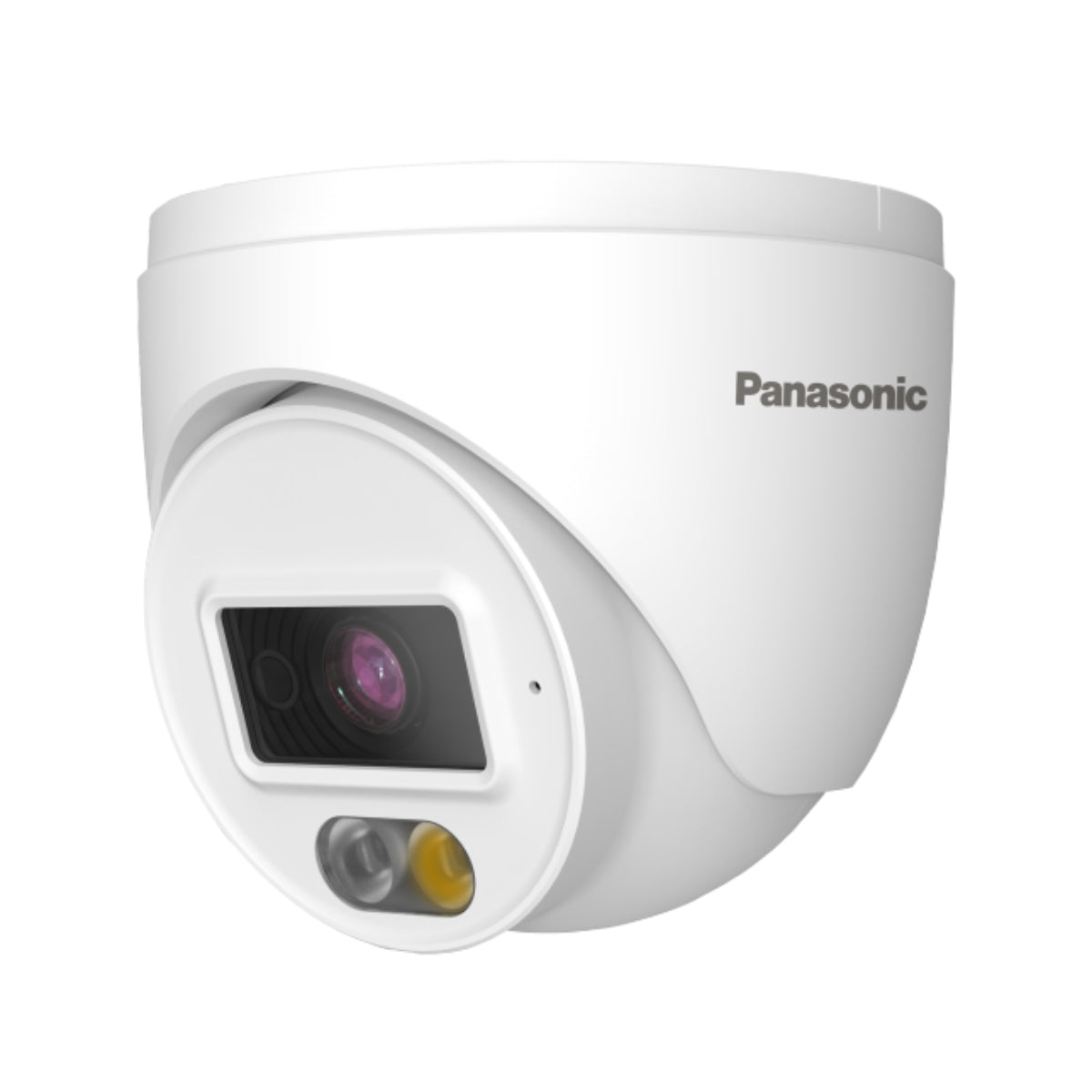

The Panasonic Fixed Dome Network Camera PM-ED2NLFR-W is a feature-rich surveillance dome camera designed for both indoor and outdoor use. It provides **2 MP Full HD resolution**, built-in **IR and white light illumination**, and smart analytics such as intrusion detection and line crossing. With IP67 weather resistance and advanced video encoding, it ensures reliable, secure monitoring in challenging environments.

 Key Features

• Supports H.265+, H.265, H.264+, and H.264 video compression for efficient bandwidth and storage use
• Advanced features: 3D DNR, WDR, HLC / BLC, ROI coding, defog
• Illumination: 10-20 m IR + 10-20 m white light for clear night vision
• Smart analytics: region intrusion detection, line crossing, and intelligent event triggers
• Weatherproof design with IP67 rating for dust and water protection
• PoE support (IEEE 802.3af) — simplifies installation (single cable for data and power)
• Encryption & security measures: firmware & video encryption, illegal login lock, IP filtering, 802.1x support

 Technical Specifications

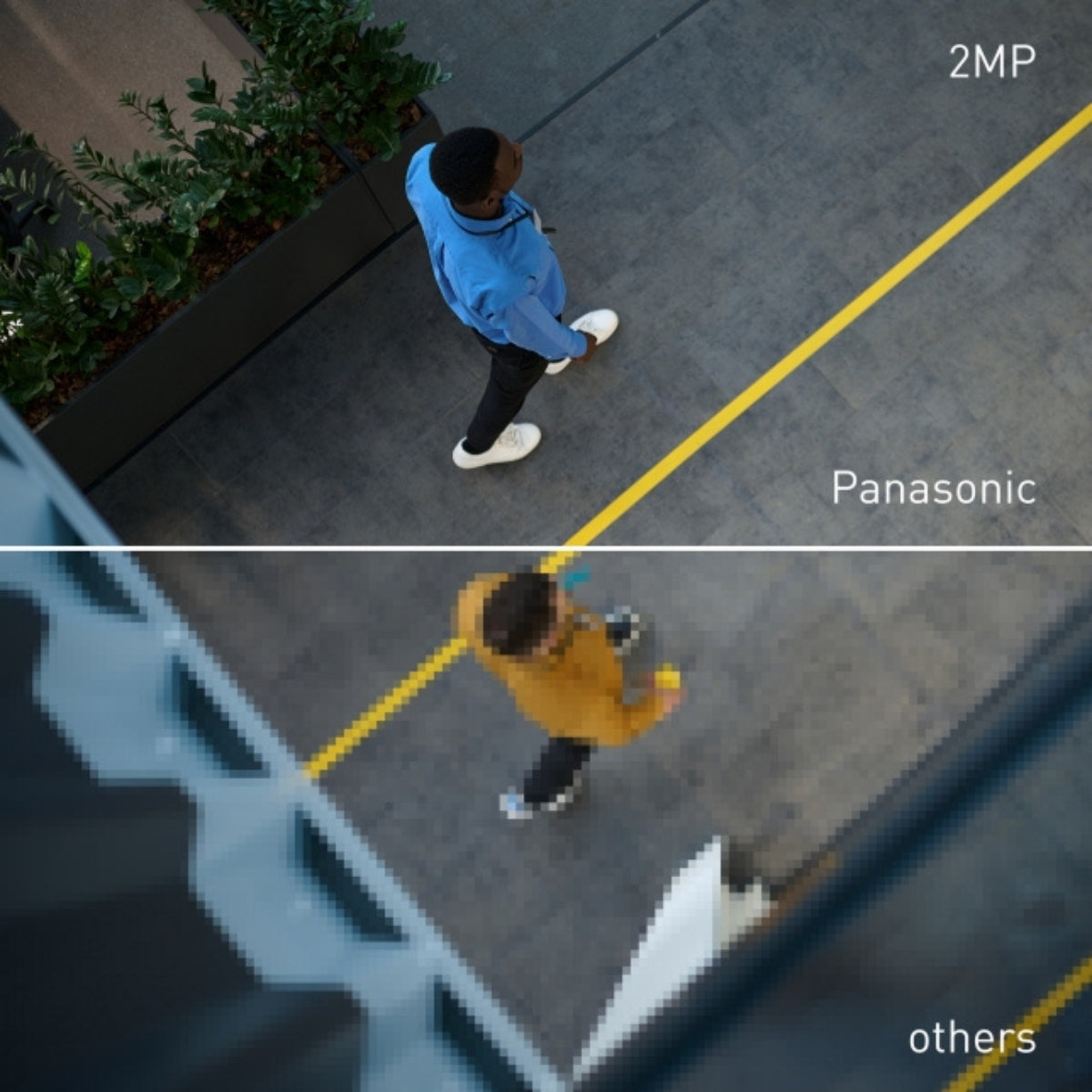

• Max Resolution: 2MP (1920 × 1080)
• Image Sensor: 1/3" CMOS
• Lens: 2.8 mm @ F2.2, Horizontal FoV 93°, Vertical FoV 52°, Diagonal FoV 106°
• Shutter Speed: 1/3 s to 1/100,000 s
• Min. Illumination: 0.0462 lux (AGC ON) / 0 lux (with illumination on)
• Digital Functions: WDR, HLC / BLC, 3D DNR, Defog, ROI coding, motion / smart events
• Video Streams: Main & sub streams (1080p, lower resolutions)
• Bitrate Range: 64 Kbps – 3 Mbps
• Network: RJ-45 10/100 Mbps, ONVIF support, IPv4/IPv6, RTSP, HTTP(S), QoS
• Audio: Built-in microphone (1 channel)
• DORI (Detect/Observe/Recognize/Identify) Distances:

  • Detect: 44 m

  • Observe: 18 m
  • Recognize: 9 m
  • Identify: 4 m
• Power / Consumption: < 5 W, PoE or DC12V
• Operating Range: –20 °C to 55 °C, humidity < 95% (non-condensing)
• Dimensions: Ø94.8 × 82.8 mm
• Weight (Net): ~0.27 kg
• Mounting Options: Ceiling or wall mount, full pan/tilt/rotation adjustment

 Ideal For

• Indoor or covered outdoor surveillance where discreet coverage is needed
• Areas requiring smart event detection (line crossing, intrusion) to reduce false alarms
• Installations where PoE simplifies wiring and reduces installation cost
• Environments needing strong weatherproofing (dust, rain) and secure video encryption

 Why Buy from IT Splendid — UAE’s Trusted Security Gear Provider

•  Fast delivery across all UAE emirates — Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras Al Khaimah, Umm Al Quwain, Al Ain
•  Authorized Panasonic surveillance products with warranty & support
•  Competitive pricing and local availability
•  Assistance in installation, configuration & integration with NVR / alarm systems

Secure your premises with the Panasonic PM-ED2NLFR-W — a powerful, weather-resistant dome camera combining clarity, analytics, and encryption for reliable surveillance.
