Panasonic PM-VD5ULFR-W 5MP Fixed Dome Network Camera

Panasonic PM-VD5ULFR-W 5MP Fixed Dome Network Camera

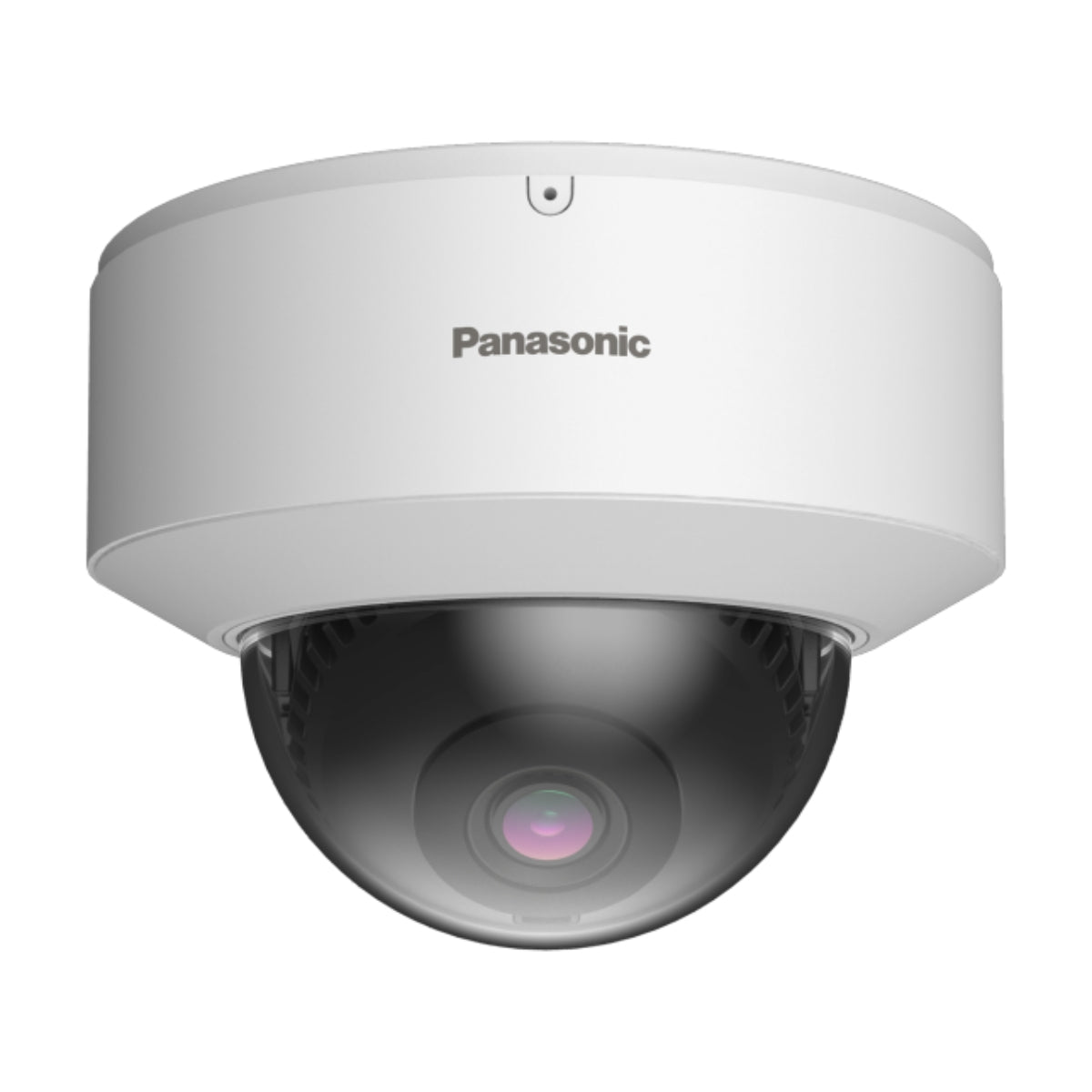

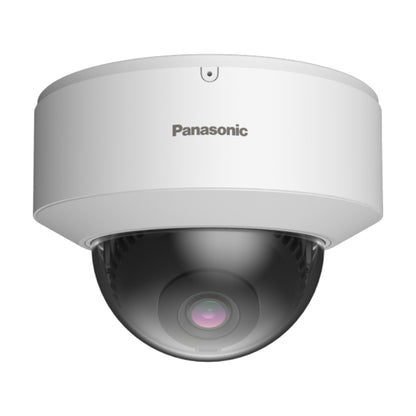

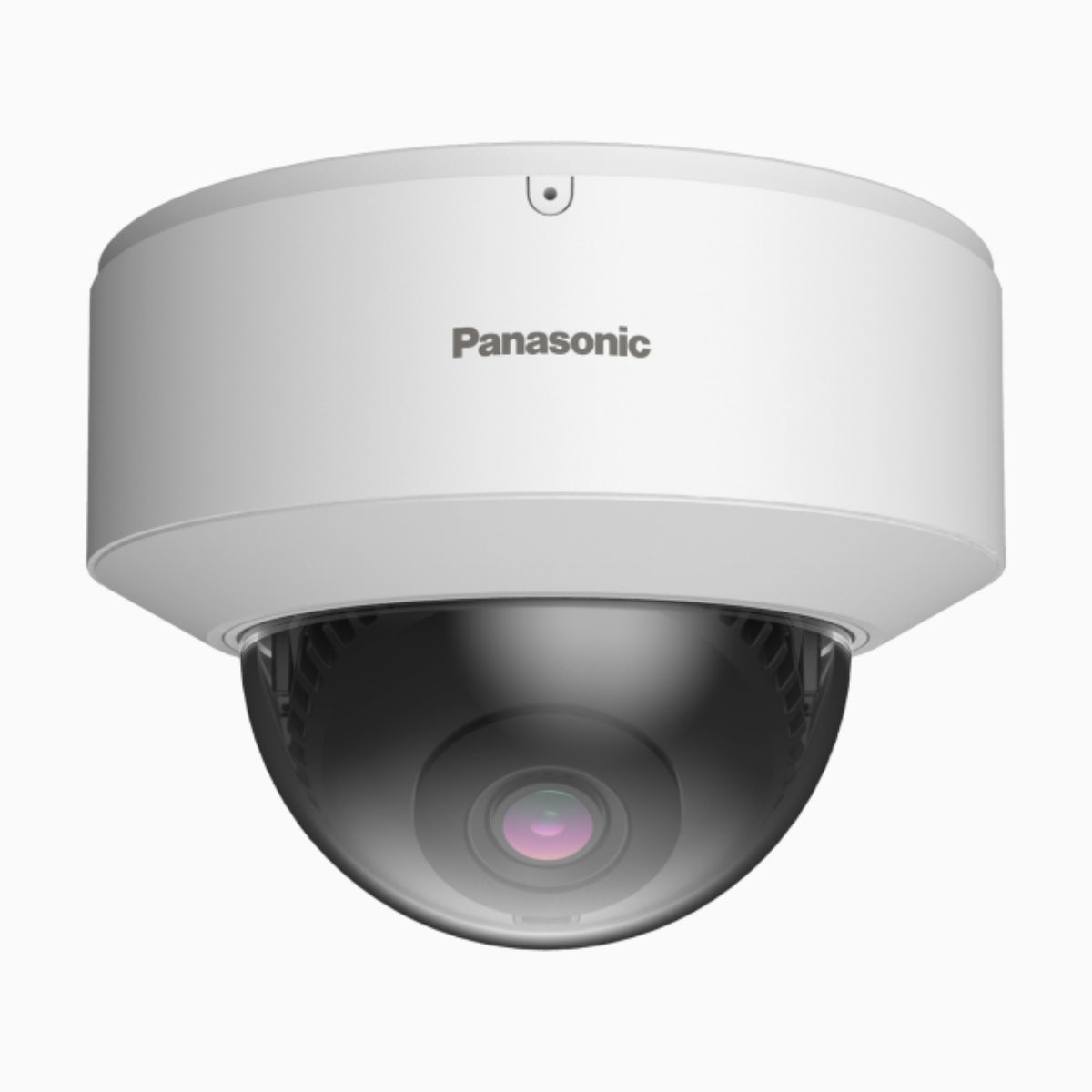

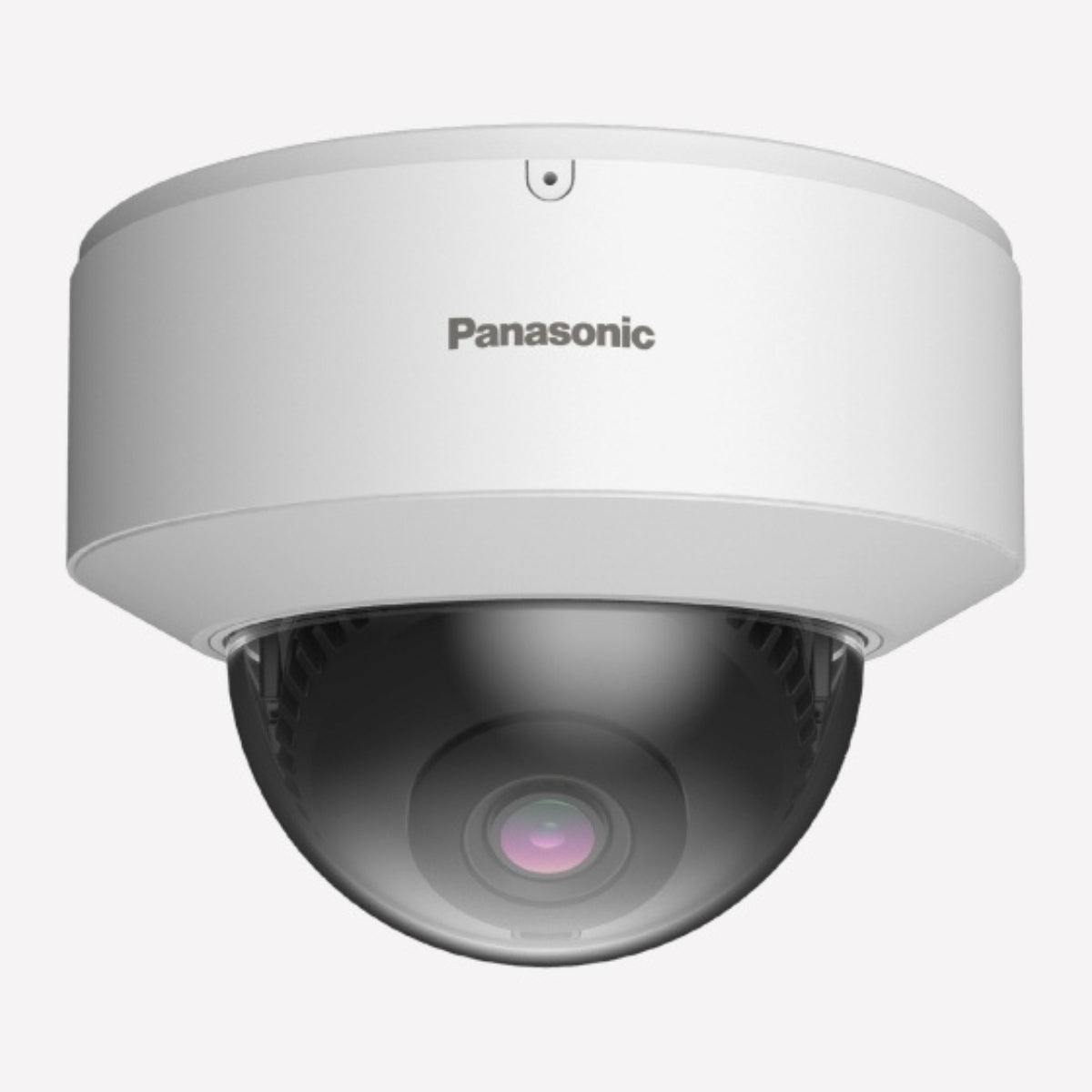

The Panasonic Fixed Dome Network Camera PM-VD5ULFR-W is a high-resolution dome surveillance camera built for robust security in various environments. It offers **5 MP (2880 × 1856)** image resolution, intelligent video analytics, strong IR illumination (20–30 m), and advanced image processing like WDR and ROI. With **IP67 weatherproofing** and ready for harsh conditions, it’s suitable for both indoor and outdoor usage.

 Key Features

• Supports H.265+, H.265, H.264+, H.264, MJPEG for efficient compression
• 5MP resolution for crisp, detailed video output
• 20–30 m IR night vision for low-light clarity
• 3D DNR, True WDR, HLC / BLC, Defog, Smart IR, and ROI coding for image optimization
• Intelligent analytics: line crossing, region intrusion, loitering, missing object detection, etc.
• IP67 weatherproof for dust and water resistance
• PoE support (IEEE 802.3af) and DC12V power options
• Built-in SD card slot (up to 256 GB), alarm I/O, multi-user streaming, encryption & security features

 Technical Specifications

• Max Resolution: 2880 × 1856 (5 MP)
• Image Sensor: 1/2.5″ CMOS
• Lens: 2.8 mm @ F1.6 (104° H FoV, 54.5° V FoV, 130° diagonal)
• Min. Illumination: 0.005 lux (AGC ON) / 0 lux with IR active
• Electronic Shutter: 1/4 s to 1/100,000 s
• Video Streams: Main, Sub, Third – up to 30 fps at 5MP
• Bitrate Range: 64 Kbps to 10 Mbps (VBR / CBR)
• Network Interface: RJ-45 10/100 Mbps, ONVIF support, protocols like RTSP, HTTP(S), IPv4/IPv6, etc.
• Audio I/O: 1-channel input, 1-channel output, built-in mic
• DORI Distances:

  • Detect: ~71 m

  • Observe: ~28 m
  • Recognize: ~14 m
  • Identify: ~7 m
• Power / Consumption: DC12V or PoE, < 7.5 W
• Operating Conditions: –30 °C to 60 °C, humidity ≤95% non-condensing
• Dimensions (mm): Ø119 × 87.8 mm
• Weight (Net): ~0.65 kg
• Installation: Ceiling or wall mounting supported
• Certifications: EMC, Safety (IEC 62368-1), RoHS compliance

 Ideal For

• Outdoor and indoor surveillance where discreet dome style is preferred
• Locations needing wide-angle coverage with high resolution and analytics
• Installations exposed to weather, requiring IP67 protection
• Systems requiring on-camera intelligence (object detection, line crossing, loitering) to reduce false alerts

 Why Buy from IT Splendid — UAE’s Trusted Surveillance Provider

•  Fast delivery across all UAE emirates — Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras Al Khaimah, Umm Al Quwain, Al Ain
•  Official Panasonic / i-PRO surveillance products with warranty & support
•  Competitive pricing and local inventory
• Assistance in installation, configuration, and integration with NVR systems

Upgrade your security setup with the Panasonic PM-VD5ULFR-W — a versatile, high-definition dome camera combining clarity, analytics, and durability for advanced surveillance.
