SonicWall TZ270 – Compact Next-Generation Firewall for Small Offices & Branches

SonicWall TZ270 – Compact Next-Generation Firewall for Small Offices & Branches

The SonicWall TZ270 is a powerful next-generation firewall (NGFW) designed for small offices, home-offices, and lean branch networks that require advanced security and reliable connectivity without enterprise-scale complexity. Its compact form factor and robust security features make it ideal for SMBs and distributed organizations seeking protection against modern cyber threats.

Key Features

• Next-Gen Firewall & Threat Protection: Includes deep packet inspection (DPI), intrusion prevention, anti-malware, anti-spyware, content filtering, application control, and comprehensive gateway security features.
• High Network Performance: Up to 2.0 Gbps firewall inspection throughput; threat prevention throughput ~ 750 Mbps; VPN throughput ~ 750 Mbps — enough for small to medium office traffic loads.

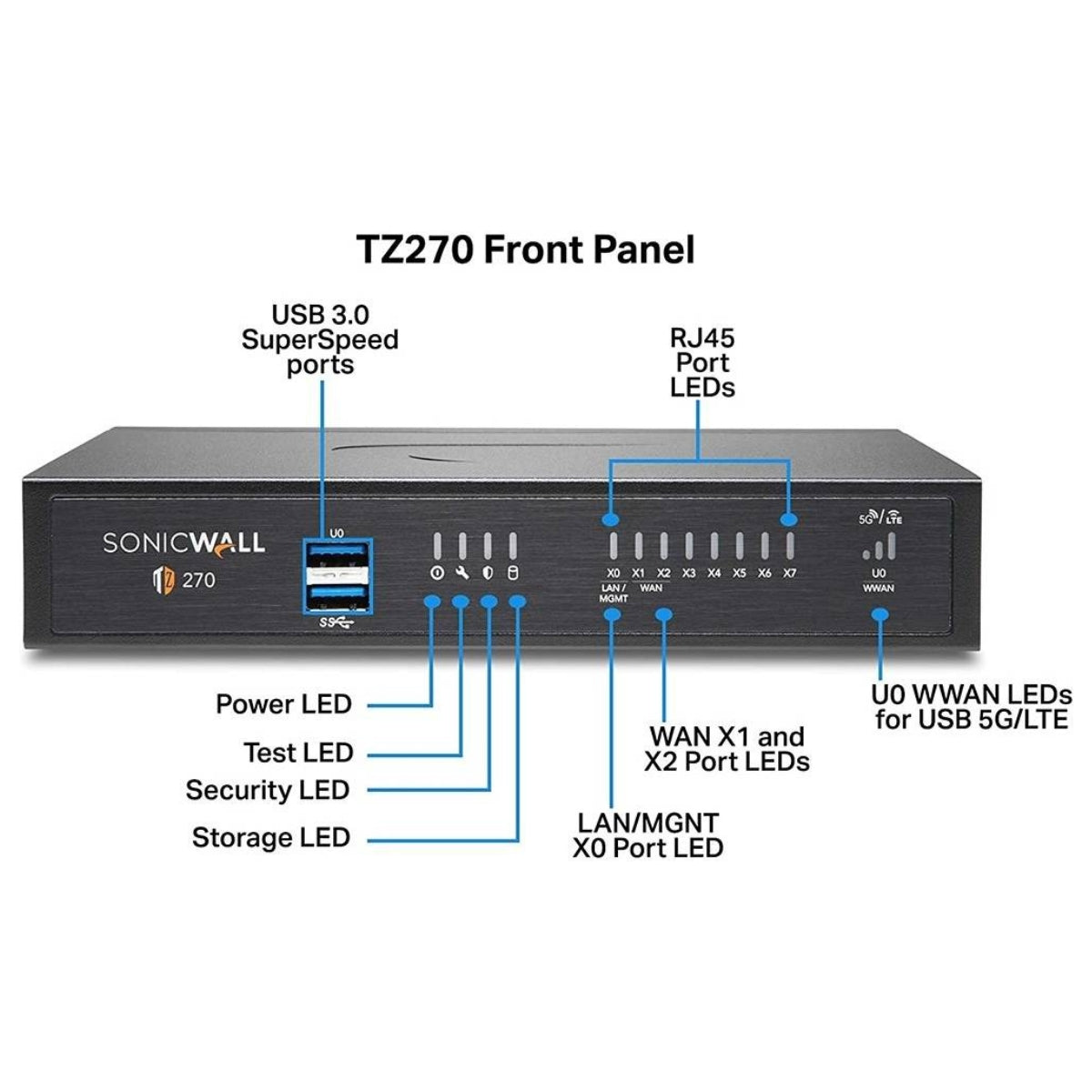

• Flexible Connectivity: 8 × 1 GbE ports, 2 × USB 3.0, dedicated console port — supports typical office LAN/WAN setups, guest networks, and VPN access.
• VPN & Remote Access Ready: Supports site-to-site VPN tunnels and SSL/IPSec VPN clients — good for remote users or multiple office branches.
• Compact & Desktop-Friendly: Small form factor (approx. 3.5 × 13.5 × 19 cm) and lightweight — easy to deploy even in limited-space offices or server closets.
• Expandable Storage & Management Flexibility: Supports optional storage expansion (up to 256 GB) — useful for logs, caching, backups; manageable via web-UI, cloud (NSM), or CLI.

Technical Specifications

• Model / Series: SonicWall TZ270 (Gen 7)
• Firewall Throughput: Up to 2.0 Gbps
• Threat Prevention Throughput: ~ 750 Mbps (with full security services)
• VPN Throughput: ~ 750 Mbps

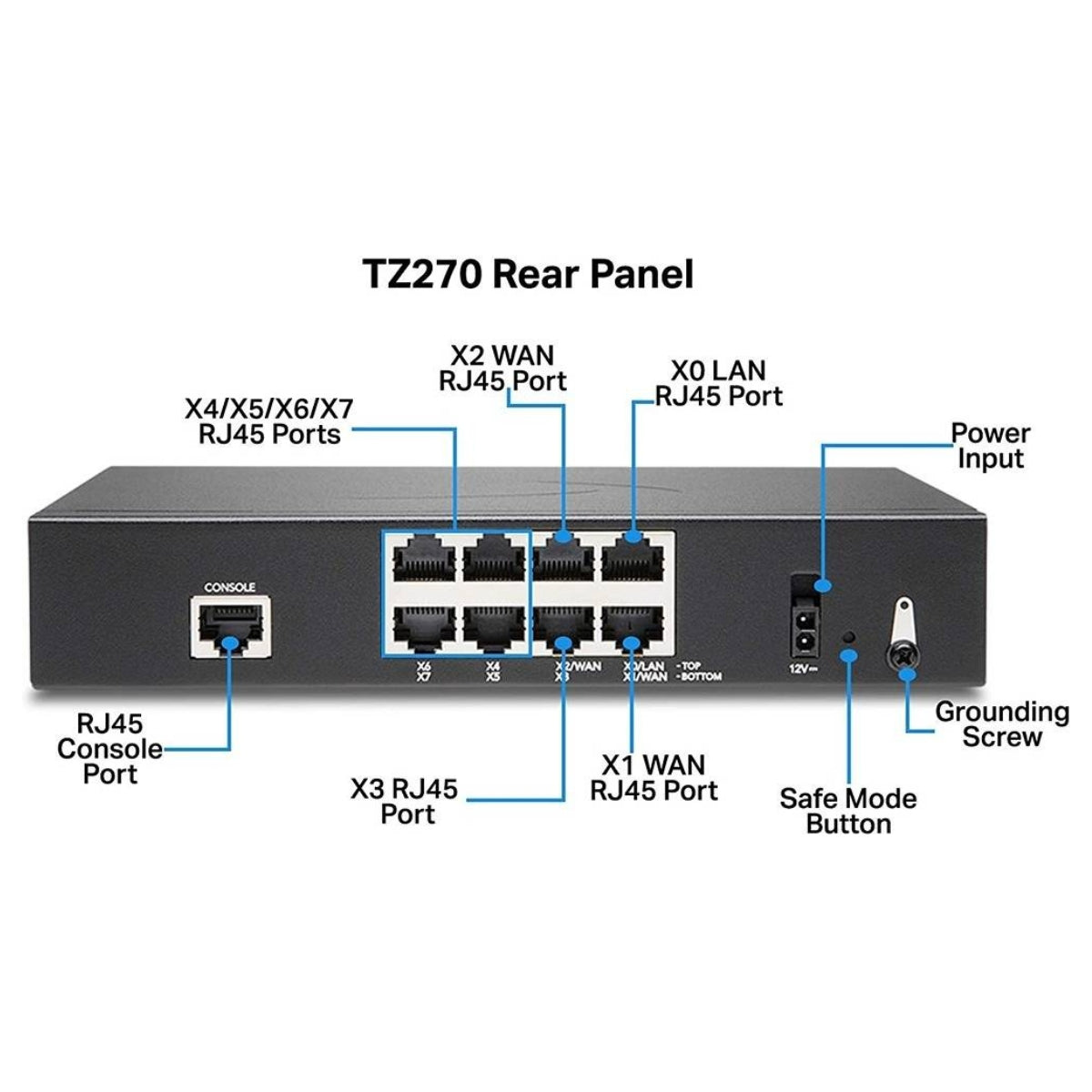

• Ports: 8 × 1 GbE, 2 × USB 3.0, 1 × Console
• Max Connections (SPI): ~ 750,000
• New Connections per Second: ~ 6,000
• Form Factor: Desktop / 1U-equivalent (compact)
• Power Supply / Consumption: External 36 W; low consumption ~16.8 W
• Wireless Option: Available as wireless-enabled variant (TZ270W) with built-in 802.11ac Wave 2 support.

Ideal For

• Small offices, home-offices, or branch locations needing enterprise-grade network security without complexity.
• Businesses requiring secure VPN access for remote workers or site-to-site connections among multiple offices.
• Organizations needing traffic filtering, content filtering, intrusion prevention, and real-time threat protection.
• Environments with limited space — compact size makes it easy to install in small racks or desktops.
• Networks that want flexibility — expandable storage for logs/backups, and support for wired or wireless (if TZ270W) deployment.

Why Include SonicWall TZ270 in Your Portfolio

• Cost-Effective Enterprise-Grade Security: Offers advanced firewall & threat-prevention at a price point accessible for SMBs.
• Scalable & Flexible: Handles growing user load, multiple connections, VPN, and can scale storage — suitable for growing businesses or branch expansion.
• Compact & Easy Deployment: Desktop-friendly design simplifies installation in small offices and reduces overhead.
• Comprehensive Protection: Covers malware, ransomware, content threats, intrusion attempts — good for data protection, compliance and peace-of-mind.

Choose SonicWall TZ270 for dependable, modern firewall protection — a smart, cost-effective NGFW choice for small to mid-sized offices and branch networks.
