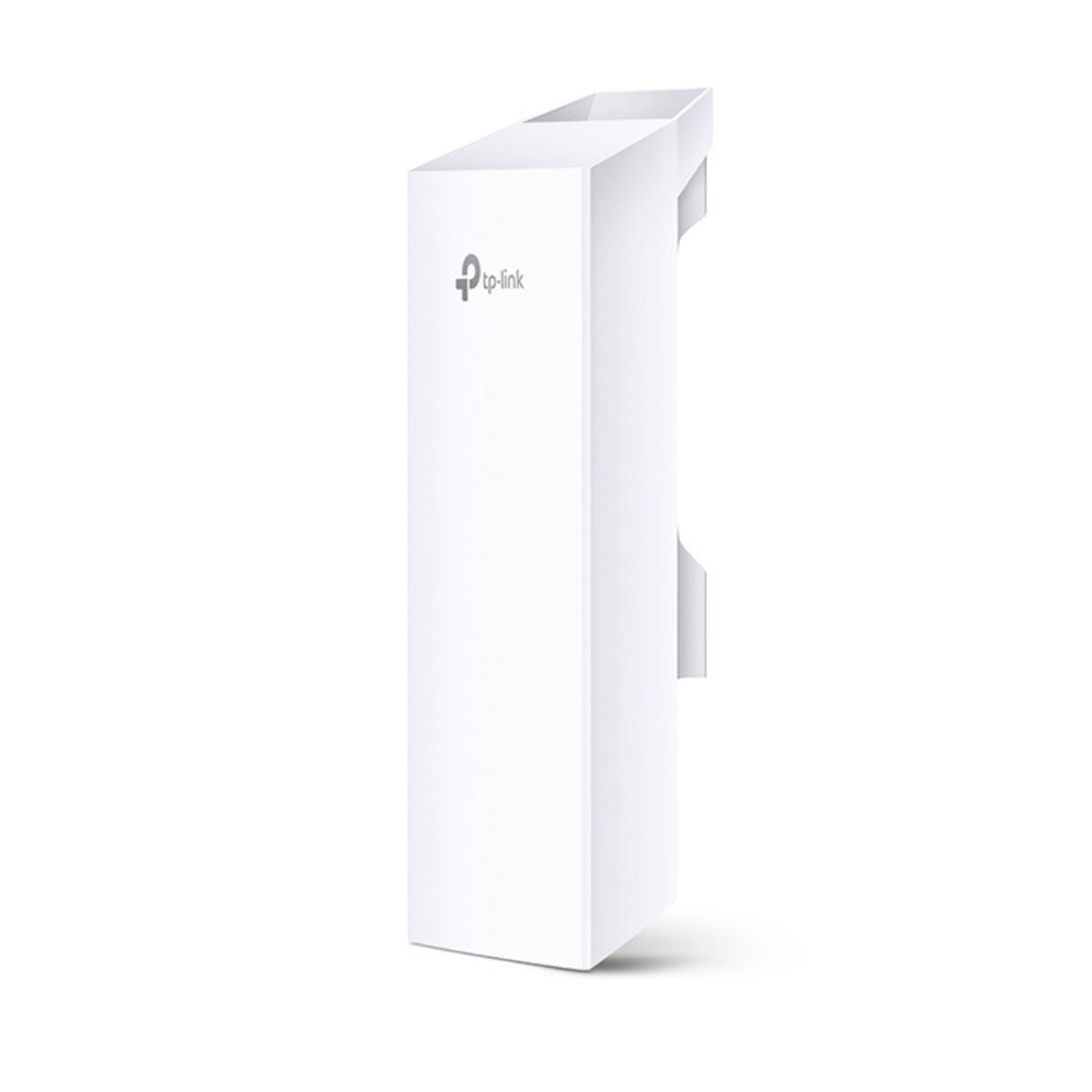

TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE | 2x2 Dual-Polarized MIMO Antenna | Long-Range Wireless

TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE | 2x2 Dual-Polarized MIMO Antenna | Long-Range Wireless

The TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE is a professional outdoor wireless networking solution designed for long-distance wireless transmission, point-to-point links, point-to-multipoint deployments, and outdoor Wi-Fi coverage. Featuring a built-in 13dBi 2x2 dual-polarized directional MIMO antenna, the CPE510 is designed to provide focused wireless coverage and stable connectivity for outdoor networking applications. Operating on the 5GHz wireless band with speeds of up to 300Mbps, the CPE510 combines a high-gain directional antenna with TP-Link Pharos technology to support long-range wireless deployments. Its weatherproof outdoor enclosure, passive PoE support, lightning and ESD protection, and centralized management capabilities make it suitable for both business and residential outdoor networking requirements.

Key Features

• 5GHz 300Mbps Wireless: Provides wireless speeds of up to 300Mbps on the 5GHz band.
• 13dBi Directional Antenna: Built-in 13dBi 2x2 dual-polarized directional MIMO antenna for focused outdoor wireless transmission.
• Long-Range Transmission: System-level optimization supports wireless transmission over distances of more than 15km in suitable deployment conditions.
• TP-Link Pharos MAXtream: TDMA technology helps improve throughput, capacity, and latency performance for suitable outdoor deployments.
• Outdoor Weatherproof Design: Weatherproof enclosure is designed for outdoor installation and demanding environmental conditions.
• Multiple Operation Modes: Supports AP, Client, AP Router, and AP Client Router (WISP) modes, with additional modes depending on hardware version.
• Pharos Control: Centralized management software allows device discovery, monitoring, firmware upgrades, and network maintenance.
• Passive PoE: Supports Power over Ethernet deployment and remote reset through the PoE connection.
• Lightning & ESD Protection: Designed with protection features for outdoor networking environments.

Technical Specifications

• Brand: TP-Link
• Model: CPE510
• Product Type: 5GHz 300Mbps Outdoor CPE
• Wireless Standard: IEEE 802.11a/n
• Wireless Frequency: 5GHz
• Wireless Speed: Up to 300Mbps
• Antenna: Built-in 13dBi 2x2 Dual-Polarized Directional MIMO Antenna
• Channel Bandwidth: 5/10/20/40MHz
• Operation Modes: AP / Client / AP Router / AP Client Router (WISP), with additional modes depending on hardware version
• Transmission Power: Hardware-version and regional regulations dependent; earlier versions support up to 27dBm/500mW, while current regional versions may specify lower maximum levels
• Management: PharOS Web-Based Management and Pharos Control
• PoE: Passive PoE
• Weather Protection: IPX5 Weatherproof Enclosure
• ESD Protection: Up to 15kV
• Lightning Protection: Up to 6kV
• Operating Temperature: Approximately -40°C to +70°C, depending on hardware version

13dBi Dual-Polarized Directional MIMO Antenna

The CPE510 features a built-in 13dBi 2x2 dual-polarized directional MIMO antenna designed specifically for outdoor wireless networking. Its directional antenna focuses wireless energy toward the intended coverage area, making it suitable for long-distance point-to-point and point-to-multipoint connections.

The dual-polarized antenna design supports both vertical and horizontal polarization, helping the CPE510 provide focused wireless communication for appropriately aligned outdoor installations.

Long-Range Wireless Transmission

The TP-Link CPE510 is designed for long-distance outdoor wireless transmission, with TP-Link specifying system-level optimization for distances of more than 15km under suitable deployment conditions. This makes it suitable for connecting separate buildings, extending network connectivity between locations, and creating outdoor wireless links where physical cabling may not be practical.

Actual transmission distance and throughput depend on line-of-sight conditions, antenna alignment, interference, terrain, environmental conditions, channel selection, regulatory limitations, and the configuration of the wireless link.

TP-Link Pharos MAXtream TDMA Technology

The CPE510 supports TP-Link Pharos MAXtream TDMA technology, which is designed to improve wireless network performance in outdoor deployments. MAXtream uses Time-Division-Multiple-Access technology to help manage communication between compatible outdoor wireless devices, particularly in point-to-multipoint environments.

This technology can help improve network throughput, capacity, and latency performance when used in an appropriate MAXtream deployment.

Outdoor Weatherproof Construction

The CPE510 is designed specifically for outdoor networking and features a weatherproof enclosure suitable for installation in challenging outdoor environments. TP-Link specifies an IPX5-rated enclosure for applicable hardware versions, helping protect the device against water exposure under suitable installation conditions.

The device is also designed with 15kV ESD protection and 6kV lightning protection, providing additional protection for outdoor network deployments. Proper grounding and installation practices remain important for outdoor wireless equipment.

Passive PoE Deployment

The CPE510 supports Passive Power over Ethernet, allowing power and network connectivity to be delivered through the Ethernet connection. TP-Link specifies support for deployments of up to approximately 60 meters (200 feet) using the appropriate passive PoE adapter and suitable cabling.

Passive PoE can simplify outdoor installation by reducing the need for a separate local power connection at the CPE location. The device also supports remote reset through the PoE connection.

Centralized Pharos Control Management

The CPE510 supports Pharos Control, TP-Link's centralized management platform for compatible Pharos outdoor wireless devices. It can assist network administrators with device discovery, status monitoring, firmware upgrades, and network maintenance from a centralized computer.

The web-based PharOS management system also provides configuration and monitoring options for more detailed device and wireless network management.

Ideal Applications

• Point-to-Point Wireless Links: Connect two buildings or locations through a dedicated outdoor wireless connection.
• Point-to-Multipoint Networks: Suitable for connecting multiple remote locations to a central wireless base station.
• Outdoor Wi-Fi Coverage: Extend wireless networking to suitable outdoor areas and facilities.
• Building-to-Building Connectivity: Create wireless links between offices, warehouses, buildings, or other locations.
• Campus Networking: Suitable for extending network connectivity across larger outdoor areas.
• Remote Site Connectivity: Provide wireless connectivity where Ethernet or fiber cabling is difficult to deploy.
• Business & Residential Networking: Suitable for professional and advanced home outdoor wireless applications.

Benefits

• Long-Distance Connectivity: Designed for outdoor wireless transmission over distances exceeding 15km in suitable conditions.
• Focused Wireless Coverage: 13dBi directional antenna concentrates wireless transmission toward the intended coverage area.
• Outdoor Ready: Weatherproof construction and protection features support outdoor deployment.
• Flexible Deployment: Supports multiple operation modes for different network architectures.
• Centralized Management: Pharos Control simplifies monitoring and management of compatible devices.
• PoE Installation: Passive PoE helps simplify power and network connectivity for outdoor installations.
• Professional Wireless Networking: Suitable for point-to-point, point-to-multipoint, and outdoor coverage applications.

Why Choose TP-Link CPE510

• 13dBi Directional Antenna: Provides focused wireless transmission for long-distance outdoor links.
• 5GHz 300Mbps Wireless: Provides suitable wireless capacity for outdoor networking applications.
• 2x2 MIMO: Dual-polarized MIMO antenna design supports efficient wireless communication.
• Pharos MAXtream: TDMA technology is designed for improved performance in suitable outdoor deployments.
• Outdoor Protection: Weatherproof enclosure with ESD and lightning protection features.
• Professional Management: Pharos Control and PharOS provide centralized and web-based management options.
• Versatile Deployment: Suitable for building-to-building links, outdoor coverage, and point-to-multipoint networking.

Important Considerations

• The CPE510 is a directional outdoor CPE and should be properly aligned with the corresponding remote wireless device for long-distance links.
• Actual wireless transmission distance depends on line-of-sight, terrain, interference, antenna alignment, environmental conditions, regulatory restrictions, and other factors.
• The advertised 15km+ range represents a deployment capability under suitable conditions and should not be considered a guaranteed operating distance for every installation.
• Maximum transmission power varies by hardware version, channel, region, and applicable regulatory requirements. Customers should verify the hardware version before deployment.
• The CPE510 has multiple hardware revisions, including V1, V2, V3, and newer regional revisions. Specifications and available operating modes can vary between versions.
• Outdoor installation should follow appropriate grounding, mounting, cabling, and lightning-protection practices.
• Passive PoE requirements should be checked before connecting the CPE510 to third-party PoE equipment.

Why Buy from IT Splendid (UAE)

• Networking Products: Shop outdoor CPEs, wireless access points, routers, switches, networking accessories, and other connectivity products.
• Business & Enterprise Technology: Find networking solutions suitable for offices, commercial buildings, warehouses, campuses, and professional environments.
• Wireless Networking Solutions: Explore products designed for Wi-Fi extension, point-to-point connectivity, outdoor coverage, and advanced network deployments.
• UAE Delivery: Delivery available across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, and other Emirates.
• Complete Technology Range: IT Splendid provides computers, networking products, gaming equipment, office supplies, printers, electronics, appliances, and technology accessories across the UAE.

The TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE is a practical choice for users and businesses requiring long-distance outdoor wireless connectivity. With its 13dBi 2x2 dual-polarized directional MIMO antenna, 5GHz 300Mbps wireless capability, Pharos MAXtream technology, weatherproof enclosure, Passive PoE support, and centralized management, it is well suited for point-to-point links, point-to-multipoint networks, building-to-building connectivity, and outdoor Wi-Fi deployments. With proper alignment and installation, the CPE510 provides a flexible solution for extending network connectivity across challenging outdoor environments.
