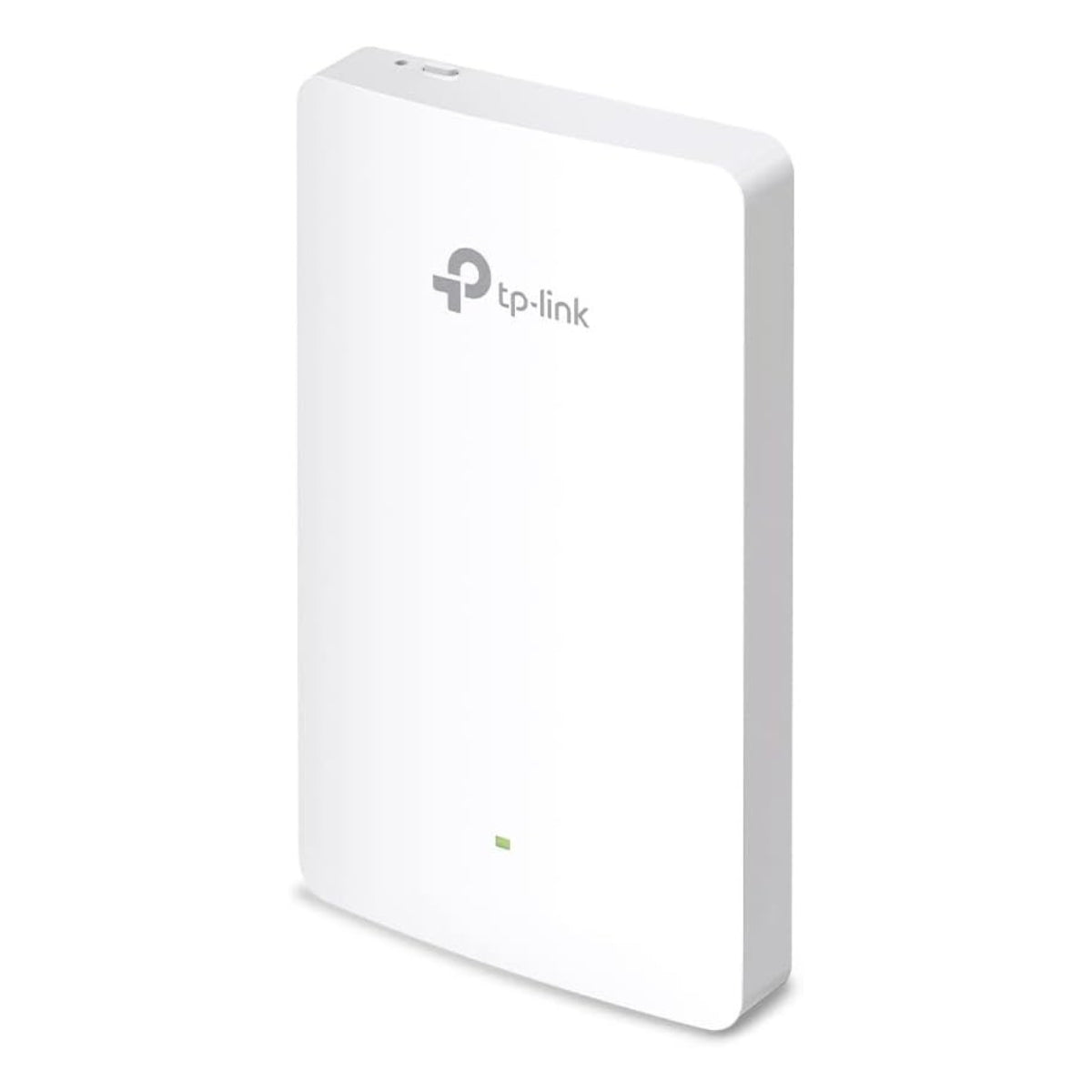

TP-Link EAP615-Wall | Omada Business WiFi 6 AX1800 in-Wall Wireless Gigabit Access Point | Support OFDMA, MU-MIMO & Beamforming | PoE Powered | Support Omada SDN | Cloud Access & Omada app

Interface:

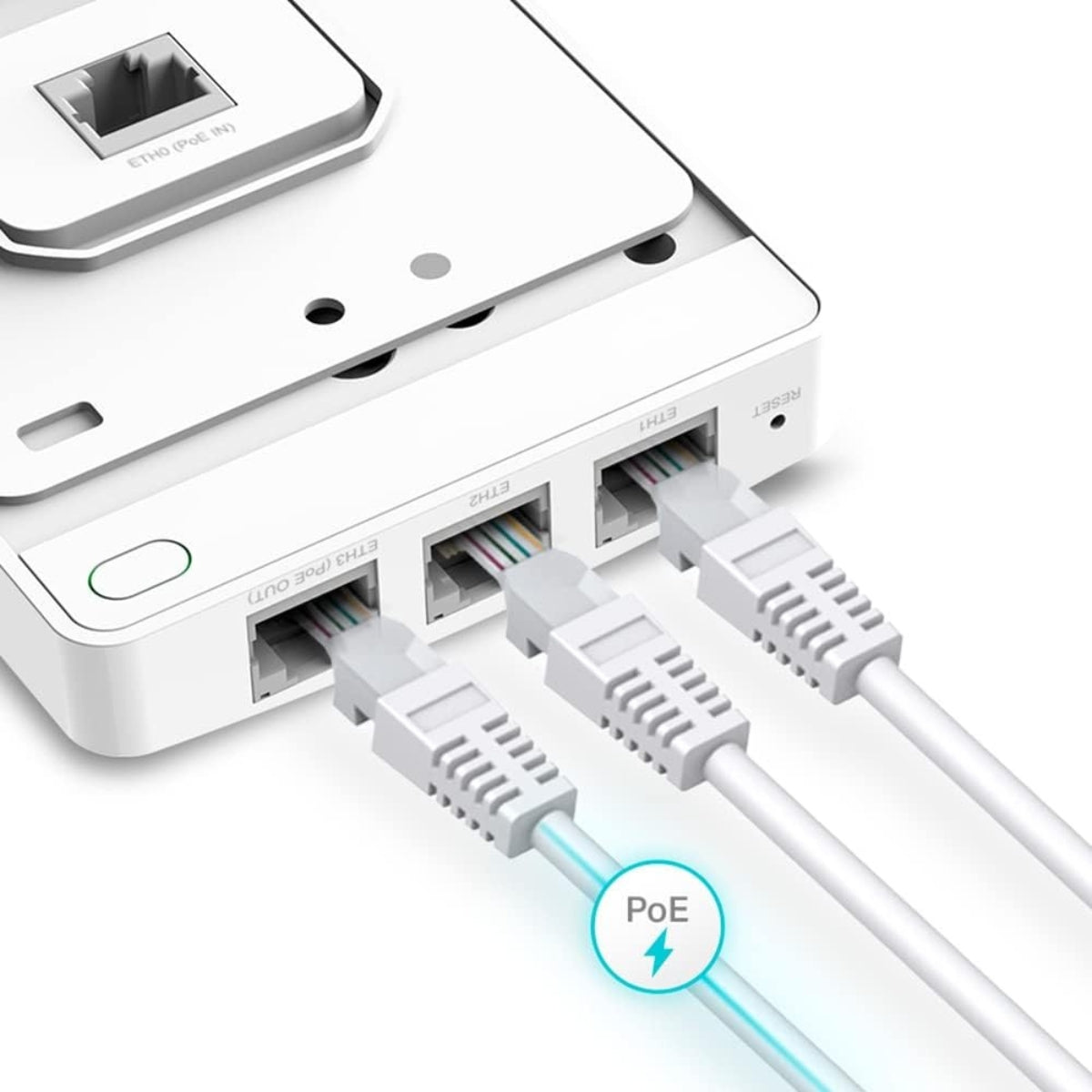

• Uplink: 1× 10/100/1000 Mbps Ethernet Port

• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)

Physical Security Lock:

Yes

Button:

Reset

Power Supply:

802.3af/at PoE

Max. Power Consumption:

• EU: 10W (802.3at PoE, PoE Out off)

• US: 11.5W (802.3at PoE, PoE Out off)

Dimensions ( W x D x H ):

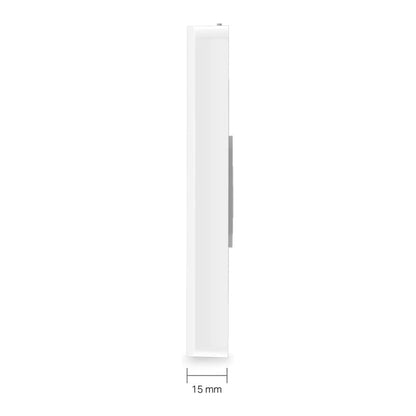

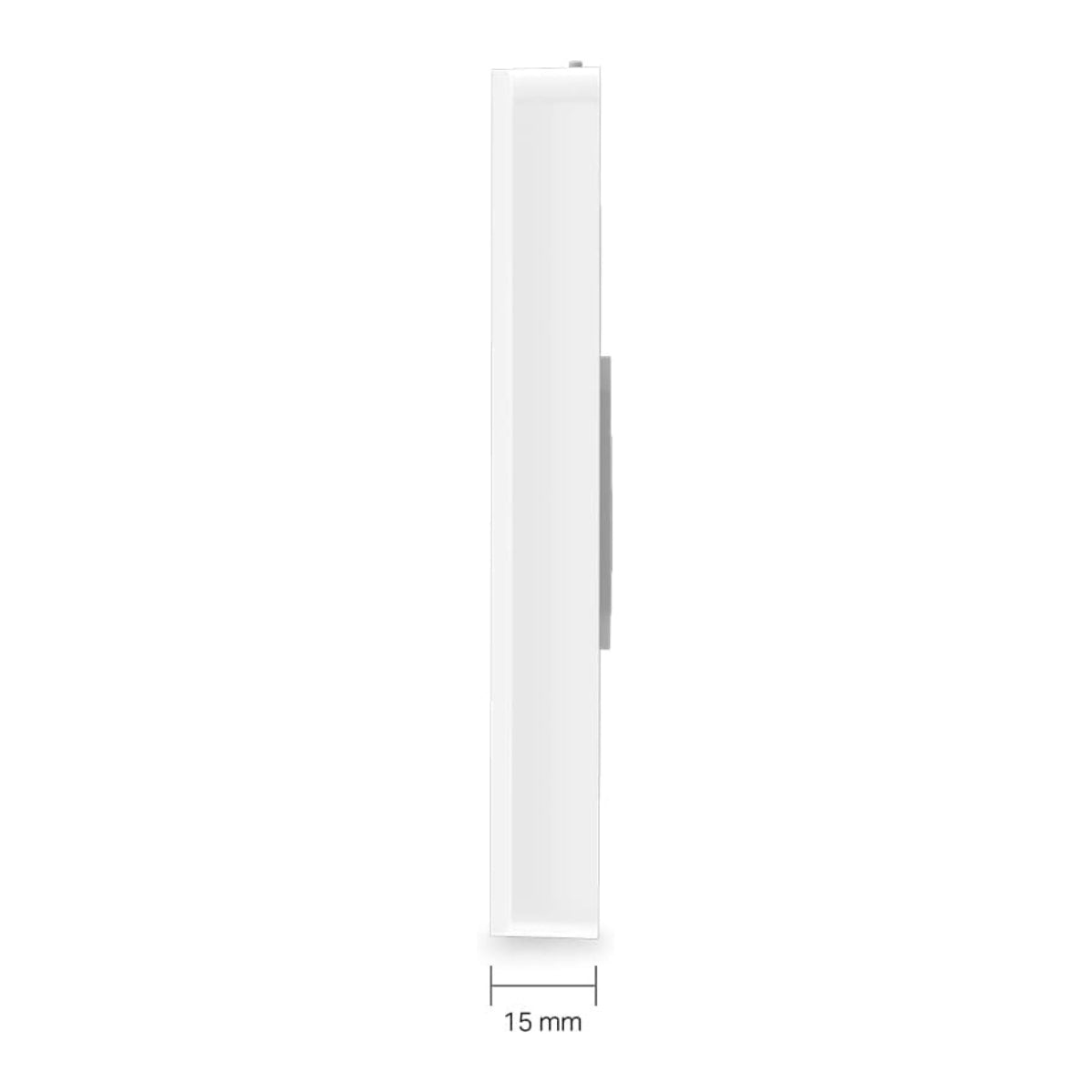

143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Antenna:

2 Dual-Band Antennas

• 2.4 GHz: 2× 3 dBi

• 5 GHz: 2× 4 dBi

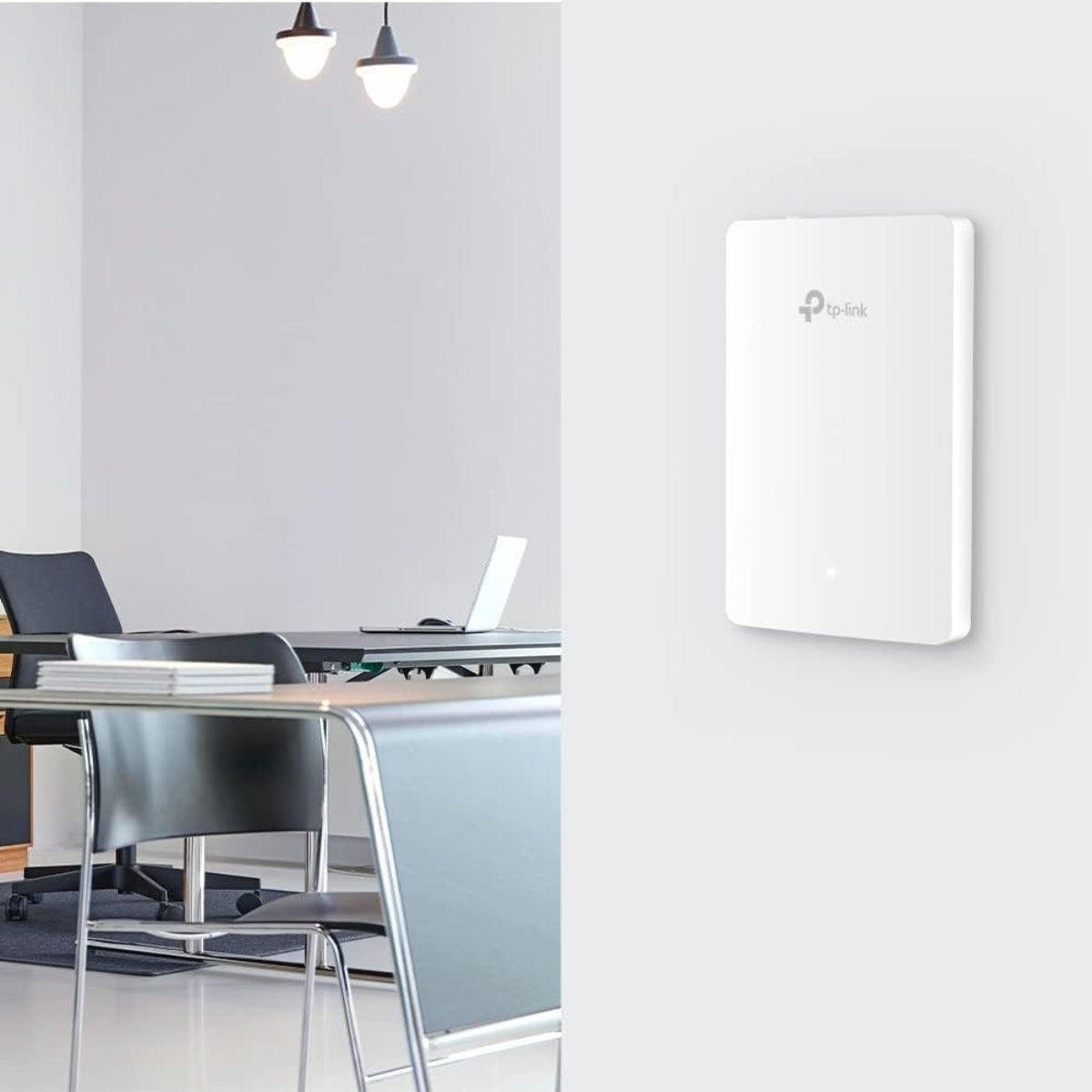

Mounting:

Wall Plate Mounting

Coverage:

50㎡(600 ft²)△

Concurrent Clients:

120+△

Wireless Standards:

IEEE 802.11ax/ac/n/g/b/a

Frequency:

2.4 GHz and 5 GHz

Signal Rate:

• 5 GHz: Up to 1201 Mbps

• 2.4 GHz: Up to 574 Mbps

Wireless Functions:

• 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Omada Mesh†

• Seamless Roaming(802.11k/v/r)†

• Beamforming

• MU-MIMO

• Rate Limit

• Load Balance

• Airtime Fairness

• Band Steering

• Reboot Schedule

• Wireless Schedule

• RADIUS Accounting

• MAC Authentication

• Wireless Statistics

• Static IP/Dynamic IP

Wireless Security:

• Captive Portal Authentication†

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power:

• CE:

< 20 dBm (2.4 GHz, EIRP)

< 23 dBm (5 GHz, Band1, EIRP)

• FCC:

< 21 dBm (2.4 GHz)

< 21 dBm (5 GHz, Band1)

< 21 dBm（5Ghz, Band4）

Omada App:

Yes

Centralized Management:

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access:

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts:

Yes

LED ON/OFF Control:

Yes

Management MAC Access Control:

Yes

SNMP:

v1, v2c, v3

System Logging Local/Remote Syslog:

Local/Remote Syslog

SSH:

Yes

Web-based Management:

HTTP/HTTPS

L3 Management:

Yes

Multi-site Management:

Yes

Management VLAN:

Yes

Zero-Touch Provisioning:

Yes. Requiring the use of Omada Cloud-Based Controller.

Certification:

CE, FCC, RoHS

Package Content:

• EAP615-Wall

• Installation Guide

• Mounting Kit

System Requirements:

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

Environment:

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
