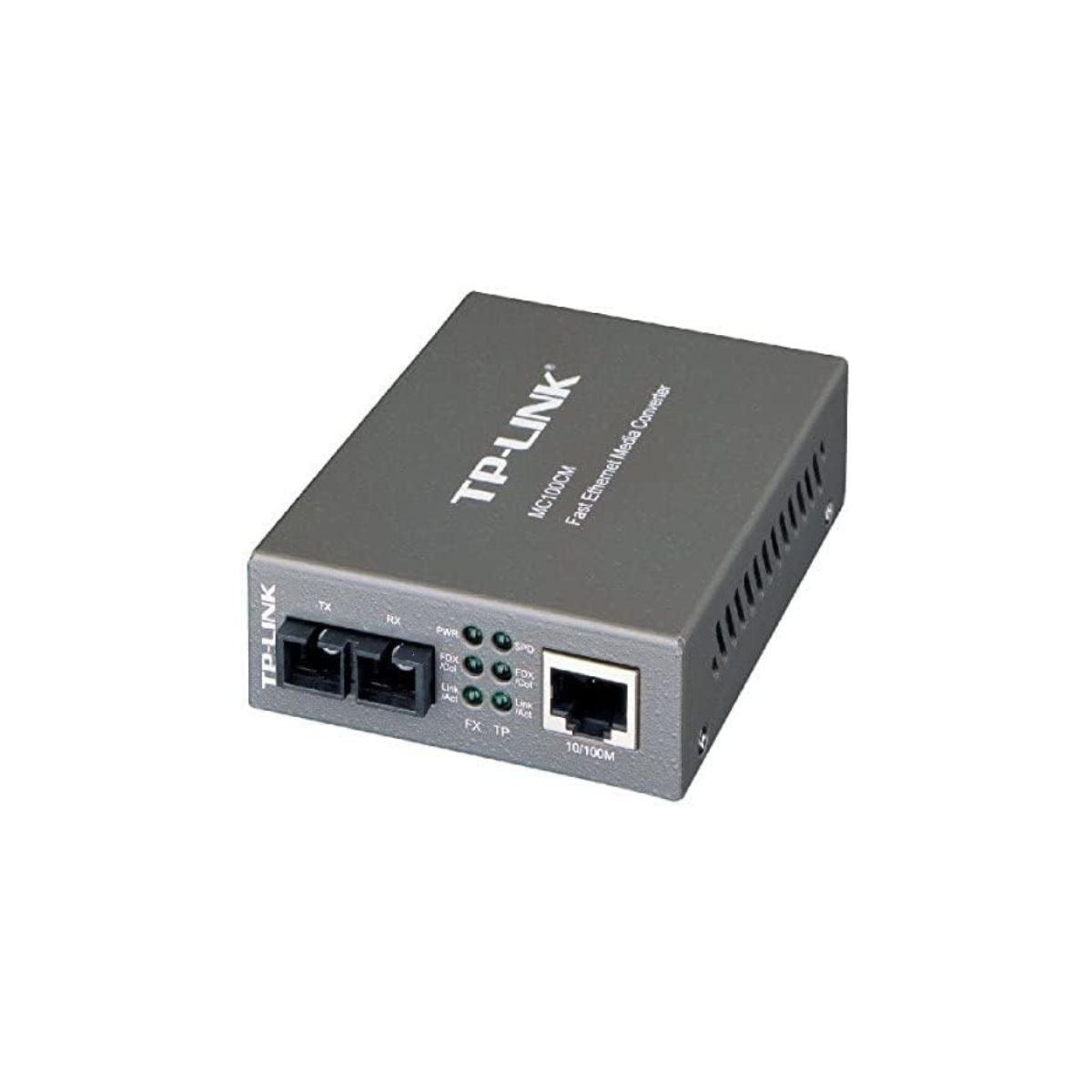

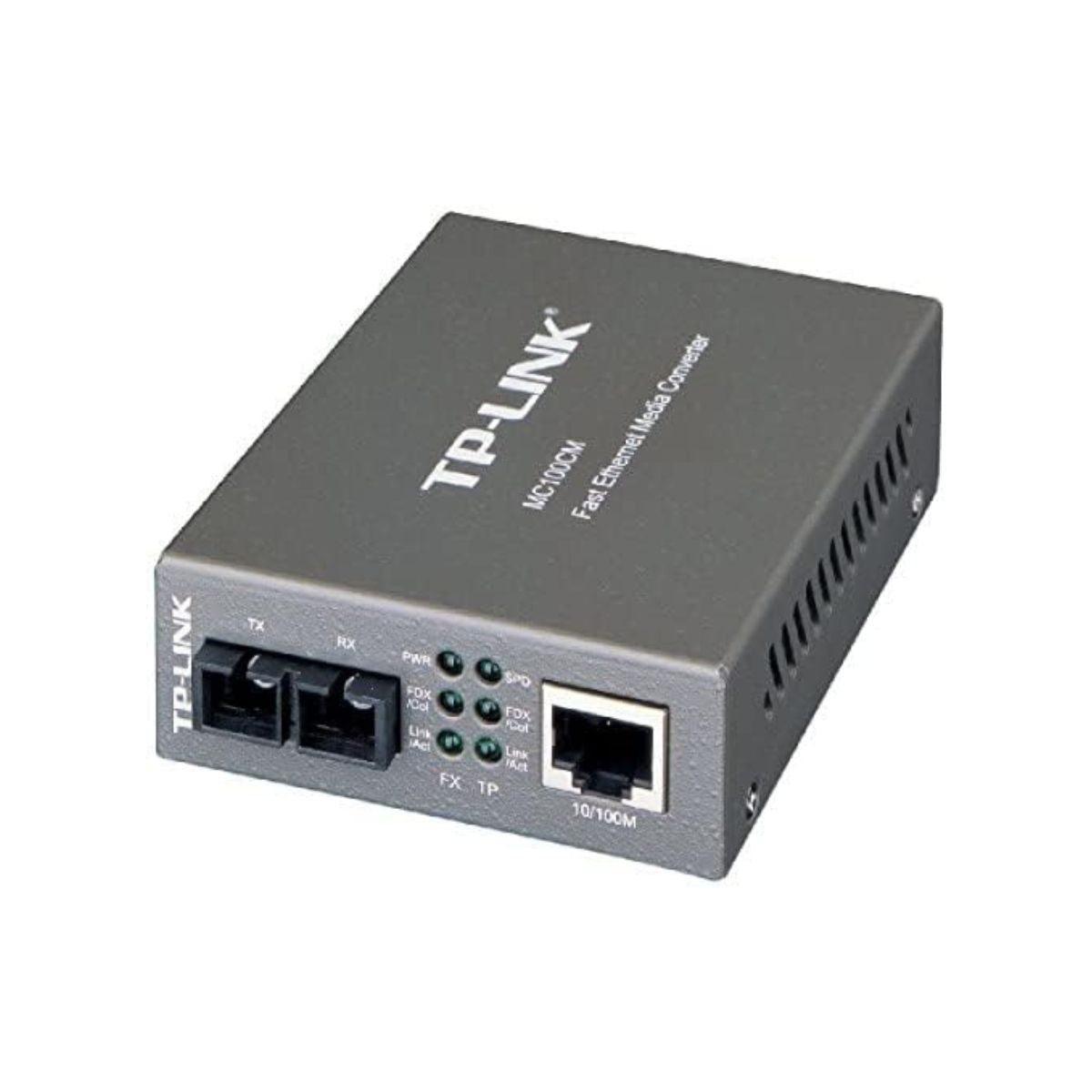

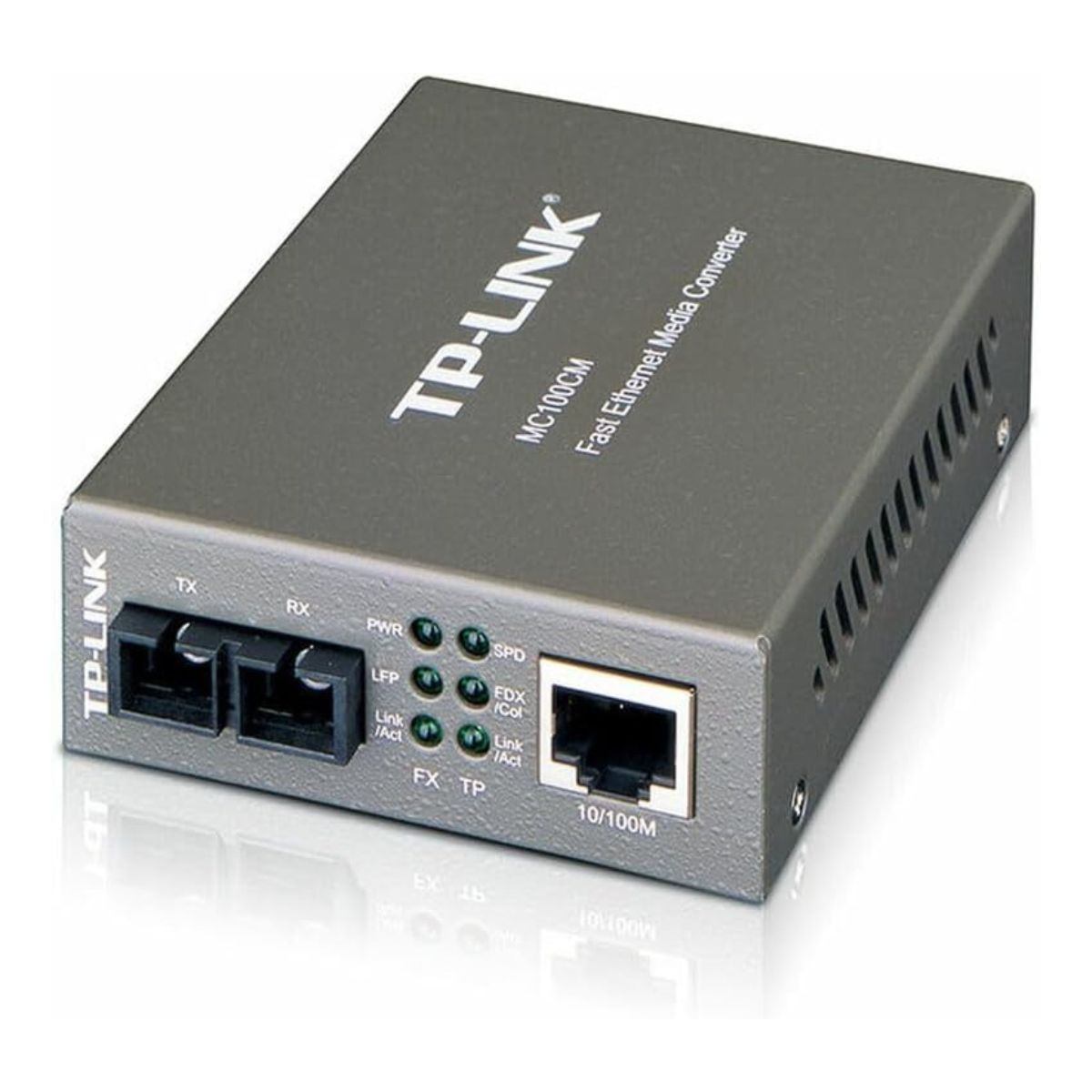

TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter

TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter

The TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter is a compact and practical networking solution designed to convert 100BASE-FX fiber connections to 100BASE-TX copper connections and vice versa. It provides a convenient way to connect Ethernet-based network equipment with multi-mode fiber infrastructure, making it suitable for business networks, office environments, structured network installations, and other applications requiring fiber-to-copper connectivity. Designed to comply with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards, the MC100CM supports 10/100Mbps Ethernet connectivity and multi-mode fiber transmission. It features a 100M SC/UPC fiber port and a 10/100M RJ45 port with Auto MDI/MDIX, providing flexibility when integrating fiber and copper network segments. The MC100CM can extend network transmission over multi-mode fiber up to 2 kilometers, helping businesses and organizations connect network devices across longer distances than standard copper Ethernet cabling. Its compact standalone design, external power supply, LED status indicators, and automatic duplex negotiation make it convenient for deployment in a variety of network environments.

Key Features

• 10/100Mbps Media Conversion: Converts 100BASE-FX multi-mode fiber to 100BASE-TX copper Ethernet and vice versa.
• Multi-Mode Fiber Support: Designed for multi-mode fiber network connections using an SC/UPC interface.
• Up to 2km Fiber Transmission: Extends network connectivity over multi-mode fiber for distances of up to 2 kilometers.
• 10/100M RJ45 Port: Provides copper Ethernet connectivity with Auto MDI/MDIX functionality.
• 100M SC/UPC Port: Provides fiber connectivity for 100BASE-FX multi-mode networks.
• Auto-Negotiation: Supports automatic negotiation of Half-Duplex and Full-Duplex transfer modes.
• Flow Control: Supports IEEE 802.3x Full Duplex Flow Control and Half Duplex Backpressure.
• 1310nm Wavelength: Utilizes a 1310nm optical wavelength according to the current product specification.
• Link Fault Passthrough: Helps minimize network disruption caused by link failures by providing fault-related functionality.
• Compact Design: Small enclosure suitable for desktop, network cabinet, and other space-conscious installations.
• LED Indicators: Provides visual status information for power and network activity.
• Standalone Operation: Can be deployed as an independent media converter without requiring a chassis.

Technical Specifications

• Brand: TP-Link
• Model: MC100CM
• Product Type: 10/100Mbps Multi-Mode Media Converter
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Fiber Interface: 1 × 100M SC/UPC Port
• Copper Interface: 1 × 10/100M RJ45 Port
• RJ45 Function: Auto MDI/MDIX
• Fiber Type: Multi-Mode Fiber
• Fiber Standard: 100BASE-FX
• Copper Standard: 10BASE-T / 100BASE-T
• Wavelength: 1310nm
• Maximum Fiber Distance: Up to 2km
• Duplex Mode: Half-Duplex / Full-Duplex Auto-Negotiation
• Flow Control: IEEE 802.3x Full Duplex / Half Duplex Backpressure
• LED Indicators: PWR, Link/Act
• Power Supply: External Power Supply
• Maximum Power Consumption: 2.4W
• Dimensions: 94.5 × 73.0 × 27.0 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
• Certifications: FCC, CE, RoHS

Fiber-to-Copper Network Conversion

The TP-Link MC100CM is designed to bridge the gap between fiber-optic and copper Ethernet networks. It converts data between a 100BASE-FX multi-mode fiber connection and a 10/100BASE-T copper Ethernet connection, allowing compatible network equipment using different physical media to communicate with each other.

This makes the converter particularly useful when an existing Ethernet network needs to be extended over fiber without replacing compatible copper-based network equipment. It can help simplify network upgrades and provide greater flexibility when deploying fiber infrastructure.

Up to 2km Multi-Mode Fiber Transmission

The MC100CM supports transmission distances of up to 2 kilometers over multi-mode fiber. This provides considerably greater reach than conventional copper Ethernet connections, which are generally limited to shorter cable runs.

The extended fiber distance makes the converter suitable for connecting network equipment between different areas of an office, commercial facility, building, or other network installation where longer-distance connectivity is required.

10/100Mbps Ethernet Connectivity

The copper side of the MC100CM provides a 10/100M RJ45 interface for connecting compatible Ethernet devices. The port supports Auto MDI/MDIX, helping simplify network installation by automatically adapting to the connected Ethernet device or cable configuration.

The converter supports both 10Mbps and 100Mbps Ethernet environments, making it suitable for compatible legacy and Fast Ethernet network infrastructure.

Auto-Negotiation & Flow Control

The MC100CM supports automatic Half-Duplex and Full-Duplex negotiation, helping the converter adapt to compatible network operating conditions. It also supports IEEE 802.3x Full Duplex Flow Control and Half Duplex Backpressure for improved handling of network traffic.

These features help provide flexible operation when integrating the media converter into compatible Ethernet and fiber network environments.

Link Fault Passthrough

The MC100CM includes Link Fault Passthrough and Far End Fault functionality designed to help minimize losses caused by link failures. These features can assist network administrators in identifying connectivity issues and maintaining better visibility into fiber-link conditions.

Compact & Flexible Installation

With dimensions of approximately 94.5 × 73.0 × 27.0 mm, the MC100CM has a compact form factor that can be installed in space-conscious networking environments. It can operate as a standalone media converter without requiring a dedicated chassis.

The compact design makes it suitable for deployment near switches, routers, network devices, structured cabling termination points, and other compatible networking equipment.

LED Status Monitoring

The converter includes LED indicators that provide visual information about power and network activity. These indicators can help administrators quickly check the operating status of the device and connected network links during installation, maintenance, and troubleshooting.

Ideal Applications

• Business Networks: Suitable for connecting compatible copper Ethernet equipment to multi-mode fiber infrastructure.
• Office Networks: Useful for extending network connectivity between different areas of an office environment.
• Building-to-Building Connectivity: Suitable for compatible multi-mode fiber links between network locations.
• Structured Cabling: Can be integrated into compatible fiber and copper network installations.
• Network Upgrades: Useful when integrating existing Ethernet devices with fiber-based infrastructure.
• Server & Network Rooms: Suitable for connecting compatible switches and network equipment using different media types.
• Commercial Installations: Suitable for compatible business, commercial, and institutional networking environments.
• Legacy Ethernet Networks: Provides 10/100Mbps connectivity for compatible existing network infrastructure.

Benefits

• Fiber-to-Copper Conversion: Connects compatible 100BASE-FX fiber and 10/100BASE-T Ethernet networks.
• Extended Connectivity: Supports multi-mode fiber transmission distances of up to 2km.
• Flexible Ethernet Support: Supports both 10Mbps and 100Mbps copper Ethernet environments.
• Auto MDI/MDIX: Simplifies RJ45 network connectivity and installation.
• Automatic Duplex Negotiation: Supports flexible Half-Duplex and Full-Duplex operation.
• Compact Form Factor: Suitable for installations where networking space is limited.
• Easy Monitoring: LED indicators provide convenient status visibility.
• Low Power Consumption: Maximum power consumption is approximately 2.4W according to the current specification.

Why Choose TP-Link MC100CM

• Reliable Media Conversion: Designed to connect compatible fiber and copper Ethernet network segments.
• Multi-Mode Fiber Support: Provides a practical solution for compatible multi-mode fiber infrastructure.
• 2km Transmission: Supports extended fiber connectivity for longer network runs.
• 10/100Mbps Compatibility: Suitable for compatible Fast Ethernet and 10Mbps network environments.
• Flexible Deployment: Compact standalone design makes installation convenient in different network environments.
• TP-Link Networking: A practical networking accessory from TP-Link for fiber-to-Ethernet connectivity applications.

Compatibility & Important Considerations

• The MC100CM is designed for multi-mode fiber and should be used with compatible fiber infrastructure.
• The fiber interface uses an SC/UPC connector; ensure the connected fiber equipment and cabling use compatible connectors.
• The maximum supported fiber transmission distance is up to 2km under compatible conditions.
• The RJ45 interface supports 10/100Mbps Ethernet and should be connected to compatible network equipment.
• Fiber transmission performance may vary depending on cable quality, network equipment, installation conditions, and environmental factors.
• The device requires its supplied or compatible external power supply for operation.
• Always verify the hardware version and regional specification before installation, as specifications and package contents may vary between product revisions.
