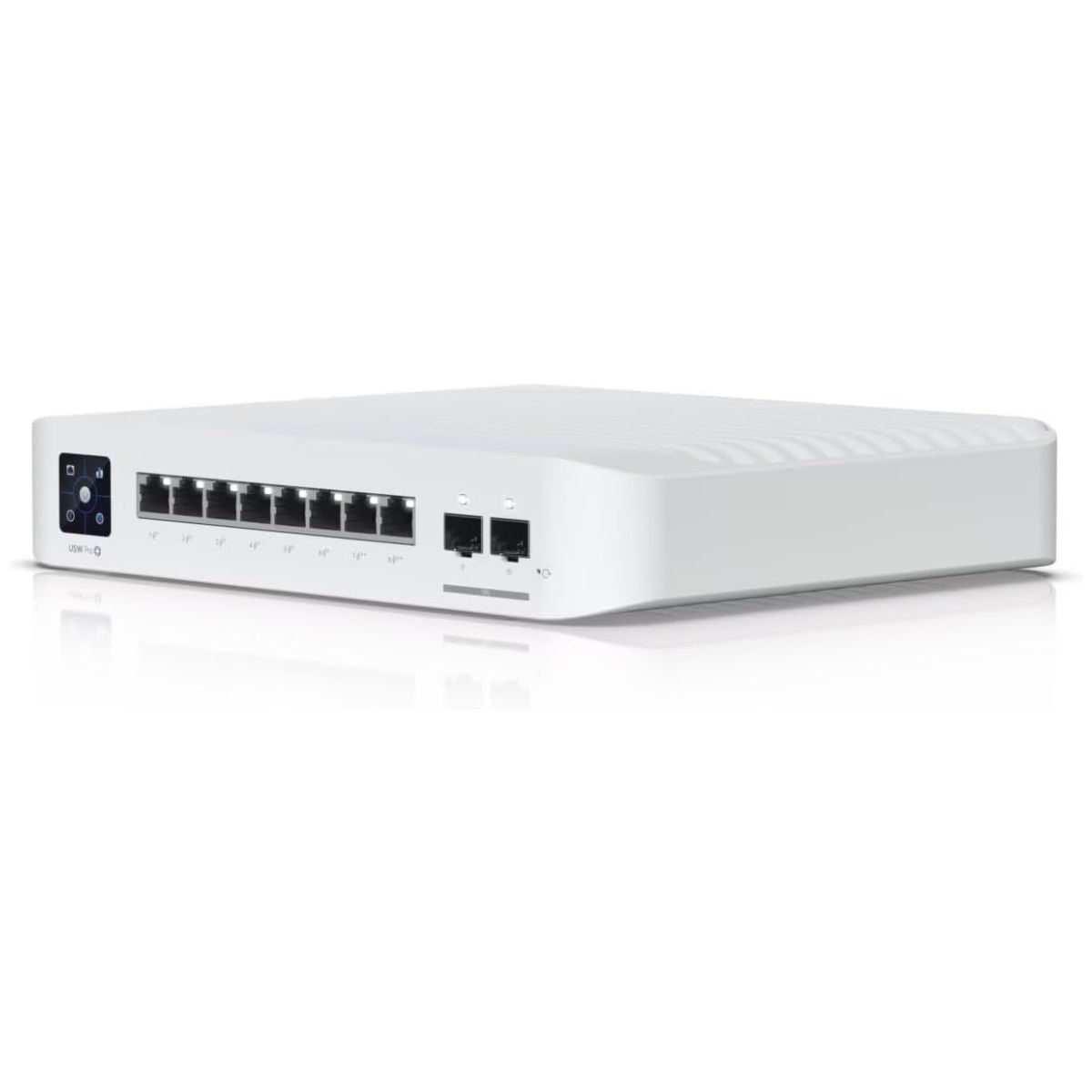

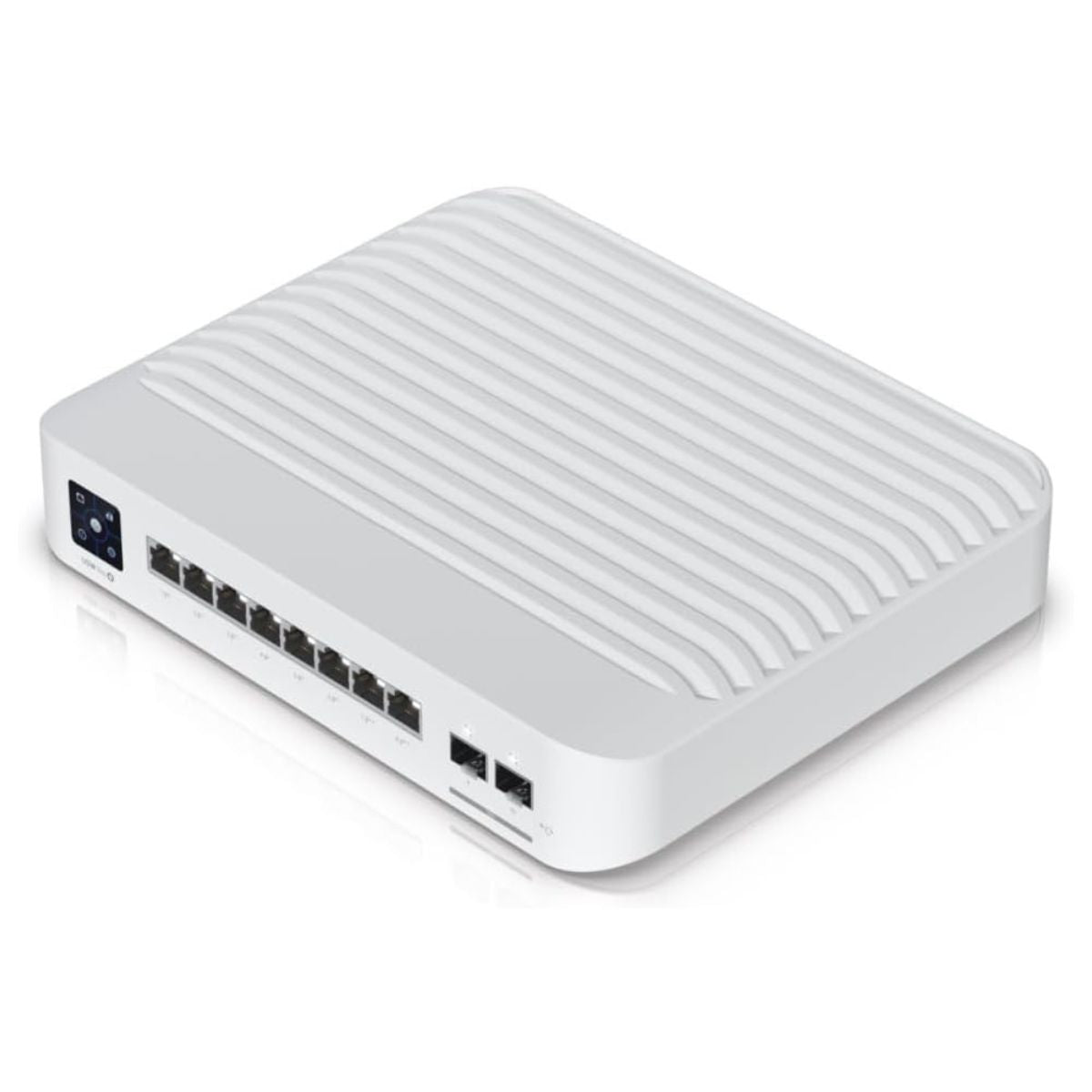

Ubiquiti Networks Pro 8 PoE Switch, 1.3" Touchscreen, AR Switch Management, 8-port, Layer 3 Switch with PoE+ & PoE++ Output, 120 W PoE Availability, Wall-Mountable Kit, White | USW-PRO-8-POE

Ubiquiti Networks Pro 8 PoE Switch, 1.3" Touchscreen, AR Switch Management, 8-port, Layer 3 Switch with PoE+ & PoE++ Output, 120 W PoE Availability, Wall-Mountable Kit, White | USW-PRO-8-POE

The Ubiquiti UniFi Pro 8 PoE is a compact 8-port Layer 3 managed switch designed for modern business networks, professional workspaces, surveillance deployments, wireless networks, and high-performance PoE applications. Featuring 8 Gigabit Ethernet RJ45 ports, 6 PoE+ ports, 2 PoE++ ports, and 2 10G SFP+ uplink ports, the USW-Pro-8-PoE provides flexible wired connectivity and high-speed uplink capability in a compact desktop or wall-mountable design. With 120 W total PoE availability, PoE+ and PoE++ output, Layer 3 networking features, a 1.3-inch touchscreen, UniFi Network management, and 10G SFP+ connectivity, the Pro 8 PoE is suitable for powering compatible access points, IP cameras, VoIP phones, security devices, and other PoE-enabled equipment. Its combination of Gigabit Ethernet switching, 10G uplinks, advanced network management, and compact form factor makes it a practical solution for growing business and professional networks.

Key Features

• 8-Port Gigabit Ethernet Switch: Provides 8 × 1GbE RJ45 ports for reliable wired network connectivity.
• PoE+ & PoE++ Output: Includes 6 PoE+ ports and 2 PoE++ ports for powering compatible network devices.
• 120 W PoE Availability: Provides up to 120 W of total available PoE power for connected devices.
• 10G SFP+ Uplinks: Includes 2 × 10G/1G SFP+ ports for high-speed fiber or compatible uplink connections.
• Layer 3 Switching: Supports advanced network functions including inter-VLAN routing, DHCP server, DHCP relay, and static routing.
• 1.3" Touchscreen: Features an integrated 1.3-inch touchscreen for convenient device information and status visibility.
• UniFi Network Management: Designed for centralized management through the UniFi Network platform.
• Compact Desktop & Wall Design: Can be deployed on a desktop or mounted on a wall for flexible installation.
• Advanced Network Features: Supports VLANs, LACP, STP/RSTP, IGMP Snooping, 802.1X, ACLs, port isolation, DHCP snooping, and other network controls.

Technical Specifications

• Brand: Ubiquiti
• Series: UniFi
• Model: USW-Pro-8-PoE
• Product Type: 8-Port Layer 3 Managed PoE Switch
• Ethernet Ports: 8 × 1GbE RJ45 (1G/100M/10M)
• PoE+ Ports: 6
• PoE++ Ports: 2
• 10G SFP+ Ports: 2 × 10G/1G
• Total PoE Availability: 120W
• Maximum PoE Output: Up to PoE++
• Maximum PoE Wattage per Port: 15.4W PoE, 32W PoE+, 64W PoE++
• Layer 3 Support: Yes
• Switching Capacity: 56 Gbps
• Total Non-Blocking Throughput: 28 Gbps
• Forwarding Rate: 42 Mpps
• Supported VLANs: Up to 1,000
• MAC Address Table: 16,000 entries
• IPv4 Static Routes: 256
• Packet Buffer: 1.5 MB
• LCM Display: 1.3" touchscreen
• Management: Ethernet AR
• Power Supply: Internal AC/DC, 150W
• Power Input: 100–240V AC, 50/60Hz
• Maximum Power Consumption: 30W excluding PoE output; 150W including PoE output
• Dimensions: 200 × 248 × 44 mm (7.9 × 9.8 × 1.7")
• Weight: 2.1 kg (4.6 lb)
• Form Factor: Compact desktop, wall
• Enclosure Material: Polycarbonate and metal
• Operating Temperature: -5 to 45°C (23 to 113°F)
• Operating Humidity: 10–90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel
• Required Software: UniFi Network Version 7.5.176 or later

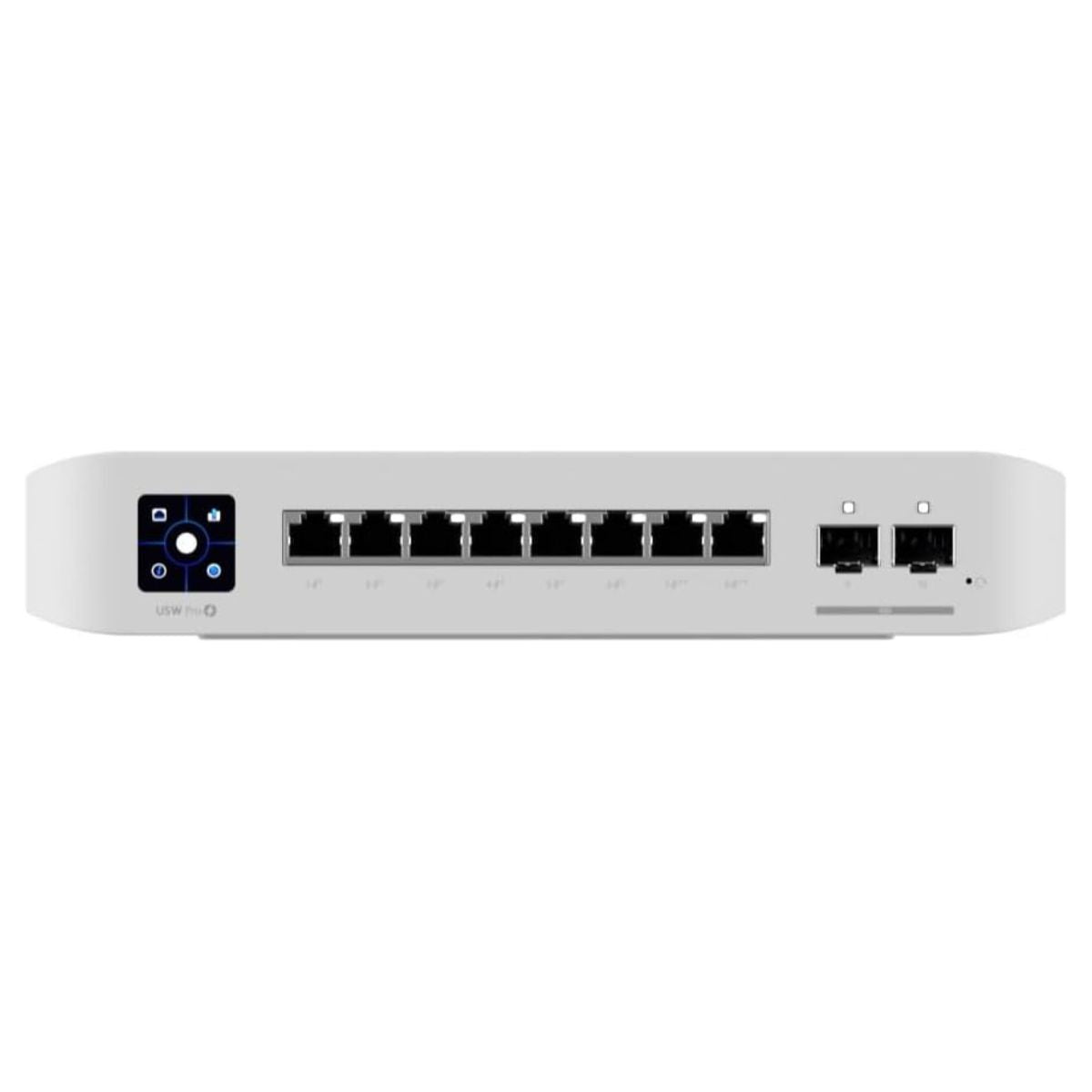

8-Port Gigabit Ethernet Switching

The USW-Pro-8-PoE provides 8 × 1GbE RJ45 Ethernet ports for connecting computers, access points, IP cameras, VoIP phones, network storage devices, and other wired equipment. The ports support 1GbE, 100Mbps, and 10Mbps connections, providing flexible compatibility with different network devices and infrastructure.

PoE+ and PoE++ Power Delivery

With 6 PoE+ ports and 2 PoE++ ports, the Pro 8 PoE can deliver power and network connectivity through a single Ethernet cable to compatible devices. The switch provides 120W of total PoE availability, while individual ports can provide up to 32W through PoE+ and up to 64W through PoE++ depending on the connected device and power standard.

This makes the switch suitable for powering compatible UniFi access points, IP surveillance cameras, VoIP phones, security equipment, and other PoE-enabled network devices without requiring separate power adapters for every connected device.

10G SFP+ High-Speed Uplinks

The integrated 2 × 10G/1G SFP+ ports provide high-speed uplink connectivity for compatible fiber modules, direct-attach cables, and other SFP+ networking solutions. These uplink interfaces can help connect the Pro 8 PoE to higher-capacity network infrastructure, aggregation switches, servers, or core network equipment.

With 10G SFP+ connectivity alongside Gigabit Ethernet access ports, the Pro 8 PoE is designed to provide a practical balance between high-speed network uplinks and standard wired device connectivity.

Layer 3 Managed Switching

The Ubiquiti Pro 8 PoE supports Layer 3 networking capabilities for more advanced network deployments. Supported features include inter-VLAN routing, static routing, DHCP server, and DHCP relay, allowing network administrators to create and manage segmented networks with greater flexibility.

Layer 3 capabilities can be particularly useful for business networks that separate departments, guest access, surveillance equipment, voice devices, and other network resources into different VLANs while maintaining controlled communication between network segments.

1.3" Touchscreen Display

The integrated 1.3-inch touchscreen display provides convenient access to device information and status directly from the switch. This local display can make it easier to check basic switch information without relying entirely on a computer or mobile management interface.

Advanced Network Management and Security

The Pro 8 PoE supports a broad range of network management and security functions, including VLANs, LACP port aggregation, STP/RSTP, IGMP Snooping, 802.1X control, MAC-based ACLs, IP-based ACLs, DHCP Snooping, port isolation, port mirroring, storm control, flow control, and network isolation.

These features provide administrators with additional control over network traffic, device access, segmentation, redundancy, and overall network operation. When integrated into a compatible UniFi Network environment, the switch can be centrally configured and monitored as part of a wider managed network.

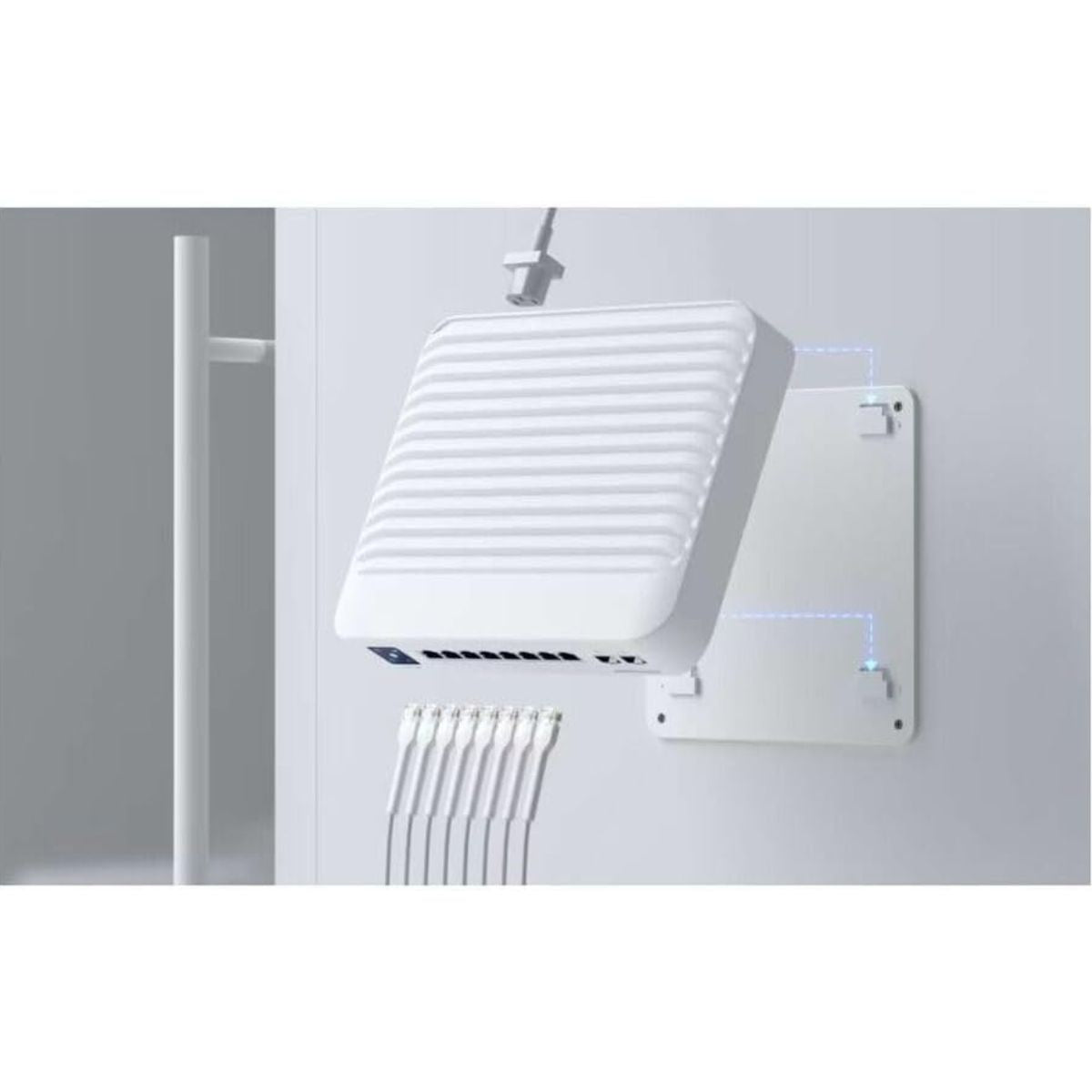

Compact Desktop and Wall-Mountable Design

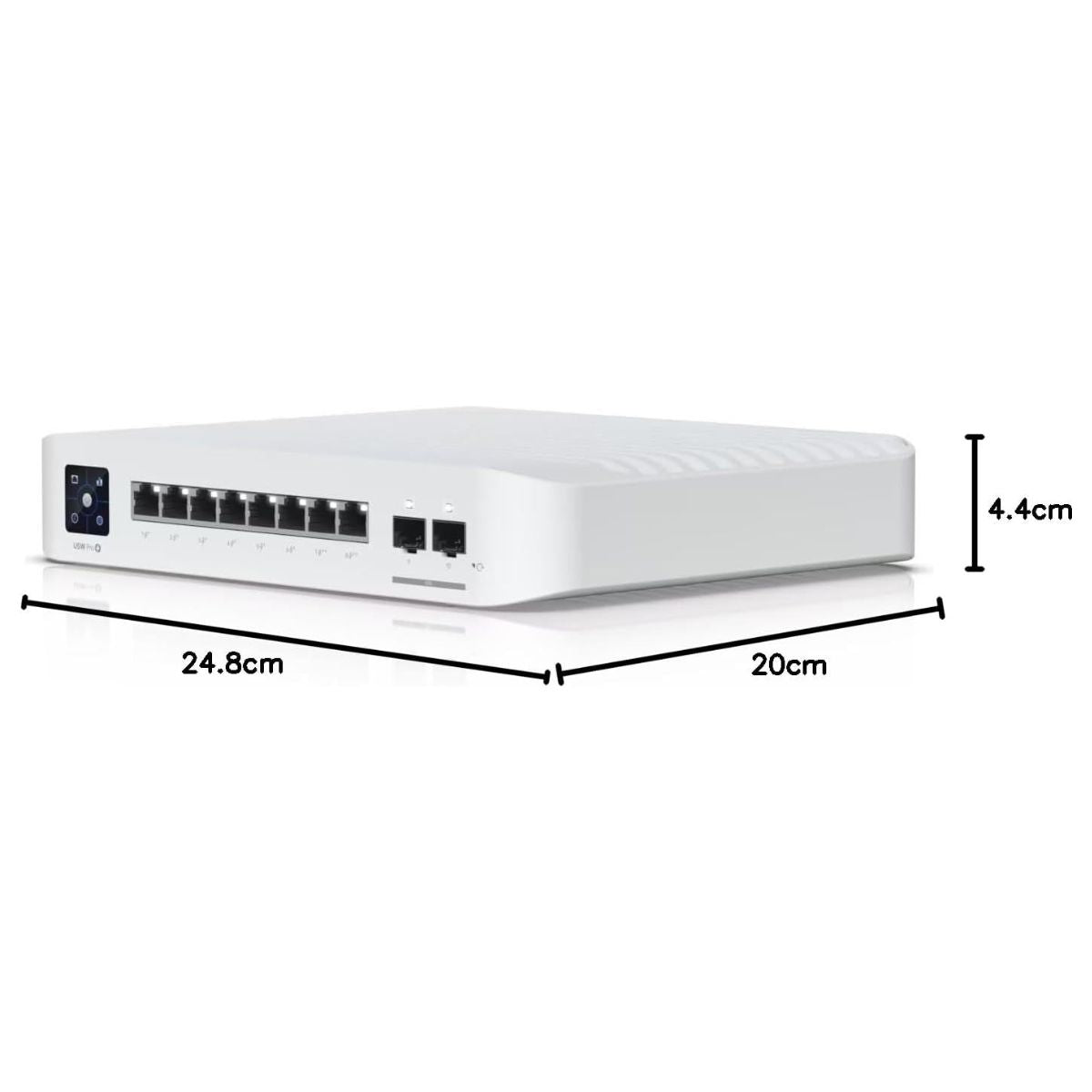

The USW-Pro-8-PoE features a compact form factor designed for both desktop and wall deployments. Measuring approximately 200 × 248 × 44 mm, it can be installed in locations where a larger rack-mounted switch may not be practical.

The flexible deployment design makes the Pro 8 PoE suitable for offices, retail environments, small server rooms, network cabinets, surveillance installations, and other professional spaces where efficient use of physical space is important.

Ideal Applications

• Business Networks: Build and manage reliable wired networks for offices and commercial environments.
• Wi-Fi Infrastructure: Provide Ethernet connectivity and PoE power to compatible wireless access points.
• IP Surveillance: Connect and power compatible PoE security cameras and surveillance devices.
• VoIP Systems: Provide network connectivity and PoE power for compatible IP phones.
• Small Server Rooms: Provide Gigabit Ethernet access with high-speed 10G SFP+ uplinks.
• Retail & Commercial Deployments: Connect POS systems, access points, cameras, computers, and other network devices.
• Network Segmentation: Use VLAN and Layer 3 capabilities to organize and isolate different network environments.
• Professional UniFi Networks: Integrate the switch into a UniFi-managed networking environment.

Benefits

• Powerful PoE Capacity: 120W total PoE availability supports multiple compatible PoE devices.
• PoE+ & PoE++ Flexibility: Combines 6 PoE+ ports with 2 higher-power PoE++ ports.
• High-Speed Uplinks: Dual 10G SFP+ ports provide high-bandwidth uplink options.
• Layer 3 Networking: Supports routing and network services for more advanced deployments.
• Advanced Security: Includes VLANs, ACLs, 802.1X, device isolation, DHCP protection, and port controls.
• Compact Deployment: Desktop and wall-mountable form factor provides installation flexibility.
• Local Touchscreen: 1.3-inch touchscreen provides convenient on-device status information.
• Professional Network Management: Designed for integration with the UniFi Network management ecosystem.

Why Choose Ubiquiti UniFi Pro 8 PoE

• 8-Port Layer 3 Switching: Provides Gigabit Ethernet connectivity with advanced network management capabilities.
• 120W PoE Availability: Provides substantial PoE capacity for compatible access points, cameras, phones, and network devices.
• PoE++ Support: Two PoE++ ports can deliver up to 64W per port according to the specified PSE output.
• 10G SFP+ Uplinks: Provides two high-speed interfaces for connecting to faster network infrastructure.
• UniFi Ecosystem: Designed for centralized management through compatible UniFi Network software.
• Professional Design: Compact desktop and wall-mountable form factor suits modern business and commercial installations.

Important Considerations

• PoE Budget: The total available PoE power is 120W. Actual available power for connected devices depends on the combined power requirements of all PoE devices.
• PoE Compatibility: PoE+ and PoE++ output should be used with devices that support the corresponding power standards.
• Port Speeds: The 8 RJ45 ports support up to 1GbE, while the two SFP+ interfaces support up to 10Gbps when used with compatible equipment.
• 10G Uplink Equipment: SFP+ modules, DAC cables, or compatible accessories may be required depending on the intended uplink configuration.
• UniFi Network Software: Ubiquiti specifies UniFi Network Version 7.5.176 or later as the application requirement for this device.
• Layer 3 Features: Advanced routing and network functions should be configured according to the requirements of the network environment.
• Installation: Ensure adequate ventilation and suitable mounting conditions when installing the switch in a wall or enclosed networking location.
