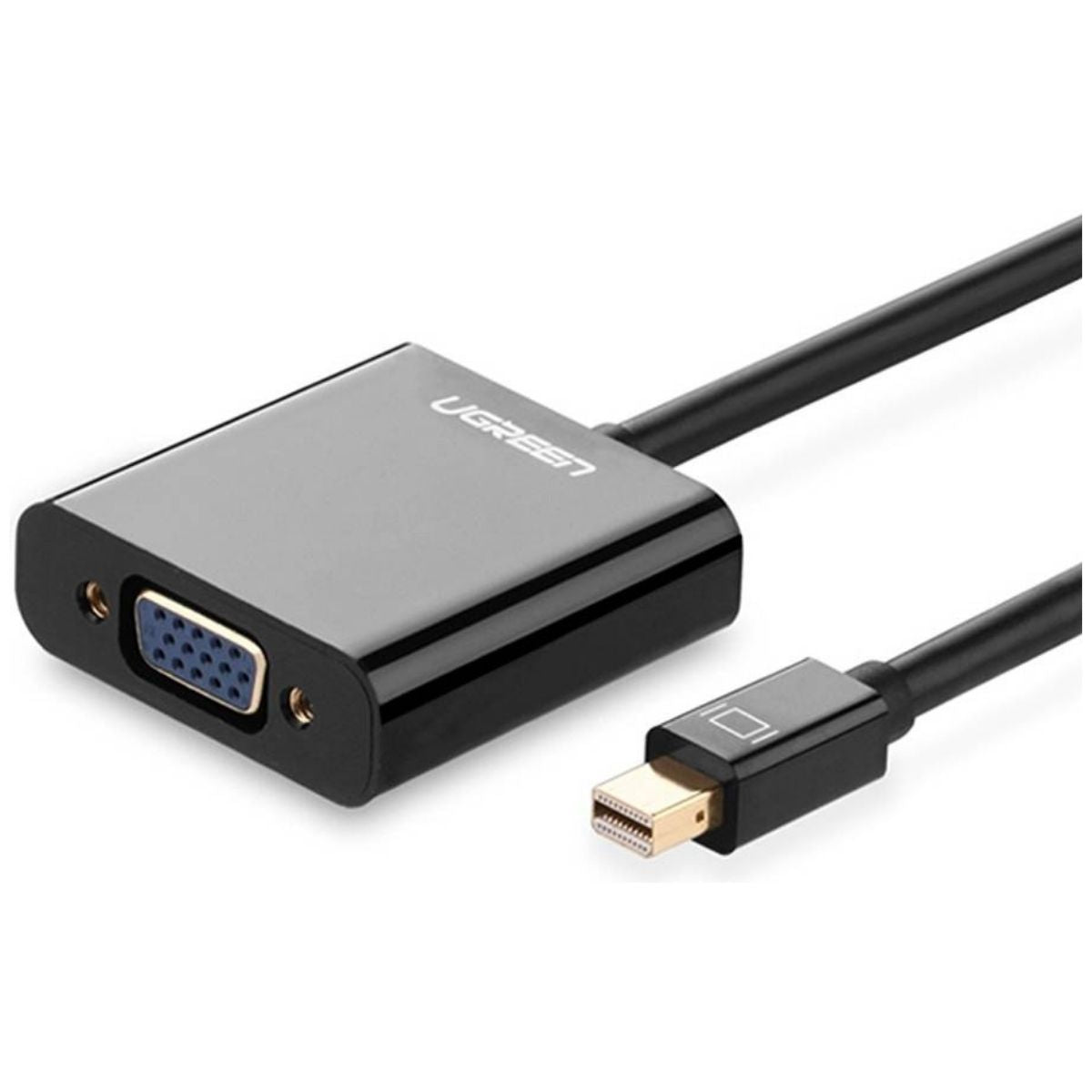

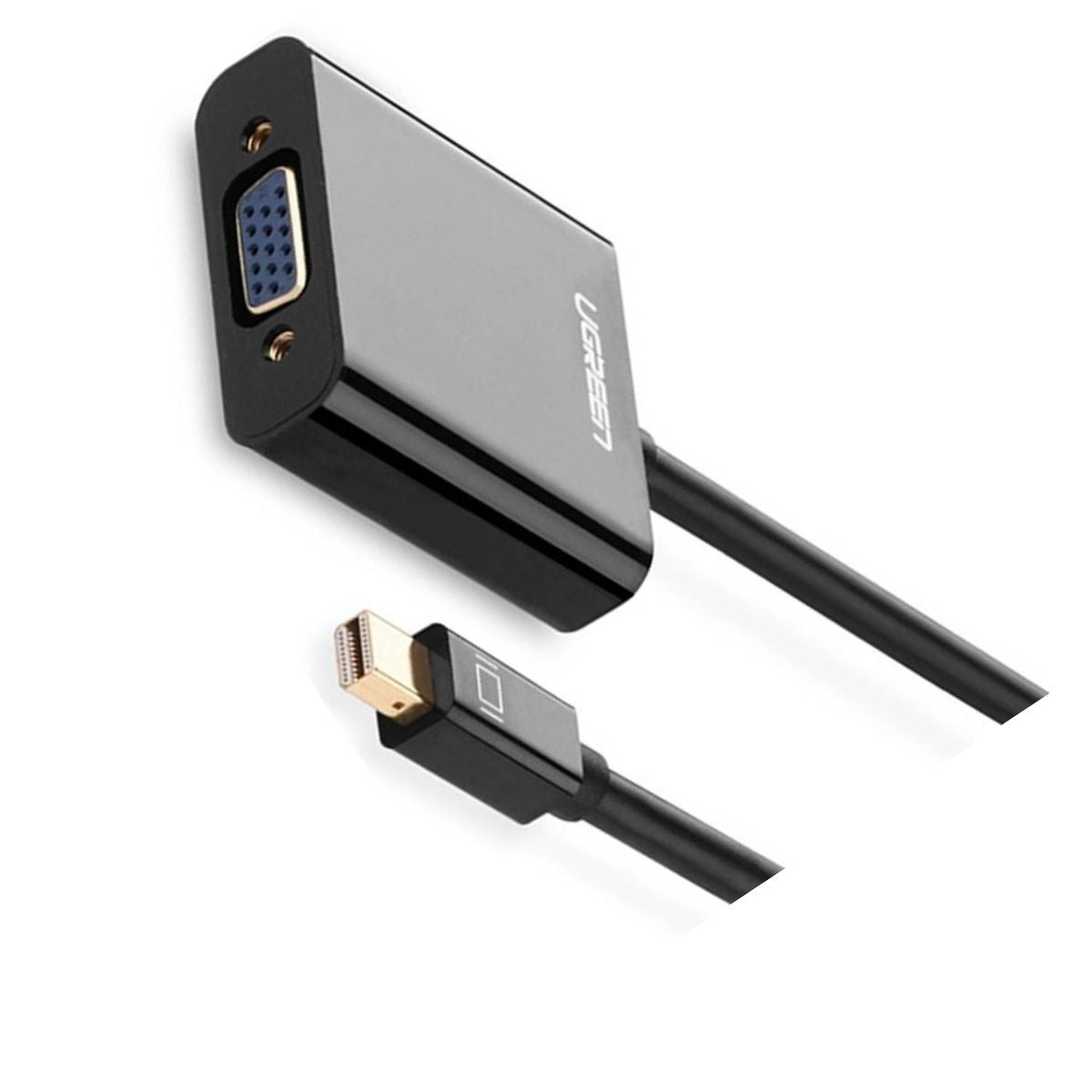

UGREEN MD113 Mini DisplayPort to VGA Converter | 1080P Full HD | Mini DP Male to VGA Female | 15cm | Black | 10459

UGREEN MD113 Mini DisplayPort to VGA Converter | 1080P Full HD | Mini DP Male to VGA Female | 15cm | Black | 10459

The UGREEN MD113 Mini DisplayPort to VGA Converter (10459) is a compact video adapter designed to connect a compatible computer, Mac, tablet, or other device with a Mini DisplayPort output to a monitor, projector, LCD display, or other screen equipped with a VGA input. It converts the digital Mini DisplayPort video signal to an analogue VGA output and supports resolutions of up to 1920 × 1080 (1080P). The adapter features a Mini DisplayPort male connector on the source side and a VGA female connector on the display side. A separate VGA male-to-male cable is required to connect the adapter to the VGA display. The compact approximately 15cm design makes it convenient for desktop, office, presentation, and legacy-display setups. The UGREEN MD113 10459 provides a practical solution for connecting newer computers and compatible devices that still use Mini DisplayPort to older monitors, projectors, and displays that rely on the VGA interface. It is particularly useful for users who need to connect a compatible Mac, PC, tablet, or Mini DisplayPort-equipped computer to an existing VGA monitor or projector without replacing the display equipment. The adapter supports video output up to 1920 × 1080 and uses a straightforward plug-and-play design.

Key Features

• Mini DisplayPort to VGA: Converts video from a compatible Mini DisplayPort source to a VGA display.
• 1080P Full HD: Supports resolutions up to 1920 × 1080 under compatible conditions.
• Mini DP Male to VGA Female: Provides a Mini DisplayPort male source connector and VGA female output connector.
• One-Way Conversion: Designed specifically for Mini DisplayPort-to-VGA video output and is not a bidirectional adapter.
• Compact 15cm Design: Short cable construction helps keep the adapter neat and practical for desktop and portable setups.
• Plug & Play: Designed for simple connection without requiring a separate driver for the adapter.
• Legacy Display Compatibility: Allows compatible Mini DisplayPort devices to connect to VGA-equipped monitors and projectors.
• Compact Black Housing: Suitable for professional office, classroom, home, and presentation environments.

Technical Specifications

• Brand: UGREEN
• Model: MD113
• Part Number: 10459
• Product Type: Mini DisplayPort to VGA Converter
• Input: Mini DisplayPort Male
• Output: VGA Female / HD15
• Maximum Resolution: Up to 1920 × 1080 (1080P)
• Mini DisplayPort Standard: Mini DisplayPort 1.1a
• Cable Length: Approximately 15cm
• Signal Direction: Mini DisplayPort to VGA
• Conversion Type: Digital Mini DisplayPort video to analogue VGA
• Audio: Not transmitted through VGA
• Installation: Plug & Play
• Color: Black

Ideal Applications

• Connecting a compatible Mac to a VGA monitor.
• Connecting a Mini DisplayPort-equipped PC to an older VGA display.
• Connecting compatible laptops to VGA projectors.
• Office presentation and meeting-room setups.
• Classroom and training-room projector installations.
• Connecting legacy VGA monitors to compatible computers.
• Extending or mirroring a compatible computer display.
• Using existing VGA monitors instead of replacing them.
• Home-office and workstation setups.
• Business environments with legacy VGA display equipment.

Why Choose UGREEN MD113 10459

• Simple Video Conversion: Provides a direct connection from a compatible Mini DisplayPort source to a VGA display.
• Full HD Support: Supports up to 1920 × 1080 resolution under compatible conditions.
• Compact Form Factor: Approximately 15cm in length, making it easy to install and carry.
• Legacy Display Support: Helps extend the usable life of VGA monitors and projectors.
• Plug & Play: Convenient for quick installations without dedicated adapter software.
• One-Way Design: Purpose-built for Mini DisplayPort-to-VGA conversion.
• Professional Use: Suitable for offices, schools, meeting rooms, training centers, and presentation environments.

How to Use

1. Connect the Mini DisplayPort male connector to the Mini DisplayPort output of the compatible source device.
2. Connect a separate VGA male-to-male cable to the VGA female connector on the UGREEN adapter.
3. Connect the other end of the VGA cable to the VGA input of the monitor or projector.
4. Turn on the source device and display.
5. Select the appropriate VGA input on the display if required.
6. Configure duplicate or extended display mode through the operating system if necessary.

Compatibility Note

The UGREEN MD113 10459 is a one-way Mini DisplayPort-to-VGA adapter. It cannot convert a VGA source to a Mini DisplayPort display.

The source device must provide a compatible Mini DisplayPort video output. The Mini DisplayPort-shaped connector used by older Thunderbolt 1/2 devices should not be confused with USB-C-shaped Thunderbolt 3/4 or USB4 ports. USB-C devices require a different type of adapter.

The VGA output supports up to 1920 × 1080 under compatible conditions. Actual resolution, refresh rate, image quality, and available display modes depend on the source graphics hardware, operating system, adapter, separate VGA cable, and receiving display.

The adapter provides video output only. VGA is an analogue video interface and does not carry digital audio through this connection. A separate audio connection may therefore be required when audio is needed.

A VGA male-to-male cable is required separately because the adapter provides a VGA female output. The cable is not listed as part of the adapter itself.

The adapter does not convert Mini DisplayPort into HDMI, DVI, DisplayPort, USB-C, or another digital interface. It is specifically intended for connecting a compatible Mini DisplayPort video source to a VGA display.

Display Configuration

When connected to a compatible computer, the adapter can be used for supported duplicate/mirrored or extended-display configurations. The available display modes depend on the source device, graphics hardware, operating system, and connected VGA display.

For the most reliable connection, use a good-quality VGA cable and ensure that both the source device and display support the desired resolution and refresh rate. If a high-resolution mode is unavailable, selecting a lower supported resolution can help establish a stable connection.

Package Contents

• 1 × UGREEN MD113 Mini DisplayPort to VGA Converter – 10459
• VGA Cable: Not included; required separately

Why Buy from IT Splendid (UAE)

• UAE Delivery: Available across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, and other Emirates.
• Display Accessories: Shop Mini DisplayPort, DisplayPort, HDMI, VGA, DVI, USB-C adapters, cables, converters, switches, and connectivity accessories.
• Office Connectivity: Suitable for business monitors, projectors, conference rooms, classrooms, and presentation systems.
• Legacy Display Solutions: Practical for businesses that continue to use VGA monitors and projectors.
• Professional Support: Assistance with display adapters, cables, monitors, projectors, laptops, and interface compatibility.
• Complete Technology Solutions: IT Splendid offers computers, laptops, monitors, storage, networking equipment, gaming products, peripherals, cables, and office technology.

The UGREEN MD113 Mini DisplayPort to VGA Converter 10459 is a practical choice for connecting compatible Mini DisplayPort computers and devices to existing VGA monitors and projectors. With 1080P Full HD support, Mini DisplayPort male to VGA female connectivity, compact 15cm construction, one-way conversion, and plug-and-play installation, it provides a convenient solution for office, education, presentation, home-office, and legacy-display applications.
