ViewSonic ViewBoard IFP6552-2F 65-Inch 4K UHD Interactive Display | 40-Point Touch | Android 13 EDLA | 8GB RAM | 64GB

ViewSonic ViewBoard IFP6552-2F 65-Inch 4K UHD Interactive Display | 40-Point Touch | Android 13 EDLA | 8GB RAM | 64GB

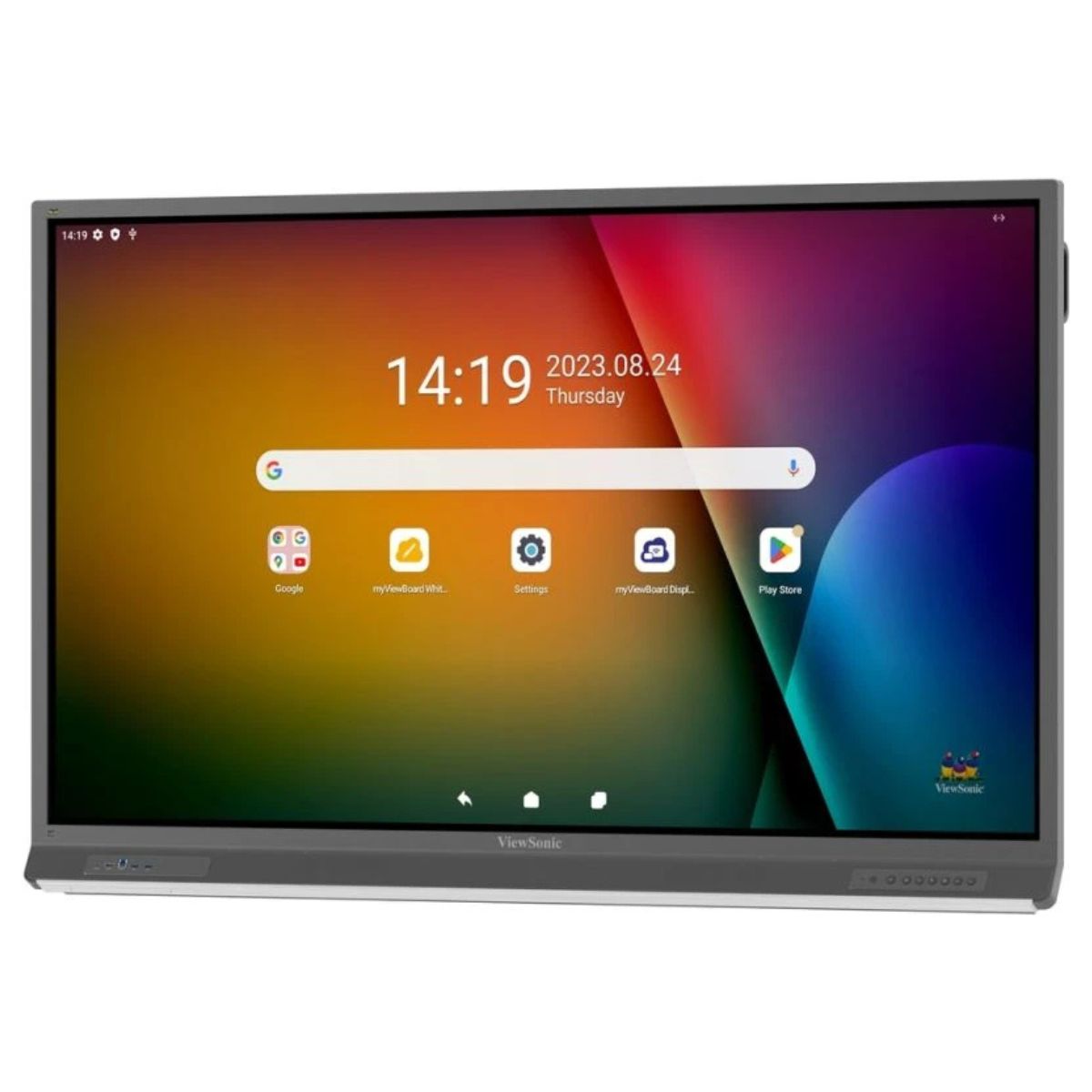

The ViewSonic ViewBoard IFP6552-2F is a 65-inch 4K UHD interactive display designed for modern classrooms, training rooms, meeting spaces, and collaborative learning environments. It combines a high-resolution VA panel with DLED backlighting, Ultra Fine Touch technology, an octa-core processor, 8GB RAM, 64GB storage, and an EDLA-certified Android 13 platform with Google Play Store access. Designed to support interactive teaching and collaboration, the IFP6552-2F provides 40-point touch capability on Windows and 20-point touch on Android, dual-pen support, an 8-microphone array, integrated front-facing speakers with a dedicated subwoofer, triple USB-C connectivity, wireless casting support, and an OPS slot for compatible slot-in PCs. Its 7H anti-glare surface, flicker-free technology, blue-light filter, and extensive connectivity make it suitable for professional education and collaboration installations.

Key Features

• 65-Inch 4K UHD Display: 3840 x 2160 resolution provides detailed content for lessons, presentations, videos, documents, and collaborative work.
• VA Panel with DLED Backlight: Delivers a 4000:1 typical contrast ratio and 178° viewing angles.
• Ultra Fine Touch Technology: Supports up to 40 simultaneous touch points on Windows and 20 touch points on Android.
• Dual-Pen Support: Enables multiple users to write, annotate, and collaborate directly on the display.
• EDLA-Certified Android 13: Provides Google Play Store access and support for compatible Google applications.
• 8GB RAM and 64GB Storage: Provides the hardware platform for Android applications and interactive workflows.
• Octa-Core Processor: Uses a combination of ARM Cortex-A73 and Cortex-A53 cores for interactive system performance.
• 8-Microphone Array: Integrated microphones with advanced noise detection and cancellation support hybrid and remote learning.
• 30W Integrated Audio: 15W x 2 front speakers plus a 15W subwoofer provide enhanced built-in sound.
• Triple USB-C Connectivity: Supports streamlined multimedia, data, display, Ethernet, and charging functions depending on the individual port.
• Wireless Screen Casting: Supports myViewBoard Display, vCast, and AirSync-compatible workflows.
• OPS Expansion: Integrated slot supports compatible ViewSonic slot-in PCs.
• Flicker-Free and Blue-Light Filter: Designed to provide a more comfortable viewing experience during extended sessions.
• 7H Anti-Glare Surface: Helps reduce reflections and provides a durable surface for frequent interactive use.
• Dual Gigabit LAN: Provides network connectivity for the display and compatible slot-in PC workflows.

Technical Specifications

• Brand: ViewSonic
• Product Series: ViewBoard IFP52-2F
• Model: IFP6552-2F
• Display Size: 65 inches
• Panel Type: TFT LCD with DLED Backlight, VA
• Display Area: 1428.48 x 803.52 mm
• Aspect Ratio: 16:9
• Resolution: UHD 3840 x 2160 pixels
• Colour Support: 1.07 billion colours
• Brightness: 350 nits typical
• Contrast Ratio: 4000:1 typical; 5000:1 minimum with DCR enabled
• Response Time: ≤7ms
• Viewing Angle: 178° horizontal / 178° vertical
• Backlight Life: 50,000 hours typical
• Surface Hardness: 7H
• Surface Treatment: Anti-glare coating
• Orientation: Landscape
• Processor: Octa-Core CPU, A73 x4 + A53 x4
• RAM: 8GB
• Storage: 64GB
• Operating System: Android 13
• EDLA: Enterprise Device Licensing Agreement certified
• Touch Technology: UFT (Ultra Fine Touch) Technology
• Touch Resolution: 32767 x 32767
• Touch Points: Windows 40 points / Android 20 points
• HDMI Inputs: 3 x, front HDMI 2.0 with CEC; rear HDMI 2.1 with CEC/ARC and HDMI 2.0 with CEC
• HDMI Output: 1 x
• DisplayPort Input: 1 x
• VGA Input: 1 x
• PC Audio Input: 1 x
• Audio Output: 1 x earphone out
• SPDIF: 1 x
• RS232: 1 x
• RJ45 LAN: 2 x
• USB 3.0 Type-A: 4 x
• USB 2.0 Type-A: 1 x
• USB 3.0 Type-B: 3 x touch interfaces
• USB Type-C: 3 x
• Front USB-C: USB 3.0, DisplayPort 1.2, Ethernet 100M, PD 65W
• Rear USB-C: USB 3.0, DisplayPort 1.2, Ethernet 100M, PD 100W
• Rear USB-C Data Port: USB 3.0 data only
• OPS Slot: 1 x
• Speakers: 15W x 2 front soundbar + 15W x 1 subwoofer
• Microphones: Built-in 8-microphone array
• Wireless Presentation: myViewBoard Display, vCast, AirSync
• Light Sensor: Yes
• Power Input: 100–240VAC ±10%
• Power Consumption: 91.41W Energy Star; less than 0.5W off mode
• VESA Mount: 500 x 400 mm
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20%–80% RH, non-condensing
• Physical Dimensions: 1502.7 x 948.66 x 122.18 mm
• Packaging Dimensions: 1618 x 1060 x 225 mm
• Net Weight: 59 kg
• Gross Weight: 68 kg

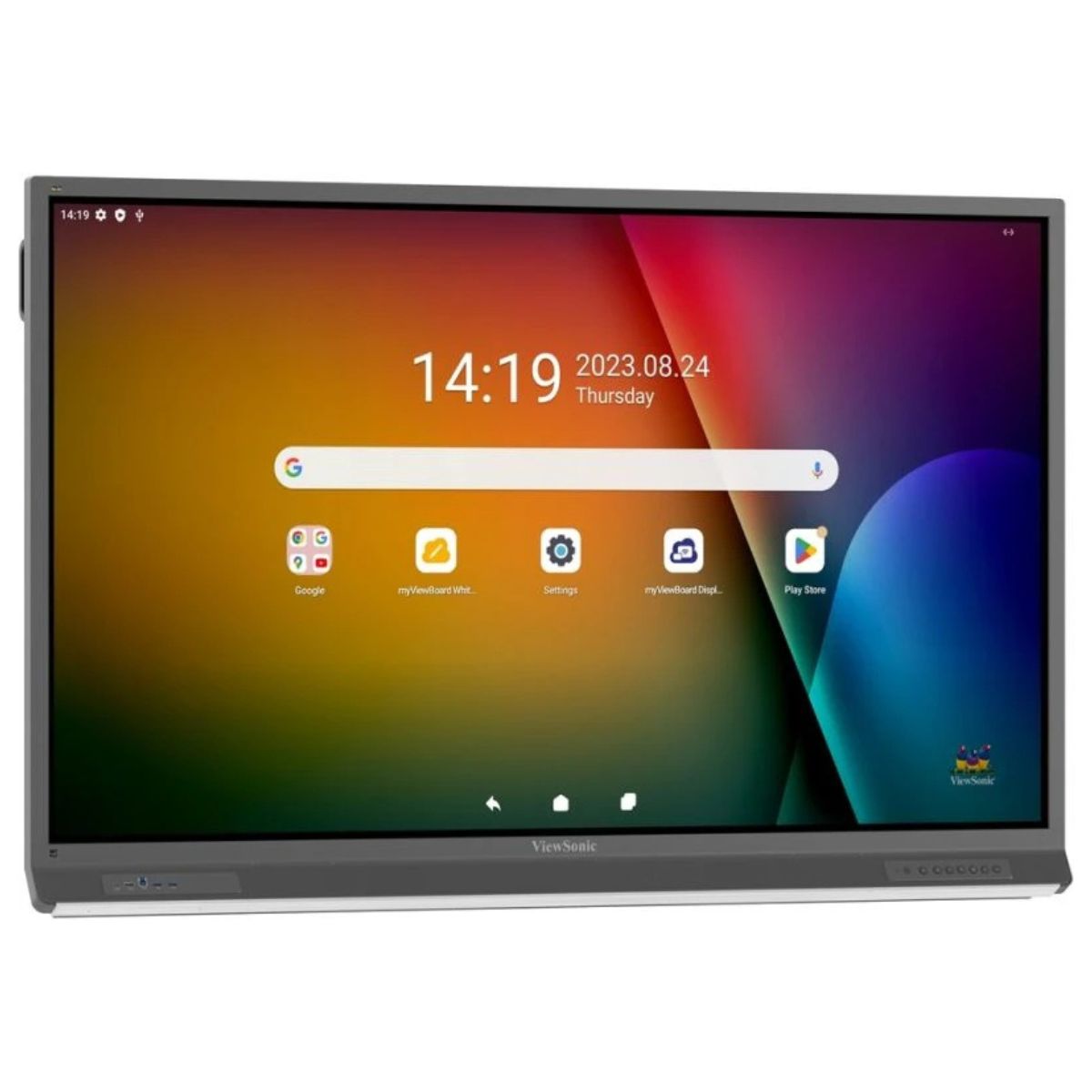

65-Inch 4K UHD Interactive Display

The IFP6552-2F features a 65-inch 4K UHD display with 3840 x 2160 resolution, 1.07 billion colours, 350-nit typical brightness, and a 4000:1 typical contrast ratio. The VA panel provides 178° horizontal and vertical viewing angles, while the DLED backlight offers a rated lifespan of approximately 50,000 hours.

The display also features a 7H anti-glare surface to help reduce reflections in classrooms and meeting spaces. Its ≤7ms response time supports responsive display performance for interactive lessons, presentations, video content, and digital whiteboarding.

Ultra Fine Touch and Dual-Pen Collaboration

ViewSonic's Ultra Fine Touch technology provides up to 40 simultaneous touch points when connected to Windows and up to 20 touch points under Android. This allows multiple users to interact with the display for collaborative annotation, brainstorming, digital whiteboarding, and interactive lessons.

The IFP6552-2F also supports dual-pen interaction, providing a natural writing and annotation experience for teachers, students, trainers, and meeting participants.

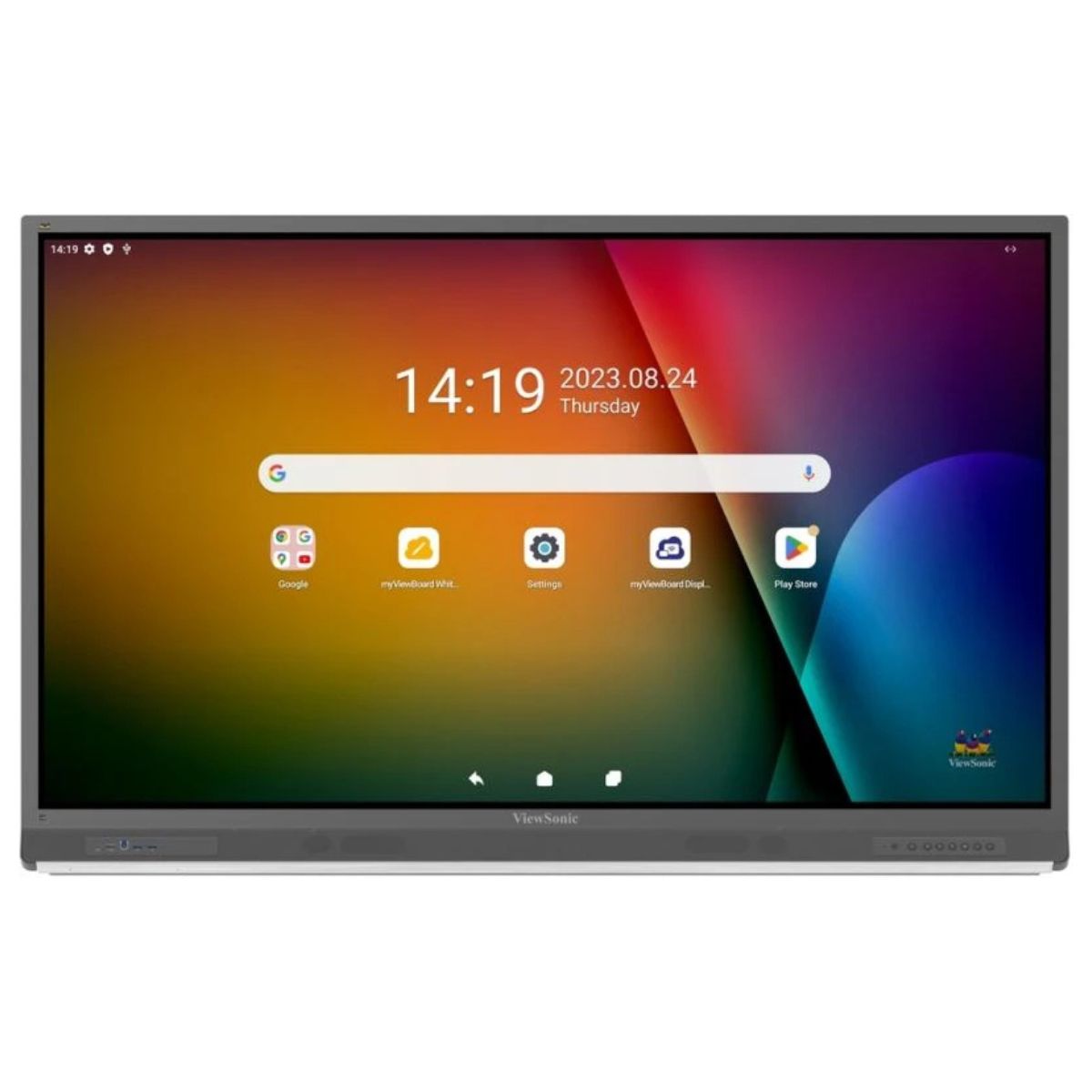

Android 13 with EDLA Certification

The integrated Android 13 platform is EDLA certified, providing access to the Google Play Store and compatible Google applications. Users can access tools such as Chrome, YouTube, Google Search, and supported Google Workspace applications directly from the interactive display.

The Android environment also supports customizable widgets and applications, while EDLA certification provides security and application update capabilities designed for managed educational environments.

Octa-Core Processing, 8GB RAM and 64GB Storage

The ViewBoard is equipped with an octa-core processor using four A73 and four A53 cores, together with 8GB RAM and 64GB internal storage. This hardware provides the foundation for interactive Android applications, digital whiteboarding, presentations, media playback, and classroom collaboration workflows.

Triple USB-C Connectivity

One of the key features of the IFP6552-2F is its three USB-C ports. The front USB-C port supports USB 3.0, DisplayPort 1.2, 100M Ethernet, and up to 65W Power Delivery. A rear USB-C port supports USB 3.0, DisplayPort 1.2, 100M Ethernet, and up to 100W Power Delivery, while another rear USB-C port provides USB 3.0 data functionality.

This connectivity design can simplify classroom and meeting-room setups by allowing compatible laptops and other devices to connect using fewer cables.

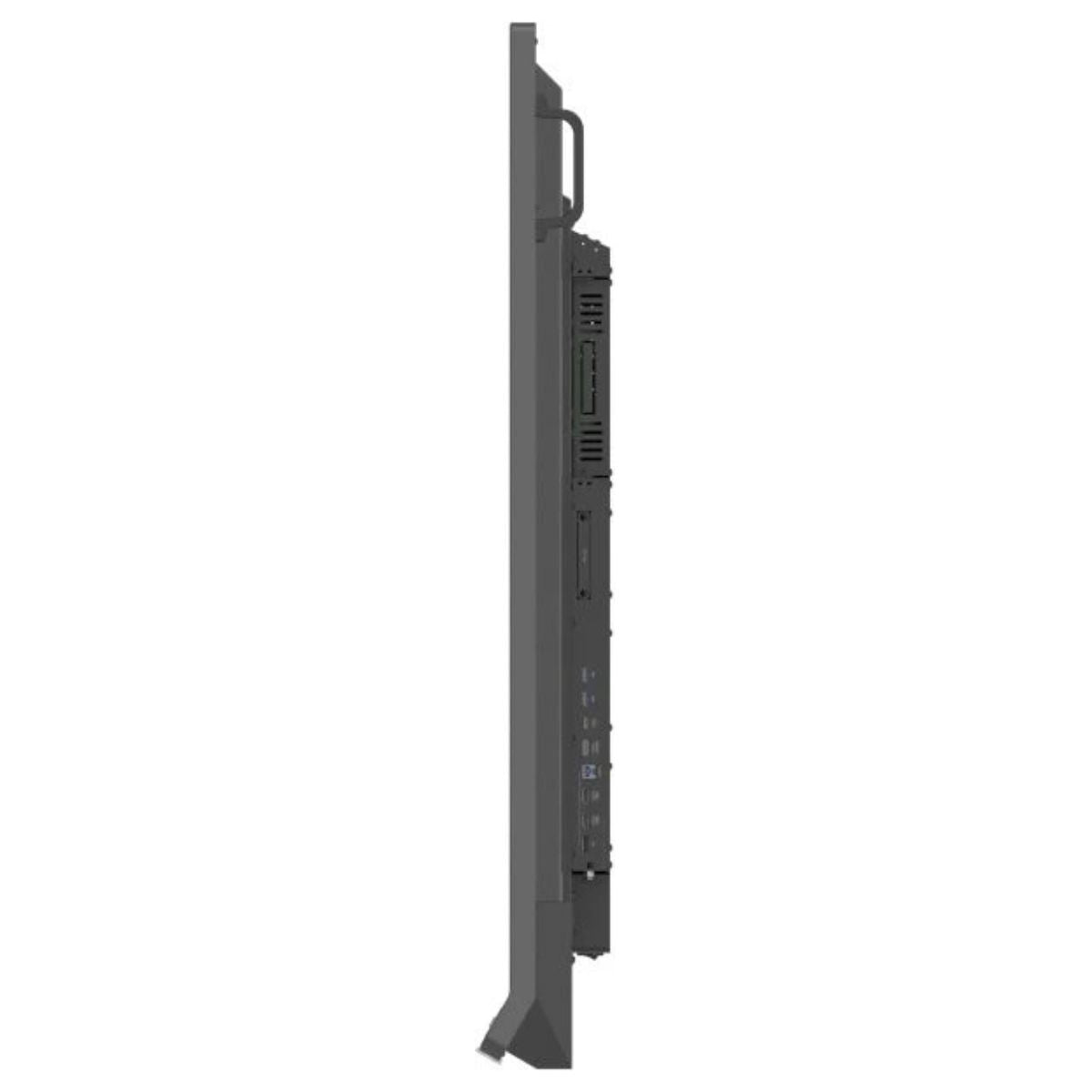

Professional Connectivity and OPS Expansion

The ViewBoard provides extensive connectivity through three HDMI inputs, HDMI output, DisplayPort, VGA, multiple USB ports, USB-C, dual RJ45 LAN, RS232, SPDIF, and audio interfaces. The HDMI configuration includes front HDMI 2.0 and rear HDMI connections supporting HDMI 2.1/2.0 features depending on the port.

An integrated OPS module slot allows the display to be expanded with compatible ViewSonic slot-in PCs. This provides an option for organizations that require a dedicated Windows computing environment alongside the built-in Android platform.

8-Microphone Array for Hybrid Learning

The IFP6552-2F includes an integrated 8-microphone array with noise detection and cancellation technology. The built-in microphones are designed to support hybrid, remote, and pre-recorded lessons by helping capture voice directly from the display.

This makes the ViewBoard suitable for environments where remote participants need to hear classroom or meeting-room discussion without relying exclusively on external microphones.

Integrated 2.1-Channel Audio

The display incorporates a 15W x 2 front soundbar and 15W subwoofer, providing a combined 45W-rated speaker configuration. The front-facing speakers are designed to deliver sound toward the audience, while the dedicated subwoofer adds additional low-frequency output for multimedia, presentations, videos, and interactive learning content.

Wireless Presentation and Collaboration

The IFP6552-2F supports ViewSonic's myViewBoard Display, vCast, and AirSync wireless presentation ecosystem. myViewBoard Display allows compatible devices to share content through a web browser, while vCast supports simultaneous device casting and collaborative screen-sharing functions.

An optional Wi-Fi module is available for the IFP52-2F series, allowing wireless networking and internet access where required. The exact wireless configuration should therefore be confirmed for the supplied unit.

Eye-Care Features

The IFP6552-2F incorporates flicker-free technology, a blue-light filter, and an anti-glare coating. These features are intended to provide a more comfortable viewing experience during extended classroom, training, and collaboration sessions.

Device Management and Education Software

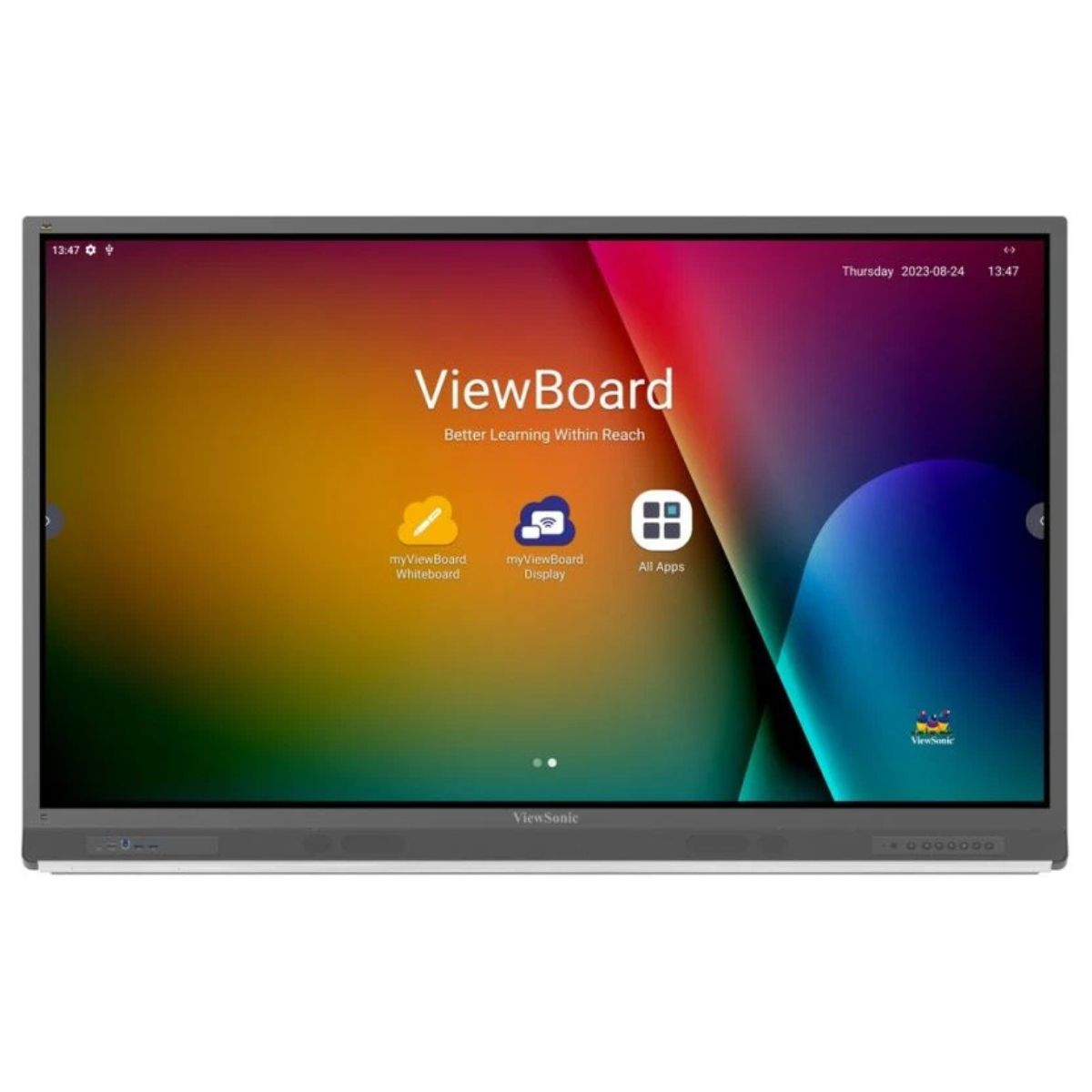

ViewSonic integrates myViewBoard Whiteboard for interactive annotation and lesson activities, while myViewBoard Manager can be used for centralized management of compatible displays. The platform supports remote management functions and can assist educational organizations with device administration and energy management.

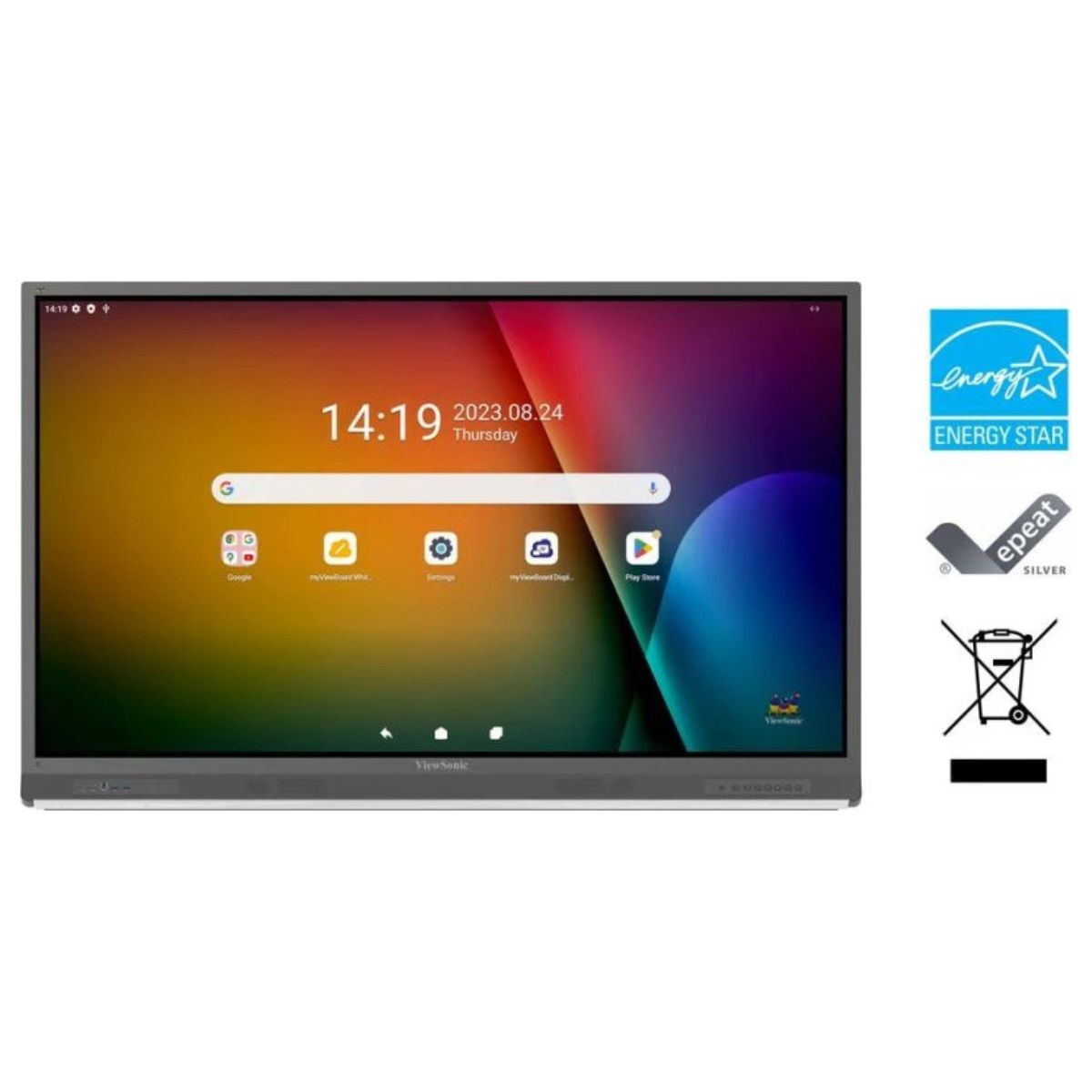

ViewSonic also specifies EPEAT Silver certification for the IFP52-2F series, reflecting its environmental and energy-efficiency considerations.

Ideal Applications

• Schools and Classrooms: Interactive teaching, digital whiteboarding, presentations, multimedia lessons, and collaborative activities.
• Universities: Lectures, demonstrations, presentations, and interactive academic sessions.
• Training Centres: Professional training, workshops, demonstrations, and employee development.
• Corporate Meeting Rooms: Presentations, brainstorming, collaboration, and content sharing.
• Boardrooms: Executive presentations, interactive discussions, and business collaboration.
• Hybrid Learning Spaces: Remote lessons, online collaboration, and interactive content sharing.
• Government and Institutional Offices: Training, presentations, meetings, and information-sharing environments.

Benefits

• Large 4K Workspace: The 65-inch UHD display provides a detailed canvas for presentations, documents, lessons, and multimedia.
• Multi-User Interaction: Up to 40 touch points on Windows enable collaborative interaction between multiple users.
• Google-Certified Android: EDLA-certified Android 13 provides access to compatible Google Play applications and services.
• Flexible USB-C Connectivity: Three USB-C ports simplify device connection, display output, data transfer, networking, and charging.
• Integrated Collaboration Audio: The 8-microphone array and 45W-rated speaker configuration support hybrid learning and multimedia use.
• Professional Connectivity: HDMI, DisplayPort, VGA, USB, LAN, RS232, audio, and OPS interfaces support diverse installation requirements.
• Eye-Care Design: Flicker-free operation, blue-light filtering, and anti-glare treatment support extended viewing sessions.
• Wireless Presentation: ViewSonic casting solutions support content sharing from compatible devices.
• Expandable Computing: The OPS slot allows a compatible slot-in PC to be added for Windows-based workflows.

Why Choose ViewSonic ViewBoard IFP6552-2F?

• 65-Inch 4K UHD Display: Provides a spacious high-resolution canvas for interactive learning and professional collaboration.
• Ultra Fine Touch: Supports 40-point touch on Windows and 20-point touch on Android for multi-user interaction.
• EDLA-Certified Android 13: Provides a Google Play-enabled smart-display environment with security and update support.
• Triple USB-C: Provides flexible one-cable connectivity options for compatible devices.
• Integrated Microphones: The 8-microphone array supports hybrid learning and remote communication workflows.
• Enhanced Audio: Front speakers and a dedicated subwoofer provide integrated 2.1-channel sound.
• OPS Expansion: Compatible slot-in PCs provide an upgrade path for Windows-based interactive computing.
• Education-Focused Ecosystem: myViewBoard, vCast, AirSync, and Manager support teaching, collaboration, casting, and device management.

Important Considerations

• Touch Points: The official specification lists 40 touch points on Windows and 20 touch points on Android. The two figures should not be treated as interchangeable.
• Wi-Fi Module: ViewSonic specifies an optional Wi-Fi module for the IFP52-2F series. Confirm whether wireless networking hardware is included in the supplied configuration.
• OPS Computer: The OPS slot is integrated, but a compatible slot-in PC is an additional configuration unless explicitly included in the purchase package.
• Camera: The display includes a camera plate for compatible camera accessories, but a dedicated camera is not listed as an integrated camera in the standard IFP6552-2F specification.
• Mounting: The display supports a 500 x 400 mm VESA mounting pattern. Ensure the selected wall mount or trolley is rated for the approximately 59 kg net display weight.
• Wireless Casting: Actual wireless casting and network functionality depend on the network environment and applicable wireless hardware/configuration.
• Regional Configuration: This description follows ViewSonic's current Global specification for the IFP6552-2F. Regional configurations and bundled accessories may vary.
