Zebra ZC300 Dual-Sided ID Card Printer | 300 DPI | USB 2.0 & Ethernet | Color LCD | 1500-Image Ribbon | ZC32-000C000EM00

Zebra ZC300 Dual-Sided ID Card Printer | 300 DPI | USB 2.0 & Ethernet | Color LCD | 1500-Image Ribbon | ZC32-000C000EM00

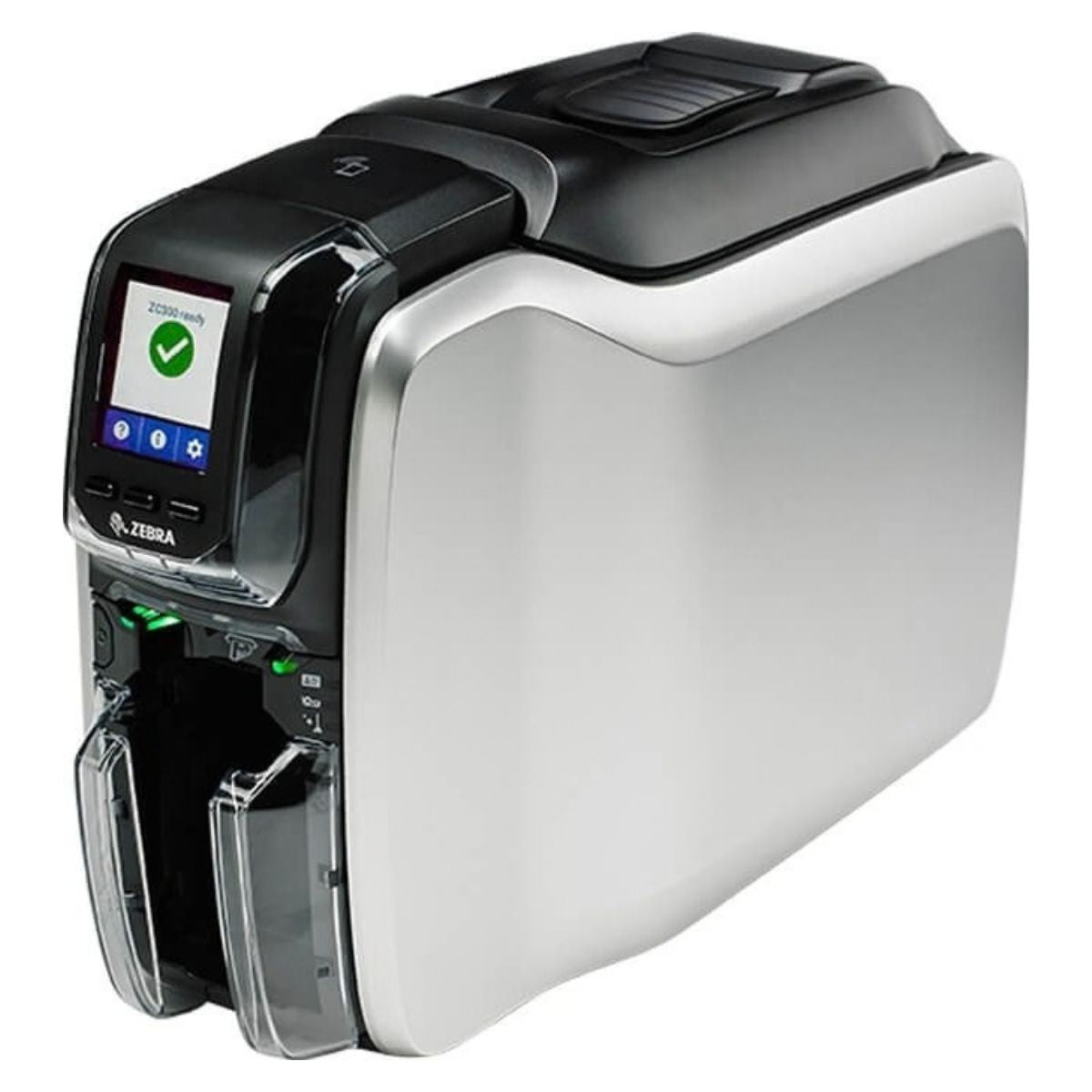

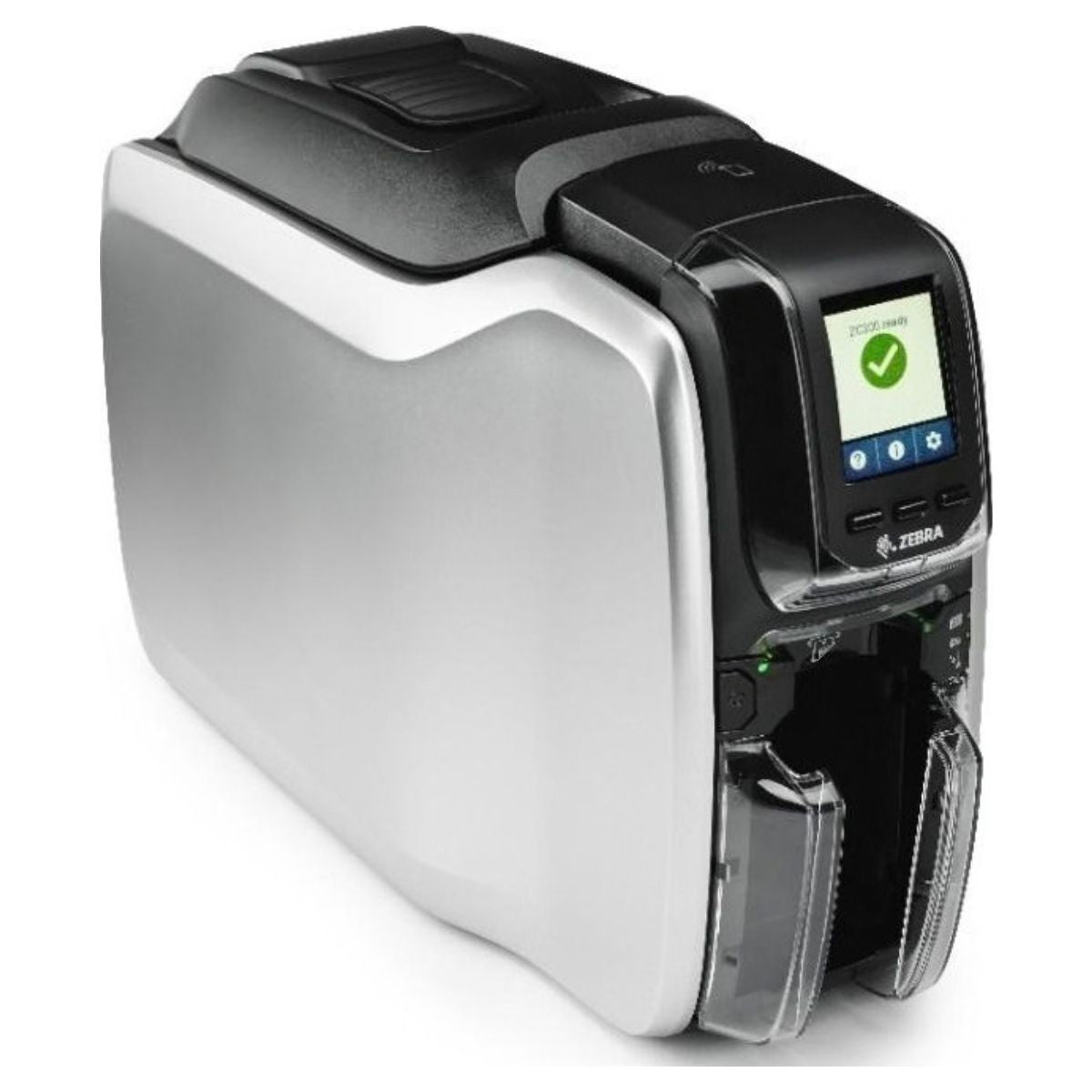

The Zebra ZC300 Dual-Sided ID Card Printer is a professional direct-to-card printing solution designed for producing high-quality identification, access, membership, employee, event, and other PVC cards. With 300 dpi print resolution, dual-sided printing capability, and edge-to-edge printing on standard CR-80 media, the ZC300 provides a compact and user-friendly solution for organizations that require reliable card issuance. This configuration, ZC32-000C000EM00, includes UK/EU power cords and a 1500-image monochrome ribbon. Connectivity is provided through USB 2.0 and built-in 10/100 Ethernet, allowing the printer to operate as a standalone workstation or as a networked card-printing device. Its graphical color LCD interface and automatic card feeder adjustment simplify everyday operation.

Key Features

• Dual-Sided Card Printing: Prints on both sides of compatible cards for identification, access, membership, and other applications.
• 300 DPI Resolution: Provides detailed and professional-looking card output.
• Direct-to-Card Printing: Uses dye-sublimation thermal transfer technology for color and monochrome card printing.
• 1500-Image Ribbon: Includes a 1500-image monochrome ribbon configuration.
• USB 2.0 & Ethernet: Supports direct USB connection and 10/100 Ethernet network connectivity.
• Graphical Color LCD: Provides an intuitive interface for printer status and operation.
• 100-Card Input Hopper: Automatic input hopper accommodates up to 100 standard 30-mil cards.
• 100-Card Output Hopper: Provides convenient collection of completed cards.
• Edge-to-Edge Printing: Supports edge-to-edge printing on standard CR-80 media.
• Compact Design: Designed to fit into offices, reception areas, schools, retail environments, and other card-issuing locations.
• Security Features: Includes printer-host authentication and data encryption capabilities.

Technical Specifications

• Brand: Zebra
• Series: ZC300
• Model / Part Number: ZC32-000C000EM00
• Printer Type: Direct-to-Card ID Card Printer
• Printing: Dual-Sided
• Print Technology: Dye-Sublimation Thermal Transfer
• Print Resolution: 300 dpi / 11.8 dots/mm
• Print Mode: Color or Monochrome
• Maximum Color Print Speed: Up to 200 cards/hour single-sided; up to 140 cards/hour dual-sided
• Maximum Monochrome Print Speed: Up to 900 cards/hour single-sided; up to 450 cards/hour dual-sided
• Ribbon Included: Monochrome ribbon
• Ribbon Capacity: 1500 images
• Input Hopper: Up to 100 cards, 30 mil
• Output Hopper: Up to 100 cards, 30 mil
• Card Size: CR80 ISO 7810 ID-1 and CR79
• Supported Card Thickness: 10–40 mil
• Supported Card Material: PVC and PVC composite
• Connectivity: USB 2.0 and 10/100 Ethernet
• Display: Graphical Color LCD
• Memory: 2GB Flash
• Image Size: 1006 × 640 pixels
• Power: Auto-switching single-phase AC
• Operating Voltage: 90–132VAC and 190–264VAC RMS
• Operating Temperature: 15°C to 35°C
• Operating Humidity: 20% to 80%, non-condensing
• Dual-Sided Dimensions: Approximately 258 × 157 × 468mm
• Dual-Sided Weight: Approximately 4.4kg
• Color: Silver
• Power Cords: UK/EU

Professional Dual-Sided Card Printing

The ZC300 is designed to print single- or dual-sided cards with edge-to-edge coverage. Dual-sided printing is particularly useful when additional information needs to be placed on the reverse side of an identification or access card, helping organizations create more informative cards without increasing the card size.

300 DPI Direct-to-Card Printing

With 300 dpi print resolution, the ZC300 produces detailed text, graphics, logos, photographs, and other card elements. The direct-to-card dye-sublimation thermal transfer printing system supports both color and monochrome card production depending on the installed ribbon.

1500-Image Monochrome Ribbon

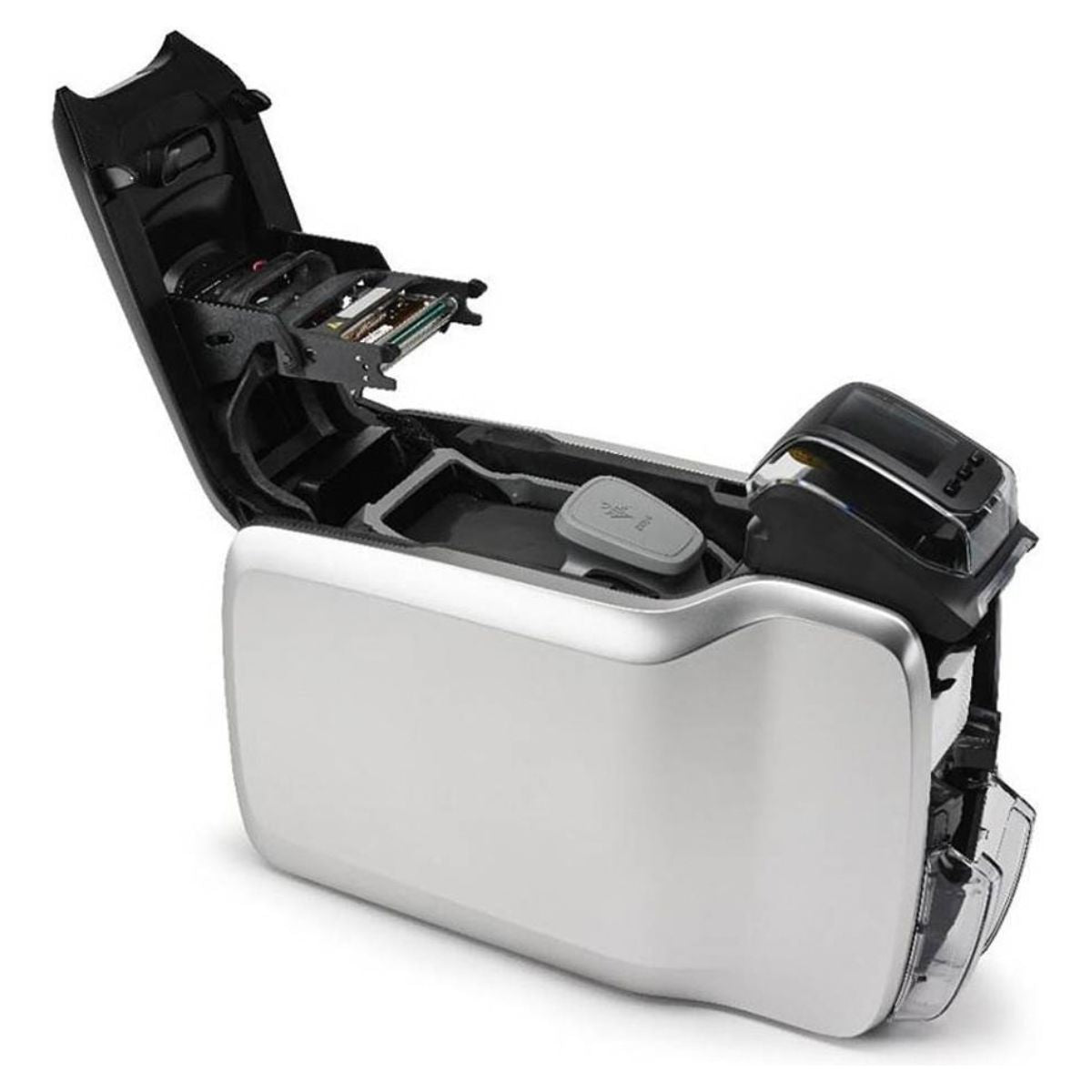

This configuration includes a 1500-image monochrome ribbon, making it suitable for high-volume black-and-white card issuance. Zebra specifies genuine Zebra ribbons for optimum print quality and printer performance, and the ZC300 uses easy-to-load ribbon cartridges with automatic ribbon calibration.

USB and Network Connectivity

The built-in USB 2.0 and 10/100 Ethernet interfaces provide flexible deployment options. USB connectivity can be used for a dedicated card-printing workstation, while Ethernet connectivity allows the printer to be shared across a business network where multiple authorized users require access to card printing.

Easy Operation and Card Handling

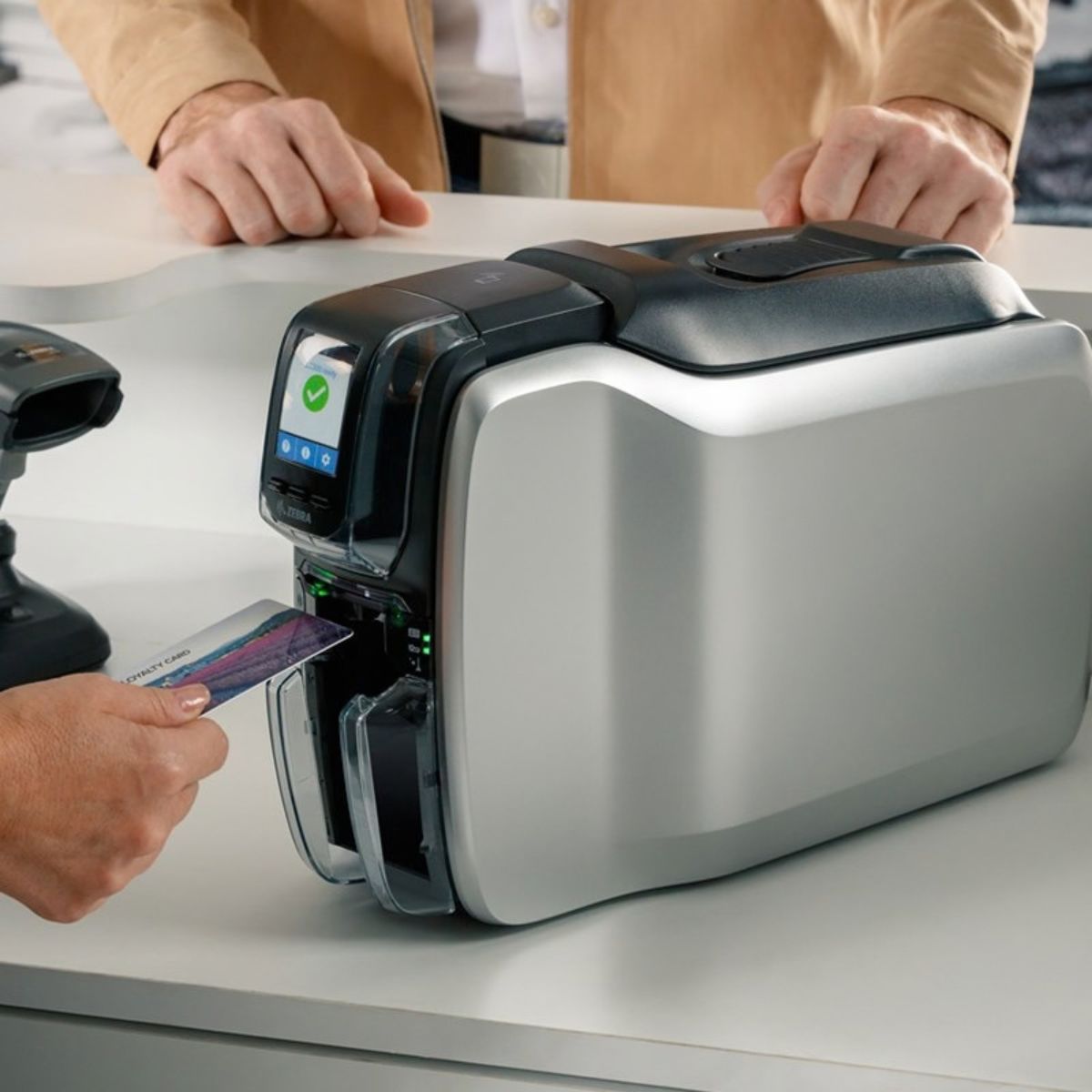

The ZC300 features a graphical color LCD interface and automatic card feeder adjustment to simplify everyday operation. The printer supports up to 100 cards in the input hopper and up to 100 cards in the output hopper when using standard 30-mil cards. Manual card feeding is also supported for individual card issuance.

Security and Card Encoding Options

The ZC300 platform supports a range of optional card encoding capabilities depending on the configured hardware, including magnetic stripe, contact, contactless, and other encoding technologies. The printer also incorporates security features such as printer-host authentication and data encryption for environments where card data requires additional protection.

Ideal Applications

• Employee ID and staff identification cards
• Access control and security cards
• School and university identification cards
• Membership and loyalty cards
• Visitor and guest identification cards
• Event and season pass cards
• Retail and hospitality cards
• Corporate identification programs
• Government and institutional card issuance
• Organizations requiring dual-sided PVC card printing

Benefits

• Professional 300 dpi card printing for detailed identification cards.
• Dual-sided capability allows information to be printed on both card surfaces.
• 1500-image monochrome ribbon supports extended printing before replacement.
• USB and Ethernet connectivity provides flexible workstation and network deployment.
• 100-card input and output capacity supports convenient batch card production.
• Compact design is suitable for reception desks, offices, schools, and service counters.
• Color LCD interface simplifies printer operation and status monitoring.
• Security features help protect sensitive card-printing data.

Why Choose Zebra ZC300

The Zebra ZC300 combines professional card-printing quality, dual-sided functionality, flexible connectivity, and straightforward operation in a compact desktop design. Its 300 dpi resolution, edge-to-edge printing, 100-card hoppers, USB and Ethernet connectivity, and support for multiple card technologies make it suitable for organizations that need dependable card issuance for identification, access control, membership, and other applications.

Important Considerations

The included 1500-image ribbon is a monochrome ribbon configuration. Color card printing requires the appropriate compatible Zebra color ribbon. Ribbon image capacity varies depending on the ribbon type and printing configuration.

The ZC300 is designed for compatible CR80 ISO 7810 ID-1 and CR79 cards with supported thicknesses of 10–40 mil. For optimum print quality and printer performance, Zebra recommends using genuine Zebra card-printing supplies.

Optional encoding functions such as magnetic stripe, contact, contactless, or other card technologies depend on the specific hardware configuration and installed options. They should not be assumed to be included unless explicitly specified with the supplied unit.

Actual print throughput can vary depending on the card design, printing mode, computer configuration, ribbon type, and workload. Zebra's published maximum throughput figures are based on batch printing conditions.
