The Canon imagePROGRAF TM-350 is a 36-inch large-format inkjet printer designed for CAD drawings, technical documents, posters, signage, presentations and other wide-format business printing applications. With a maximum print resolution of 2400 x 1200 dpi, 15,360 total nozzles and five-colour pigment ink, it delivers detailed line work, clear text and vivid colour output across a wide range of professional media. Designed for offices, architectural firms, engineering departments, construction companies and professional graphics environments, the imagePROGRAF TM-350 supports media widths from 8 to 36 inches and both roll and cut-sheet media. Its PF-06 print head, minimum 5-picolitre ink droplets, automatic horizontal cutter and integrated 2GB memory provide an efficient large-format printing workflow while its USB, Gigabit Ethernet and Wi-Fi connectivity support flexible installation.

Key Features

• 36-Inch Large Format Printing: Supports media widths up to 36 inches for CAD drawings, posters, plans and technical documents.
• High Print Resolution: Up to 2400 x 1200 dpi for detailed lines, text and graphics.
• 15,360 Total Nozzles: PF-06 print head provides 5,120 matte black nozzles and 2,560 nozzles for each other colour.
• 5-Colour Pigment Ink: Uses Matte Black, Black, Cyan, Magenta and Yellow pigment inks.
• 5 Picolitre Droplet Size: Fine ink droplets support detailed image and line reproduction.
• Wide Media Compatibility: Supports roll and cut-sheet media from 8 to 36 inches wide.
• Automatic Horizontal Cutter: Standard rotary cutter simplifies finished roll-media output.
• 150 mm Maximum Roll Diameter: Supports large-format roll media with up to 150 mm outer diameter.
• Borderless Printing: Supports borderless printing across compatible roll-media widths.
• 4.3-Inch Touchscreen: Adjustable LCD touchscreen provides convenient printer operation and status monitoring.
• Flexible Connectivity: USB 2.0 High-Speed, Gigabit Ethernet and IEEE 802.11b/g/n Wi-Fi connectivity.
• Professional Software: Compatible with Canon utilities including Direct Print Plus, Free Layout Plus, Accounting Manager and PosterArtist.

Technical Specifications

• Brand: Canon
• Model: imagePROGRAF TM-350
• Printer Type: 5-Colour 36-Inch Large Format Inkjet Printer
• Functions: Print
• Print Technology: Canon Bubblejet on Demand
• Print Head: PF-06
• Maximum Print Resolution: 2400 x 1200 dpi
• Total Number of Nozzles: 15,360
• Matte Black Nozzles: 5,120
• Other Colour Nozzles: 2,560 per colour for Black, Cyan, Magenta and Yellow
• Ink Droplet Size: Minimum 5 pl per colour
• Ink Type: Pigment Ink
• Colour Set: Matte Black, Black, Cyan, Magenta and Yellow

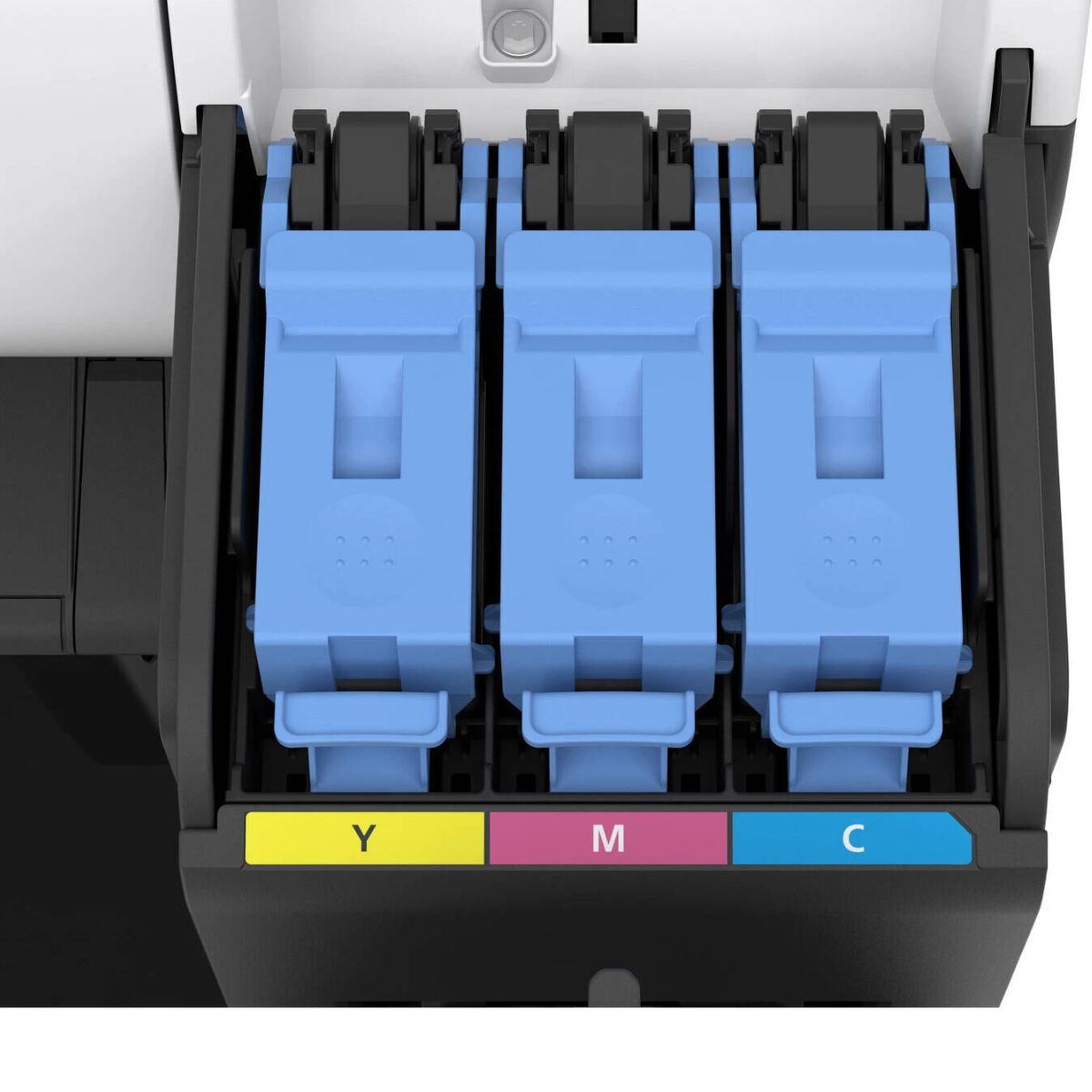

• Ink Tank Capacity: 130 ml or 300 ml per colour
• Starter Ink: Matte Black 130 ml; Black, Cyan, Magenta and Yellow 90 ml each
• Printer Memory: 2GB RAM
• Media Feed: One Roll Feed, Top Loading, Front Output; Manual Cut Sheet Feed
• Media Width: 8–36 inches / 203.2–917 mm
• Maximum Media Roll Diameter: 150 mm
• Media Thickness: 0.07–0.8 mm
• Media Cutter: Automatic Horizontal Rotary Cutter
• Borderless Printing: Supported on compatible roll media
• Display: 4.3-inch LCD Touchscreen
• Interfaces: Hi-Speed USB 2.0, 10/100/1000Base-T/TX Ethernet, IEEE 802.11b/g/n Wireless LAN
• Supported Languages: SGRaster, HP-GL/2, HP-RTL, PDF, JPEG and CALS G4
• Operating Systems: Windows and compatible macOS versions
• Maximum Print Speed: Up to approximately 17 seconds for specified fast-print modes on compatible media
• Power Supply: AC 100–240V, 50–60Hz
• Maximum Power Consumption: Approx. 65W
• Standby Power: Approx. 1.6W

High-Resolution 36-Inch Printing

The imagePROGRAF TM-350 provides a maximum resolution of 2400 x 1200 dpi, enabling accurate reproduction of fine lines, technical drawings, maps, diagrams and graphics. Its large 36-inch print width makes it suitable for A0-size and other wide-format applications where detailed output is required.

15,360-Nozzle PF-06 Print Head

The Canon PF-06 print head incorporates a total of 15,360 nozzles, consisting of 5,120 matte black nozzles and 2,560 nozzles for each of the other colours. The 1,200 dpi nozzle pitch and minimum 5-picolitre droplets help provide accurate and detailed wide-format output.

5-Colour Pigment Ink System

The printer uses a five-colour pigment ink system comprising Matte Black, Black, Cyan, Magenta and Yellow. Pigment-based inks are designed to produce sharp technical lines and durable business graphics while maintaining consistent colour reproduction across compatible Canon media.

Wide Media Compatibility

The TM-350 supports both roll media and cut sheets from 8 to 36 inches wide. It supports media thicknesses from approximately 0.07 to 0.8 mm and can accommodate a maximum roll outer diameter of 150 mm. This flexibility makes it suitable for CAD drawings, architectural plans, posters, presentations, maps and signage.

Efficient Roll Media Handling

The top-loading single-roll system provides straightforward media installation, while the standard automatic horizontal rotary cutter cuts finished prints automatically. The stackable output basket helps collect completed documents and wide-format prints in an organised manner.

Connectivity & Workflow Integration

The imagePROGRAF TM-350 provides USB 2.0 High-Speed, Gigabit Ethernet and IEEE 802.11b/g/n Wi-Fi connectivity. This allows the printer to be integrated into wired office networks or installed wirelessly where appropriate. Canon software utilities support direct printing, layout management, accounting and poster creation workflows.

Professional Printing Software

Compatible Canon software includes Direct Print Plus, Free Layout Plus, Accounting Manager, PosterArtist, Media Configuration Tool and the imagePROGRAF printer driver. These utilities can help simplify document preparation, layout, media configuration, print-job management and usage monitoring.

Ideal Applications

• Architecture: Building plans, floor plans, elevations and presentation drawings.
• Engineering: CAD drawings, technical diagrams and project documentation.
• Construction: Site plans, construction drawings and large project documents.
• GIS & Mapping: Maps, geographical drawings and large-format analytical graphics.
• Corporate Offices: Posters, presentations, charts and internal visual communications.
• Education: Academic posters, diagrams, maps and teaching materials.
• Retail & Marketing: Posters, promotional graphics and signage.
• Professional Design: Wide-format graphics and presentation materials.

Benefits

• Detailed Large-Format Output: 2400 x 1200 dpi resolution provides precise lines and graphics.
• Wide 36-Inch Printing: Supports large technical drawings, posters and presentation documents.
• Accurate Line Reproduction: High nozzle density and fine droplets support professional CAD output.
• Pigment Ink Durability: Five-colour pigment inks are designed for business and technical printing applications.
• Flexible Media Handling: Supports both roll and cut-sheet media.
• Efficient Operation: Automatic cutting and front-output design simplify everyday printing.
• Network Ready: Ethernet and Wi-Fi support flexible office installation.
• Professional Software Support: Canon utilities help manage layouts, media, accounting and print jobs.

Why Choose Canon imagePROGRAF TM-350

• 36-Inch Wide Format: Provides the output width required for A0 and other large technical documents.
• High Resolution: 2400 x 1200 dpi supports detailed CAD, GIS and graphic output.
• Advanced Print Head: 15,360 nozzles provide high-density ink delivery.
• Five-Colour Pigment System: Combines two black channels with Cyan, Magenta and Yellow.
• Flexible Media Support: Works with roll and cut-sheet media up to 36 inches wide.
• Easy Connectivity: USB, Gigabit Ethernet and Wi-Fi provide flexible deployment options.
• Business-Focused Workflow: Canon software supports direct printing, layout, accounting and poster creation.

Important Considerations

• The quoted 36-inch specification refers to the maximum supported media width of approximately 917 mm.
• The printer is a dedicated large-format printer and does not provide standard copying or scanning functions.
• The stated 150 mm roll diameter is the maximum supported outer roll diameter and actual usable roll length varies according to media thickness and type.
• Print speed depends on media type, print mode, resolution, image content and data-processing time.
• Borderless printing is available only with supported media widths and compatible media configurations.
• Actual colour reproduction depends on the selected media, print mode, environmental conditions and colour-management settings.
• The TM-350 uses five pigment ink colours: Matte Black, Black, Cyan, Magenta and Yellow.
• For maximum print quality and reliability, Canon-compatible media and genuine replacement ink are recommended.
