Eaton 9SX6KIRT – 6000 VA / 5400 W Online Rack/Tower UPS (3U)

Eaton 9SX6KIRT – 6000 VA / 5400 W Online Rack/Tower UPS (3U)

The Eaton 9SX6KIRT is a high‑capacity, enterprise‑grade uninterruptible power supply (UPS) delivering 6000 VA / 5400 W of clean, stable, double‑conversion (online) power. With hardwired input, multiple output sockets, hot‑swappable internal batteries and expandable external battery support, it’s ideal for data‑centre racks, server rooms, network closets, and any critical infrastructure requiring uninterrupted power and power‑quality protection.

Key Features

• True Online Double‑Conversion Topology: Provides pure sine‑wave output, isolates connected equipment from mains disturbances — surges, sags, brownouts or frequency/voltage fluctuations.
• 6000 VA / 5400 W Output (0.9 PF): Supports heavy and mixed loads including servers, storage, network switches, workstations, and peripherals.

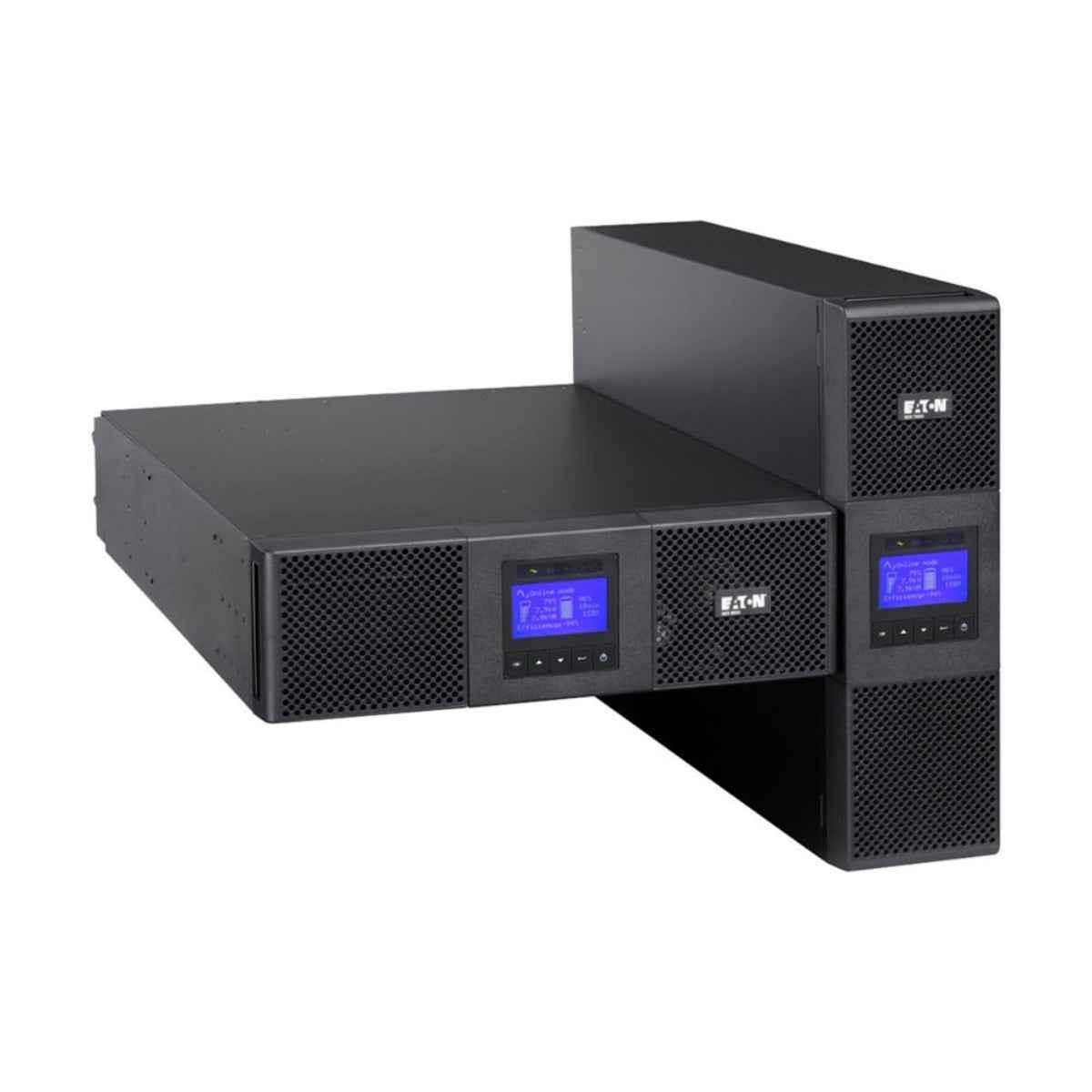

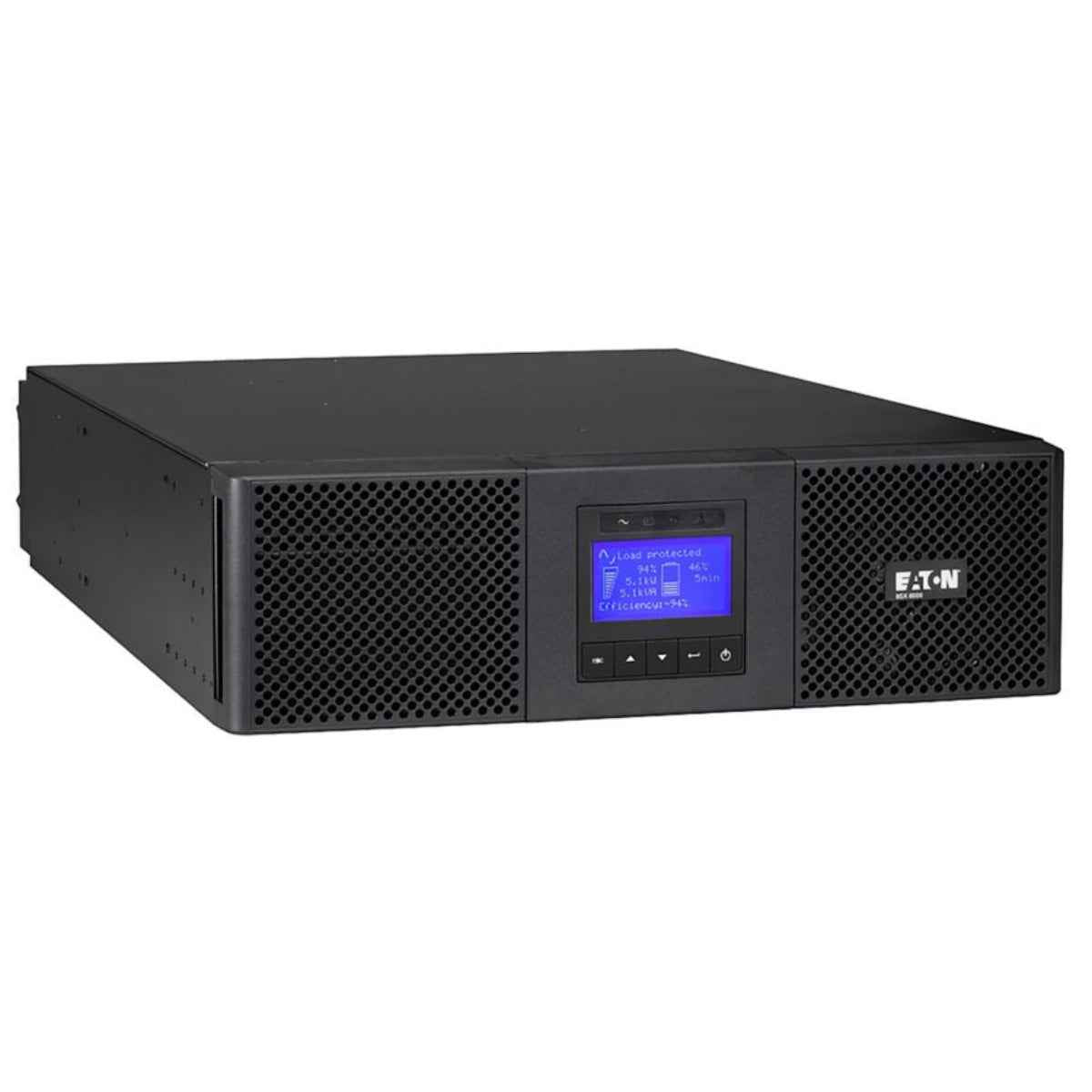

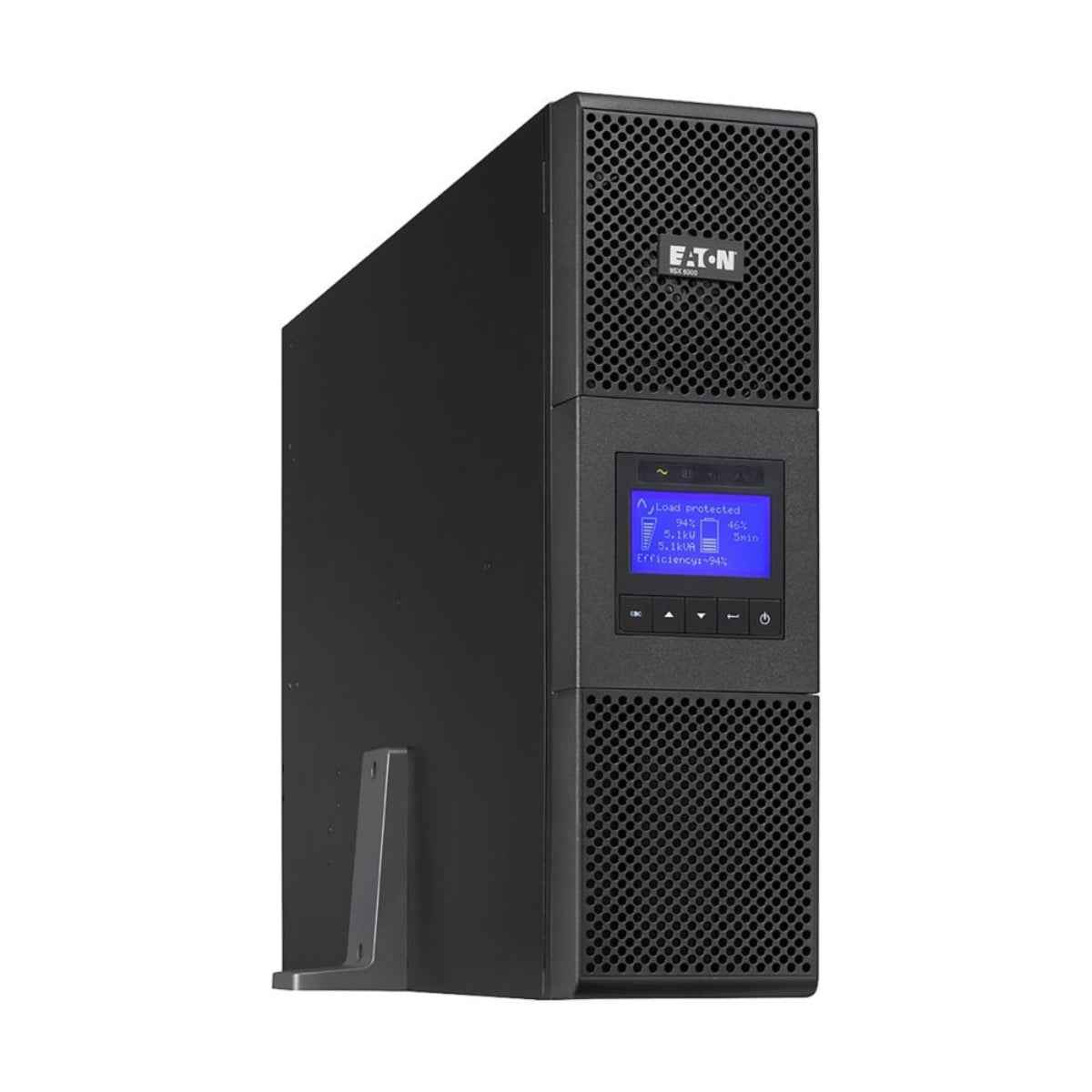

• Rack / Tower Convertible (3U Form Factor): 19″ rack‑mountable 3U design with included rack‑mount kit — but also deployable as a standalone tower, offering flexible installation.

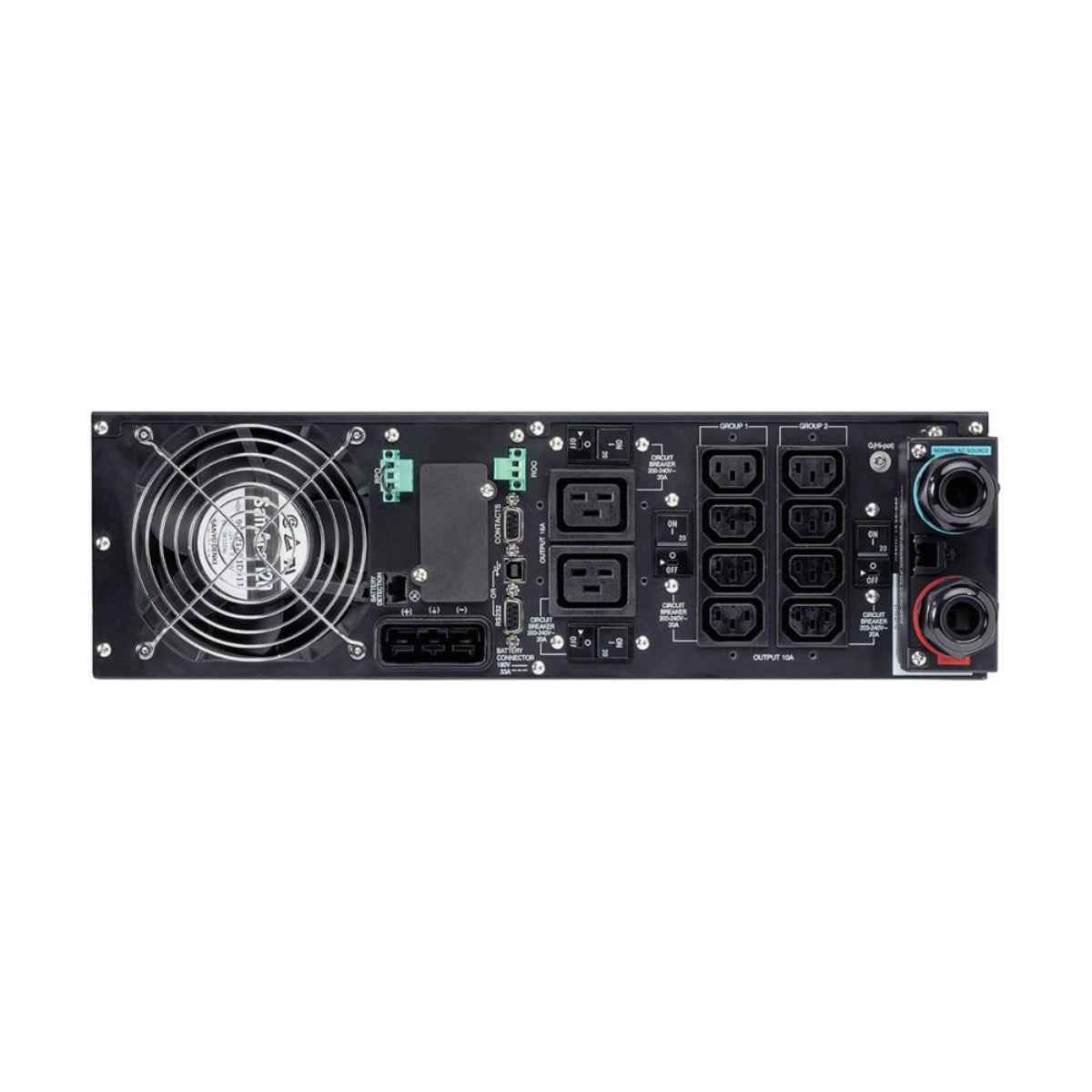

• Multiple Output Outlets + Hardwired Output: (8) IEC C13 + (2) IEC C19 + hardwired output — enough sockets to power servers, storage, networking gear and peripherals.
• Hot‑Swappable Internal Batteries & EBM Support: 15 sealed lead‑acid batteries (12 V / 5 Ah), user‑replaceable; supports external battery modules for extended runtime.
• Advanced Battery Management (ABM) & Automatic Battery Test: Intelligent charging, deep‑discharge protection, and automatic detection of external battery units — helps prolong battery lifespan.
• Flexible Input Voltage & Frequency Range: Hardwired input; accepts nominal 230 V (configurable 200/208/220/230/240 V). Input voltage tolerance: 176–276 V (up to 100–276 V with derating). Frequency auto‑select (50/60 Hz), 40–70 Hz tolerance. Good for unstable mains environments.
• Comprehensive Management & Monitoring: Multilingual graphical LCD display, USB (HID), RS‑232 serial, dry contacts / relay, remote On/Off & power‑off support, and an expansion slot for optional communication cards (e.g. SNMP/network card) — works with software such as Eaton Intelligent Power Manager / Eaton Intelligent Power Protector.
• Internal Bypass & Auto‑Shutdown Functionality: Ensures continuous operation during maintenance or UPS fault, and safe shutdown of connected loads when required.
• Energy Efficient & Certified: Up to ~94 % efficiency in online mode (eco‑mode higher), reducing waste power and heat — helpful for data‑centres and server rooms. Certified to IEC/EN 62040‑1/2, UL 1778, CE, cULus, CSA, EAC, etc.

Technical Specifications

• Model / Part Number: 9SX6KIRT
• Topology: Online / Double‑conversion
• Output Power: 6000 VA / 5400 W (0.9 power factor)
• Output Voltage: 230 V nominal (configurable 200 / 208 / 220 / 230 / 240 V)
• Output Waveform: Pure sine wave
• Output Outlets: 8 × IEC C13 + 2 × IEC C19 + hardwired output
• Input Connection: Hardwired / fixed connection
• Input Voltage Range: 176–276 V (up to 100–276 V with derating)
• Input Frequency Range: 40–70 Hz auto‑sensing (50/60 Hz)
• Batteries: 15 × 12 V / 5 Ah sealed lead‑acid batteries (hot‑swappable)
• Battery Management & Safety: ABM charging, automatic battery test, deep‑discharge protection, external battery module (EBM) support
• Form Factor: Rack/tower convertible, 3U (19″ rack compatible)
• Dimensions (WxDxH): ~ 440 × 685 × 130 mm
• Weight: ~ 48 kg
• Noise Level: < 45 dB at 1 meter — reasonable for server‑room / office environments.
• Certifications / Compliance: IEC/EN 62040‑1, UL 1778, IEC/EN 62040‑2, CE, cULus, CSA 22.2, EAC, etc.
• Communications & Interface: USB (HID), RS‑232, dry contacts / relay, remote On/Off / power‑off functionality, expansion slot for optional network/management card; multilingual graphical LCD display.
• Operating Conditions: 0 – 40 °C ambient, up to 3000 m altitude, humidity 0–95% non‑condensing.

Ideal For

• Data‑centre racks, server rooms, network closets — providing uninterrupted, clean power to servers, storage arrays, switches, and other critical infrastructure.
• Small to medium enterprises or offices with mixed loads (servers + workstations + networking + peripherals) requiring stable power backup.
• Virtualization hosts, NAS, storage servers, or mixed-use IT environments — especially where power quality and reliability are essential.
• Installations with unstable mains or frequent power fluctuations/outages — the wide input tolerance and line‑interactive double‑conversion safeguard sensitive equipment.
• Deployments needing scalable runtime — internal battery is sufficient for short outages, but extended runtime can be achieved by adding external battery modules (EBMs).

Why Buy from IT Splendid (UAE)

• 100% Genuine Eaton Product — 9SX6KIRT: Official unit, not a clone or grey‑market substitute.
• Suitable for UAE Electrical Environment: Hardwired input supports UAE’s 220‑240 V / 50 Hz mains; offers wide voltage tolerance — ideal for regional power conditions.
• Rack / Tower Flexibility: Rack‑mountable 3U form‑factor (with mounting kit) but also usable as standalone tower — easy to integrate in server racks or office closets.
• Scalable & Future‑Ready Backup Power: Hot‑swappable internal batteries plus support for external battery modules (EBMs) — enables extended runtime for growing infrastructure.
• High Capacity & Reliable Protection: 5400 W / 6000 VA online UPS with pure sine‑wave, voltage/frequency stabilization, bypass, and full outlet coverage — ideal for critical servers, network gear, storage, and business‑critical systems.

Choose the Eaton 9SX6KIRT UPS for robust, enterprise‑grade power protection — a powerful, flexible and scalable solution for data‑centres, server racks, network infrastructure, and critical electronics in UAE offices or data environments.
