Epson DS-1630 Flatbed Color, Maximum Scan Size: 8.5 x 120", Scan Speed: 25 ppm / 10 ipm, Document Scanner | B11B239402BB

Epson DS-1630 Flatbed Color, Maximum Scan Size: 8.5 x 120", Scan Speed: 25 ppm / 10 ipm, Document Scanner | B11B239402BB

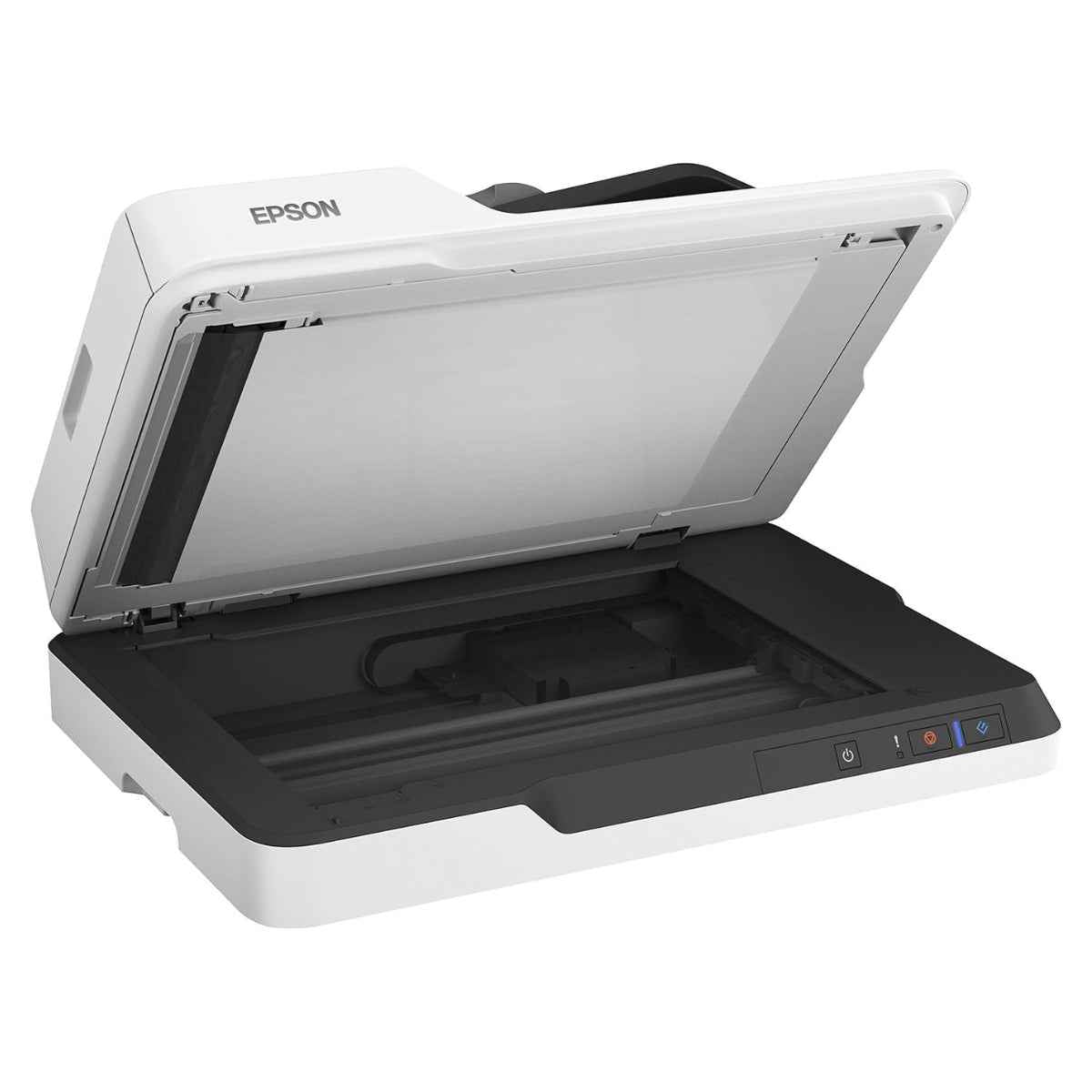

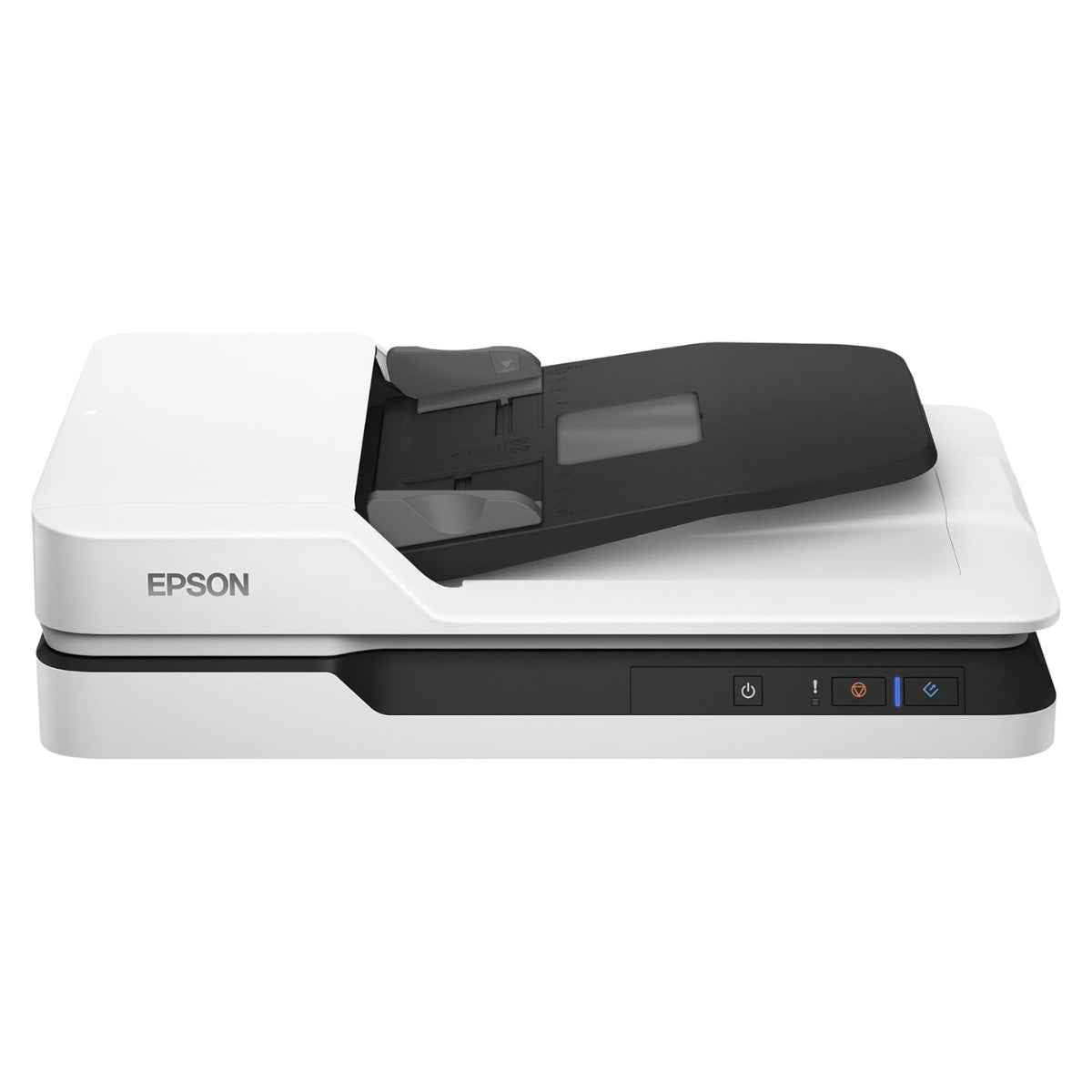

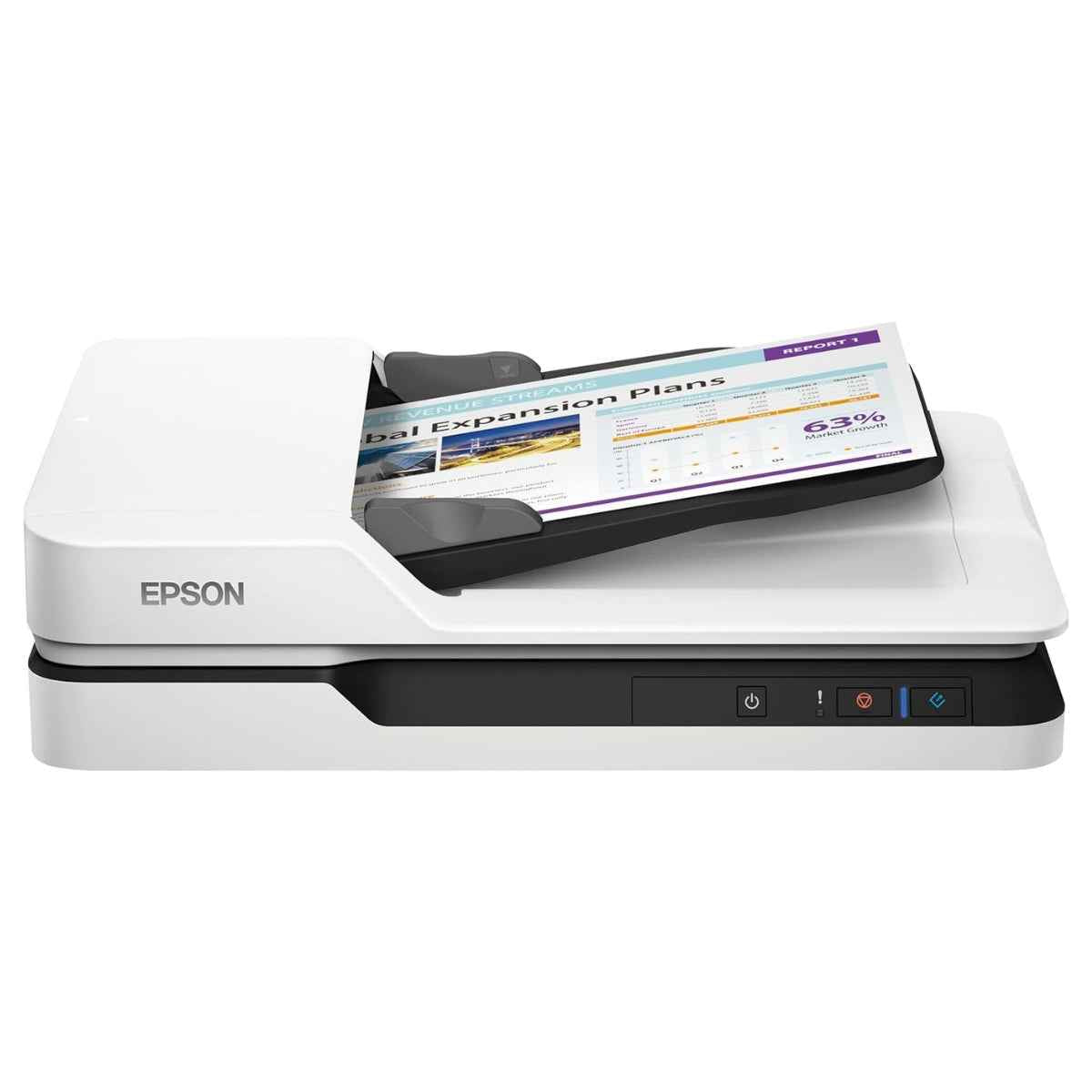

The Epson WorkForce DS-1630 (part number B11B239402BB) is a versatile and compact A4 document scanner that combines a flatbed and a 50-sheet automatic document feeder (ADF). Ideal for small offices, front desks, or any environment that needs to scan both stacks of paper and delicate items like passports or bound documents.

Key Features

• Dual Scanning Modes: Flatbed for fragile or bound documents + 50-sheet ADF for high-volume scanning.
• Fast Scan Speed: Up to 25 ppm (pages per minute) in simplex and ~10ipm (images per minute) in duplex at 300 dpi.
• High Optical Resolution: Flatbed scans at 1200 × 1200 dpi; ADF at 600 × 600 dpi.
• Color Depth: 30-bit internal color, 24-bit external.
• Document Size Support:
  • Flatbed: up to A4 / 216 × 297 mm
  • ADF: from 89 × 127 mm (min) up to 215.9 × 3048 mm (“long paper” mode)
• Paper Handling: ADF capacity of 50 sheets (80 g/m²).
• Daily Duty Cycle: Rated for up to 1,500 pages/day.
• Connection: USB 3.0 for fast data transfers.
• Drivers & Software: Supports TWAIN and ISIS drivers for use with document management systems.
• Advanced Image Processing: Includes auto crop, skew correction, background removal, blank-page skip, and other intelligent adjustments.
• Energy Efficient: Low power consumption — ~11 W when operating, 5.8 W ready, 0.8 W in sleep mode.

Technical Specifications

• Scanner Type: Flatbed + ADF (Contact Image Sensor)
• Optical Resolution: Flatbed 1200 × 1200 dpi / ADF 600 × 600 dpi
• Maximum Document Size:
  • Flatbed: 216 × 297 mm (A4)
  • ADF Simplex: up to 215.9 mm × 3048 mm (“long paper”)
• Supported Paper Weight: 50–120 g/m²
• Color Bit Depth: 30-bit internal / 24-bit external
• Scan Speed (200/300 dpi): 25 ppm simplex; 10ipm duplex
• Interface: USB 3.0
• Dimensions (W×D×H): ~451 × 315 × 120mm
• Weight: ~4.1 kg
• Power Consumption: 11 W (active), 5.8 W (ready), 0.8 W (sleep), 0.15 W (off)
• Operating Systems: Windows, macOS (check compatibility)

Ideal Use-Cases

• Office environments needing to digitize both regular documents and bound/fragile media (e.g., passports, books).
• Front desk or reception areas where space is limited but scanning needs are moderate.
• Users who require duplex scanning to reduce paper handling and save time.
• Teams using document management systems — thanks to TWAIN / ISIS support.
• Workspaces that process mixed-sized or long documents (with “long paper” ADF support).

Why Buy from IT Splendid / a Trusted UAE Supplier

• Genuine Epson Unit: Part number B11B239402BB, backed by Epson’s global warranty.
• Local Stock & Delivery: Available from UAE-based retailers with fast shipping.
• Support & Setup: Assistance with driver installation, scanning workflows, and indexing software.
• Cost Efficiency: Durable design for daily scanning (1,500 page daily duty) — good ROI for small teams.

Summary: The Epson Work Force DS-1630 is a powerful, compact, and flexible document scanner that combines a flatbed with an ADF, making it ideal for both delicate scanning tasks and high-volume document processing in small office environments.
