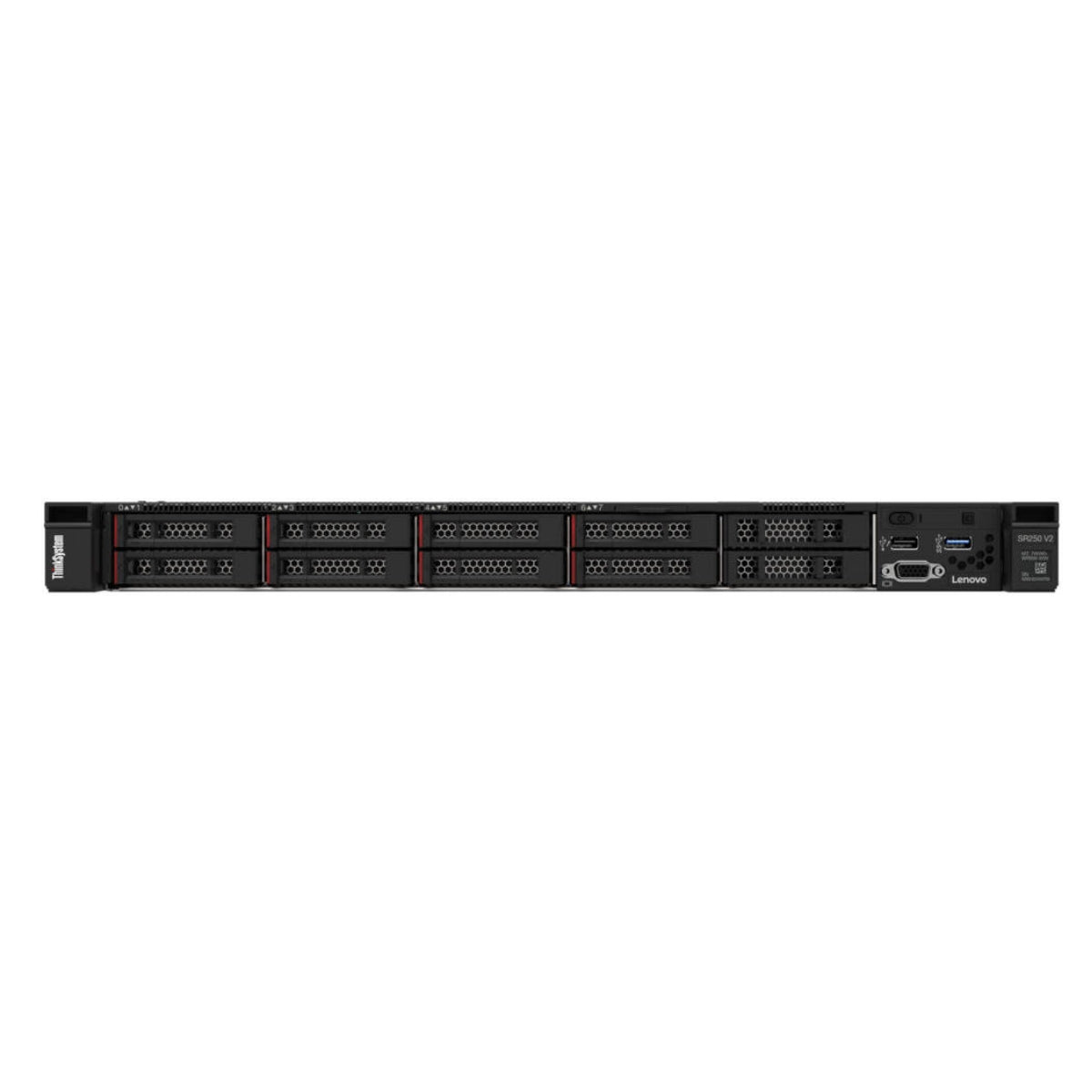

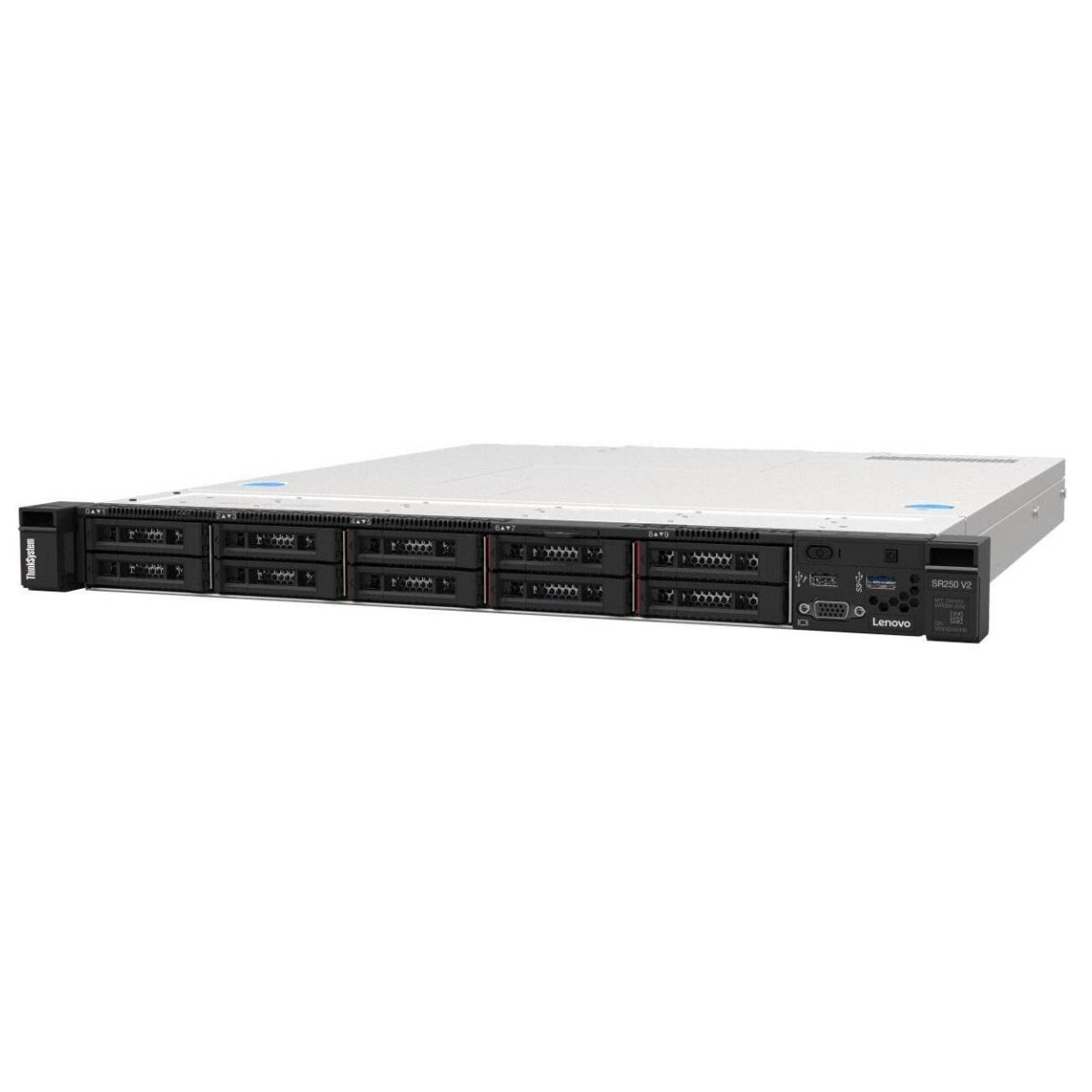

Lenovo ThinkSystem SR250 V2 Rack Server Intel Xeon E-2378, 32GB RDIMM, 2.5″ HS (8), 5350-8I, HS 450W Titanium, XCC Enterprise, Rails, No OS, 3/3/3 Warranty

Machine Type:
7D7Q – 3 Year Warranty

Form Factor:
1U rack-mount

Processor:
One Intel processor. Choose from:
1). Intel Xeon E-2300 Series processors ("Rocket Lake-E") up to to 8 cores, with core speeds up to 3.7 GHz
2). Intel Pentium G6405, G6505 and G6605 processors ("Comet Lake Refresh") with 2 cores, with core speeds up to 4.3 GHz

Chipset:
Intel C256 chipset ("Tiger Lake") part of the "Tatlow" platform

Memory:
Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 3200 MHz (Xeon processors) or 2666 MHz (Pentium processors). Support ECC UDIMMs.

Memory maximum:
Up to 128 GB using 4x 32 GB UDIMMs

Memory protection:
Error-correcting code (ECC)

Disk drive bays:
Available configurations:
  1). 10x 2.5-inch hot-swap SAS/SATA drive bays
 2). 8x 2.5-inch hot-swap SATA only, or SAS/SATA drive bays
 3). 4x 3.5-inch hot-swap SATA only, or SAS/SATA drive bays
  4). 4x 3.5-inch simple-swap drive bays, all SATA
 5). 4x 3.5-inch simple-swap drive bays, 3x SATA and 1x NVMe
In addition, the SR250 V2 supports two M.2 drives installed in an M.2 adapter which is installed in a PCIe slot.

Maximum internal storage:
1)  2.5-inch drives:
    A). 9.6TB using 10x 960GB 2.5-inch SAS/SATA SSDs
    B). 18TB using 10x 1.8TB 2.5-inch HDDs
2)  3.5-inch drives:
  A). 88TB using 4x 22TB 3.5-inch HDDs
  B). 3.84TB using 4x 960GB 3.5-inch SAS/SATA SSDs
3). Intermix of SAS and SATA is supported.

Storage controller:
1). Onboard 6 Gb SATA for drive configurations of up to 8x drives, using embedded Intel RSTe software RAID. Supports RAID 0, 1, 10, 5, 50
2). 12 Gb SAS/SATA RAID adapters
3). 12 Gb SAS/SATA host bus adapters

Optical drive bays:
No support. Use an external optical drive.

Tape drive bays:
No support

Network interfaces:
Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC systems management.

PCI Expansion slots:
Two or three PCIe slots depending on the riser selected:
Riser with two x8 slots:
Slot 1: PCIe G4 x8 (x8 slot, open-ended) 25W low-profile
Slot 2: PCIe G4 x8 (x16 slot, closed-ended) 25W full-height half-length
Slot 3 (internal slot): PCIe G3 x4 (x8 slot, closed-ended) 25W low-profile
Riser with one x16 slot:
Slot 1: Not connected
Slot 2: PCIe G4 x16 (x16 slot, closed-ended) 75W full-height half-length
Slot 3 (internal slot): PCIe G3 x4 (x8 slot, closed-ended) 25W low-profile
Note: Slots 1 and 2 are PCIe Gen 4 with a Xeon processor, and PCIe Gen 3 with a Pentium processor

Ports:

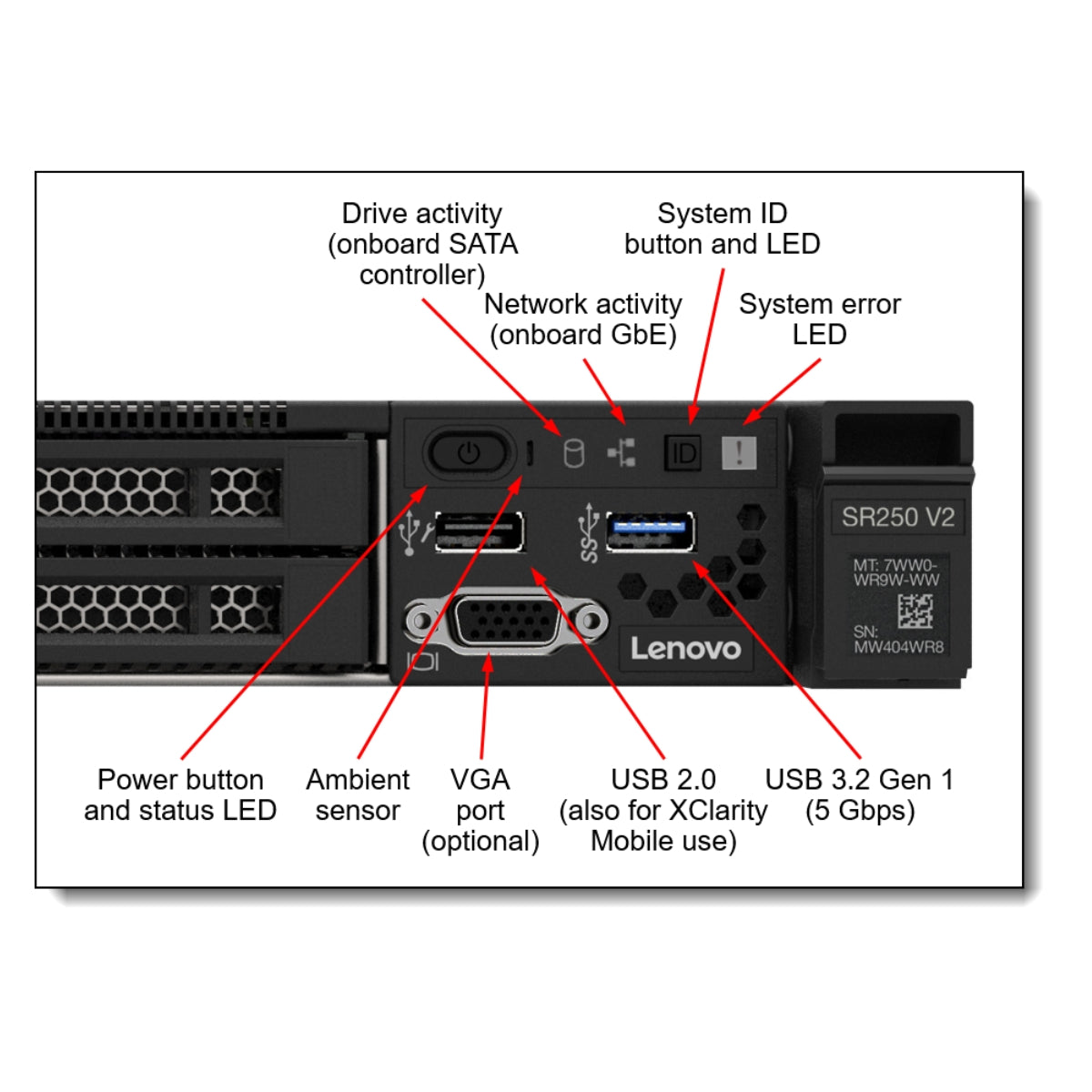

Front:
1). One USB 3.2 G1 (5 Gb/s) port
2). One USB 2.0 port (also for XClarity Mobile connectivity for local systems management)
3). Optional VGA port
Rear:
1). Two USB 3.2 G2 (10Gb/s) ports
2). One VGA video
3). One RJ-45 systems management network port
4). Two RJ-45 GbE network ports
5). One serial port

Cooling:
Four non-hot-swap system fans

Power supply:
Model dependent choices:
1). One fixed 300W power supply, 80 PLUS Gold certified
2). Two hot-swap 450W redundant power supplies, 80 PLUS Platinum certified, Energy Star and ErP Lot 9 compliant (Energy Star and ErP Lot 9 only with Intel Xeon processors)

Hot-swap parts:
Hard drives and hot-swap power supplies

Systems management:
Operator panel with status LEDs. XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy
Manager centralized server power management. Optional XClarity Controller Advanced to enable remote control functions.

Security features:
Power-on password, administrator's password, Trusted Platform Module, supporting TPM 2.0. Optional lockable front bezel for physical security.

Video:
G200 graphics with 16 MB memory, integrated into the XClarity Controller. For use with local Administrator functions (not designed for workstation use). Maximum resolution is 1920x1200 32bpp at 60Hz.

Operating systems supported:
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating system support section for specifics.

warranty:
Three years

Service and support:
Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.

Dimensions:
Width: 435 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 545 mm (21.5 in.). See Physical and electrical specifications for details.

Weight:
Maximum configuration: 12.3 kg (27.1 lb)
