MERCUSYS AC12G AC1200 Dual-Band Gigabit Wi-Fi 5 Router | 1200 Mbps | 4× 5 dBi Antennas | 1× Gigabit WAN | 3× Gigabit LAN | IPTV | Guest Network

MERCUSYS AC12G AC1200 Dual-Band Gigabit Wi-Fi 5 Router | 1200 Mbps | 4× 5 dBi Antennas | 1× Gigabit WAN | 3× Gigabit LAN | IPTV | Guest Network

The MERCUSYS AC12G AC1200 Dual-Band Gigabit Wi-Fi 5 Router is designed to provide reliable wireless connectivity and fast wired networking for homes, small offices, and everyday internet use. With combined dual-band wireless speeds of up to 1200 Mbps, including 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, it supports activities such as HD video streaming, online browsing, video calls, online gaming, and connecting compatible smart devices. Equipped with four external 5 dBi antennas and four Gigabit Ethernet ports, the AC12G offers wireless coverage and high-speed wired connections for computers, smart TVs, gaming consoles, network storage devices, and other Ethernet-enabled equipment. Its dual-band design allows compatible devices to connect to the band best suited to their networking needs. The router also includes IPTV support, separate guest networks, and WPA/WPA2 wireless security. With straightforward web-based installation, the MERCUSYS AC12G is a practical networking solution for users looking for an AC1200 Wi-Fi 5 router with Gigabit connectivity.

Key Features

• AC1200 Dual-Band Wi-Fi: Provides wireless speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
• Wi-Fi 5 Technology: Supports IEEE 802.11ac on the 5 GHz band and IEEE 802.11b/g/n standards on the 2.4 GHz band.
• Four External 5 dBi Antennas: Help extend wireless coverage and improve signal distribution throughout compatible indoor environments.
• Gigabit Ethernet Connectivity: Includes one Gigabit WAN port and three Gigabit LAN ports for wired networking.
• IPTV Support: Supports IPTV-related network features, including IGMP Proxy, IGMP Snooping, Bridge, and VLAN tagging, depending on the hardware version and configuration.
• Guest Network: Provides separate guest Wi-Fi access to help keep the main wireless network separate from visitors.
• Wireless Security: Supports WPA-PSK and WPA2-PSK encryption on the referenced AC12G specification.
• Easy Web-Based Setup: Guides users through configuring the internet connection and wireless network using a web browser.

Technical Specifications

• Brand: MERCUSYS
• Model: AC12G
• Product Type: Dual-Band Gigabit Wireless Router
• Wi-Fi Class: AC1200
• Wireless Generation: Wi-Fi 5
• 5 GHz Wireless Speed: Up to 867 Mbps
• 2.4 GHz Wireless Speed: Up to 300 Mbps
• Wireless Standards: IEEE 802.11a/n/ac (5 GHz); IEEE 802.11b/g/n (2.4 GHz)
• Antennas: 4 fixed external omnidirectional antennas, 5 dBi each for the specified version
• WAN Interface: 1 × Gigabit Ethernet WAN port
• LAN Interfaces: 3 × Gigabit Ethernet LAN ports
• Wireless Security: WPA-PSK / WPA2-PSK
• Guest Network: Supported on 2.4 GHz and 5 GHz bands
• IPTV Features: IGMP Proxy, IGMP Snooping, Bridge, and VLAN tagging
• WAN Connection Types: Dynamic IP, Static IP, PPPoE, PPTP, and L2TP
• Network Protocols: IPv4 and IPv6
• Management: Local management, remote management, and access control
• Additional Network Features: DHCP server, port forwarding, UPnP, DMZ, Dynamic DNS, and IP/MAC address binding
• Button: WPS/Reset
• Dimensions: 222 × 140 × 32 mm
• Power Supply: 9 V DC, 0.85 A for the referenced version
• Operating Temperature: 0°C to 40°C
• Model Number: AC12G

AC1200 Dual-Band Wi-Fi for Everyday Connectivity

The MERCUSYS AC12G operates on both the 2.4 GHz and 5 GHz frequency bands, offering flexibility for different wireless activities. The 2.4 GHz band is suitable for general browsing and compatible smart devices.

Four External 5 dBi Antennas for Wireless Coverage

The router features four fixed external omnidirectional antennas designed to distribute wireless signals across the surrounding area. Their external design helps provide coverage for compatible devices in different rooms and commonly used spaces.

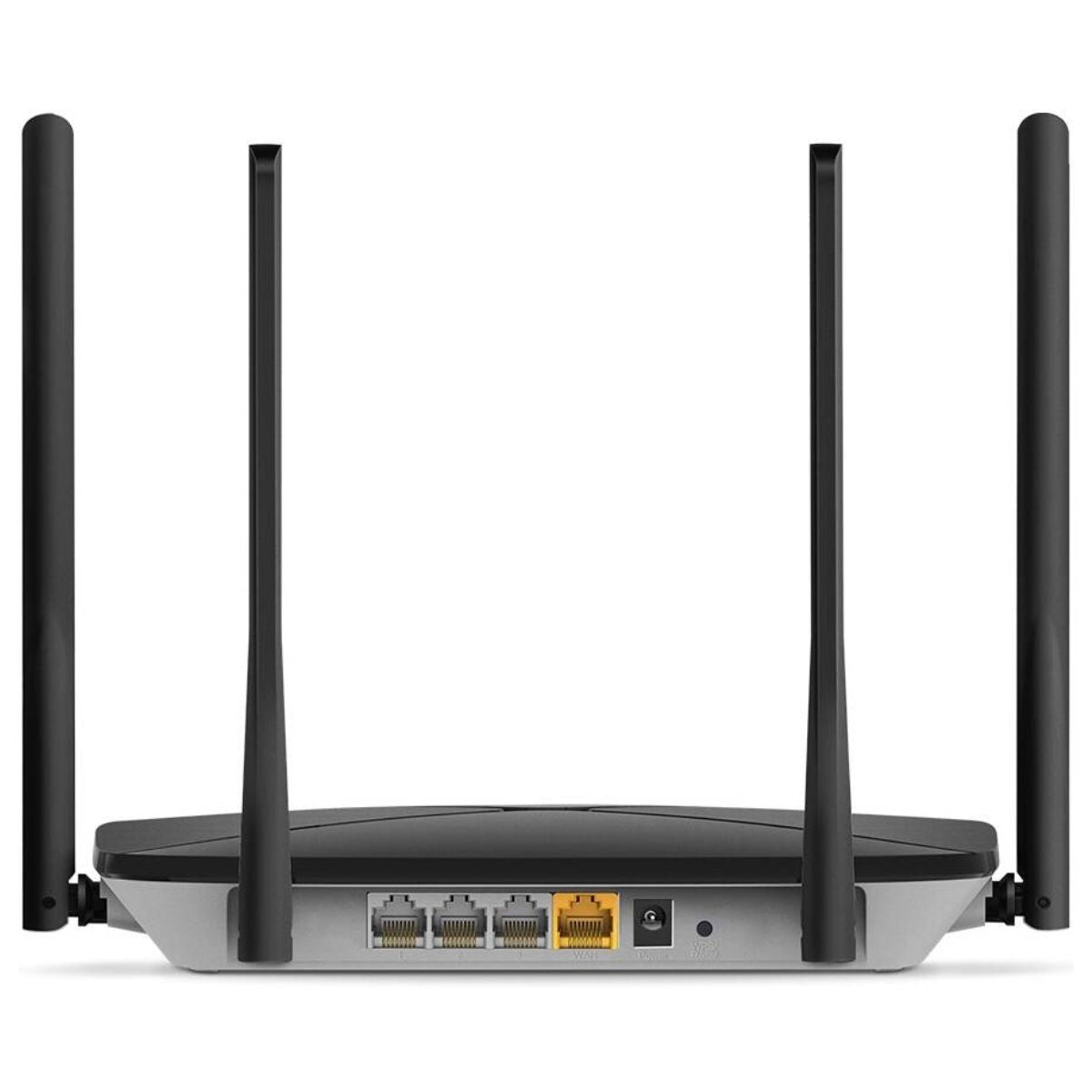

Gigabit WAN and LAN Ports for Wired Performance

The AC12G includes one Gigabit WAN port for connecting to a modem or internet service and three Gigabit LAN ports for wired devices. Gigabit Ethernet is suitable for compatible desktop computers, smart TVs, gaming consoles, network-attached storage devices, and other equipment that benefits from a stable wired connection.

IPTV Support for Compatible Entertainment Systems

The MERCUSYS AC12G supports IPTV-related networking functions that can help manage traffic for compatible internet television services.

Guest Network for Separate Visitor Access

The guest networking feature allows you to create a separate wireless connection for visitors instead of sharing the credentials of your primary Wi-Fi network.

Wireless Security and Network Management

The referenced AC12G specification supports WPA-PSK and WPA2-PSK wireless encryption to help protect the Wi-Fi network against unauthorized access. Network management features include access control, DHCP server functionality, IP/MAC address binding, port forwarding, UPnP, and DMZ configuration.

Simple Installation and Configuration

The AC12G supports web-based setup to help users configure their internet connection and wireless network. The installation process generally involves connecting the router to the modem or internet source, opening the router's configuration page, selecting the appropriate WAN connection type, and setting the Wi-Fi name and password.

Ideal Applications

• Home Wi-Fi networks and everyday internet access
• Small offices and home-office environments
• HD video streaming and online entertainment
• Online gaming and general internet browsing
• Video calls, remote work, and online learning
• Wired connections for desktop computers and smart TVs
• Compatible IPTV and set-top box installations
• Guest Wi-Fi access for visitors
• Connecting compatible phones, tablets, laptops, and smart devices

Benefits

• Dual-Band Flexibility: Provides separate 2.4 GHz and 5 GHz wireless bands for different connectivity needs.
• Gigabit Wired Networking: Offers high-speed Ethernet connectivity for compatible wired devices.
• External Antenna Design: Helps distribute wireless coverage throughout the intended environment.
• Convenient IPTV Support: Includes network functions for compatible IPTV services.
• Separate Guest Access: Makes it easier to provide visitors with Wi-Fi without sharing the primary network password.
• Network Configuration Options: Supports common WAN connection types and useful management features.
• Practical Everyday Networking: Combines wireless and wired connectivity in one router for home and small-office use.

Why Choose the MERCUSYS AC12G?

• AC1200 dual-band Wi-Fi with speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
• Four external antennas designed to support wireless coverage.
• One Gigabit WAN port and three Gigabit LAN ports for wired devices.
• IPTV networking features for supported service-provider configurations.
• Guest network support for more convenient visitor access.
• Web-based setup and common network management functions.
• A practical option for users who need a Wi-Fi 5 router with Gigabit Ethernet connectivity.

Compatibility and Important Considerations

• Internet Service: Requires a compatible broadband connection and modem or ISP-provided equipment where applicable.
• Hardware Revision: MERCUSYS lists multiple AC12G hardware versions. Specifications can vary by revision and regional model, so confirm the exact version supplied before purchase.
• Wireless Speed: The 867 Mbps and 300 Mbps figures are theoretical maximum link rates, not guaranteed internet download speeds.
• Wired Speed: Gigabit Ethernet performance requires compatible ports and network devices.
• MU-MIMO and Beamforming: Confirm these specific features against the supplied hardware revision's official specification before relying on them; they are not listed in the referenced MERCUSYS AC12G specification.
• Security: The referenced specification lists WPA-PSK and WPA2-PSK. Do not assume WPA3 support unless it is explicitly confirmed for the exact hardware revision.
• IPTV: Availability and configuration of IPTV functions depend on the ISP and service requirements.
