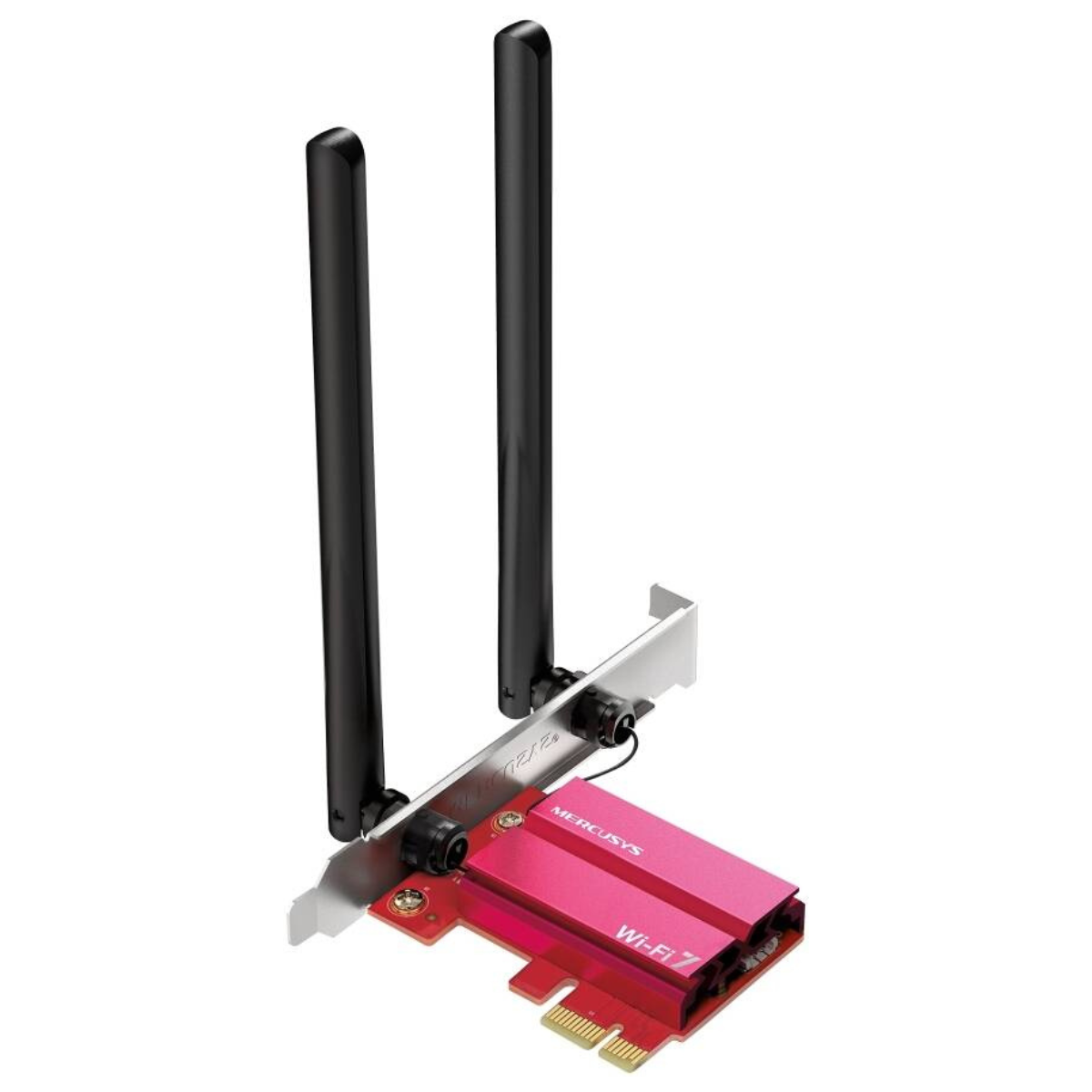

MERCUSYS MA37BE BE6500 Wi-Fi 7 PCIe Adapter | Tri-Band 6.5 Gbps | Bluetooth 5.4 | 2 Antennas | WPA3 | Windows 11

MERCUSYS MA37BE BE6500 Wi-Fi 7 PCIe Adapter | Tri-Band 6.5 Gbps | Bluetooth 5.4 | 2 Antennas | WPA3 | Windows 11

The MERCUSYS MA37BE BE6500 Wi-Fi 7 Tri-Band PCIe Adapter is a high-performance wireless networking upgrade designed for desktop computers. Featuring next-generation Wi-Fi 7 technology, it delivers combined theoretical wireless speeds of up to 6.5 Gbps across the 2.4 GHz, 5 GHz, and 6 GHz frequency bands. It is designed for users who need faster wireless connectivity, lower latency, and improved network efficiency for demanding applications. With tri-band wireless performance of up to 2882 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz, the MA37BE supports high-speed networking for gaming, 4K and 8K streaming, large file transfers, and everyday productivity. Advanced technologies including 4K-QAM, MU-MIMO, OFDMA, and Multi-RUs help improve wireless efficiency and network performance when paired with compatible routers. Beyond Wi-Fi connectivity, the MA37BE integrates Bluetooth 5.4, allowing compatible desktop computers to connect with wireless peripherals and accessories. Two fixed high-performance omnidirectional antennas help improve signal transmission and reception, while WPA3 security provides enhanced wireless network protection.

Key Features

• Wi-Fi 7 Technology: Upgrades compatible desktop computers to the latest Wi-Fi 7 wireless standard for improved speed, efficiency, and responsiveness.
• BE6500 Tri-Band Performance: Supports up to 2882 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.
• 6 GHz Frequency Band: Provides access to the additional 6 GHz spectrum for compatible Wi-Fi 7 networks, helping reduce congestion.
• Bluetooth 5.4: Adds Bluetooth connectivity for compatible wireless peripherals and accessories.
• 4K-QAM Technology: Packs more data into each transmission symbol to improve wireless data efficiency.
• MU-MIMO: Helps the adapter communicate with compatible networking equipment more efficiently when multiple devices are connected.
• OFDMA: Improves wireless network efficiency by allowing compatible devices to share channel resources more effectively.
• Multi-RUs: Helps utilise available wireless resources more efficiently on compatible Wi-Fi 7 networks.
• Two High-Performance Antennas: Features two fixed omnidirectional antennas designed to improve wireless signal transmission and reception.
• WPA3 Security: Supports WPA3-SAE encryption for enhanced wireless network protection when used with a compatible router.
• PCIe Interface: Installs inside a compatible desktop computer through a PCI Express expansion slot.
• Windows 11 Compatibility: Designed for Windows 11 64-bit systems.

Technical Specifications

• Brand: MERCUSYS
• Model: MA37BE
• Product Type: Wi-Fi 7 PCIe Wireless Network Adapter
• Wireless Class: BE6500
• Wi-Fi Standard: Wi-Fi 7 (IEEE 802.11be)
• Wireless Frequency Bands: 2.4 GHz, 5 GHz, and 6 GHz
• 6 GHz Wireless Speed: Up to 2882 Mbps
• 5 GHz Wireless Speed: Up to 2882 Mbps
• 2.4 GHz Wireless Speed: Up to 688 Mbps
• Combined Theoretical Speed: Up to 6552 Mbps (BE6500 class)
• Wireless Technologies: 4K-QAM, MU-MIMO, OFDMA, Multi-RUs, and 160 MHz channel bandwidth
• Bluetooth Version: Bluetooth 5.4
• Interface: PCI Express (PCIe)
• Antenna Type: 2 × Fixed High-Performance Omnidirectional Antennas
• Wireless Security: WPA-PSK, WPA2-PSK, and WPA3-SAE
• Supported Operating System: Windows 11 (64-bit)
• Dimensions: 228 × 120.8 × 21.5 mm
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90%, non-condensing
• Storage Humidity: 5% to 90%, non-condensing
• Package Contents: MA37BE PCIe Adapter, Bluetooth Header Cable, Quick Installation Guide, and Resource CD

Next-Generation Wi-Fi 7 Tri-Band Connectivity

The MERCUSYS MA37BE brings Wi-Fi 7 technology to compatible desktop computers, providing access to three wireless frequency bands. With a combined theoretical speed of up to 6.5 Gbps, it is designed to handle demanding wireless networking requirements, including high-resolution media streaming, online gaming, video conferencing, and large data transfers.

The additional 6 GHz band offers more wireless spectrum for compatible devices and routers. This can help reduce congestion and improve connectivity in environments with multiple wireless networks and connected devices.

Advanced 4K-QAM and Multi-RUs Technology

Wi-Fi 7 introduces advanced technologies designed to improve wireless transmission efficiency. The MA37BE supports 4K-QAM, which carries more data per transmission symbol compared with 1024-QAM used in Wi-Fi 6 under comparable conditions.

Multi-RUs technology helps utilise available channel resources more efficiently, while 160 MHz channel bandwidth supports high-speed wireless connections when compatible networking equipment and regional regulations permit.

MU-MIMO and OFDMA for Improved Network Efficiency

The MA37BE supports MU-MIMO and OFDMA technologies to improve communication efficiency across compatible wireless networks. These technologies help networking equipment handle multiple connected devices and distribute available wireless resources more effectively.

When paired with a compatible Wi-Fi 7 router or access point, these features can contribute to smoother networking performance in busy home and office environments.

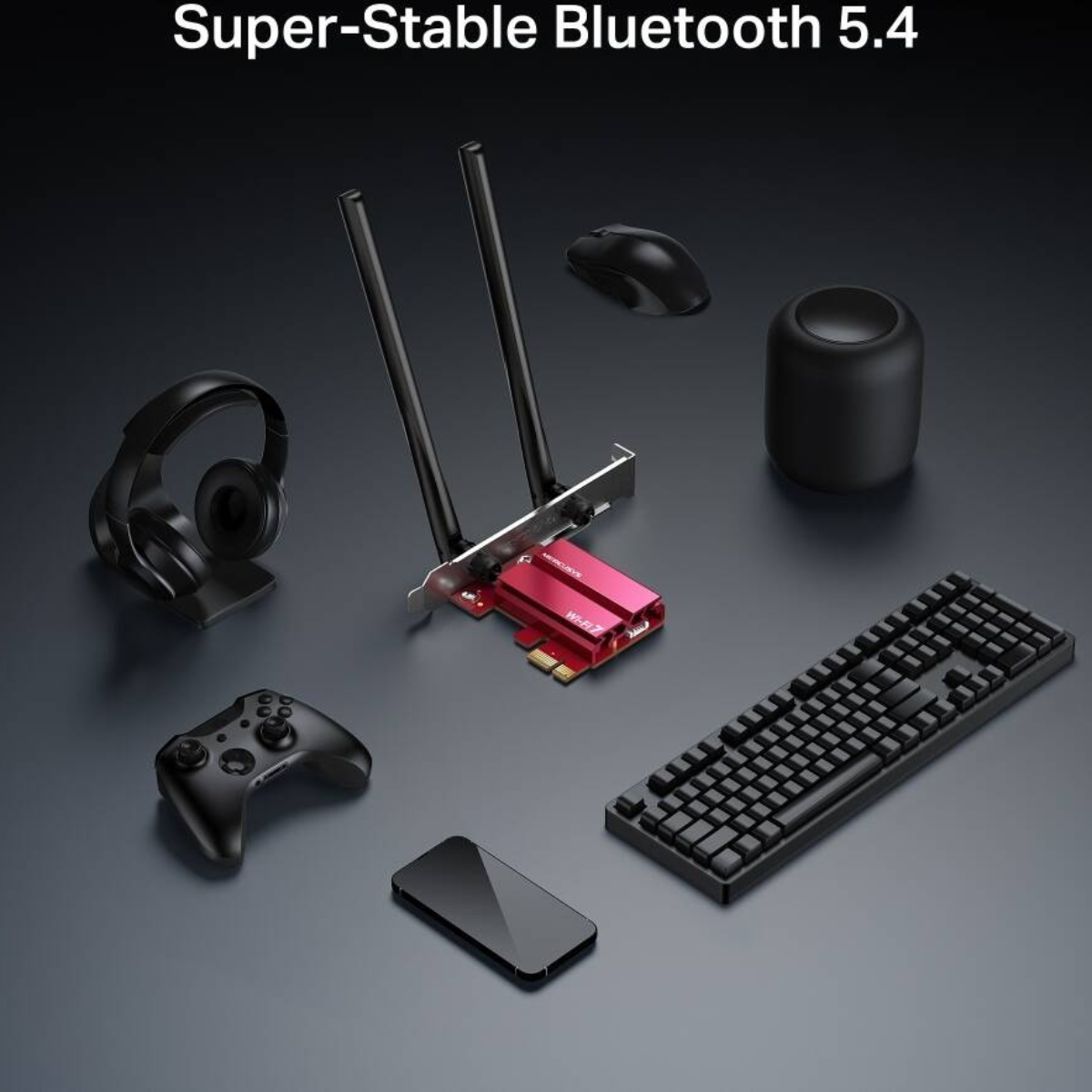

Integrated Bluetooth 5.4 Connectivity

In addition to wireless networking, the MA37BE includes Bluetooth 5.4 functionality for connecting compatible Bluetooth devices to a desktop computer. This allows users to connect wireless accessories such as headphones, keyboards, mice, speakers, and other supported peripherals.

To enable Bluetooth functionality, connect the included Bluetooth Header Cable to a compatible USB 2.0 header on the computer's motherboard. Bluetooth functionality may depend on the system configuration and appropriate driver installation.

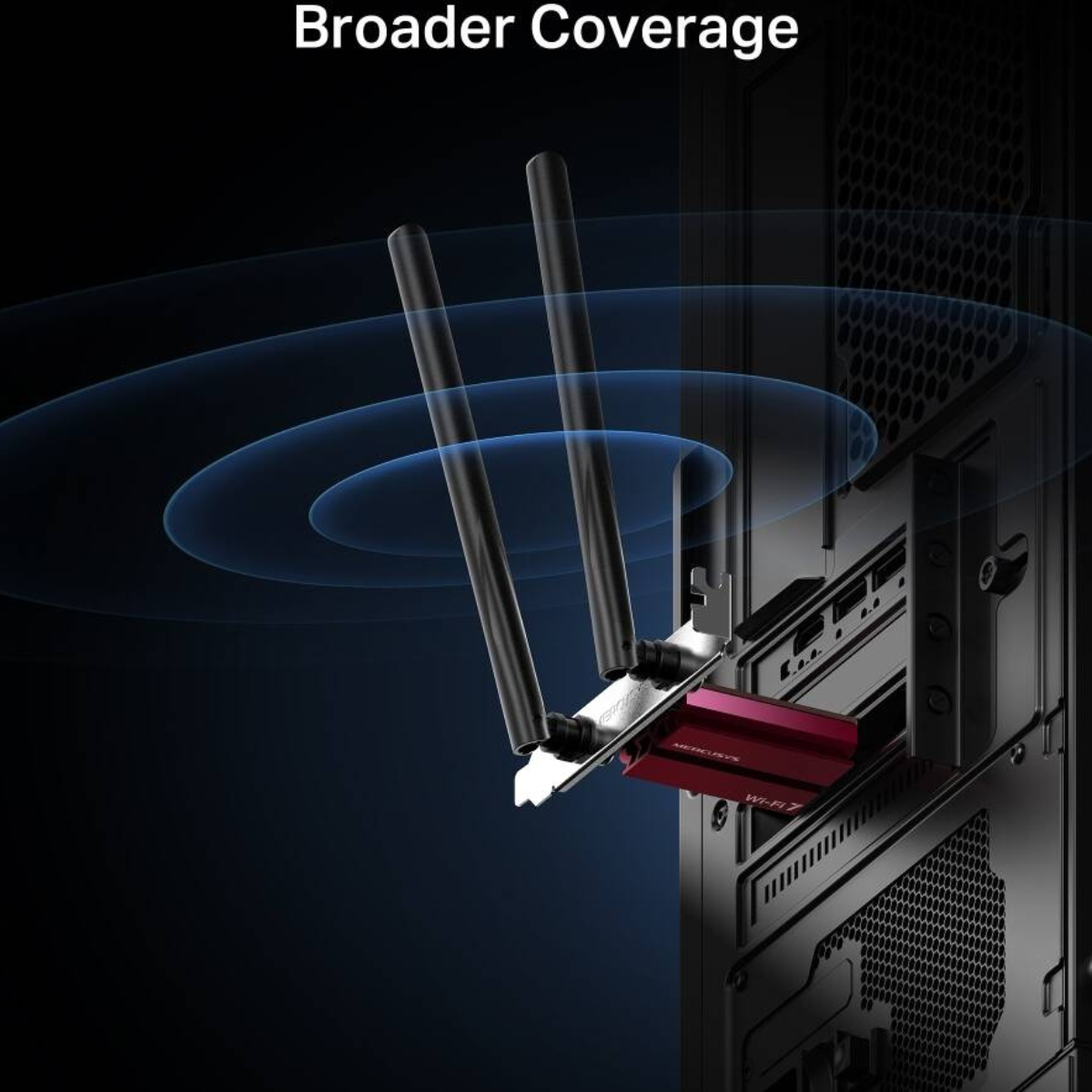

Two High-Performance Omnidirectional Antennas

The MA37BE features two fixed high-performance omnidirectional antennas designed to improve wireless signal transmission and reception. Their configuration helps provide broader wireless coverage for compatible desktop installations.

For optimal performance, position the desktop computer and antennas in an area with minimal physical obstruction and suitable distance from the wireless router. Actual coverage depends on environmental conditions, building materials, interference, and router placement.

Enhanced Wireless Security with WPA3

The MERCUSYS MA37BE supports WPA3-SAE wireless security, providing enhanced protection for compatible wireless networks. WPA3 is designed to strengthen password-based authentication and help protect connected devices and personal information.

To use WPA3, the connected router or access point must also support WPA3 security and be configured accordingly.

Ideal Applications

• Gaming Desktop PCs: Upgrade compatible gaming computers with high-speed Wi-Fi 7 connectivity for responsive online gaming.
• High-Resolution Streaming: Support demanding 4K and 8K media streaming over compatible high-speed wireless networks.
• Professional Workstations: Improve wireless connectivity for large file transfers, cloud applications, and productivity workflows.
• Home Networking: Connect desktop computers to compatible tri-band Wi-Fi 7 routers and access points.
• Wireless Peripherals: Connect supported Bluetooth accessories through integrated Bluetooth 5.4.
• High-Density Network Environments: Benefit from advanced Wi-Fi 7 technologies when paired with compatible networking equipment.

Benefits

• Upgrades compatible desktop PCs to next-generation Wi-Fi 7 connectivity.
• Provides tri-band wireless performance across 2.4 GHz, 5 GHz, and 6 GHz.
• Supports combined theoretical wireless speeds of up to 6.5 Gbps.
• Includes Bluetooth 5.4 for compatible wireless accessories.
• Uses 4K-QAM, MU-MIMO, OFDMA, and Multi-RUs for improved network efficiency.
• Features two high-performance omnidirectional antennas.
• Supports WPA3 wireless security.
• Designed for Windows 11 64-bit desktop computers.

Why Choose the MERCUSYS MA37BE?

• Latest Wi-Fi 7 Technology: Provides access to next-generation wireless networking features.
• BE6500 Tri-Band Performance: Offers high theoretical speeds across three frequency bands.
• Wi-Fi and Bluetooth in One Adapter: Combines PCIe wireless networking with Bluetooth 5.4 connectivity.
• Advanced Network Efficiency: Supports technologies designed to improve wireless performance and resource utilisation.
• Enhanced Security: Includes WPA3 support for compatible wireless networks.
• Desktop Upgrade Solution: Adds modern wireless connectivity to compatible desktop computers through PCIe installation.

Compatibility and Important Considerations

• Operating System: Compatible with Windows 11 64-bit. MERCUSYS does not list Windows 10 support for this model.
• PCIe Installation: Requires an available compatible PCI Express expansion slot inside the desktop computer.
• Bluetooth Connection: The included Bluetooth Header Cable must be connected to a compatible USB 2.0 motherboard header to enable Bluetooth functionality.
• Wi-Fi 7 Router Requirement: To access Wi-Fi 7 features, including 4K-QAM and Multi-RUs, the connected router or access point must support the corresponding technologies.
• 6 GHz Availability: Access to the 6 GHz band depends on local regulatory availability, regional router support, and compatible network configuration.
• WPA3: Requires a compatible WPA3-enabled router or access point.
• Low-Profile Brackets: The MA37BE is not compatible with low-profile brackets because of its fixed antennas.
• Actual Wireless Speeds: Advertised speeds are theoretical maximum signal rates. Actual throughput and coverage vary depending on router capability, network conditions, interference, and installation environment.
