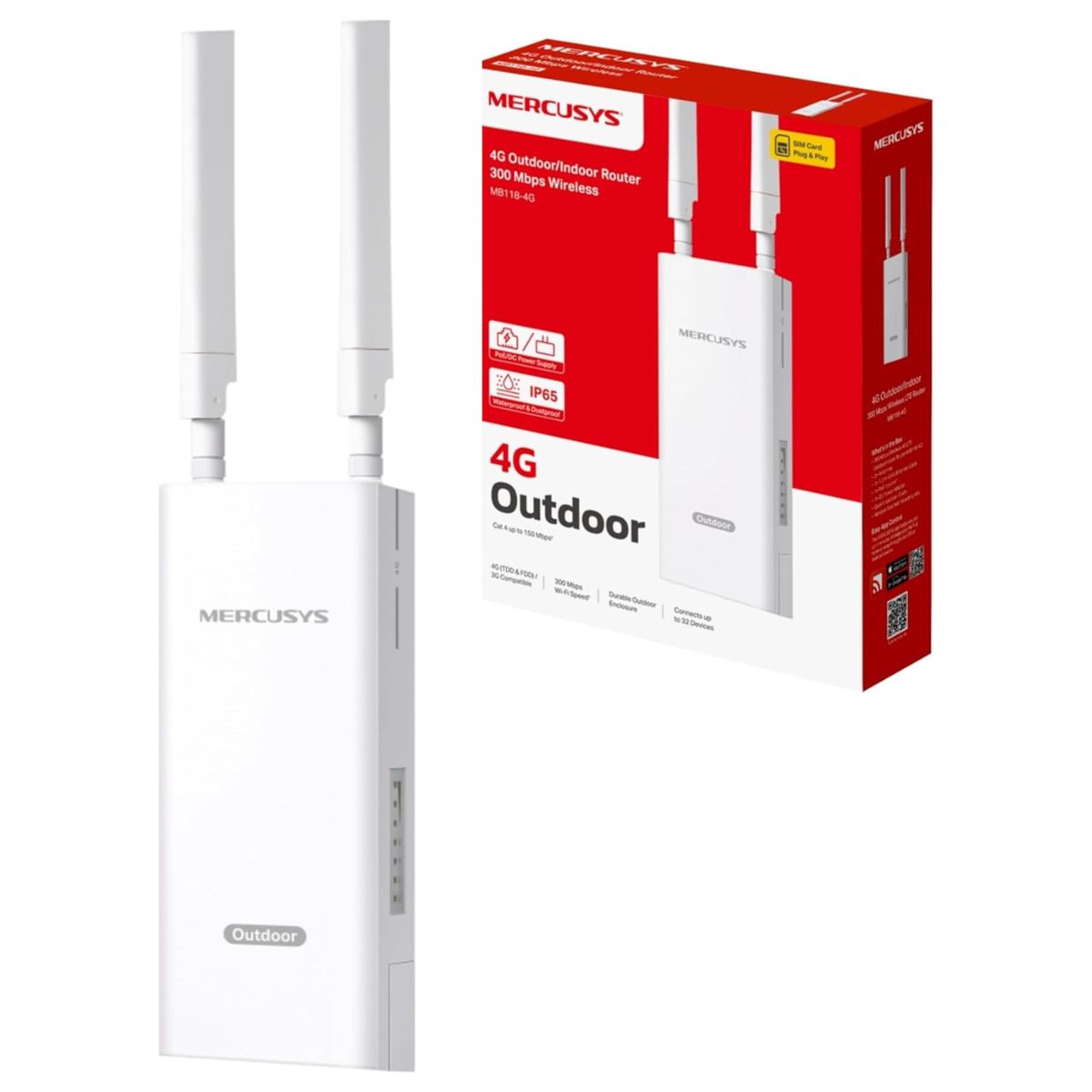

MERCUSYS MB118-4G Outdoor 4G LTE Router | N300 Wi-Fi 4 | 150 Mbps Cat 4 | Nano SIM | PoE | IP65 Weatherproof

MERCUSYS MB118-4G Outdoor 4G LTE Router | N300 Wi-Fi 4 | 150 Mbps Cat 4 | Nano SIM | PoE | IP65 Weatherproof

The MERCUSYS MB118-4G Outdoor 4G LTE Router is designed to provide reliable internet connectivity in outdoor and indoor environments where fixed broadband may be unavailable, inconvenient, or expensive to install. With an integrated 4G LTE modem, simply insert an activated Nano SIM card to access mobile internet and share the connection with Wi-Fi devices. Supporting 4G LTE Cat 4 download speeds of up to 150 Mbps and N300 Wi-Fi 4 speeds of up to 300 Mbps on the 2.4 GHz band, the MB118-4G is suitable for outdoor Wi-Fi coverage in gardens, patios, cafés, sheds, small commercial spaces, and other locations requiring flexible internet access. Its IP65-rated enclosure provides protection against dust and water jets under specified conditions, making it suitable for supported outdoor installations. The router supports Power over Ethernet (PoE), including IEEE 802.3af/at and passive PoE, alongside DC power. This gives installers flexibility when positioning the router in a location with a stronger mobile signal. Pole, wall, and window mounting options further simplify deployment, while detachable external LTE antennas help support mobile network reception.

Key Features

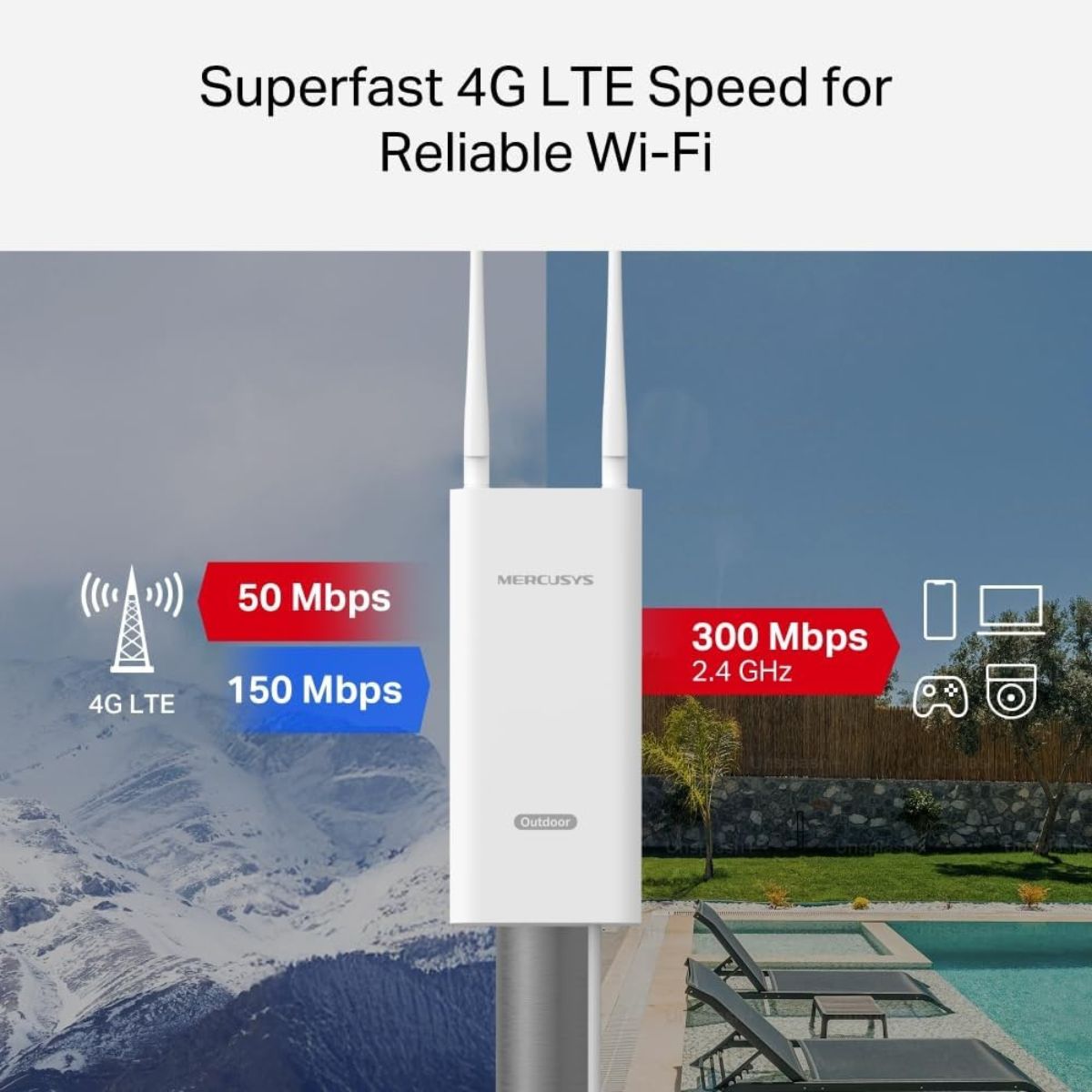

• 4G LTE Cat 4 Connectivity: Supports mobile broadband download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps, depending on network conditions and service provider.
• N300 Wi-Fi 4: Provides wireless speeds of up to 300 Mbps on the 2.4 GHz band for compatible devices.
• IP65 Weather Protection: Designed to resist dust ingress and water jets for suitable outdoor installations.

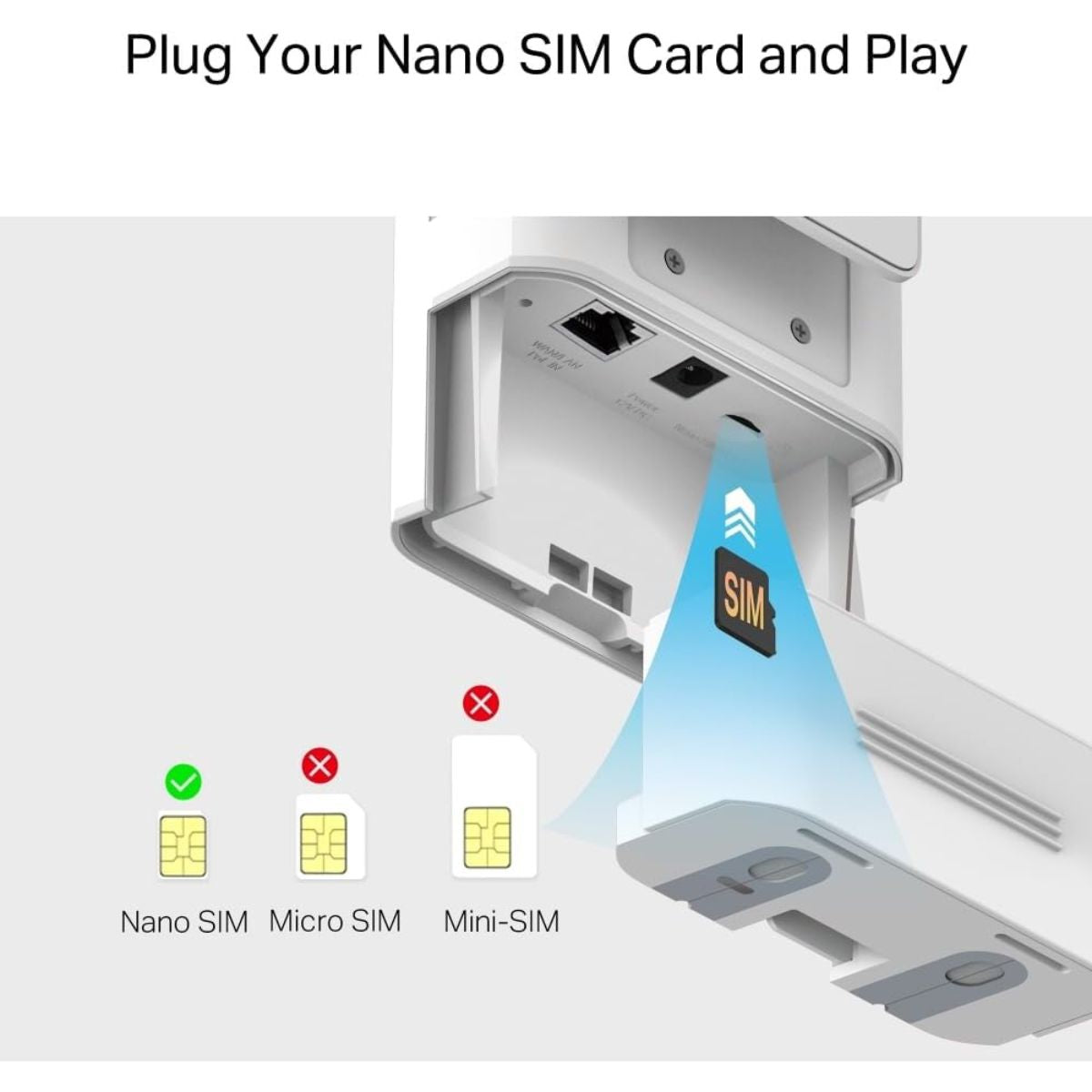

• Nano SIM Plug and Play: Insert an activated, compatible Nano SIM card to connect to a supported mobile network.

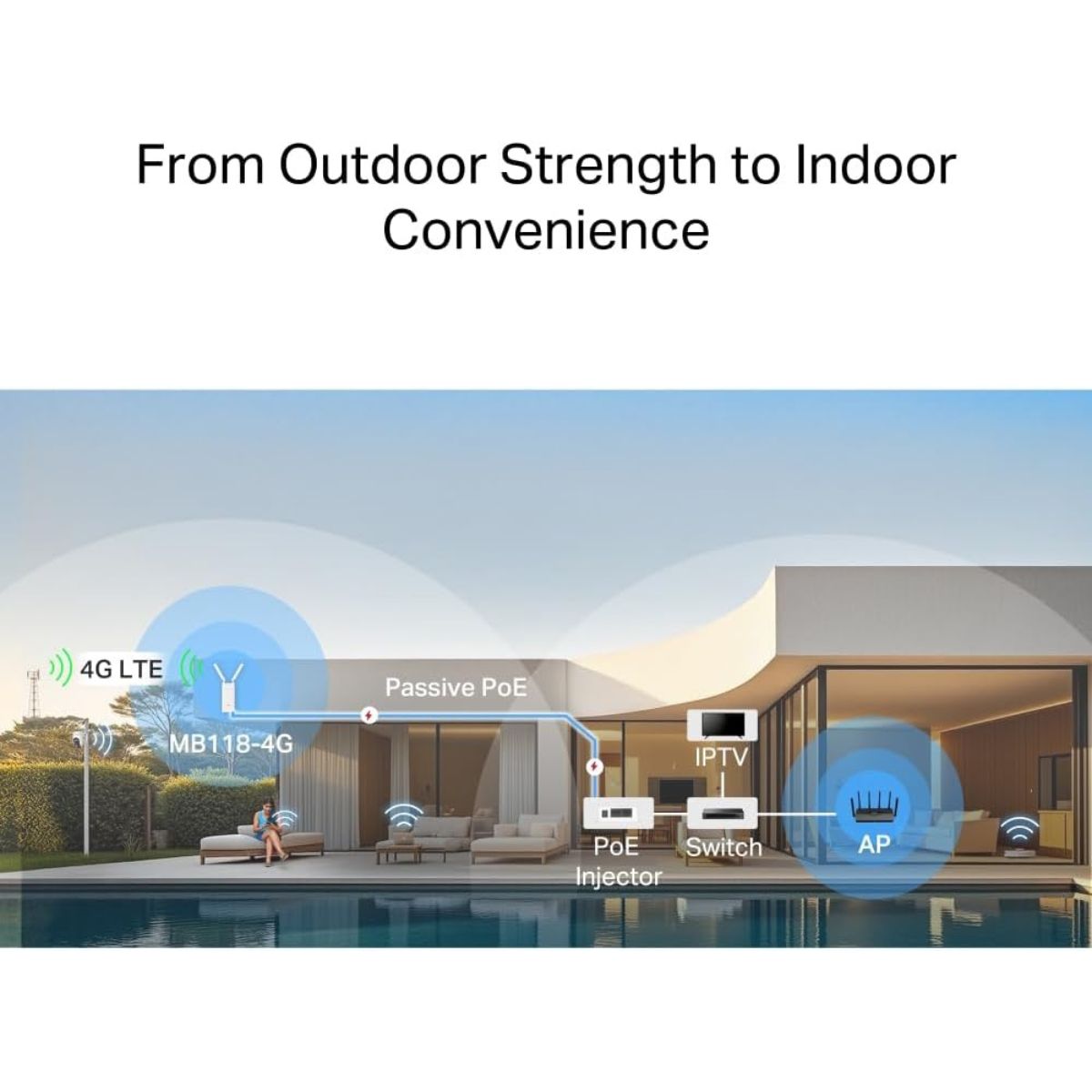

• PoE and DC Power Options: Supports IEEE 802.3af/at PoE, passive PoE, and a 12V DC power adapter.
• Detachable LTE Antennas: Two external LTE antennas can be adjusted or replaced with compatible higher-gain alternatives where appropriate.

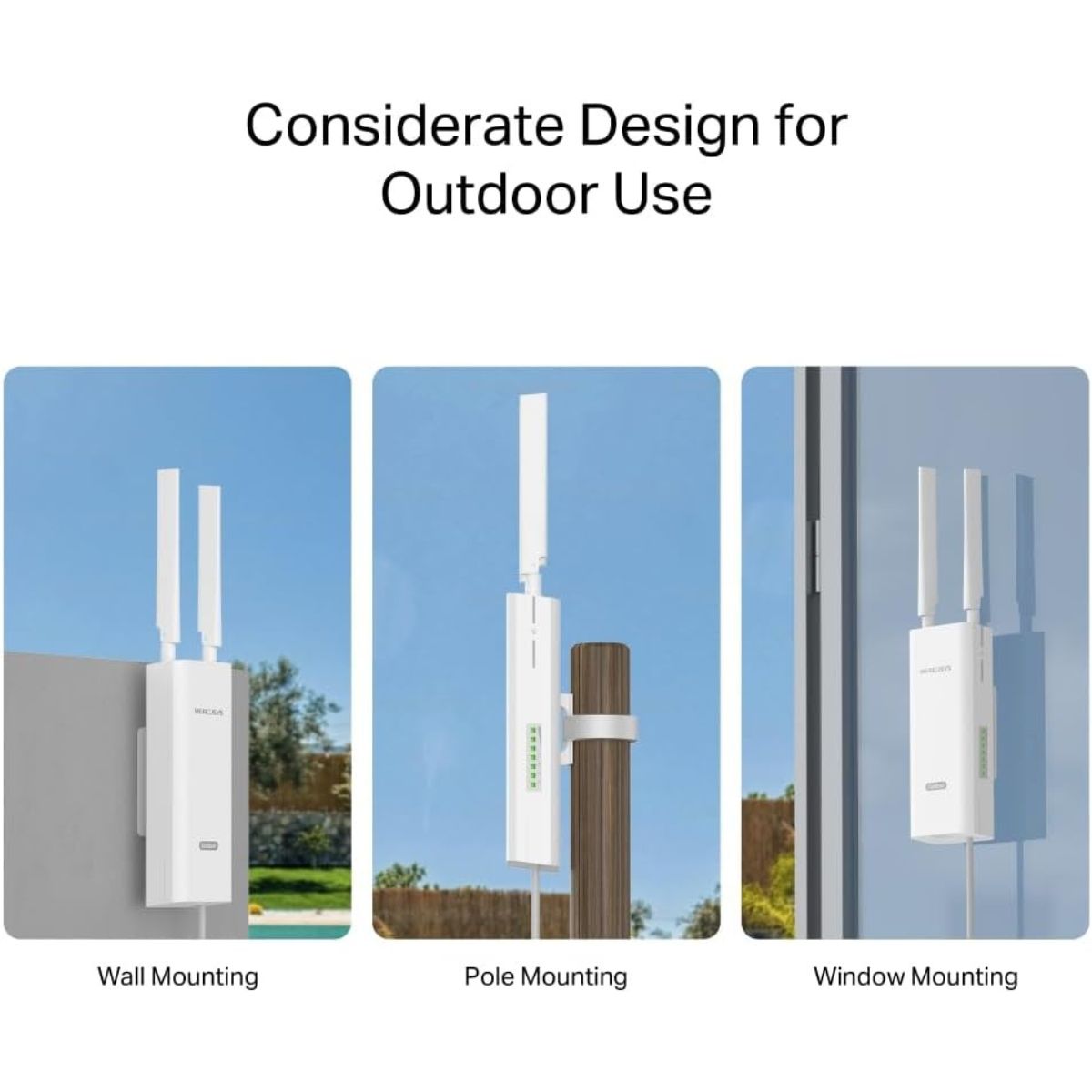

• Flexible Mounting: Supports pole, wall, and window mounting for different installation environments.
• Multiple Device Connectivity: Supports up to 32 Wi-Fi devices, with 16 recommended clients for a more practical connection load.
• MERCUSYS App Management: Configure and manage supported network settings through the MERCUSYS mobile app.
• Built-In Network Security: Supports WPA-PSK and WPA2-PSK wireless security, together with supported firewall and access-control functions.

Technical Specifications

• Brand: MERCUSYS
• Model: MB118-4G
• Product Type: Outdoor/Indoor 4G LTE Router
• Cellular Standard: 4G LTE Cat 4
• Maximum 4G Download Speed: Up to 150 Mbps
• Maximum 4G Upload Speed: Up to 50 Mbps
• Wi-Fi Class: N300
• Wi-Fi Standard: IEEE 802.11b/g/n (Wi-Fi 4)
• Wireless Frequency: 2.4 GHz
• Maximum Wi-Fi Speed: Up to 300 Mbps
• SIM Slot: 1 × Nano SIM card slot
• Ethernet Interface: 1 × 10/100 Mbps LAN/WAN port with PoE input
• Power Options: IEEE 802.3af/at PoE, 12V passive PoE, or 12V DC power adapter
• LTE Antennas: 2 × detachable external LTE antennas
• Wi-Fi Antennas: 2 × internal Wi-Fi antennas
• Maximum Connected Wi-Fi Devices: Up to 32
• Recommended Wi-Fi Client Limit: 16
• Wireless Security: WPA-PSK / WPA2-PSK
• Protection Rating: IP65 dustproof and water-jet protection
• Operating Temperature: -30°C to 60°C
• Dimensions: 230.9 × 97.2 × 54.7 mm
• Management: MERCUSYS app and web interface

Ideal Applications

• Outdoor Wi-Fi and internet connectivity for homes and villas.
• Gardens, patios, poolsides, sheds, and suitable outdoor work areas.
• Small cafés, kiosks, and other commercial spaces with mobile coverage.
• Temporary sites or locations where fixed broadband installation is impractical.
• Remote work areas and buildings with access to a compatible cellular network.
• Small offices and premises requiring SIM-based internet connectivity.
• Installations where PoE helps simplify power delivery to the router.

Benefits

• Flexible Internet Access: Uses a compatible 4G LTE network instead of depending on a fixed broadband line.
• Outdoor Installation: IP65-rated protection supports suitable outdoor deployments.
• Simplified Cabling: PoE support can reduce the need for a separate power connection at the router location.
• Convenient Wireless Sharing: Connect compatible Wi-Fi devices through the integrated N300 wireless network.
• Adaptable Placement: Pole, wall, and window mounting options help accommodate different sites.
• Flexible Power Choices: Select supported PoE or DC power according to installation requirements.
• Easy Management: Use the supported app or web interface to configure and manage the network.

Why Choose the MERCUSYS MB118-4G?

• Outdoor-Ready Design: IP65-rated protection for suitable outdoor installations.
• Integrated 4G LTE: Connect through a compatible Nano SIM card without requiring fixed broadband service.
• Practical Wireless Performance: N300 Wi-Fi 4 for everyday 2.4 GHz connectivity.
• PoE Compatibility: Supports IEEE 802.3af/at PoE and passive PoE, as well as DC power.
• Flexible Installation: Designed for pole, wall, and window mounting.
• Detachable LTE Antennas: Offers flexibility for suitable antenna configurations.

Compatibility and Important Considerations

• SIM Card: A compatible, activated Nano SIM card and an appropriate mobile data plan are required. The SIM card is sold separately.
• Mobile Network: Confirm that the router's supported LTE bands match your UAE mobile operator's network before purchasing. The official regional specification lists specific LTE bands, and compatibility can vary by hardware or regional version.
• Network Speed: The 150 Mbps LTE download rate and 300 Mbps Wi-Fi rate are theoretical maximums, not guaranteed internet speeds.
• Ethernet Port: The router has a 10/100 Mbps LAN/WAN port. It does not provide Gigabit Ethernet.
• Outdoor Protection: IP65 protection is not intended for submersion or high-pressure water exposure. Follow the installation guide and correctly secure the waterproof cover and cable entries.
• Power Supply: Use a supported IEEE 802.3af/at PoE source, compatible passive PoE arrangement, or the specified DC adapter. Check the power requirements before connecting third-party equipment.
• Device Capacity: Although up to 32 Wi-Fi devices are supported, the manufacturer recommends a limit of 16 clients for more practical performance.

Why Buy from IT Splendid (UAE)?

Shop for networking equipment at IT Splendid, your UAE technology store for routers, connectivity products, computer accessories, and business IT solutions.

• UAE Delivery: Convenient delivery options across the UAE.
• Free Delivery: Free delivery on eligible orders of AED 499 and above, subject to store terms.
• Payment Flexibility: Available payment options include supported Tabby and Tamara instalment services, subject to eligibility.
• Product Support: Contact the IT Splendid team for product and compatibility enquiries before ordering.

The MERCUSYS MB118-4G Outdoor 4G LTE Router is a practical option for customers who need SIM-based internet connectivity, N300 Wi-Fi 4, IP65-rated outdoor protection, and flexible PoE or DC power. Check LTE band compatibility and installation requirements to ensure it suits your intended site.
