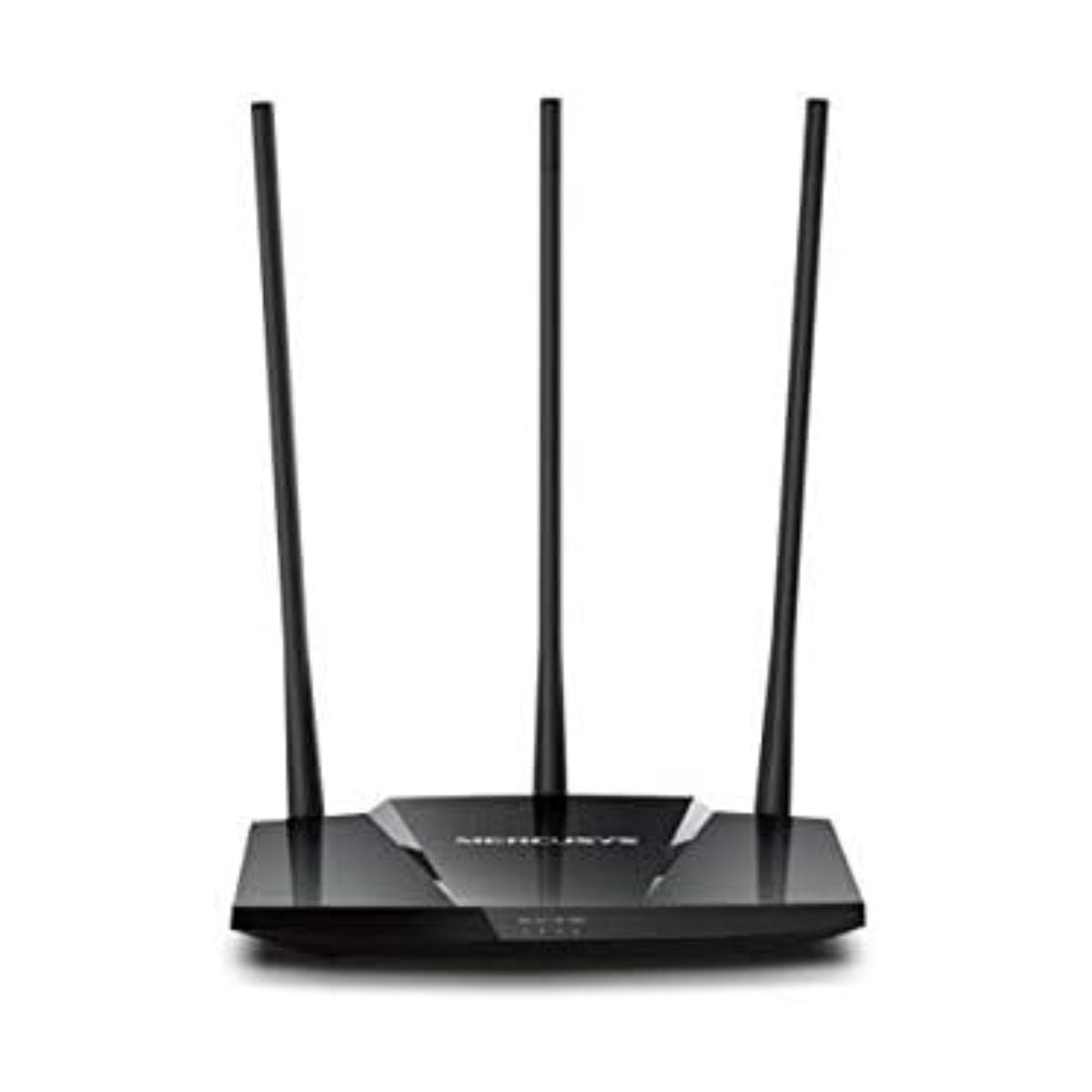

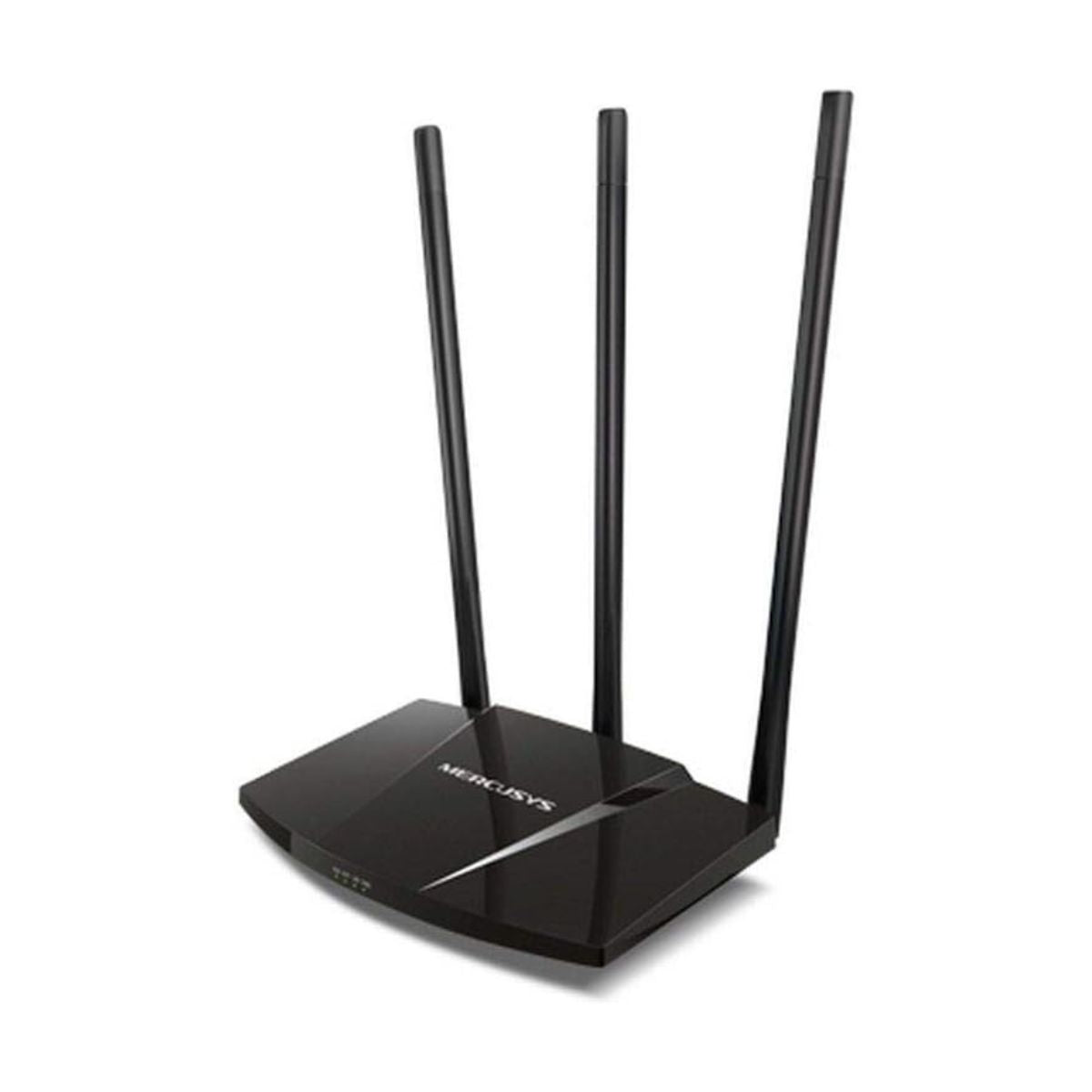

MERCUSYS MW330HP 300Mbps High Power Wireless N Router | 3× 7 dBi Antennas | Turbo Button | 10/100 Mbps WAN/LAN | Black

MERCUSYS MW330HP 300Mbps High Power Wireless N Router | 3× 7 dBi Antennas | Turbo Button | 10/100 Mbps WAN/LAN | Black

The MERCUSYS MW330HP 300Mbps High Power Wireless N Router is designed to provide extended wireless coverage for homes and small offices. Operating on the 2.4 GHz frequency band, it supports Wireless N speeds of up to 300 Mbps, making it suitable for everyday internet browsing, online learning, emails, social media, and other routine network activities. Designed with a dedicated power amplifier (PA), a convenient Turbo button, and three external 7 dBi high-gain antennas, the MW330HP focuses on improving wireless signal distribution across the coverage area. The Turbo button provides a quick way to enhance the wireless signal, while the high-gain antennas help distribute connectivity throughout compatible indoor environments. The router includes one 10/100 Mbps WAN port and three 10/100 Mbps LAN ports for connecting a modem and wired devices. Additional features include guest networking, WPA/WPA2 wireless security, WDS bridging, and browser-based setup. Its black design and straightforward configuration make it a practical option for users who need a basic wireless router with a focus on coverage.

Key Features

• 300 Mbps Wireless N: Supports theoretical wireless speeds of up to 300 Mbps on the 2.4 GHz band.
• High-Power Wireless Design: Uses a dedicated power amplifier to provide up to 2× transmission power compared with the internal PA design described by the manufacturer.
• Turbo Button: Allows users to activate the router's wireless signal enhancement feature when additional coverage is needed.
• Three External 7 dBi Antennas: High-gain antennas help extend wireless range and distribute signals across the intended coverage area.
• Fast Ethernet Connectivity: Includes one 10/100 Mbps WAN port and three 10/100 Mbps LAN ports.
• Guest Network: Supports a separate 2.4 GHz guest wireless network on the referenced hardware specification.
• WDS Bridging: Supports Wireless Distribution System bridging for compatible network configurations.
• WPA/WPA2 Security: Provides wireless encryption options to help protect the network.
• Easy Installation: Uses a web-based setup interface to guide users through the initial configuration process.
• Network Management: Includes access control, DHCP server functionality, and local and remote management options.

Technical Specifications

• Brand: MERCUSYS
• Model: MW330HP
• Product Type: High-Power Wireless N Router
• Colour: Black
• Wireless Standard: IEEE 802.11b/g/n
• Wireless Frequency: 2.4 GHz (approximately 2.402–2.482 GHz)
• Maximum Wireless N Speed: Up to 300 Mbps (dynamic link rate)
• IEEE 802.11g Speed: Up to 54 Mbps (dynamic link rate)
• IEEE 802.11b Speed: Up to 11 Mbps (dynamic link rate)
• Antennas: 3 × fixed external 7 dBi antennas
• Wireless Amplifier: Dedicated power amplifier (PA)
• Wireless Functions: Wireless radio enable/disable and WDS bridging
• WAN Port: 1 × 10/100 Mbps Ethernet port
• LAN Ports: 3 × 10/100 Mbps Ethernet ports
• WAN Connection Types: Dynamic IP, Static IP, PPPoE, PPTP, and L2TP
• Wireless Security: WPA-PSK / WPA2-PSK
• Guest Network: 2.4 GHz guest network
• DHCP: DHCP server
• Management: Access control, local management, and remote management
• Port Forwarding: Virtual Server, UPnP, and DMZ
• Firewall Security: IP and MAC address binding
• Buttons: Turbo and WPS/Reset
• Dimensions: 192 × 127 × 36 mm
• Power Supply: 9 V DC, 0.6 A
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90%, non-condensing
• Storage Temperature: -40°C to 70°C
• Storage Humidity: 5% to 90%, non-condensing

300 Mbps Wireless N Connectivity

The MW330HP supports IEEE 802.11n wireless networking on the 2.4 GHz band, with theoretical wireless link rates of up to 300 Mbps. This capacity is intended for common home networking activities such as browsing websites, checking emails, accessing online services, and connecting compatible wireless devices.

As a single-band router, the MW330HP does not provide a separate 5 GHz Wi-Fi network. Its 2.4 GHz operation can be useful for everyday connectivity, although performance depends on interference from nearby wireless networks, the distance between devices, building materials, and the capabilities of connected equipment.

Dedicated Power Amplifier for Enhanced Coverage

The MW330HP incorporates a dedicated power amplifier (PA) designed to provide up to twice the transmission power compared with the internal PA design described by MERCUSYS. The purpose of this design is to help maintain a stronger wireless signal across the intended coverage area and improve connectivity in locations where walls and other obstacles affect reception.

Actual coverage depends on environmental conditions, local wireless regulations, router placement, and the wireless capabilities of connected devices. The high-power design does not guarantee a particular range or eliminate all wireless dead zones.

Turbo Button for Wireless Signal Enhancement

The dedicated Turbo button provides a convenient way to activate the router's wireless signal enhancement function. This feature is designed to help expand wireless coverage when the standard signal is insufficient for the intended area.

The Turbo feature is useful for users who want a simple, physical control for signal enhancement without navigating through multiple configuration menus. Actual improvements depend on the surrounding wireless environment and the placement of the router.

Three External 7 dBi High-Gain Antennas

The MW330HP features three external 7 dBi antennas designed to improve wireless signal distribution and help extend coverage. The high-gain antenna design supports connectivity for compatible devices located at different positions within the home or small office.

For the best results, place the router in a central, elevated position and avoid enclosing it inside cabinets or placing it behind large obstructions. Coverage and signal quality can vary considerably between buildings and network environments.

Fast Ethernet Ports for Wired Devices

The router includes one 10/100 Mbps WAN port for the internet connection and three 10/100 Mbps LAN ports for wired network devices. These ports can be used to connect compatible desktop computers, network equipment, and other Ethernet-enabled devices.

Important: The MW330HP uses Fast Ethernet rather than Gigabit Ethernet. Its 100 Mbps WAN interface can limit internet throughput even when the wireless link rate is advertised at up to 300 Mbps. Users with broadband plans above 100 Mbps should consider a router with Gigabit WAN and LAN ports if they want to take advantage of higher internet speeds.

Guest Network and Wireless Security

The MW330HP supports a separate 2.4 GHz guest network, allowing visitors to access Wi-Fi without using the credentials of the main wireless network. This feature can be useful in households and small offices that regularly provide internet access to guests.

Wireless security includes WPA-PSK and WPA2-PSK on the referenced hardware specification. For better protection, configure a strong, unique wireless password and keep the router's administrative credentials secure.

WDS Bridging and Network Management

Wireless Distribution System (WDS) bridging allows the router to participate in compatible wireless bridging configurations. This may be useful in network environments where a compatible wireless link is required between devices.

The router also provides common network management functions, including DHCP server operation, access control, local and remote management, virtual server configuration, UPnP, DMZ, and IP/MAC address binding. Availability and configuration requirements should be checked against the supplied hardware version and firmware.

Easy Setup and Configuration

The MW330HP uses a web-based configuration interface designed to guide users through the installation process. Typical setup involves connecting the router to the modem or internet source, selecting the required internet connection type, and setting the wireless network name and password.

Depending on the internet service provider, configuration may require Dynamic IP, Static IP, PPPoE, PPTP, or L2TP settings. Refer to the ISP's connection details and the supplied installation guide when configuring the device.

Ideal Applications

• Home Wi-Fi for everyday internet browsing
• Small apartments and residential environments
• Online learning and email access
• Social media and routine online activities
• Basic wireless connectivity for compatible phones, tablets, and laptops
• Small offices with modest bandwidth requirements
• Wired connections for compatible desktop computers and network devices
• Guest Wi-Fi access for visitors
• Compatible WDS wireless bridging configurations
• Environments where wireless coverage is a priority and Gigabit Ethernet is not required

Benefits

• Coverage-Focused Design: Combines a dedicated PA, Turbo button, and three high-gain antennas to support wireless coverage.
• Simple Wireless Networking: Provides up to 300 Mbps theoretical Wireless N connectivity on 2.4 GHz.
• Convenient Signal Control: The Turbo button provides quick access to the signal enhancement function.
• Three Wired LAN Connections: Allows compatible Ethernet devices to connect directly to the router.
• Separate Guest Access: Helps provide visitors with their own wireless connection.
• Common Network Management Tools: Includes DHCP, access control, port forwarding, and other configuration features.
• Straightforward Installation: Uses a web-based setup interface for initial configuration.
• Practical Everyday Use: Suitable for basic home and small-office connectivity needs.

Why Choose the MERCUSYS MW330HP?

• High-power Wireless N networking with a maximum theoretical link rate of 300 Mbps.
• Dedicated power amplifier designed to improve wireless transmission.
• Turbo button for convenient wireless signal enhancement.
• Three external 7 dBi antennas designed to extend coverage.
• One WAN port and three LAN ports for wired connectivity.
• Guest network, WPA/WPA2 security, and WDS bridging support.
• A practical option for users prioritizing basic wireless coverage over Gigabit Ethernet connectivity.

Compatibility and Important Considerations

• Single-Band Wi-Fi: The MW330HP operates on 2.4 GHz only; it does not support dual-band 5 GHz Wi-Fi.
• Ethernet Speed: The WAN and LAN ports are rated at 10/100 Mbps. This is not a Gigabit Ethernet router.
• Wireless Speed: The advertised 300 Mbps is a theoretical maximum wireless link rate, not a guaranteed internet download speed.
• Hardware Version: Specifications and software features may vary by hardware revision and region. Confirm the exact version supplied before purchase.
• Coverage: Actual wireless range depends on building materials, interference, router placement, and connected-device capabilities.
• Internet Service: A compatible broadband service and modem or ISP-provided equipment may be required.
• App Compatibility: MERCUSYS app support depends on the hardware version and firmware requirements. Check compatibility before relying on app-based management.
