Panasonic PM-VN 32CH Network Video Recorder, with 16PoE ports 1080p Output, H.265+, Remote Monitoring

Panasonic PM-VN 32CH Network Video Recorder, with 16PoE ports 1080p Output, H.265+, Remote Monitoring

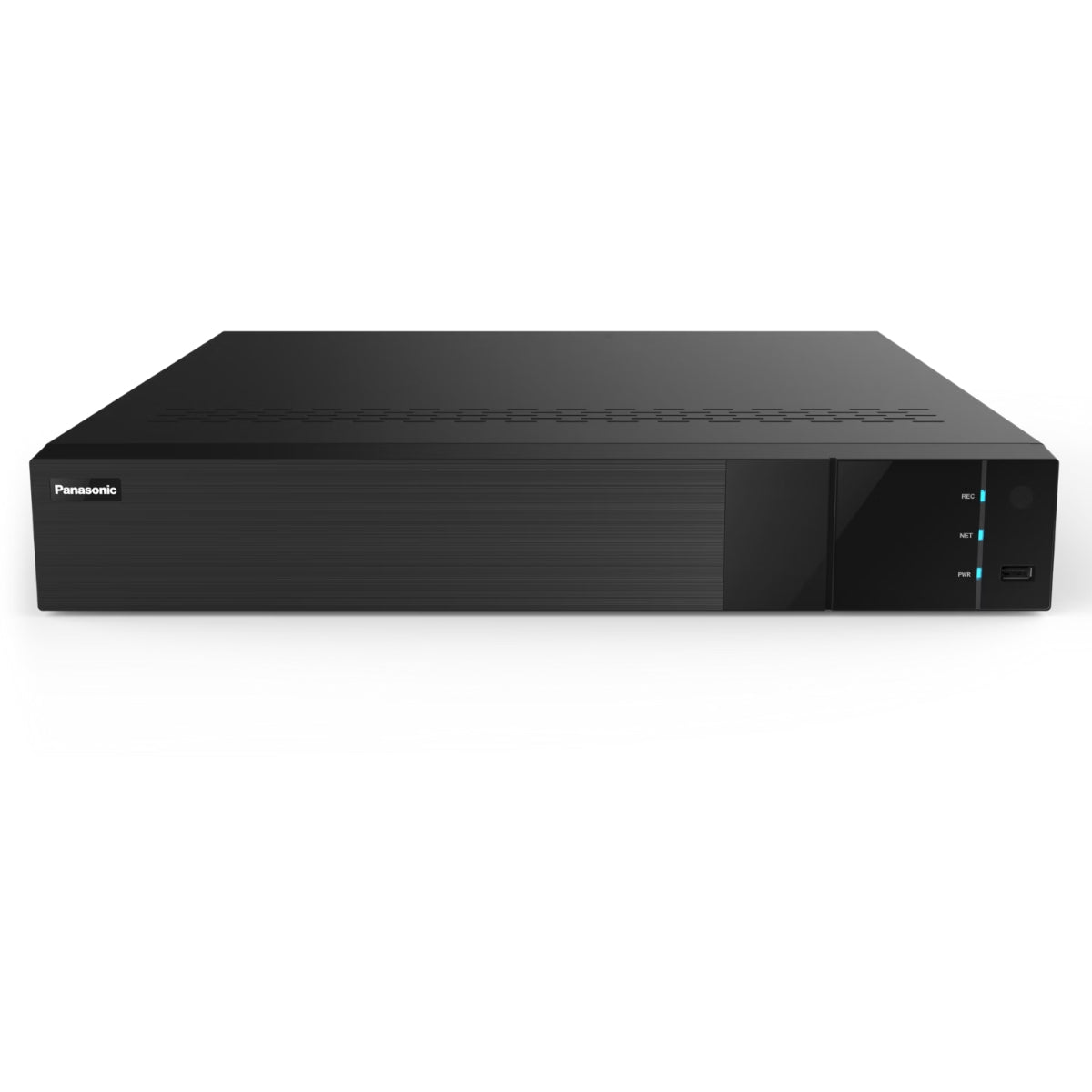

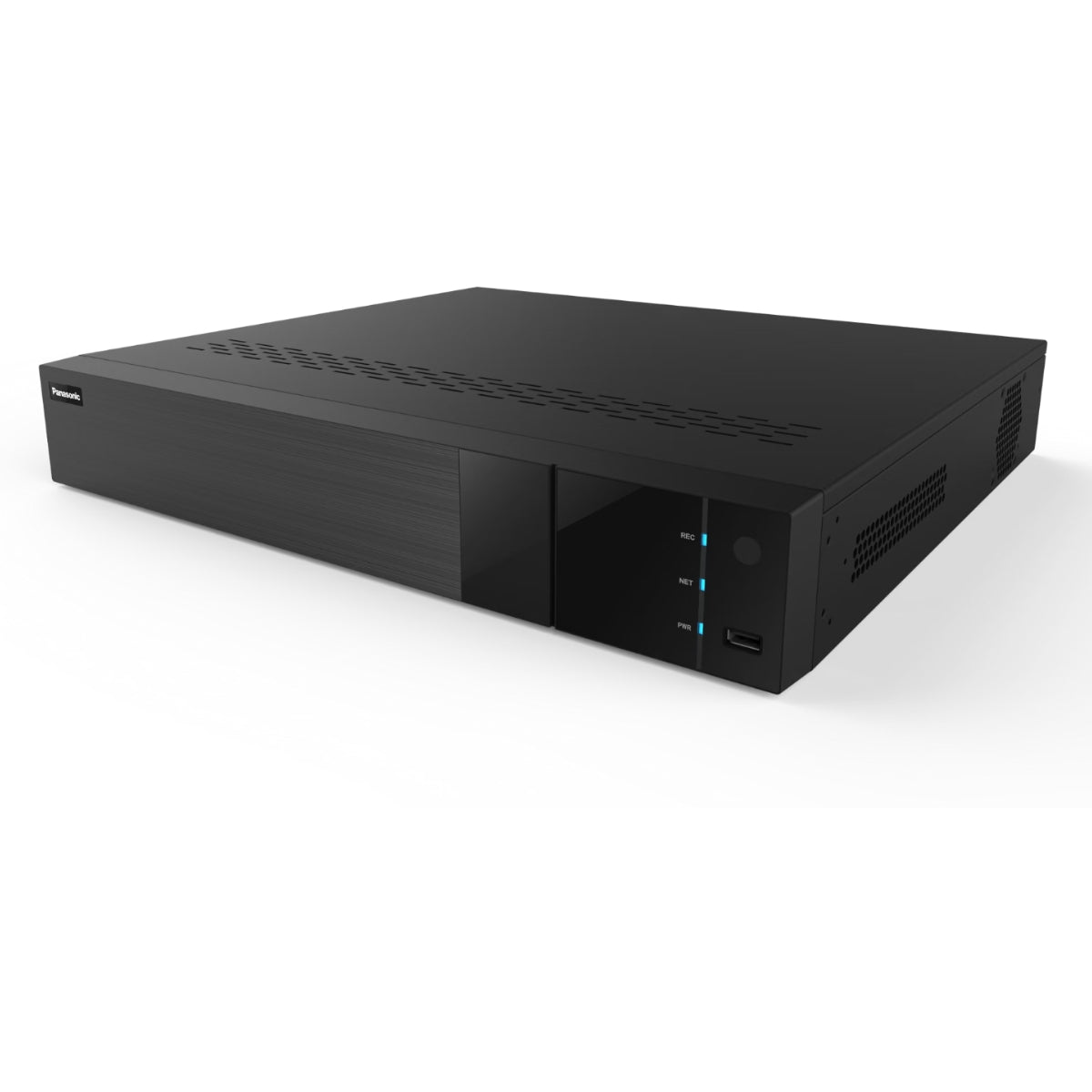

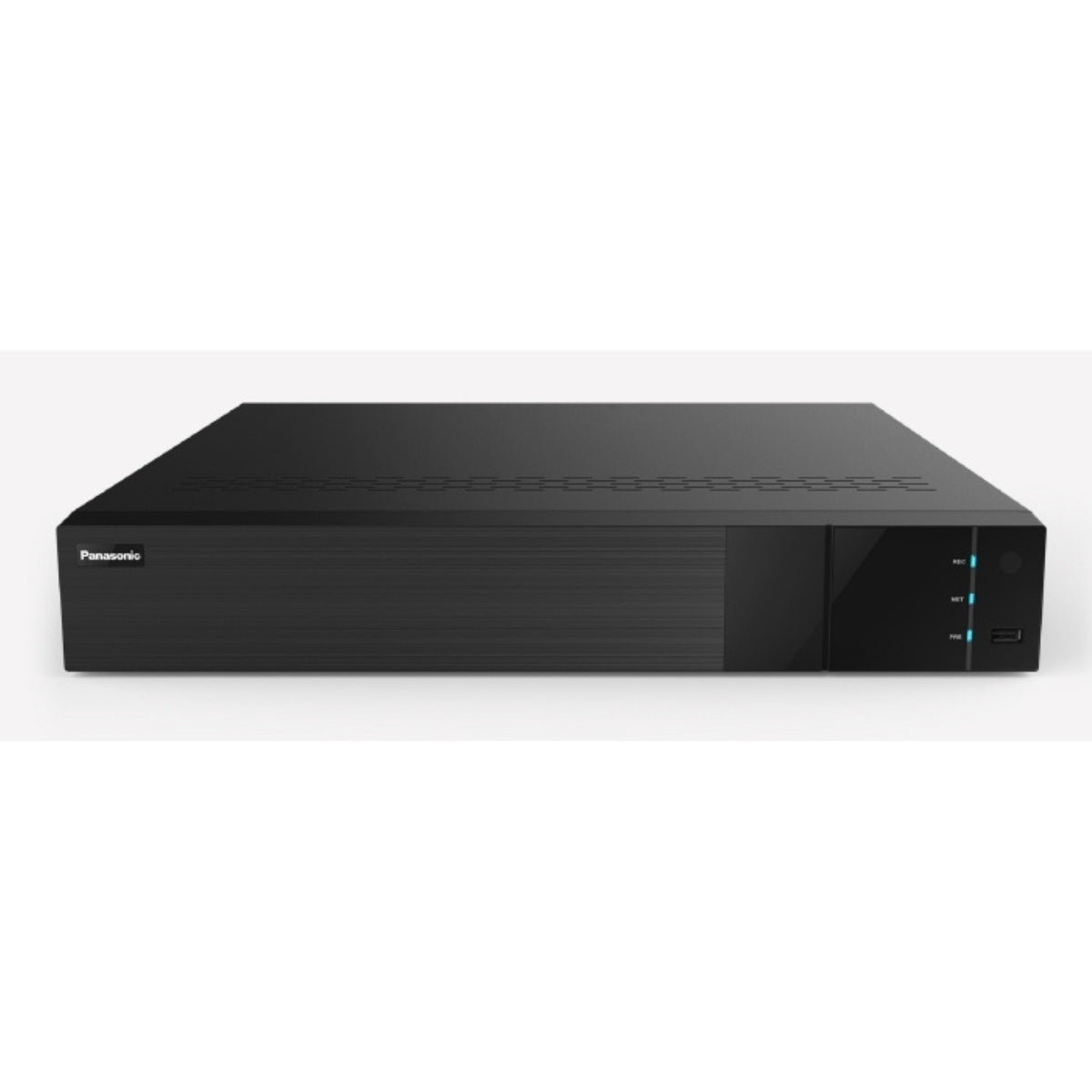

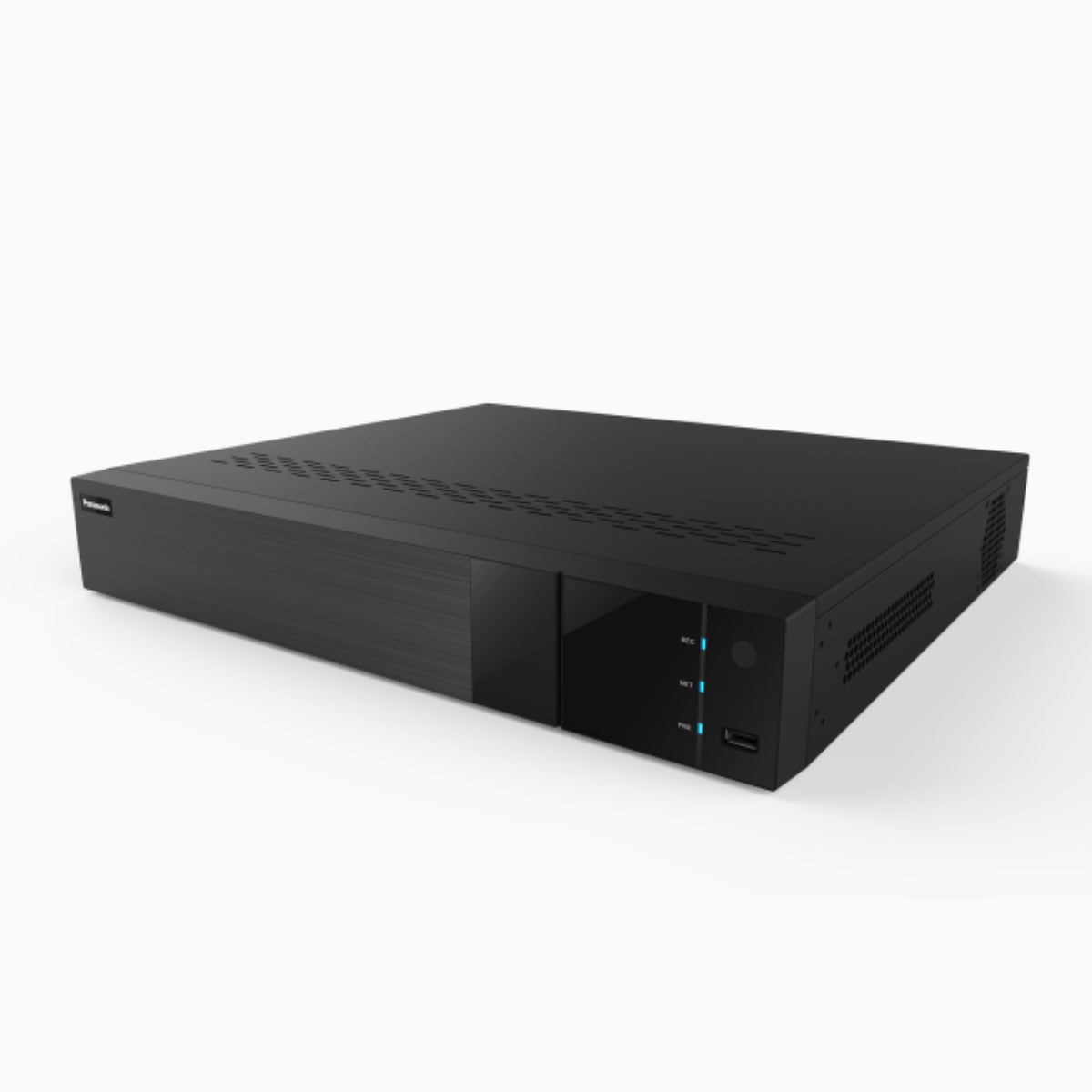

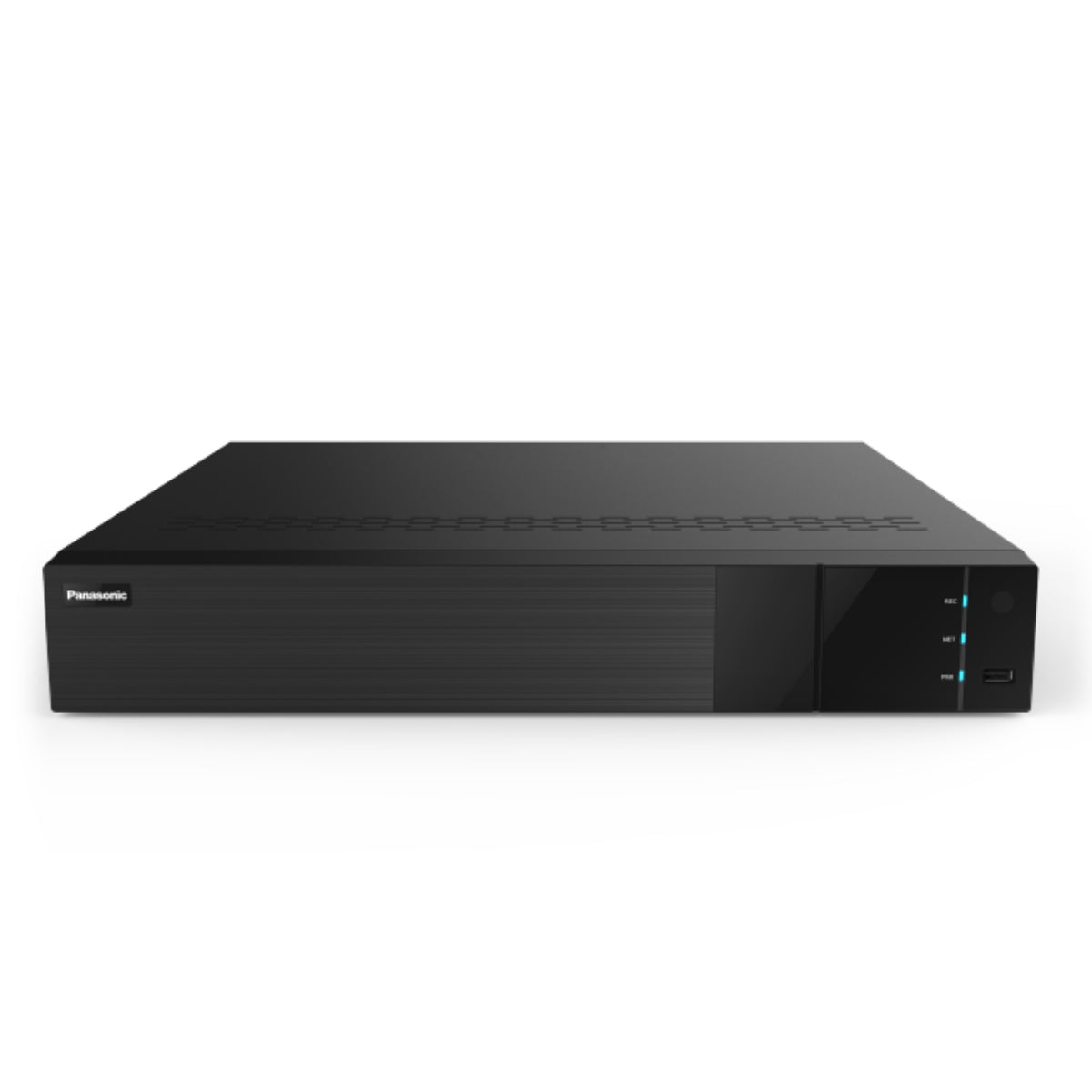

The Panasonic PM-VN32CH is a robust, high-performance NVR designed to support demanding security setups. With 32 IP video input channels, advanced compression, multi-screen display, and support for high resolutions up to 12MP, this recorder is ideal for commercial, industrial, or institutional surveillance systems. It also offers 16 PoE ports and 4 HDD interfaces to maximize storage capacity and flexibility.

 Key Features

• Up to 32 IP camera inputs with support for resolutions from CIF up to 12MP
• Compression: H.264 / H.265 / H.265+ / H.265S for efficient storage use
• Supports 16 PoE input ports for powering cameras directly via Ethernet
• Multi-screen display: live view combinations up to 41 channels (36 + 9)
• Simultaneous playback up to 16 channels
• Face detection, smart event triggers, and advanced search functions

 Technical Specifications

• Operating System: Embedded Linux
• Video Input Channels: 32CH
• Supported Resolutions: Up to 12MP / 9MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / CIF / etc.
• Network Bandwidth: 320 Mbps incoming / 256 Mbps outgoing
• Video Outputs:
  • HDMI1: up to 3840×2160 / 1920×1080 / others
  • HDMI2: up to 1920×1080 / 1280×1024 / others
  • VGA: up to 1920×1080 etc.
• Multi-Screen Display: Main: 1/4/6/8/9/13/16/25/32/36; AUX: up to 9; up to 41 CH local live view
• Compression Formats: H.264, H.265, H.265+, H.265S
• Audio Input / Output: 32CH network input; RCA ×1 local input; RCA ×1 local output; compression G.711 U/A
• Recording: Up to 12MP at 20 fps; lower resolutions support 30 fps / 25 fps depending on region
• Playback: Max 16CH simultaneous playback
• Alarm Interface: 16 input, 4 output; triggers: record, snapshot, preset, email, etc.
• Other Features: Fisheye dewarping, AI plate recognition (via IPC), smart event support, tag search, smart search, digital zoom, frame-by-frame controls

 Ideal For

• Large-scale surveillance deployments needing many channels
• Commercial, retail, or institutional security systems
• Environments needing advanced search, face analytics, and event triggers
• Installations that require powerful outputs (4K, multi-screen) and flexibility

 Why Buy from IT Splendid? – UAE’s Trusted Security Partner

•  Fast delivery across the UAE — Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras Al Khaimah, Umm Al Quwain, Al Ain
•  Genuine Panasonic products with warranty & support
•  Competitive pricing and bulk / project quotations
•  Expert support for integration, camera matching, and setup

Secure your premises with the Panasonic PM-VN32CH NVR — powerful, scalable, and built for robust surveillance. For detailed warranty, region compatibility, or additional specifications, refer to the official Panasonic product page.
