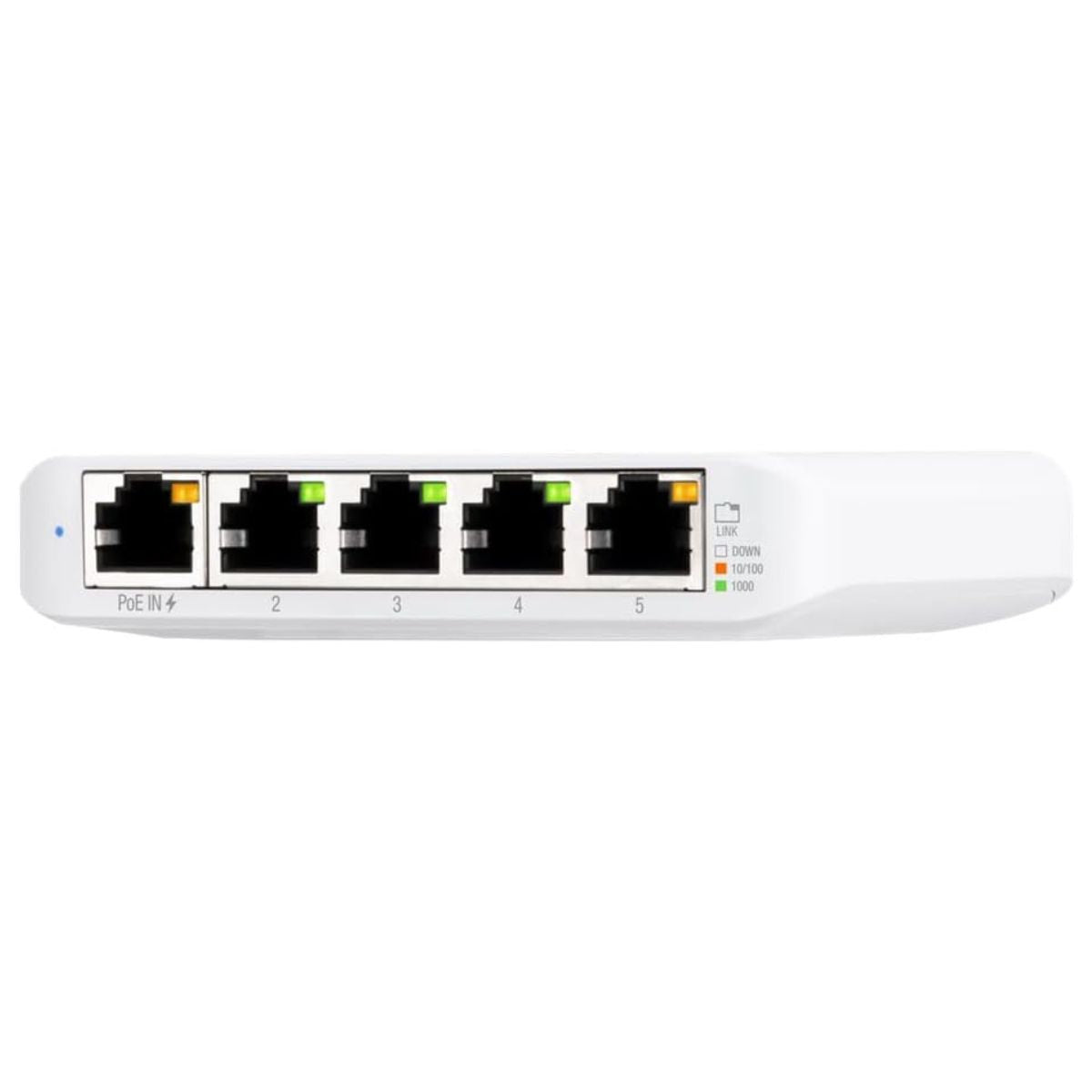

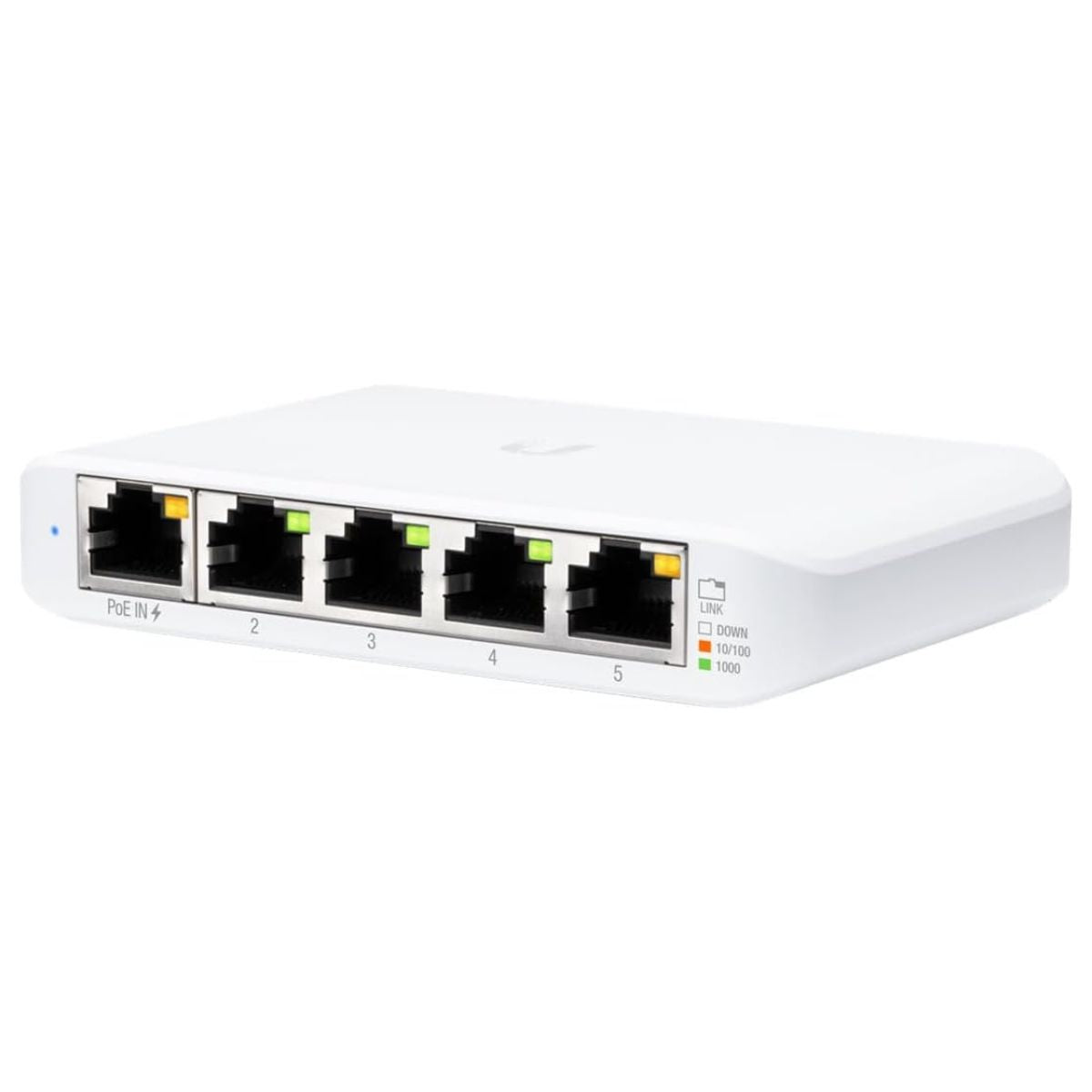

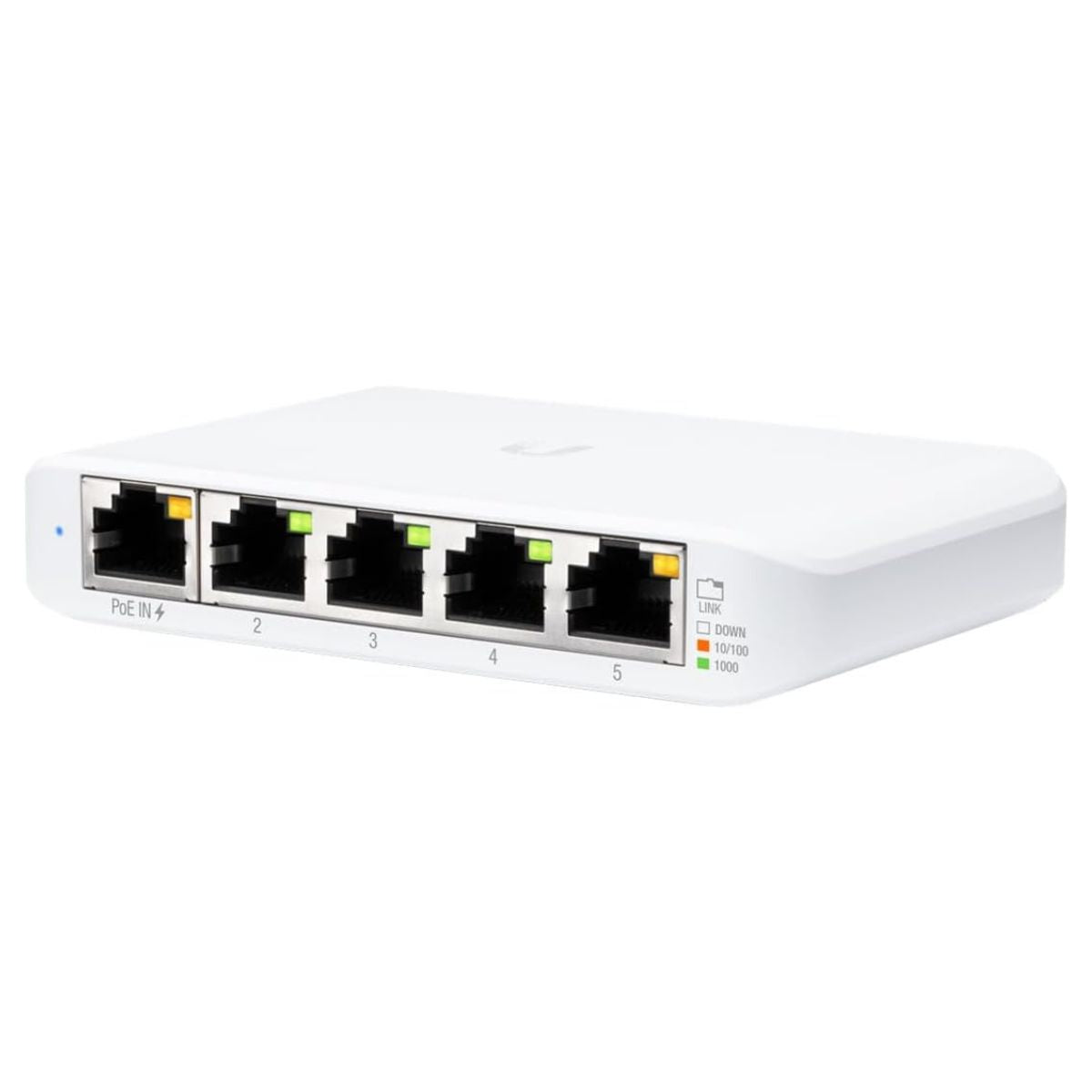

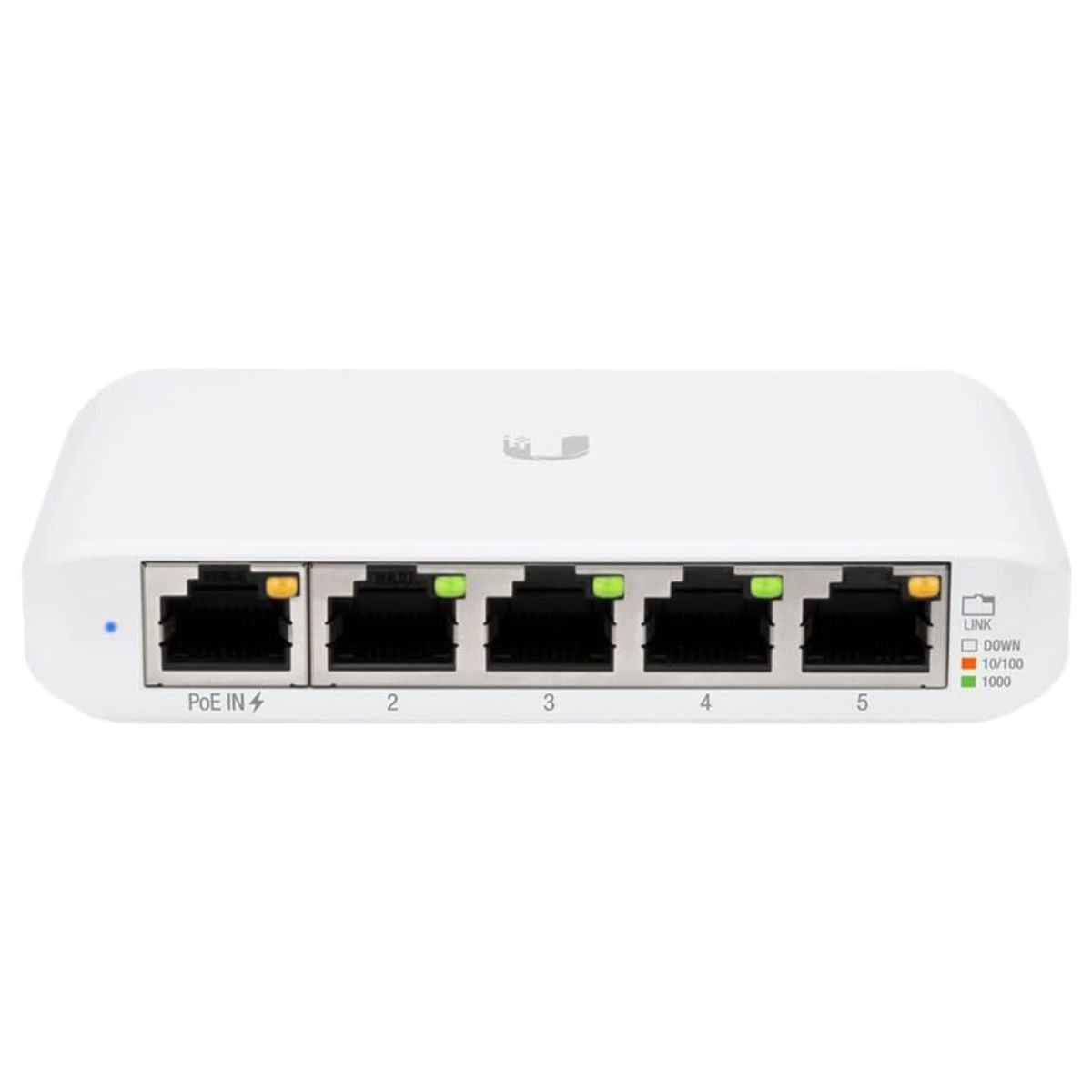

Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit Managed Switch with USB-C Power Adapter

Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit Managed Switch with USB-C Power Adapter

The Ubiquiti UniFi USW-Flex-Mini is a compact 5-port Gigabit managed switch designed for homes, small offices, workstations, surveillance setups, and network expansions where reliable wired connectivity and centralized management are required. Featuring five 10/100/1000 Mbps Gigabit Ethernet ports, a 10 Gbps switching capacity, and 5 Gbps non-blocking throughput, the USW-Flex-Mini provides efficient Layer 2 switching in a small desktop-friendly form factor. The switch can be powered through its USB Type-C input using the included 5V/1A power adapter or through 802.3af/at PoE input on its designated uplink port. With UniFi Network management support, it is a practical choice for users who want straightforward network monitoring, VLAN configuration, traffic control, and centralized administration.

Key Features

• 5-Port Gigabit Switch: Provides five 10/100/1000 Mbps RJ45 Ethernet ports for high-speed wired networking.
• Layer 2 Managed Switching: Supports essential Layer 2 network management and traffic-control features.
• 10 Gbps Switching Capacity: Delivers efficient switching performance for multiple connected devices.
• 5 Gbps Non-Blocking Throughput: Supports simultaneous network traffic with efficient packet forwarding.
• 7.44 Mpps Forwarding Rate: Provides fast packet-processing performance for everyday network traffic.
• UniFi Network Management: Allows centralized configuration and monitoring through the UniFi Network platform.
• USB Type-C Power: Includes a 5V/1A USB-C power adapter for convenient desktop deployment.
• PoE Input Support: The designated Ethernet port supports 802.3af/at PoE input for alternative power deployment.
• Compact Desktop Design: Small dimensions make it suitable for desks, network cabinets, counters, and space-constrained installations.
• Fanless Operation: Designed without a conventional cooling fan for quiet operation.
• VLAN Support: Supports up to 1,000 VLANs for network segmentation and management.
• Low Power Consumption: Maximum power consumption is approximately 2.5W.

Technical Specifications

• Brand: Ubiquiti Networks
• Product Family: UniFi
• Model: USW-Flex-Mini
• Switch Type: Layer 2 Managed Switch
• Ethernet Ports: 5 x 10/100/1000 Mbps RJ45 Gigabit Ethernet
• Switching Capacity: 10 Gbps
• Forwarding Rate: 7.44 Mpps
• Total Non-Blocking Throughput: 5 Gbps
• Management: UniFi Network Management
• Supported VLANs: Up to 1,000
• MAC Address Table: Up to 2,000 entries
• Power Input: USB Type-C 5V or 802.3af/at PoE
• Power Adapter: 5V, 1A USB-C Power Adapter
• Maximum Power Consumption: 2.5W
• Cooling: Fanless
• Dimensions: 107 x 70 x 21 mm
• Weight: 150 g
• Enclosure Material: Polycarbonate
• Operating Temperature: -5°C to 45°C
• Operating Humidity: 10% to 90% Non-Condensing
• Certifications: CE, FCC, IC
• Color: White

Gigabit Ethernet Connectivity

The USW-Flex-Mini provides five Gigabit RJ45 Ethernet ports supporting 10 Mbps, 100 Mbps, and 1000 Mbps Ethernet connections. This allows computers, access points, printers, IP cameras, NAS devices, smart devices, and other network equipment to be connected through a single compact switch.

Gigabit connectivity provides substantially higher wired network capacity than Fast Ethernet, making the switch suitable for file transfers, business applications, media streaming, network storage, and other bandwidth-intensive local network activities.

UniFi Network Management

As part of the UniFi ecosystem, the USW-Flex-Mini can be managed through UniFi Network. Administrators can use the UniFi management environment to configure supported network settings, monitor connected devices, and manage network traffic from a centralized interface.

This makes the switch particularly useful for users already operating UniFi access points, gateways, cameras, or other UniFi networking equipment and looking for a compact managed switch that can be incorporated into the same management environment.

Layer 2 Network Features

The USW-Flex-Mini supports a range of Layer 2 functions designed to improve network organization, visibility, and traffic management. Supported features include VLANs, egress rate limiting, flow control, storm control, multicast and broadcast rate limiting, port isolation, port mirroring, and jumbo frames.

These features allow the switch to be used in more structured network environments where traffic separation, monitoring, and basic access-control requirements are important.

Flexible Power Options

The USW-Flex-Mini can be powered using the included USB Type-C 5V/1A power adapter, making it convenient for standard desktop and small-office installations. The designated Ethernet port also supports 802.3af/at PoE input, allowing the switch to receive power through the network connection when a compatible PoE infrastructure is available.

Important: The PoE capability of the USW-Flex-Mini is for power input. It should not be treated as a PoE-output switch for powering other Ethernet devices.

Compact and Quiet Design

Measuring only 107 x 70 x 21 mm and weighing approximately 150 grams, the USW-Flex-Mini can be positioned easily on a desk, shelf, counter, or other compact installation area. Its fanless design helps provide quiet operation, making it suitable for offices, workstations, home networks, meeting rooms, and other environments where operating noise should be minimized.

Ideal Applications

• Small and home office networks
• Desktop network expansion
• Business workstations and offices
• UniFi network installations
• IP camera and surveillance network connectivity
• Network printers and shared office peripherals
• NAS and network storage connectivity
• Access point and networking equipment connectivity
• Meeting rooms and conference spaces
• Smart home and small-office networking
• Compact network cabinets and space-constrained installations

Compatibility & Power Information

• Supports 10/100/1000 Mbps Ethernet connections.
• Compatible with standard RJ45 Ethernet network devices.
• Can be managed through a compatible UniFi Network environment.
• Requires USB Type-C 5V power or compatible 802.3af/at PoE input.
• The included power adapter is rated at 5V/1A.
• PoE must be supplied by compatible network infrastructure when using PoE power.
• PoE input does not provide PoE power output to downstream devices.

Why Choose the Ubiquiti UniFi USW-Flex-Mini?

• Compact Form Factor: Fits easily into small workspaces and network installations.
• Gigabit Performance: Provides five high-speed Gigabit Ethernet ports.
• Managed Networking: Offers useful Layer 2 management capabilities through UniFi Network.
• Flexible Power: Supports both USB-C power and compatible PoE input.
• Low Power Usage: Maximum power consumption of approximately 2.5W.
• Quiet Operation: Fanless design is suitable for noise-sensitive environments.
• UniFi Ecosystem Integration: A practical addition to UniFi-based networking environments.
• Reliable Network Expansion: Provides an easy way to add additional wired Ethernet connections.

Why Buy from IT Splendid (UAE)?

• Professional IT networking products for home and business requirements.
• Suitable solutions for small offices, enterprise environments, and structured network installations.
• Product-focused technical information to help you select the right networking equipment.
• Convenient access to networking, computing, electronics, and business technology products in the UAE.
• Support for customers looking for practical and reliable IT infrastructure solutions.

The Ubiquiti UniFi USW-Flex-Mini is a compact and efficient 5-port Gigabit Layer 2 managed switch designed for network expansion in homes, offices, surveillance environments, and UniFi installations. With 10 Gbps switching capacity, 5 Gbps non-blocking throughput, 7.44 Mpps forwarding performance, VLAN support, UniFi Network management, and flexible USB-C or PoE input power, it provides a practical combination of performance, management, and deployment flexibility in a compact form factor.
