ViewSonic ViewBoard IFP6534 65-Inch 4K UHD Interactive Display | 40-Point Touch | Android 14 EDLA | 8GB RAM | 128GB

ViewSonic ViewBoard IFP6534 65-Inch 4K UHD Interactive Display | 40-Point Touch | Android 14 EDLA | 8GB RAM | 128GB

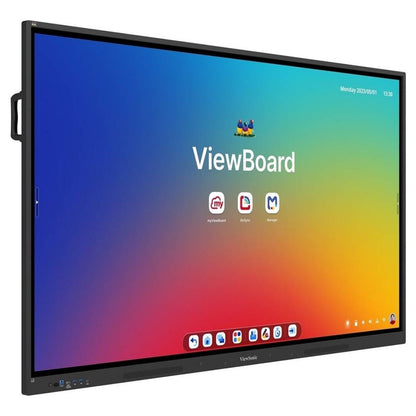

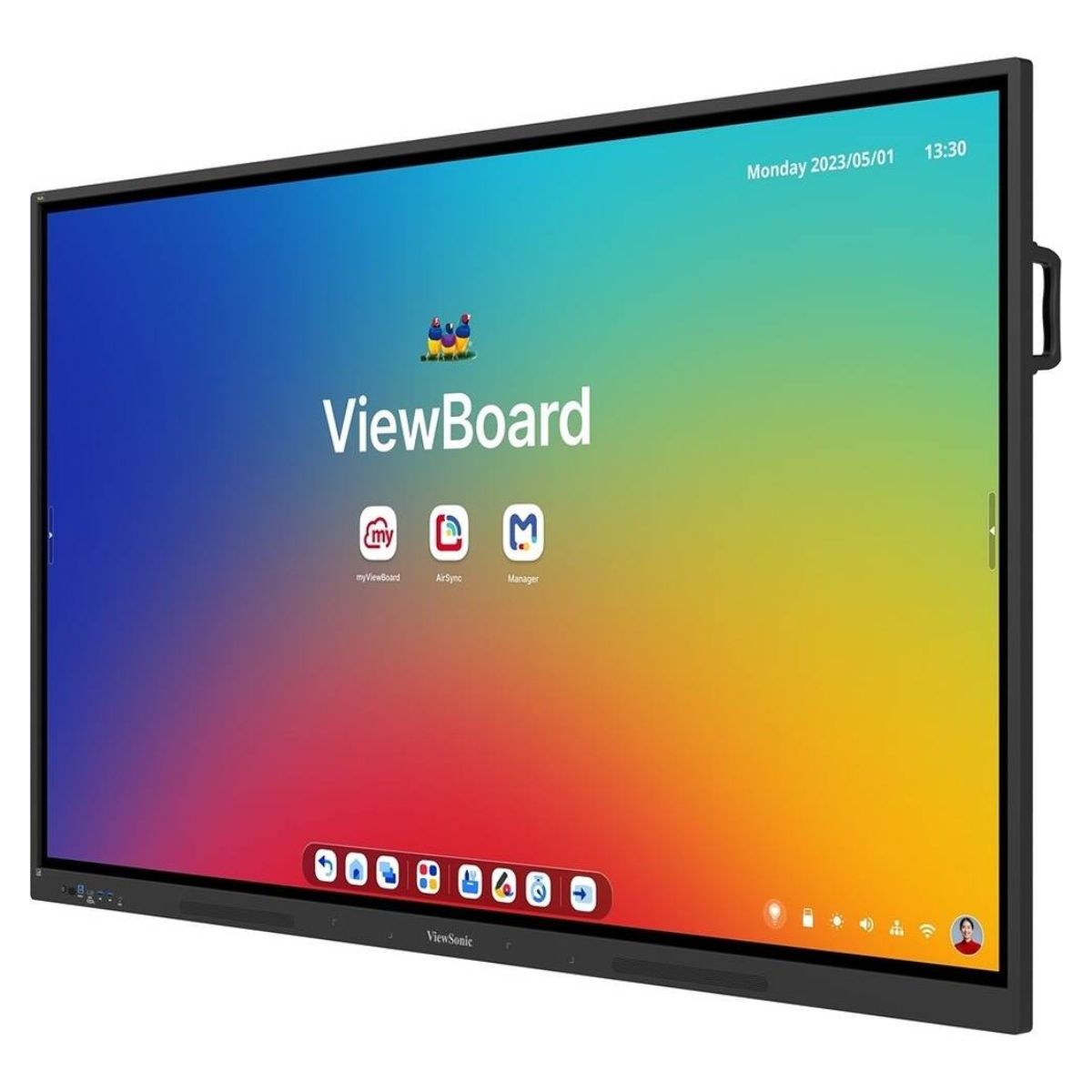

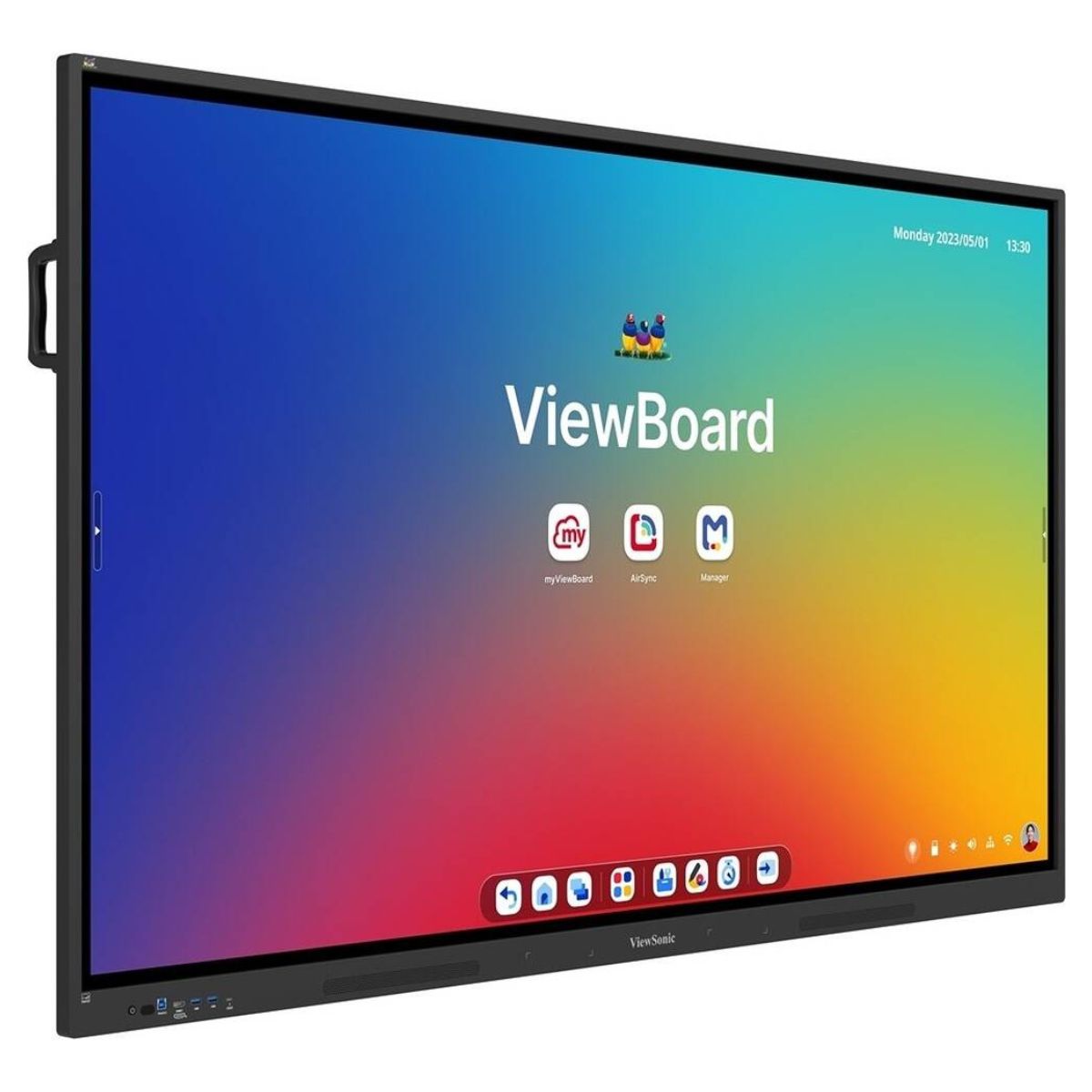

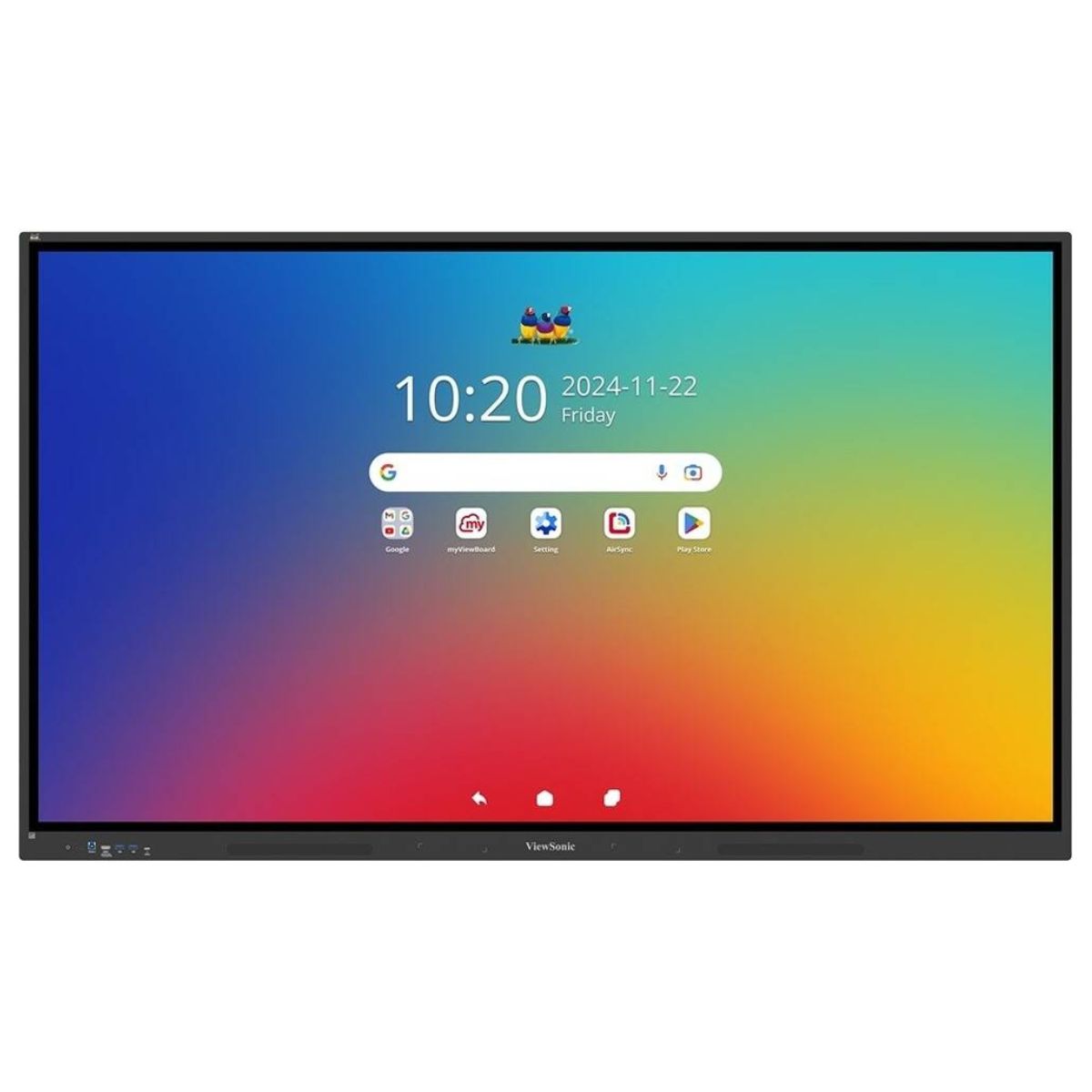

The ViewSonic ViewBoard IFP6534 is a 65-inch 4K UHD interactive display designed for modern classrooms, schools, universities, training rooms, meeting spaces, and collaborative environments. Featuring a 3840 x 2160 UHD resolution, 350-nit brightness, up to 5000:1 contrast ratio with DCR, 178° viewing angles, and a 7H anti-glare surface, it provides a clear and detailed digital workspace for presentations, digital lessons, annotation, multimedia content, and collaborative activities. Powered by a quad-core processor, 8GB DDR4 RAM, 128GB storage, and Android 14 with EDLA certification, the IFP6534 provides access to Google Play Store and supported Google services. Its Ultra Fine Touch technology with 40-point touch support enables multi-user interaction, while HDMI, DisplayPort, VGA, USB, USB-C, dual LAN, RS232, microSD, optional Wi-Fi, and OPS expansion provide flexible connectivity for professional education and collaboration environments.

Key Features

• 65-Inch 4K UHD Display: 3840 x 2160 resolution with a 16:9 aspect ratio.
• 350-Nit Brightness: Provides clear visibility for classrooms, training rooms, and professional environments.
• 5000:1 Maximum Contrast: Dynamic contrast with DCR enabled for enhanced image depth.
• 7H Anti-Glare Surface: Durable interactive surface designed to reduce reflections.
• 40-Point Ultra Fine Touch: Supports up to 40 simultaneous touch points.
• Palm Rejection: Helps distinguish intentional touch and writing interaction from accidental palm contact.
• Android 14 with EDLA: Provides Google Play Store access and supported Google applications.
• 8GB DDR4 RAM: Supports responsive operation of the integrated Android platform.
• 128GB Storage: Provides internal storage for supported applications and content.
• Quad-Core Processor: Provides the processing platform for interactive applications and multimedia.
• Dual USB-C Ports: Provides flexible connectivity, including DisplayPort and power delivery on the front USB-C port.
• Three HDMI Inputs: HDMI 2.0 inputs with HDCP 2.2 and CEC support; rear HDMI 2 also supports ARC.
• Dual LAN Ports: Provides wired network connectivity for Android and compatible slot-in PC environments.
• OPS Expansion: Supports optional Intel Standard OPS computers.
• MicroSD Expansion: Supports SD/SDHC storage expansion.
• Built-In Audio: Dual 16W speakers provide 32W total rated output.
• ViewSonic Education Software: Supports myViewBoard, AirSync, ViewSonic Manager, and ViewSonic Launcher.
• VESA 600 x 400 Mounting: Suitable for compatible wall-mounting solutions.

Technical Specifications

• Brand: ViewSonic
• Series: ViewBoard IFP34 Series
• Model: IFP6534
• Display Size: 65 inches
• Panel Type: TFT LCD Module with DLED Backlight
• Display Area: 1428.48 x 816.02 mm
• Aspect Ratio: 16:9
• Resolution: 3840 x 2160 4K UHD
• Display Colors: 1.07 billion colors
• Brightness: 350 nits
• Contrast Ratio: 5000:1 maximum with DCR enabled
• Response Time: 8ms
• Viewing Angle: 178° horizontal / 178° vertical
• Backlight Life: 50,000 hours
• Surface Hardness: 7H
• Surface Treatment: Anti-glare coating
• Orientation: Landscape
• Processor: Quad-Core
• RAM: 8GB DDR4
• Storage: 128GB
• Operating System: Android 14 EDLA
• Touch Technology: Ultra Fine Touch Technology
• Touch Resolution: 32767 x 32767
• Touch Points: 40 points
• Palm Rejection: Yes
• HDMI Input: 3 x HDMI 2.0
• HDMI Features: HDCP 2.2 and CEC; rear HDMI 2 supports ARC
• DisplayPort: 1
• VGA Input: 1
• Audio Input: 1
• RS232: 1
• MicroSD: 1 x SD/SDHC slot
• OPS Slot: 1, optional Intel Standard OPS
• Wi-Fi Slot: 1, optional compatible ViewSonic Wi-Fi module
• HDMI Output: 1 x HDMI 2.0
• Audio Output: 1
• SPDIF: 1
• RJ45 LAN: 2
• USB 3.2 Gen 1 Type-A: 4
• USB 2.0 Type-A: 1
• USB 3.0 Type-B: 2
• USB Type-C: 2
• Front USB-C: DP 1.2, data, 10/100M sharing, and up to 65W PD without OPS or 15W with OPS
• Rear USB-C: Data and 15W PD
• Speakers: 16W x2
• Camera Plate: Supported
• Wireless Presentation: AirSync
• Annotation Software: myViewBoard
• Device Management: ViewSonic Manager
• ViewSonic Launcher: Yes
• Light Sensor: Yes
• Power Supply: 100-240V AC
• Power Consumption: 78.26W On; ≤0.5W Off
• VESA Mount: 600 x 400 mm
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20% to 80% RH, non-condensing
• Dimensions: 1482.2 x 891.4 x 87.7 mm
• Package Dimensions: 1640 x 1010 x 185 mm
• Net Weight: 36.4 kg
• Gross Weight: 45.9 kg
• Certifications: FCC/ICES003, EPEAT, CE EMC, LVD/CB, RoHS, ErP, REACH, EEL, WEEE, BSMI, BIS
• Energy Star: Version 8.0

65-Inch 4K UHD Interactive Display

The 65-inch 4K UHD display provides a spacious digital workspace for interactive teaching, business presentations, training sessions, meetings, and collaborative projects. The 3840 x 2160 resolution delivers detailed text, graphics, diagrams, presentations, and multimedia content, while the 16:9 aspect ratio supports standard educational and business content formats.

With 350 nits brightness, 178° viewing angles, and up to 5000:1 contrast with DCR, the display provides clear visuals across a wide viewing area. The DLED backlight and 7H anti-glare surface are designed for regular interactive use in professional environments.

Ultra Fine Touch Technology

The Ultra Fine Touch Technology provides a responsive interactive writing experience for digital whiteboarding, annotation, drawing, presentations, and collaborative activities. The IFP6534 supports up to 40 simultaneous touch points, allowing multiple users to interact with the display at the same time.

The display also supports palm rejection for a more natural writing experience. Dual touch pens are included with the standard package, providing convenient tools for annotation and interactive lessons.

Android 14 with EDLA Certification

The integrated Android 14 platform with EDLA certification provides a secure and flexible smart-display environment with access to the Google Play Store and supported Google applications. ViewSonic describes the platform as designed for integration with the Google education ecosystem as well as Microsoft 365 and Google Workspace environments.

The EDLA-certified Android platform provides access to supported educational and productivity applications directly from the interactive display, reducing the need for an external computer for many common classroom activities.

8GB RAM and 128GB Storage

The ViewBoard IFP6534 combines a quad-core processor, 8GB DDR4 RAM, and 128GB internal storage. This configuration provides the integrated Android environment with resources for supported applications, digital whiteboarding, presentations, educational content, and multimedia playback.

A built-in microSD/SDHC slot also provides an option for compatible storage expansion, making it easier to manage additional teaching resources and local content.

Dual USB-C Connectivity

The IFP6534 features two USB-C ports for flexible connectivity. The front USB-C port supports DisplayPort 1.2, data transfer, 10/100M network sharing, and power delivery of up to 65W without an OPS computer or 15W when an OPS computer is installed. The rear USB-C port provides data connectivity and 15W power delivery.

This allows compatible laptops and peripherals to be connected through a streamlined USB-C workflow, helping reduce cable complexity in classrooms and meeting spaces.

Professional Connectivity and OPS Expansion

The display provides three HDMI 2.0 inputs, DisplayPort, VGA, audio input, RS232, microSD, multiple USB ports, HDMI output, audio output, SPDIF, and dual RJ45 LAN ports. HDMI inputs support HDCP 2.2 and CEC, while the second rear HDMI input also supports ARC.

A dedicated OPS slot supports optional Intel Standard OPS computers, allowing the display to be expanded with a Windows-based computing environment when required. The OPS computer is an optional component and is not included unless specifically supplied with the purchased configuration.

Google Education and Collaboration

The IFP6534 is designed around ViewSonic's education ecosystem, combining Android 14 EDLA, Google Play Store access, myViewBoard, AirSync, and ViewSonic Manager. These tools support digital whiteboarding, wireless presentation, interactive lessons, and centralized device management.

ViewSonic also highlights compatibility with Google Workspace and Microsoft 365 workflows, helping educators and organizations integrate the interactive display into existing productivity and education environments.

Wireless Presentation and Device Management

AirSync provides wireless content casting capabilities for compatible devices, helping educators and presenters share content without relying exclusively on physical video connections.

ViewSonic Manager provides centralized device management capabilities for compatible ViewBoard deployments. Supported functions include remote management and power-related controls, while certain advanced multimedia broadcasting and ECO control features require the applicable optional license.

Energy-Efficient Classroom Design

The IFP6534 is designed with energy efficiency in mind and carries ENERGY STAR 8.0 and EPEAT certifications listed by ViewSonic. The manufacturer states that the IFP34 Series uses 20% less energy than its predecessor, helping educational institutions reduce energy consumption while supporting more sustainable classroom deployments.

Ideal Applications

• Schools & K-12 Classrooms: Interactive teaching, digital lessons, annotation, and collaborative learning.
• Universities & Higher Education: Lectures, seminars, presentations, and interactive instruction.
• Corporate Training: Employee training, workshops, seminars, and instructional presentations.
• Meeting Rooms: Presentations, brainstorming, planning, and collaborative discussions.
• Training Centers: Professional courses, demonstrations, and group learning.
• Government & Institutional Offices: Presentations, training sessions, and collaborative work.
• Creative Workspaces: Brainstorming, annotation, planning, and visual collaboration.

Benefits

• 65-inch 4K UHD screen provides a large interactive workspace.
• 3840 x 2160 resolution delivers detailed presentation and multimedia content.
• 40-point Ultra Fine Touch supports multi-user interaction.
• Palm rejection provides a more natural writing and annotation experience.
• Android 14 EDLA provides access to Google Play Store and supported Google services.
• 8GB RAM and 128GB storage provide a capable integrated Android platform.
• MicroSD support provides additional storage flexibility.
• Dual USB-C ports simplify connection of compatible computers and peripherals.
• Three HDMI inputs, DisplayPort, VGA, USB, LAN, and audio interfaces provide extensive connectivity.
• Optional OPS support enables expansion with compatible Windows computing hardware.
• myViewBoard and AirSync support interactive teaching and wireless presentation workflows.
• ViewSonic Manager supports centralized device management for compatible deployments.
• ENERGY STAR 8.0 and EPEAT certifications support energy-conscious installations.

Why Choose ViewSonic ViewBoard IFP6534?

• Education-Focused Platform: Designed specifically to support modern K-12 and higher-education environments.
• 40-Point Interactive Touch: Ultra Fine Touch technology supports simultaneous multi-user interaction.
• Modern Android Environment: Android 14 EDLA provides access to Google Play Store and supported Google applications.
• Strong Memory and Storage: 8GB DDR4 RAM and 128GB storage support the integrated Android platform.
• Flexible Connectivity: HDMI, DisplayPort, VGA, USB, USB-C, LAN, RS232, microSD, and audio interfaces support varied installation requirements.
• Expandable Computing: The OPS slot provides compatibility with optional Intel Standard OPS computers.
• Integrated Education Software: myViewBoard, AirSync, ViewSonic Manager, and Launcher provide tools for teaching, casting, and device management.
• Energy-Conscious Design: ENERGY STAR 8.0 and EPEAT certifications support sustainable classroom deployments.

Important Considerations

• Wi-Fi: The Wi-Fi slot supports optional ViewSonic modules such as VB-WIFI-004, VB-WIFI-006, or VSB-050; confirm the exact wireless configuration supplied with the unit.
• OPS PC: The OPS slot supports optional Intel Standard OPS computers, but an OPS computer is not included with the standard display.
• Software Licensing: Certain advanced ViewSonic Manager features, including multimedia broadcasting and ECO mode control, may require an optional Advanced license.
• Mounting: Use a compatible VESA 600 x 400 mounting solution rated for the display's approximately 36.4 kg net weight.
• Installation: Professional handling and installation are recommended for a large interactive display.
• Regional Configuration: Wireless modules, software availability, accessories, and bundled components can vary by market; confirm the exact UAE package before installation.
