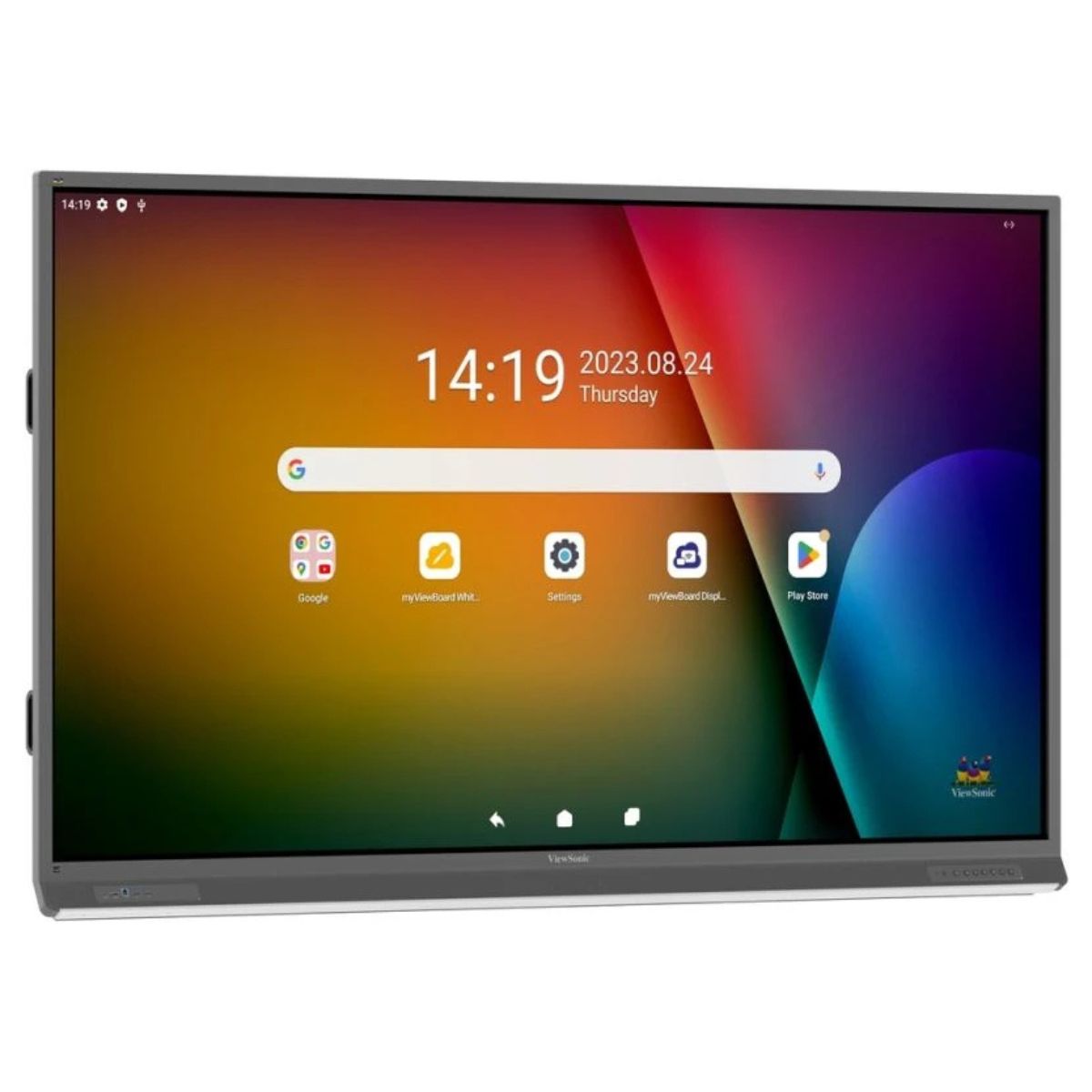

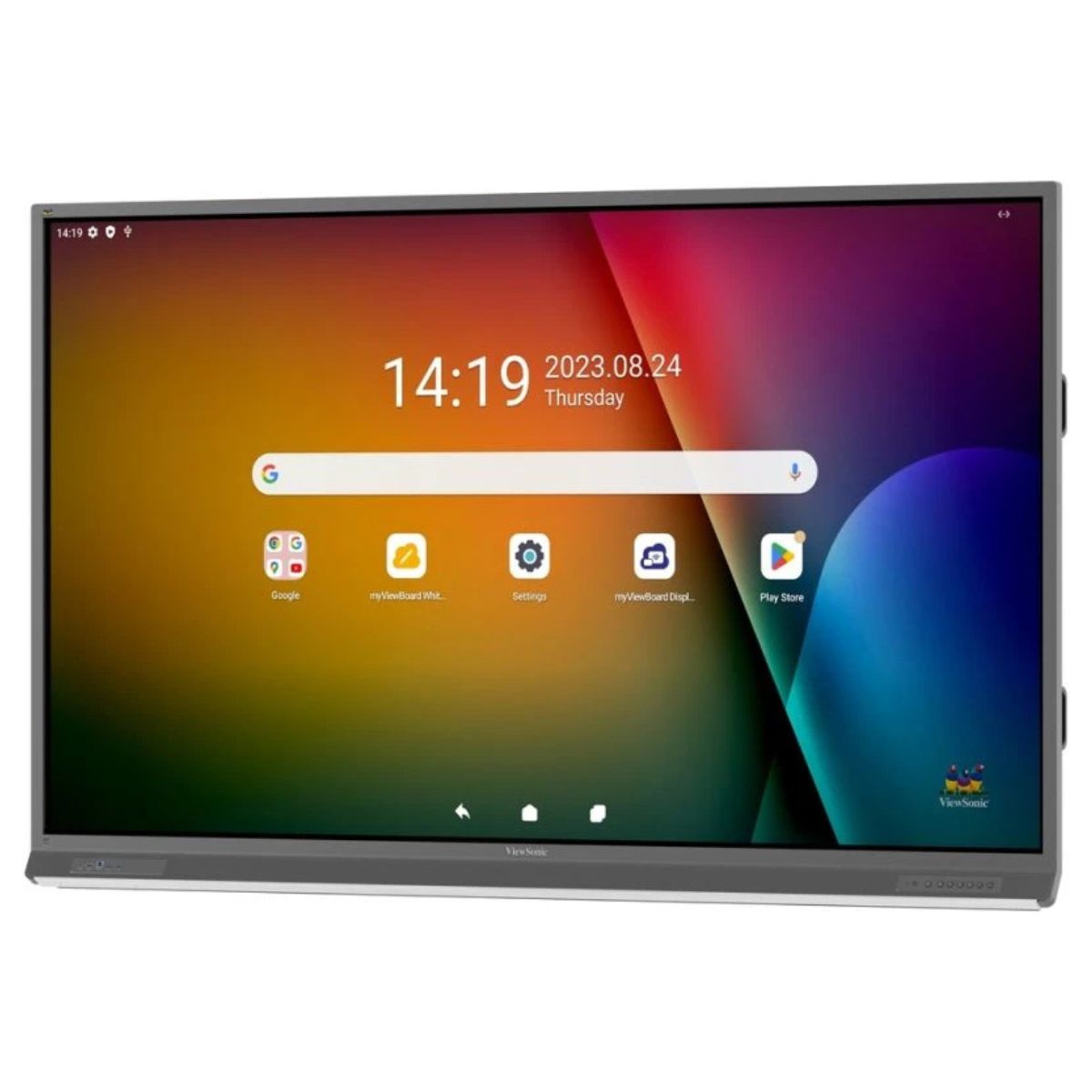

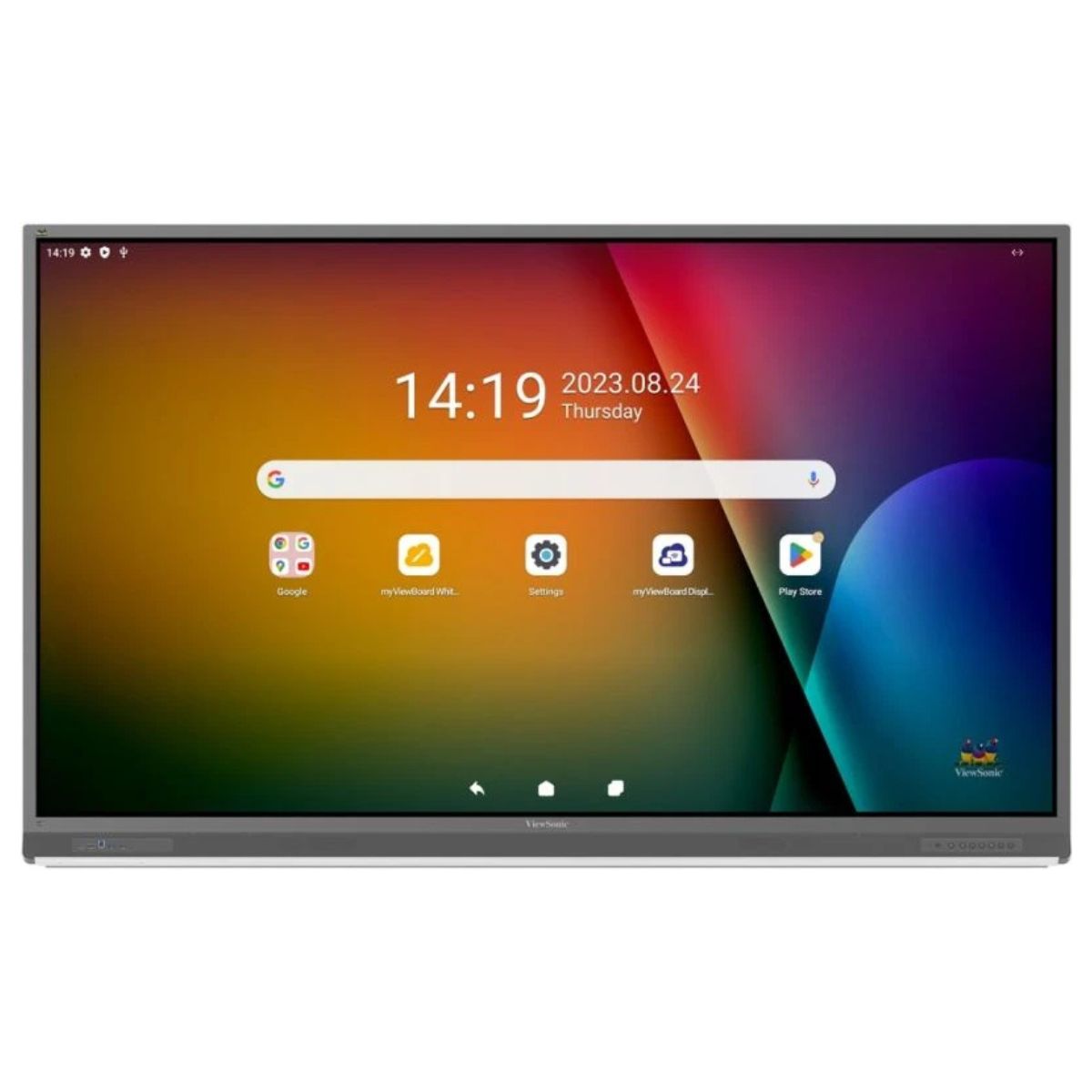

ViewSonic ViewBoard IN7503-1C 75-Inch 4K UHD Interactive Display | 40-Point Touch | Android 14 EDLA | 8GB RAM | 128GB

ViewSonic ViewBoard IN7503-1C 75-Inch 4K UHD Interactive Display | 40-Point Touch | Android 14 EDLA | 8GB RAM | 128GB

The ViewSonic ViewBoard IN7503-1C is a 75-inch 4K UHD interactive display designed for modern classrooms, training rooms, meeting spaces, corporate collaboration areas, and professional presentation environments. Featuring a 3840 x 2160 UHD resolution, 450-nit brightness, 5000:1 maximum contrast ratio with DCR, 178° viewing angles, and a 9H anti-glare surface, it delivers clear and detailed content for presentations, digital lessons, video, annotation, and collaborative work. Powered by an octa-core processor, 8GB DDR4 RAM, 128GB storage, and Android 14 with EDLA certification, the IN7503-1C provides integrated access to Google Play Store and supported Google applications. Its 40-point Ultra Fine Touch technology on both Windows and Android supports multi-user interaction, while HDMI, USB, VGA, RS232, RJ45, USB-C, OPS expansion, built-in Wi-Fi antenna support, and dual 20W speakers provide a versatile platform for professional interactive applications.

Key Features

• 75-Inch 4K UHD Display: 3840 x 2160 resolution with a 16:9 aspect ratio.
• 450-Nit Brightness: Provides clear and vivid visibility for classrooms and professional environments.
• 9H Anti-Glare Surface: Designed to reduce reflections while providing a durable interactive surface.
• 40-Point Ultra Fine Touch: Supports up to 40 simultaneous touch points on both Windows and Android.
• Android 14 with EDLA: Google-certified platform with access to Google Play Store and supported Google applications.
• 8GB DDR4 RAM: Supports responsive operation of the integrated Android platform.
• 128GB Storage: Provides internal storage for supported applications and content.
• Octa-Core Processor: A53 x4 + A73 x4 architecture with Mali-G52 MP8 GPU.
• USB-C Connectivity: Front USB-C port supports USB 2.0 connectivity and up to 15W power delivery.
• HDMI Connectivity: Two HDMI 2.0 inputs with CEC support, including a rear HDMI connection with ARC.
• Built-In Audio: Dual 20W speakers provide a total rated output of 40W.
• Wireless Connectivity Support: Supplied with dual-band Wi-Fi antennas.
• OPS Expansion: Dedicated slot for compatible Intel Standard OPS computers.
• Micro SD Expansion: Supports SD/SDHC storage expansion.
• VESA 800 x 400 Mounting: Suitable for compatible wall-mounting solutions.

Technical Specifications

• Brand: ViewSonic
• Series: ViewBoard IN03 Series
• Model: IN7503-1C
• Display Size: 75 inches
• Panel Type: TFT LCD Module with DLED Backlight
• Display Area: 1649.664 x 927.936 mm
• Aspect Ratio: 16:9
• Resolution: 3840 x 2160 4K UHD
• Display Colors: 1.07 billion colors, 8-bit + FRC
• Brightness: 450 nits
• Contrast Ratio: 5000:1 maximum with DCR enabled
• Response Time: 8ms
• Viewing Angle: 178° horizontal / 178° vertical
• Backlight Life: 50,000 hours
• Surface Hardness: 9H
• Surface Treatment: Anti-glare coating
• Orientation: Landscape
• Processor: Octa-Core CPU, A53 x4 + A73 x4
• GPU: Mali-G52 MP8
• RAM: 8GB DDR4
• Storage: 128GB
• Operating System: Android 14
• EDLA: Google-certified Enterprise Device Licensing Agreement
• Touch Technology: Ultra Fine Touch Technology
• Touch Points: Windows 40 points; Android 40 points
• HDMI Input: 2 x HDMI 2.0 with CEC
• HDMI ARC: Supported on rear HDMI input
• VGA Input: 1
• Audio Input: 1
• RS232: 1
• SD/SDHC: 1
• OPS Slot: 1, compatible with optional Intel Standard OPS
• HDMI Output: 1
• Audio Output: 1
• SPDIF: 1
• RJ45 LAN: 1
• USB 3.2 Gen 1 Type-A: 4, two front and two rear
• USB 2.0 Type-A: 1 rear
• USB 2.0 Type-B: 2, one front and one rear
• USB Type-C: 1 front, USB 2.0 with 15W PD
• Speakers: 20W x2
• Wireless Antennas: Dual-band Wi-Fi antenna x2 included
• Power Supply: 100-240V AC
• Power Consumption: 175W normal; less than 0.5W off
• VESA Mount: 800 x 400 mm
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20% to 80% RH, non-condensing
• Dimensions: 1712 x 1022 x 98.8 mm
• Package Dimensions: 1863 x 1155 x 185 mm
• Net Weight: 43.6 kg
• Gross Weight: 51.9 kg
• Certifications: BIS, Energy Star

75-Inch 4K UHD Interactive Display

The 75-inch 4K UHD display provides a spacious digital workspace for interactive teaching, professional presentations, meetings, training sessions, and collaborative projects. The 3840 x 2160 resolution produces detailed text, graphics, diagrams, videos, and presentation content, while the 16:9 aspect ratio supports standard multimedia and business formats.

With 450 nits brightness, 178° viewing angles, and up to 5000:1 contrast with DCR, the display is designed to provide clear visibility across a range of professional and educational environments.

Ultra Fine Touch Technology

The Ultra Fine Touch Technology provides a responsive interactive writing experience for annotation, digital whiteboarding, drawing, and collaborative activities. The display supports up to 40 touch points on both Windows and Android, allowing multiple users to interact with the screen simultaneously.

The IN7503-1C also supports dual-tip pen interaction. Two supplied touch pens can be used for collaborative writing and annotation, with the dual-tip design allowing users to switch between different writing characteristics during supported applications.

Android 14 with EDLA Certification

The integrated Android 14 platform with EDLA certification provides a modern smart-display environment with access to the Google Play Store and supported Google applications. Users can access applications such as Chrome, YouTube, Google Search, and Google Workspace tools directly through the Android environment.

Android security and application updates help maintain the platform with less manual maintenance, making the display suitable for managed educational and business environments.

8GB RAM and 128GB Storage

The ViewBoard IN7503-1C combines an octa-core A53 x4 + A73 x4 processor, Mali-G52 MP8 GPU, 8GB DDR4 RAM, and 128GB internal storage. This hardware configuration provides the integrated Android platform with the resources needed for supported applications, interactive whiteboarding, presentations, multimedia playback, and collaboration workflows.

Advanced Anti-Glare Display Surface

The display features a 9H anti-glare surface designed to reduce reflections and improve visibility during interactive use. The durable surface is suitable for frequent finger and pen interaction in classrooms, training rooms, and meeting environments.

Professional Connectivity

The IN7503-1C provides a practical selection of wired interfaces, including two HDMI 2.0 inputs, VGA, audio input, RS232, SD/SDHC, USB-A, USB-B, USB-C, HDMI output, audio output, SPDIF, and RJ45 LAN. HDMI inputs support CEC, while the rear HDMI connection also supports ARC.

Four USB 3.2 Gen 1 Type-A ports are available across the front and rear of the display, providing convenient access for external storage, peripherals, and compatible USB devices. The front USB-C port supports USB 2.0 connectivity and up to 15W power delivery.

Wireless Connectivity and Expansion

The Middle East configuration includes two dual-band Wi-Fi antennas, supporting the display's wireless networking capabilities when properly configured. This provides flexibility for connected applications and supported wireless collaboration workflows.

A dedicated OPS slot supports compatible Intel Standard OPS computers, allowing the display to be expanded with a Windows-based computing platform. The OPS computer is optional and is not included unless specifically supplied with the purchased configuration.

Built-In 40W Audio

The ViewBoard IN7503-1C incorporates two 20W speakers for a total rated audio output of 40W. The integrated audio system provides sound for presentations, educational videos, training material, meetings, and other multimedia content without requiring external speakers for many installations.

Google Play and Collaboration

With Google Play Store access and the Android 14 platform, the display can provide a flexible environment for educational and business applications. ViewSonic's ecosystem also supports tools for digital whiteboarding, wireless presentation, classroom collaboration, and device management, depending on the software and licensing configuration used.

Ideal Applications

• Schools & Universities: Interactive teaching, digital classrooms, lectures, and collaborative learning.
• Corporate Training: Employee training, workshops, seminars, and instructional presentations.
• Meeting Rooms: Presentations, brainstorming, planning, and collaborative discussions.
• Conference Rooms: Large-format presentations and interactive content sharing.
• Training Centers: Professional courses, demonstrations, and group learning.
• Government & Institutional Offices: Presentations, training sessions, and collaborative work.
• Creative Workspaces: Brainstorming, annotation, planning, and visual collaboration.

Benefits

• Large 75-inch screen provides an expansive interactive workspace.
• 4K UHD resolution delivers detailed and sharp presentation content.
• 450-nit brightness supports clear viewing in professional environments.
• 9H anti-glare surface helps reduce reflections during interactive use.
• 40-point touch support on both Windows and Android enables multi-user collaboration.
• Android 14 EDLA platform provides access to Google Play Store and supported Google applications.
• 8GB RAM and 128GB storage provide a capable integrated Android platform.
• Multiple HDMI, USB, VGA, LAN, audio and control interfaces support varied installation requirements.
• Dual 20W speakers provide integrated 40W audio output.
• OPS expansion enables the addition of compatible Windows computing hardware.
• Dual-band Wi-Fi antenna support provides wireless networking flexibility.
• VESA 800 x 400 mounting supports compatible wall-mounted installations.

Why Choose ViewSonic ViewBoard IN7503-1C?

• Large Interactive Workspace: The 75-inch 4K UHD screen is suitable for classrooms, meeting rooms, and professional collaboration areas.
• 40-Point Touch: Ultra Fine Touch technology supports up to 40 simultaneous touch points on both Windows and Android.
• Modern Android Platform: Android 14 with EDLA certification provides access to supported Google services and applications.
• High-Capacity Configuration: 8GB DDR4 RAM and 128GB storage provide a strong platform for supported applications and content.
• Flexible Connectivity: HDMI, VGA, USB, USB-C, LAN, audio, RS232 and SPDIF interfaces support a wide range of devices.
• Expandable Design: The integrated OPS slot allows compatible computing hardware to be added when required.
• Professional Audio: Dual 20W speakers provide integrated sound for presentations, lessons, and multimedia.

Important Considerations

• Touch Capability: ViewSonic specifies 40 touch points for both Windows and Android operation.
• OPS PC: The OPS slot supports compatible Intel Standard OPS computers, but the OPS computer is optional.
• Wi-Fi Accessories: The Middle East product specification lists dual-band Wi-Fi antennas in the package contents.
• Mounting: Use a compatible VESA 800 x 400 mounting solution rated for the display's approximately 43.6 kg net weight.
• Installation: Professional handling and installation are recommended for a large 75-inch interactive display.
• Software: Availability of specific ViewSonic software features and services may depend on the applicable software version and licensing.
• Regional Configuration: Bundled accessories and configuration can vary by market; confirm the exact supplied package before installation.
